Catalytic Converter: Service and Repair

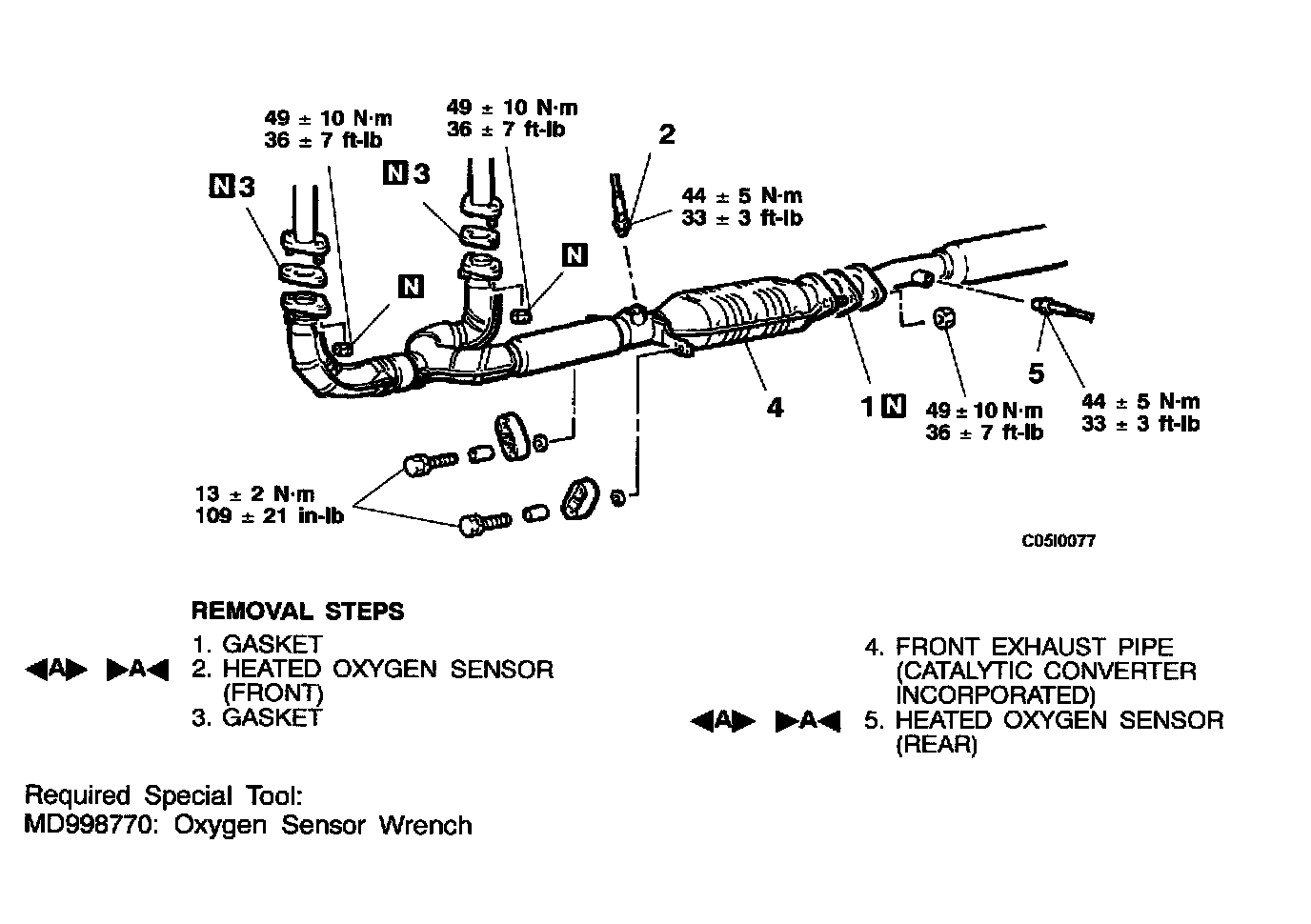

Federal Emission Regulation:

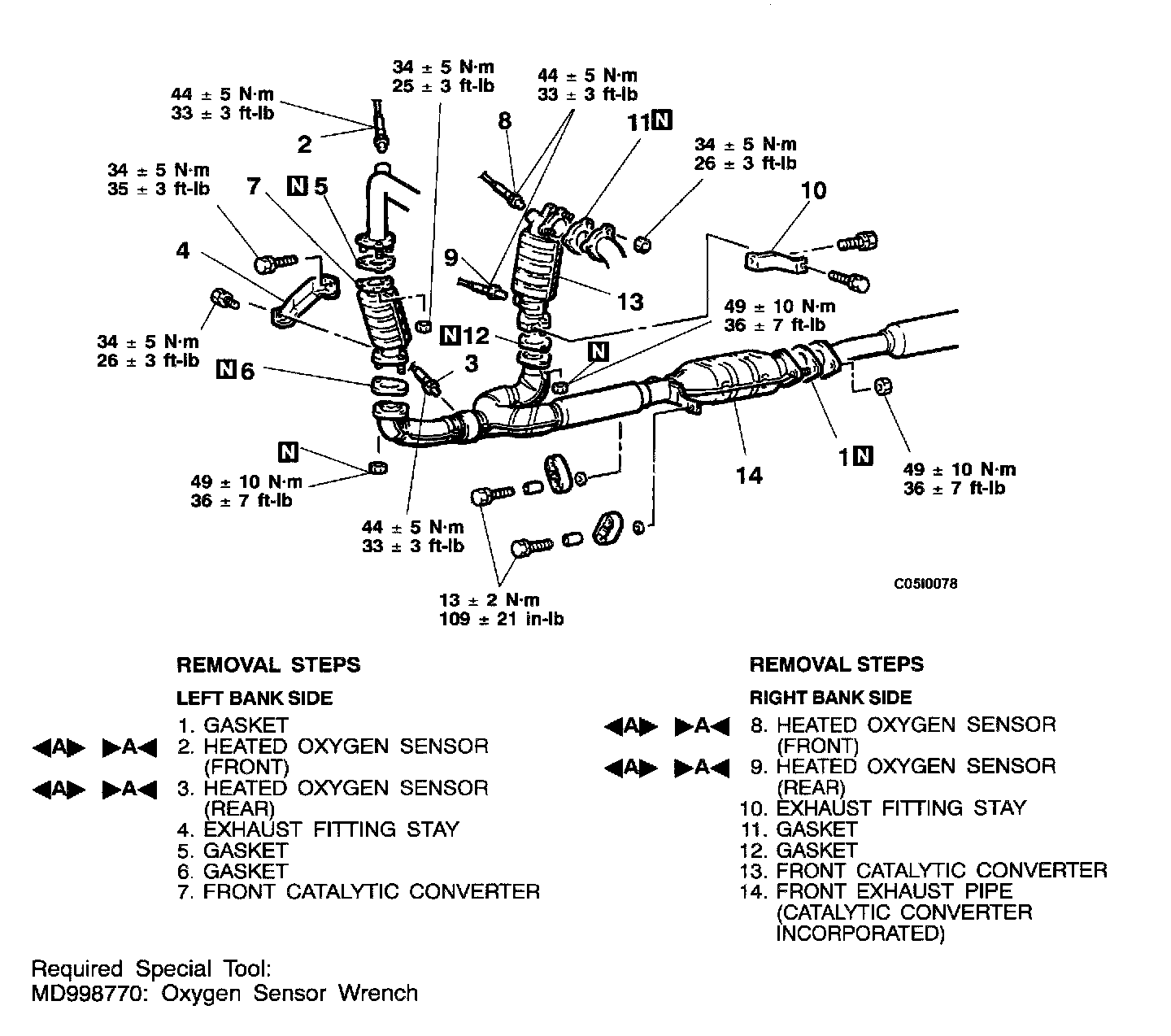

California Emission Regulation:








REMOVAL SERVICE POINT

HEATED OXYGEN SENSOR REMOVAL

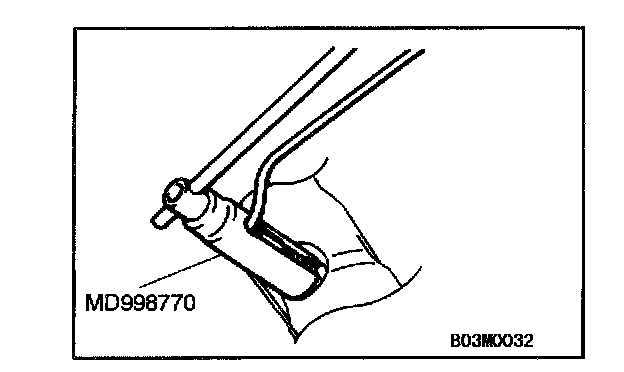

Use special tool MD998770 to remove the heated oxygen sensor.

>A< HEATED OXYGEN SENSOR INSTALLATION
Use special tool MD998770 to install the heated oxygen sensor.
