Symptom Chart
Symptom Chart

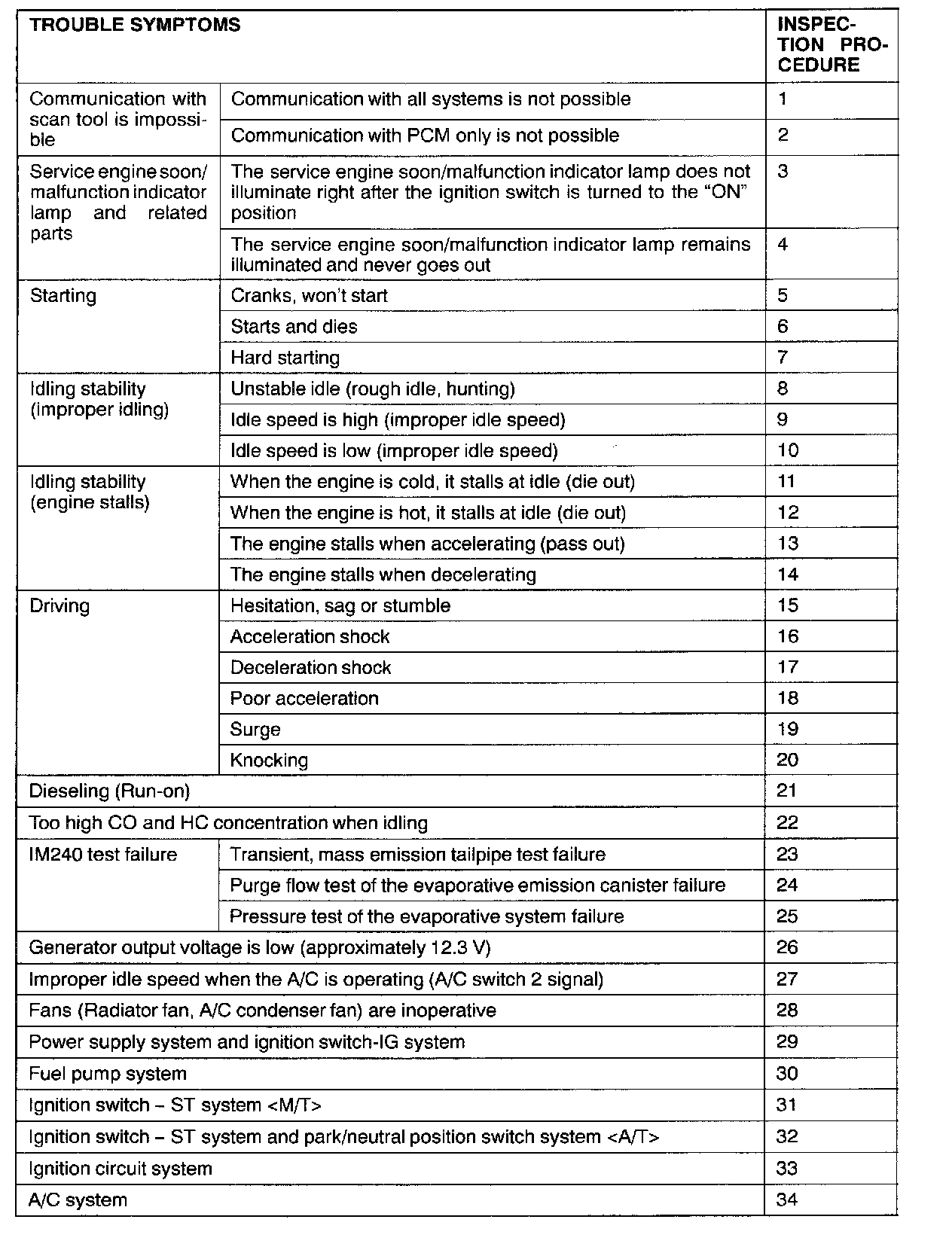

Symptom Chart:
NOTE:
Check that the PCM ground circuit is normal before checking for the cause of the problem.
