Inspection Procedure 8

COMMENT
- In such cases, the cause is probably the air/fuel mixture or idle air control motor. Other systems affecting idle quality include the ignition system and compression.

TROUBLESHOOTING HINTS
The most likely causes for this case:
- Malfunction of the ignition system.
- Malfunction of air/fuel ratio control system.
- Malfunction of the IAC system.
- Malfunction of the evaporative emission purge solenoid system.
- Poor compression pressure.
- Vacuum leak.
- Malfunction of the EGR solenoid system.

DIAGNOSIS
Required Special Tool:
MB991502: Scan Tool (MUT-II)

STEP 1. Check if the battery terminal is disconnected Has the battery terminal been disconnected lately?
If no, go to Step 2.
If yes, start the engine and let it run at idle for approximate 10 minutes after engine warm up. Then, if a malfunction occurs, go to Step 2.

CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch is to "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502.




STEP 2. Using scan tool MB991502, read the diagnostic trouble code (DTC).

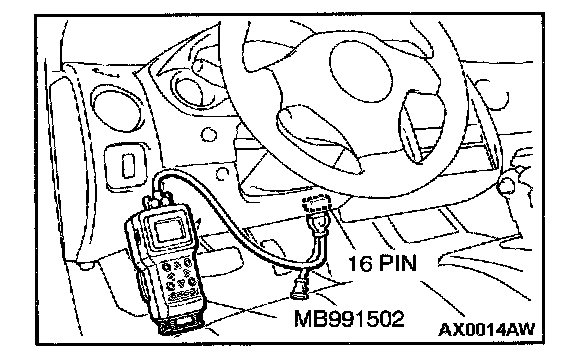

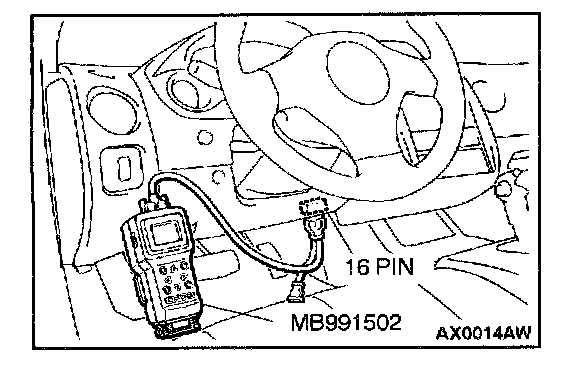

1. Connect scan tool MB991502 to the data link connector.
2. Turn the ignition switch to "ON" position.
3. Read the DTC.

If DTC is not output, go to Step 3.

If DTC is output, refer to Diagnostic Trouble Code Chart.

STEP 3. Check the engine idling state.
If hunting occurs, go to Step 4.

If hunting does not occur, go to Step 6.

STEP 4. Check the following items.
1. Carry out the following cleaning.
a. Clean the throttle valve area.

2. After cleaning or adjusting, confirm that the malfunction symptom is eliminated.

If the malfunction symptom is not resolved, go to Step 5.

If the malfunction symptom is resolved, the check is completed.

STEP 5. Check for vacuum leaks.
1. Check the following items, and repair or replace the defective items.
a. Broken intake manifold gasket.
b. Broken air intake hose.
c. Broken vacuum hose.
d. Positive crankcase ventilation valve does not operate. Then confirm that the malfunction symptom is eliminated.

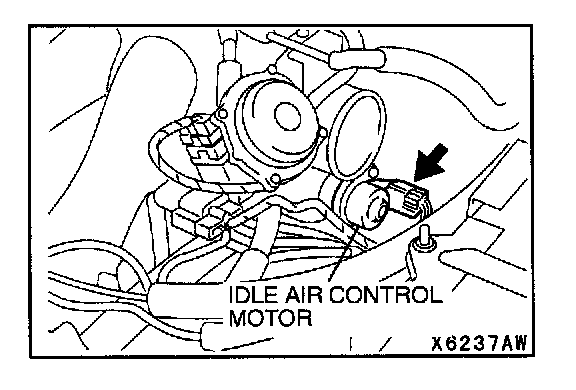

STEP 6. Check the idle air control (IAC) motor operation sound.
1. Check that the engine coolant temperature is 20°C (68°F) or below.

NOTE: Disconnecting the engine coolant temperature sensor connector and connecting the harness side of the connector to another engine coolant temperature sensor that is at 20°C (68°F) or below is also okay.

2. Check the operation sound of the IAC motor can be heard after the ignition is switched to ON" position (but without starting the engine).
- An operation sound should be heard.

If correct, go to Step 7.

If no sound is heard, refer to DTC P0505 - Idle Control System Malfunction.

CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502.




STEP 7. Using scan tool MB991502, check actuator test items 01, 02, 03, 04, 05, 06: Injector.

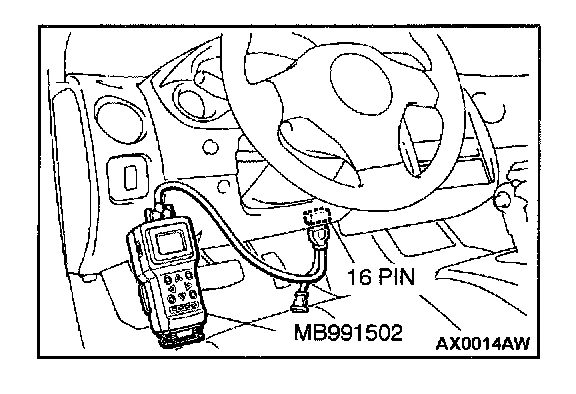

1. Connect scan tool MB991502 to the data link connector.
2. Check following items in the actuator test. Refer to Actuator Test Reference Table.
a. Item 01, 02, 03, 04, 05, 06: Injector.

If the test items do not indicate a defect, go to Step 8.

If the test items indicate a defect, refer to DTC P0201, P0202, P0203, P0204, P0205, P0206 - Injector Circuit Malfunction.




STEP 8. Using scan tool MB991502, check data list and actuator test.

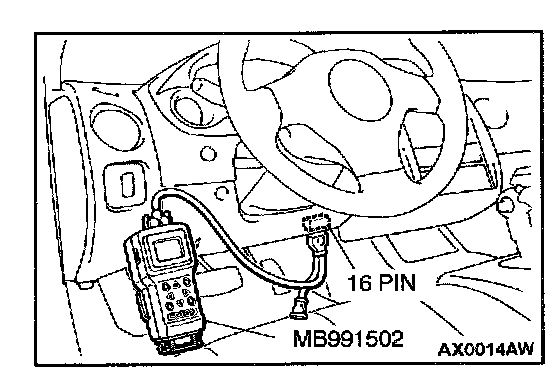

1. Connect scan toot MB991502 to the data link connector.
2. Turn the ignition switch to "ON" position.
3. Check the following items in the data list.
Refer to Data List Reference Table.
a. Item 13: Intake Air Temperature Sensor.
b. Item 25: Barometric Pressure Sensor.
c. Item 21: Engine Coolant Temperature Sensor.
d. Item 59: Heated Oxygen Sensor (rear) Right Bank Heated Oxygen Sensor (rear)
e. Item 11: Heated Oxygen Sensor (front) Right Bank Heated Oxygen Sensor (front)
f. Item 69: Left Bank Heated Oxygen Sensor (rear)
g. Item 39: Left Bank Heated Oxygen Sensor (front)
h. Item 27: Power Steering Pressure Switch.
i. Item 28: A/C Switch
j. Item 29: Park/neutral Position Switch

4. Check the following items in the actuator test. Refer to Actuator Test Reference Table.
a. Item 08: Evaporative Emission Purge Solenoid.
b. Item 10: EGR Solenoid.

If the checks above meet the specifications, go to Step 9.

If the checks above do not meet the specifications, repair or replace the appropriate component. Then confirm that the malfunction symptom is eliminated.




STEP 9. Using scan tool MB991502, check data list.
1. Check the following items in the data list. Refer to Data List Reference Table.
a. Item 45: Idle Air Control Motor Position.

If the check above meets the specification, go to Step 10.

If the check above does not meet the specification, adjust the basic idle speed. Refer to Basic Idle Speed Adjustment. After adjusting, confirm that the malfunction symptom is eliminated.




STEP 10. Using scan tool MB991502, check data list.
1. Check the following items of the data list. Refer to Data List Reference Table.
a. Item 11: Heated Oxygen Sensor (front) Right Bank Heated Oxygen Sensor (front)
b. Item 39: Left Bank Heated Oxygen Sensor (front)
- Voltage should fluctuate between 0 - 0.4 volts and 0.6 - 1.0 volts while idling after the engine has been warmed.

If the voltage does not fluctuate, go to Step 11.

If the voltage fluctuates, go to Step 13.

STEP 11. Check the fuel pressure.
Refer to Fuel Pressure Test.
If correct, go to Step 12.
If incorrect, repair or replace. Then confirm that the malfunction symptom is eliminated.

STEP 12. Check the following items.
1. Check the following items, and repair or replace the defective items.
a. Vacuum leak.
- Broken intake manifold gasket.
- Broken air intake hose.
- Broken vacuum hose.
- Positive crankcase ventilation valve does not operate.

b. Injector clogged.

Then confirm that the malfunction symptom is eliminated.

STEP 13. Check the ignition timing.
Refer to On-vehicle Service - Ignition Timing Check.

If within specifications, go to Step 14.

If not within specifications, check that the crankshaft position sensor and timing belt cover are in the correct position. Repair, then confirm that the malfunction symptom is eliminated.

STEP 14. Check the following items.
1. Check the following items, and repair or replace the defective items.
a. Check the ignition coil, spark plugs, spark plug cables.
b. Check the purge control system.
c. Check compression pressure.
d. Check if the foreign materials (water, kerosene, etc.) got into fuel.
e. Check the EGR control system.

Then confirm that the malfunction symptom is eliminated.
