Diagnostic By Diagnostic Test Mode II

DIAGNOSTIC BY DIAGNOSTIC TEST MODE II (INCREASED SENSITIVITY)

CAUTION To prevent damage to scan tool MB991502, always turn the ignition switch to "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502.

NOTE: When mode II is selected with MUT-II, the Service Engine Soon/Malfunction Indicator Lamp will light when the engine control module (ECM) or powertrain control module (PCM) first detects the trouble (Note that this is only for emission-related trouble). At the same time, the relevant diagnostic trouble codes will be registered. In respect to the comprehensive component electrical faults (opens/shorts), the time for the diagnostic trouble code to be registered after the fault occurrence is four seconds -> one second. Therefore, the confirmation of the trouble symptom and the confirmation after completing repairs can be reduced. To return to the normal mode I after mode H has been selected once, the ignition switch must be turned "OFF" once or mode I must be reselected with MUT-II. The diagnostic trouble code, readiness test status and freeze frame data, etc., will be erased when mode I is returned to, so record these before returning to mode I.

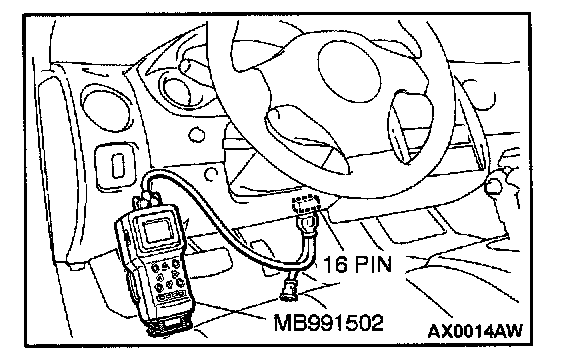

1. Connect scan tool MB991502 to the data link connector.
2. Turn the ignition switch to "ON" position.
3. Change the diagnostic test mode of the engine control module to DIAGNOSTIC TEST MODE II (INCREASED SENSITIVITY).
4. Road test the vehicle.
5. Read the diagnostic trouble code and repair the malfunctioning part.
6. Turn the ignition switch to "LOCK" (OFF) position.
7. Disconnect scan tool MB991502 from the data link connector.
