Terminal Resistance and Continuity Check
Terminal Resistance and Continuity Check

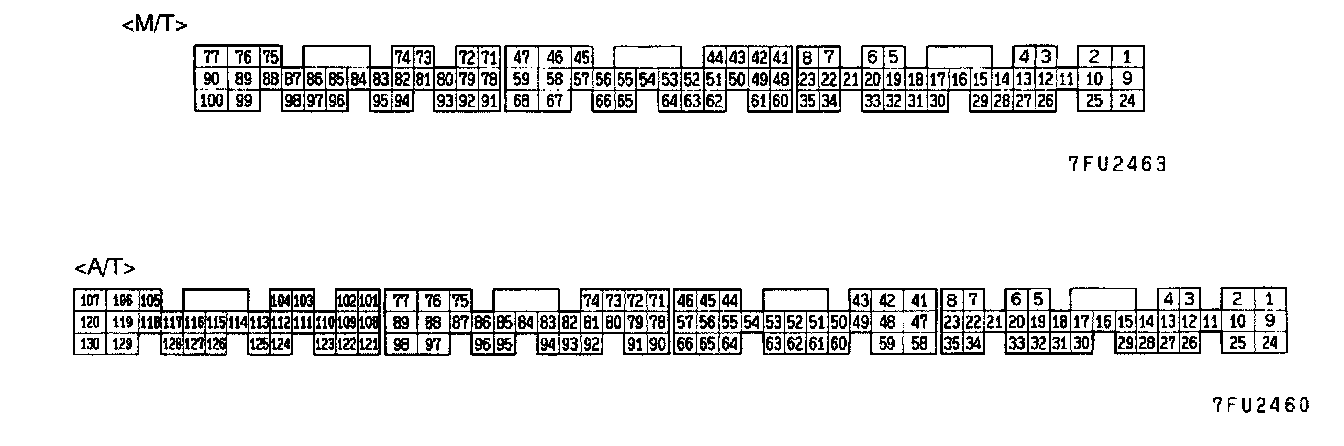

ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement:

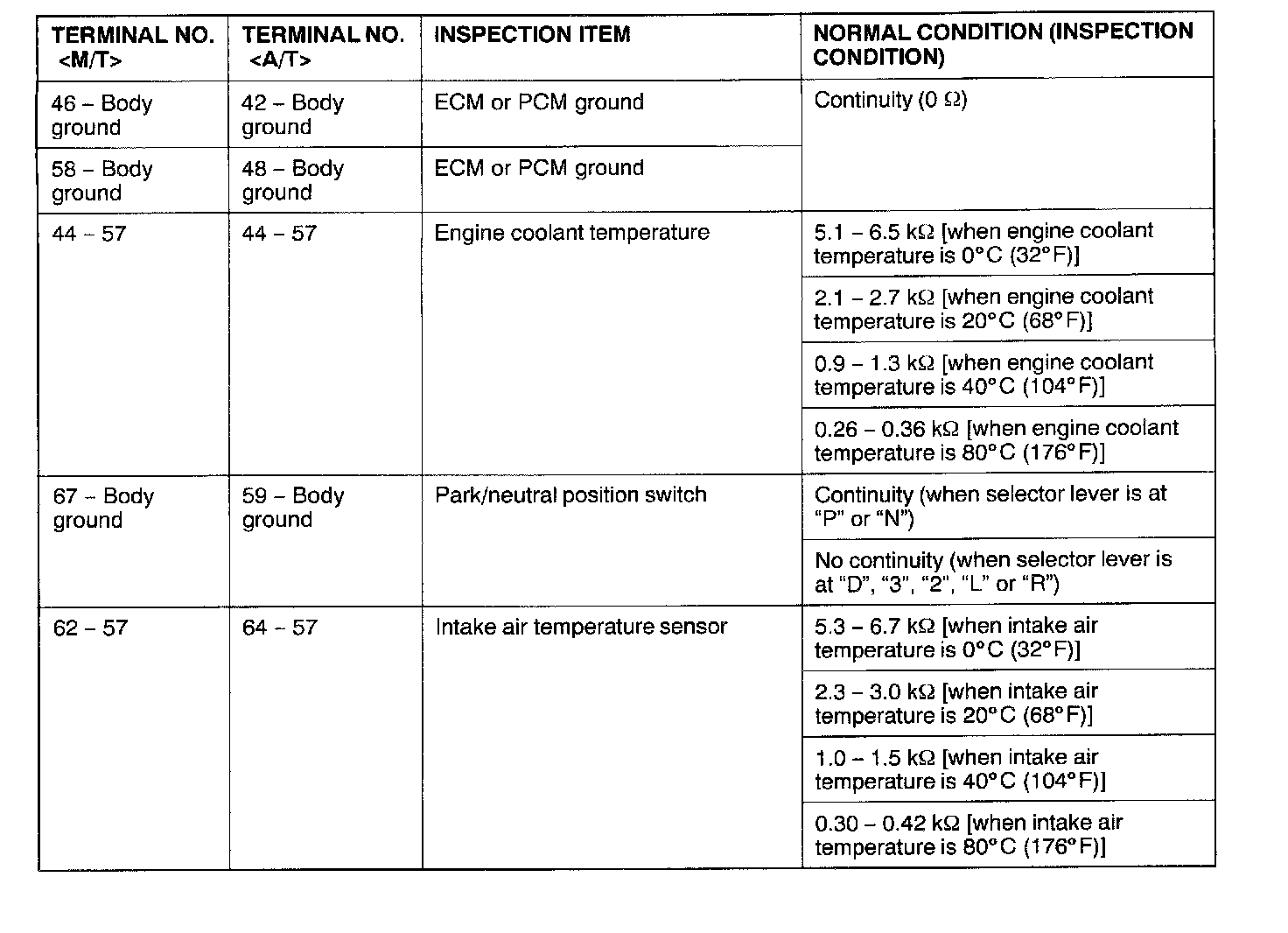

Part 1 Of 2:

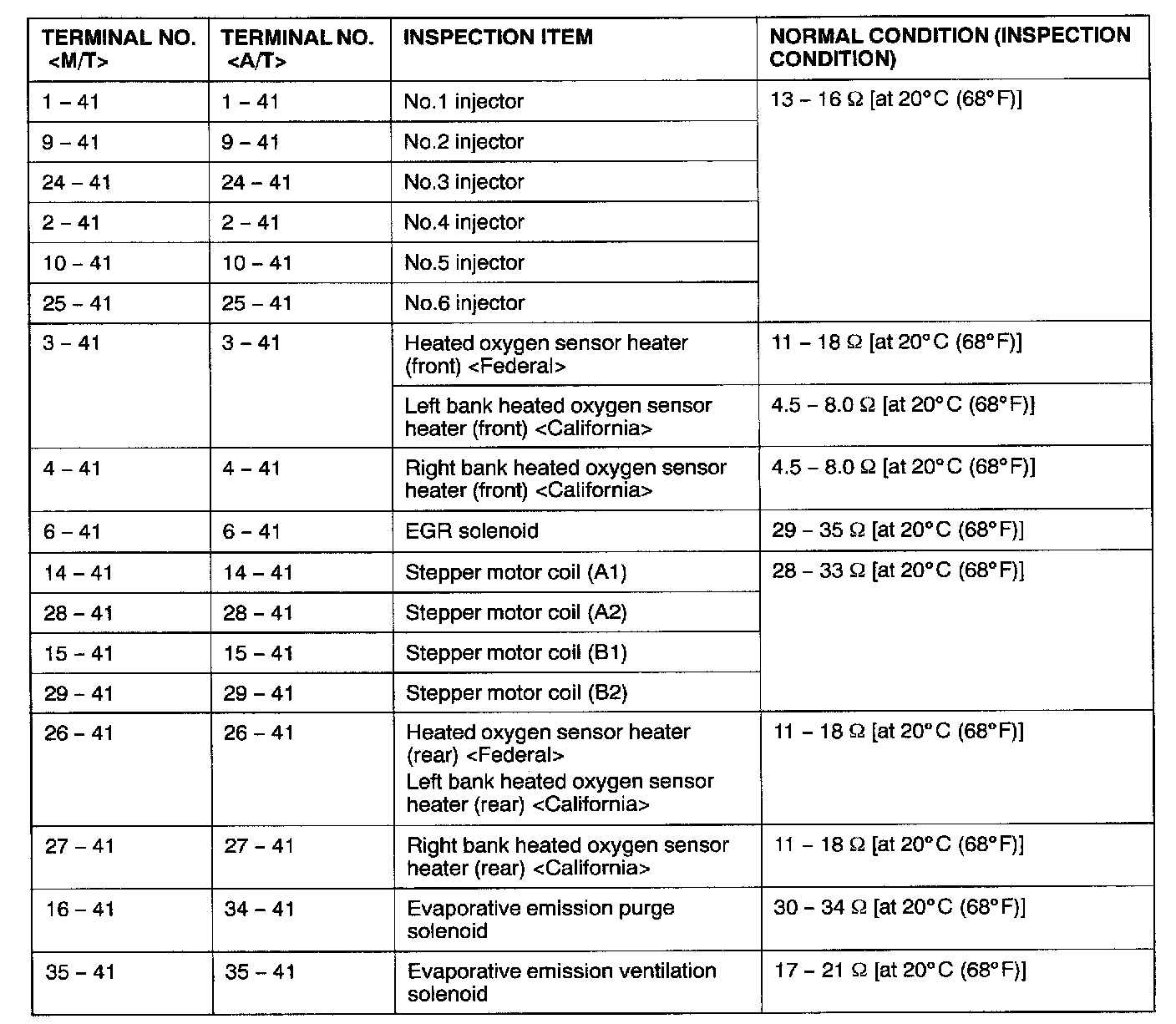

Part 2 Of 2:
