Engine Controls - Revised Vacuum Routing Diagrams
No.: TSB-03-17-003DATE: March, 2003
MODEL: 2000-03 Eclipse
2001-03 Eclipse Spyder
SUBJECT:
CORRECTED VACUUM HOSE ROUTING DIAGRAMS
(ECLIPSE) - SERVICE MANUAL REVISION
PURPOSE
This bulletin contains corrected vacuum hose routing diagrams.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
2000-03 Eclipse
2001-03 Eclipse Spyder
AFFECTED SERVICE MANUAL
2000 Eclipse Service Manual, Volume 2, Pages 17-72, 74
2001 Eclipse Spyder Service Manual (early production, blue book), Volume 2, Pages 17-69, 71
2001 Eclipse/Eclipse Spyder Service Manual, Volume 2, Pages 17-85, 87
2002 Eclipse/Eclipse Spyder Service Manual, Volume 2, Pages 17-88, 90
2003 Eclipse/Eclipse Spyder Service Manual, Volume 2, Pages 17-90, 93
SERVICE MANUAL REVISIONS

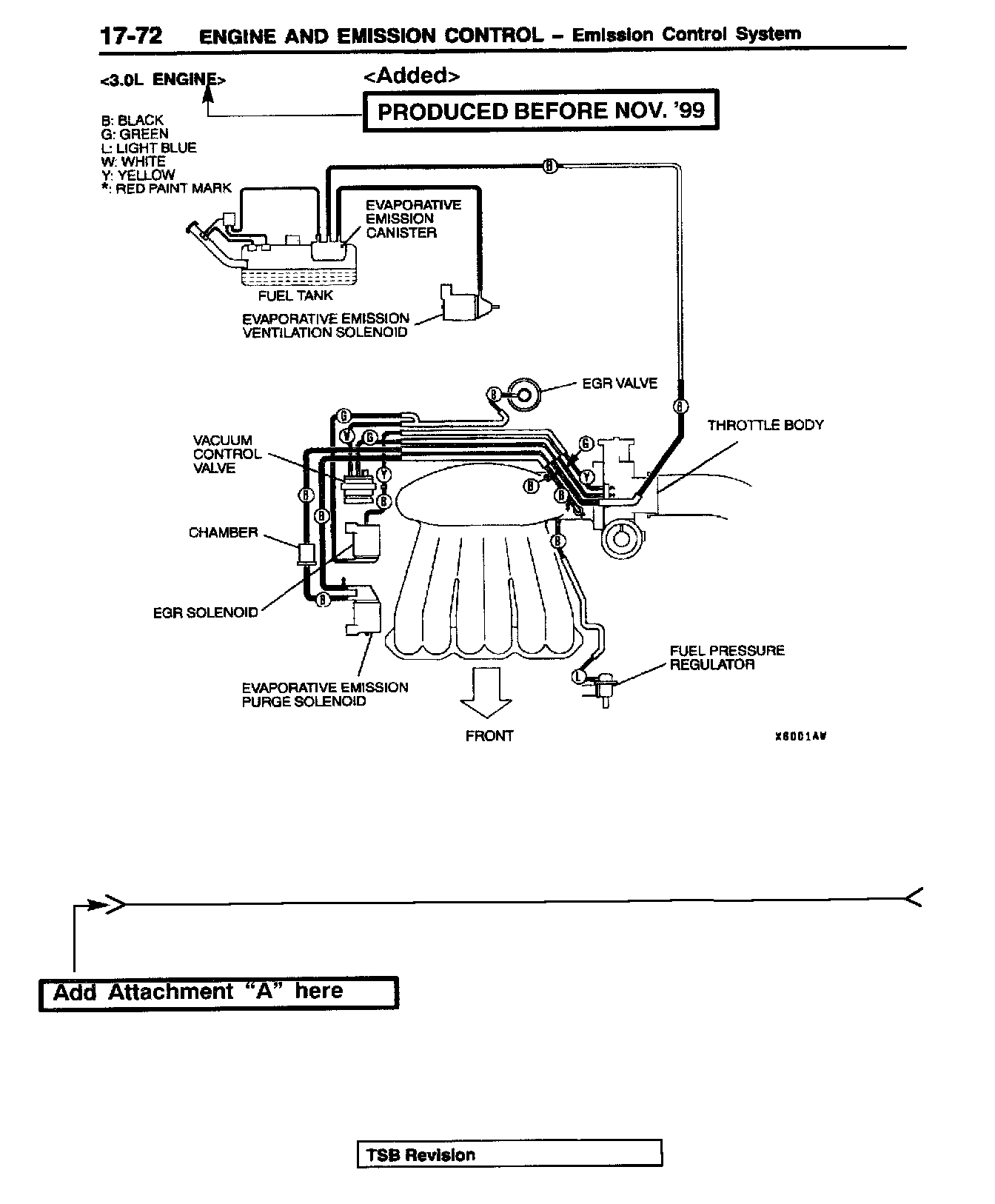

2000 Eclipse Service Manual, Volume 2, Page 17-72
Revise page 17-72 as shown, and add the new vacuum diagram (Attachment "A").

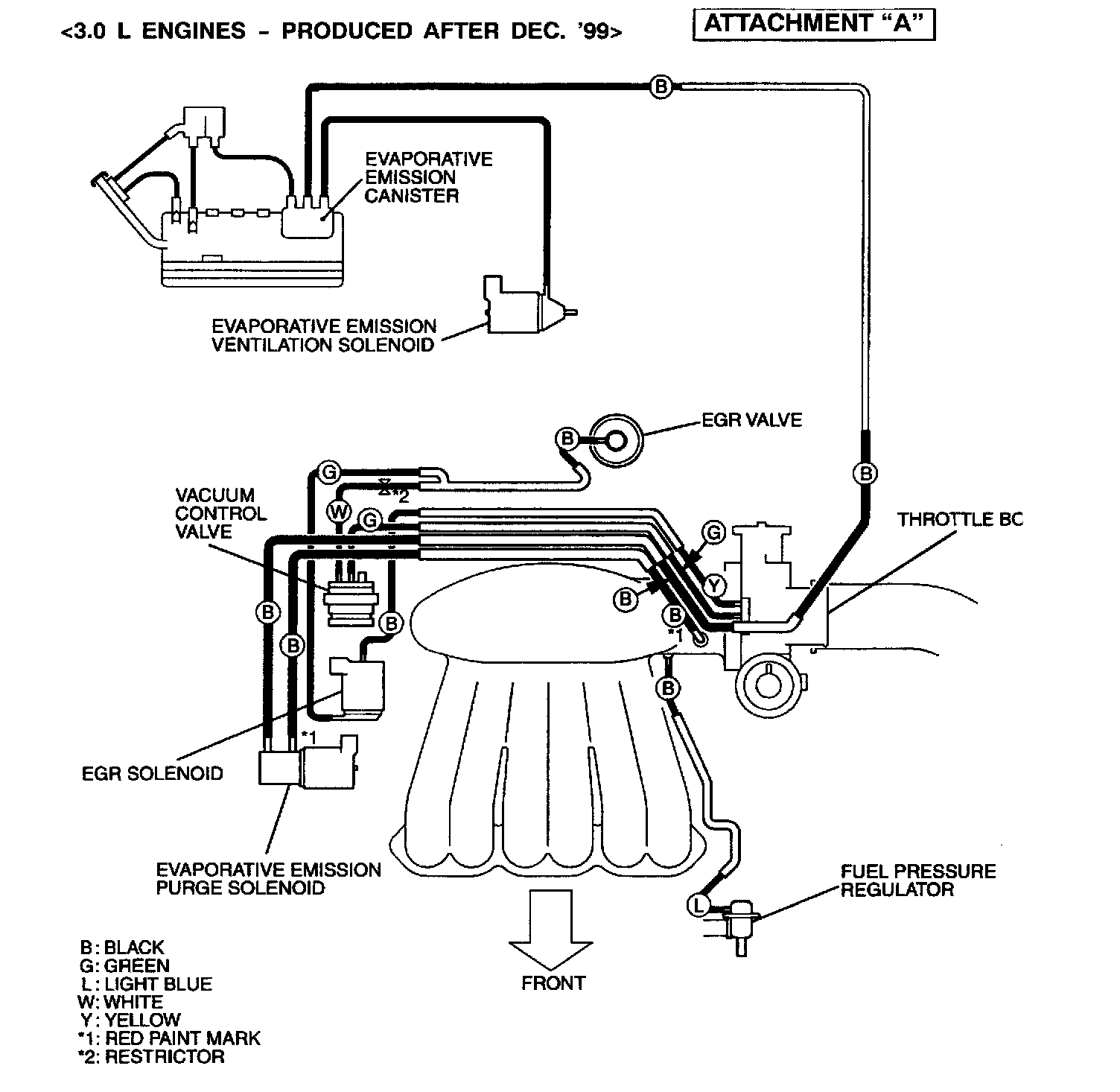

2000 Eclipse Service Manual, Volume 2, Page 17-72 Add Attachment "A" to the indicated area on page 17-72.

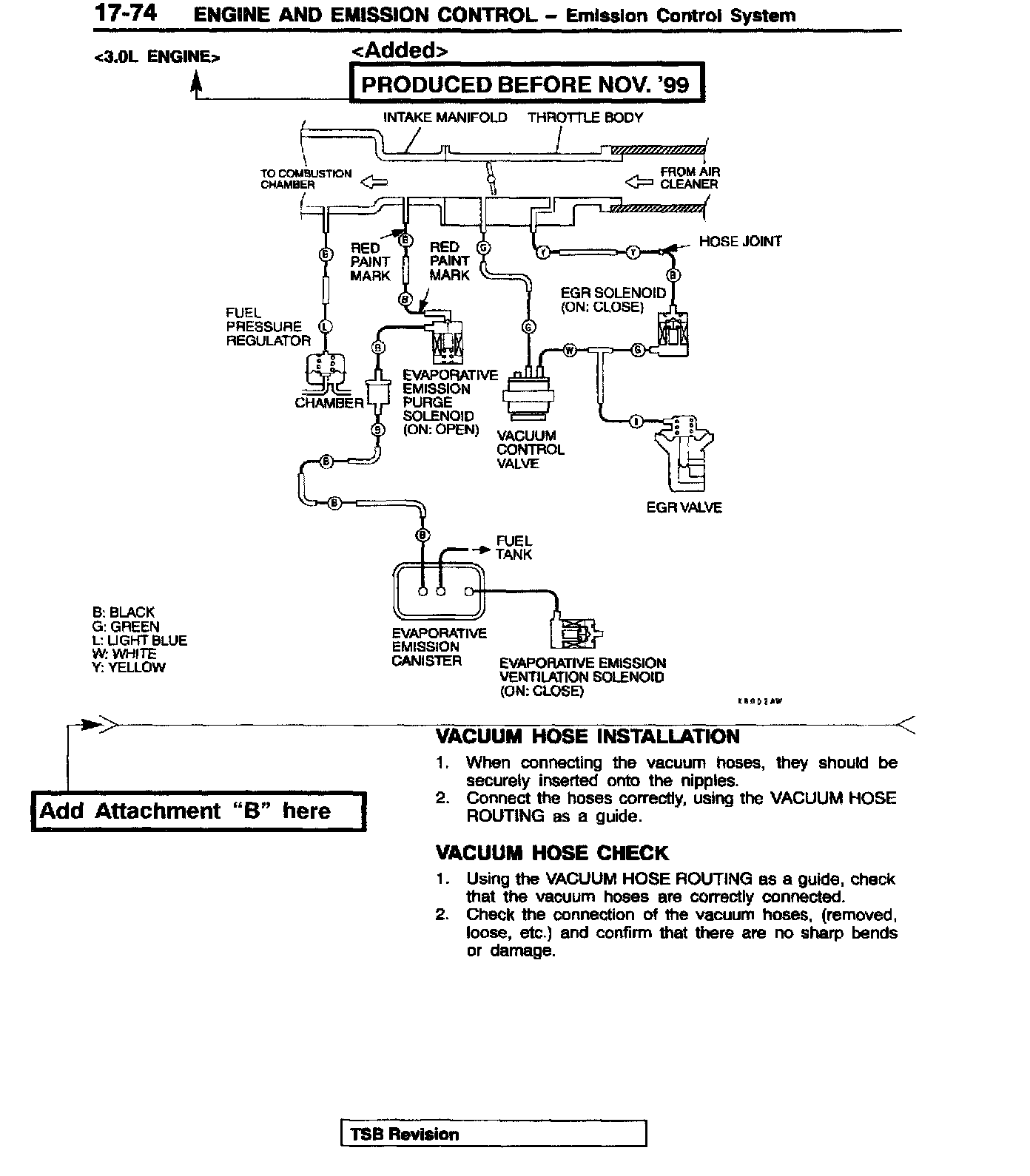

2000 Eclipse Service Manual, Volume 2, Page 17-74
Revise page 17-74 as shown, and add the new vacuum diagram (Attachment "B").
2000 Eclipse Service Manual, Volume 1, Page 17-74

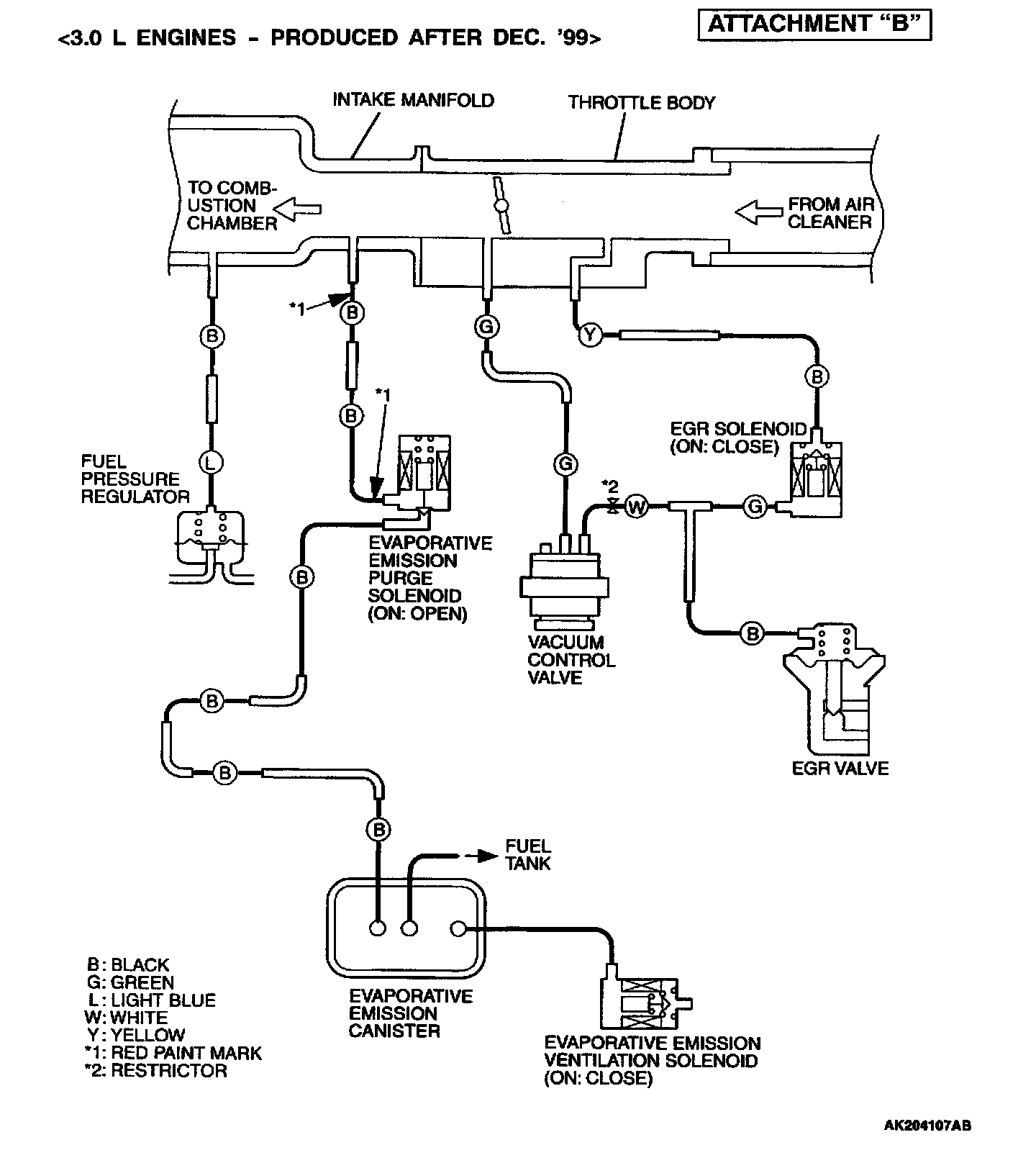

Add Attachment "B" to the indicated area on page 17-74

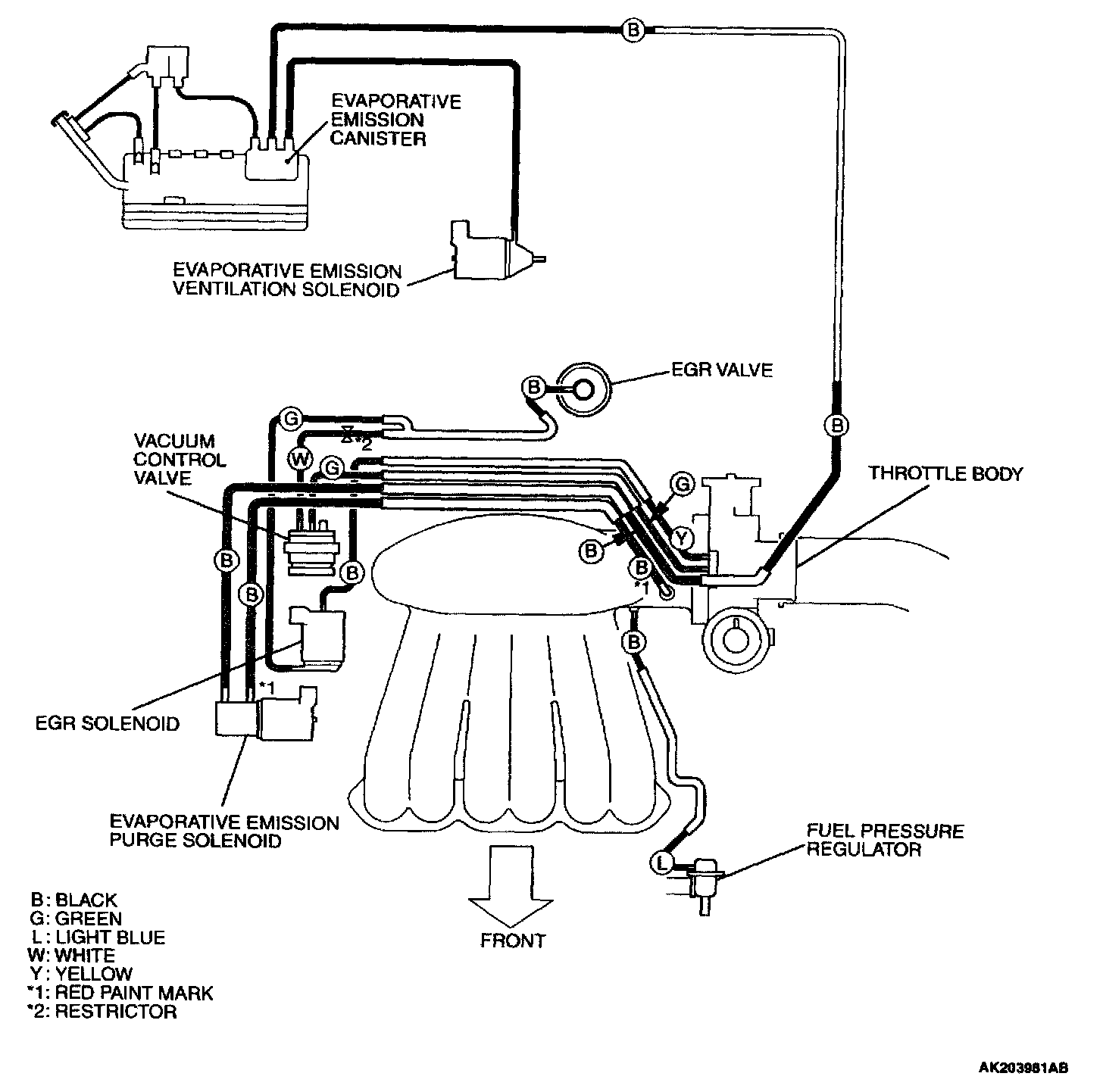

2001 Eclipse Spyder Service Manual (early production, blue book), Volume 2, Page 17-69
2001 Eclipse/Eclipse Spyder Service Manual, Volume 2, Page 17-85
2002 Eclipse/Eclipse Spyder Service Manual, Volume 2, Page 17-88
2003 Eclipse/Eclipse Spyder Service Manual, Volume 2, Page 17-90
Delete the vacuum hose routing diagram on the pages listed above and replace it with the new diagram shown.

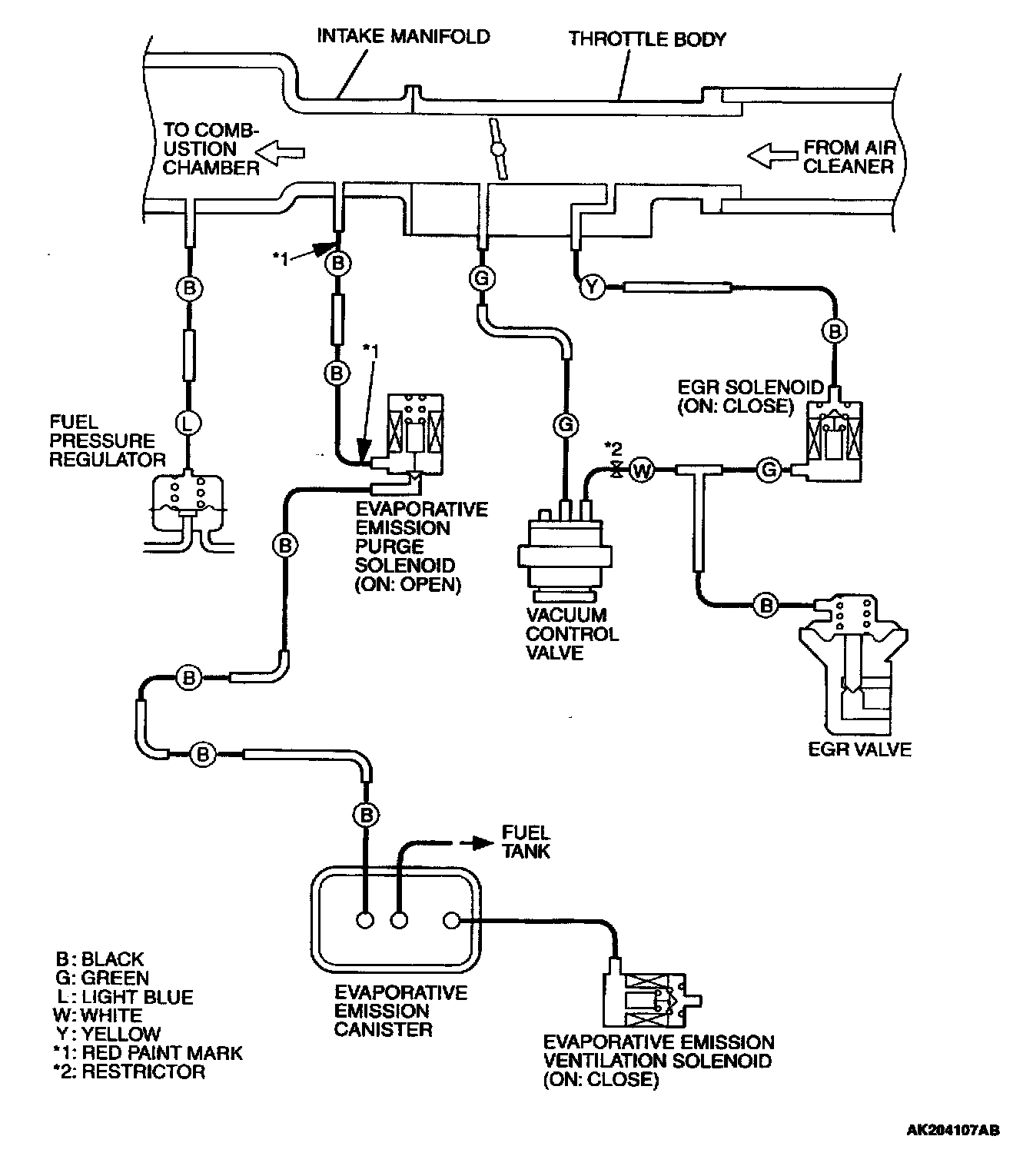

2001 Eclipse Spyder Service Manual (early production, blue book), Volume 2, Page 17-71
2001 Eclipse/Eclipse Spyder Service Manual, Volume 2, Page 17-87
2002 Eclipse/Eclipse Spyder Service Manual, Volume 2, Page 17-90
2003 Eclipse/Eclipse Spyder Service Manual, Volume 2, Page 17-93
Delete the vacuum hose routing diagram on the pages listed above and replace it with the new diagram shown.
