Inspection Procedure C-5

TECHNICAL DESCRIPTION
The driver's door lock actuator switch or the ETACS-ECU may be defective.

TROUBLESHOOTING HINTS
- Malfunction of the driver's door lock actuator switch
- Damaged harness wires or connectors

DIAGNOSIS
Required Special Tools:
MB991223: Test Harness Set
MB991502: Scan Tool (MUT-II)
MB991529: Diagnostic Trouble Code Check Harness

Check the input signal.
Check the input signal from the driver's door lock actuator switch.






CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502.

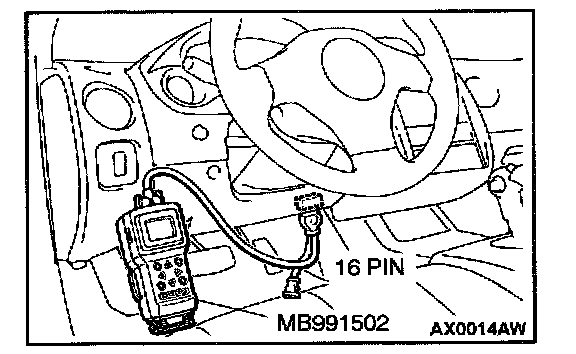

1. Connect scan tool MB991502 to the data link connector.
2. Check that the tone alarm of scan tool MB991502 sounds when the input signal enters.

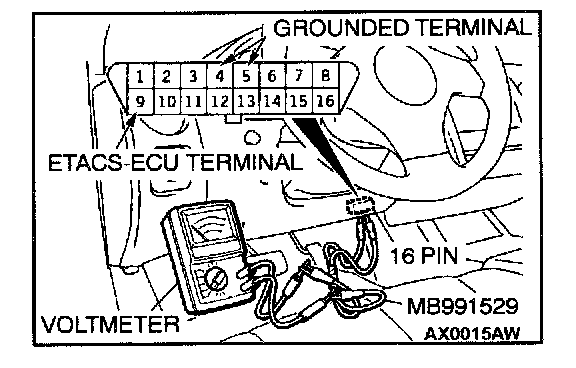

1. Use special tool MB991529 to connect a voltmeter between ground terminal 4 or 5 and ETACS-ECU terminal 9 of the data link connector.
2. Check that the voltmeter indicator deflects once when the input signal enters.
If a defect appears, check the driver's door lock actuator switch circuit. Refer to Inspection Procedure O-12.
If no defect appears, replace the ETACS-ECU.
All doors should be locked by using the driver's inside lock knob.
