Grounding Point: Locations

Grounding Locations Overall View:




Grounding Locations Views 1-4:

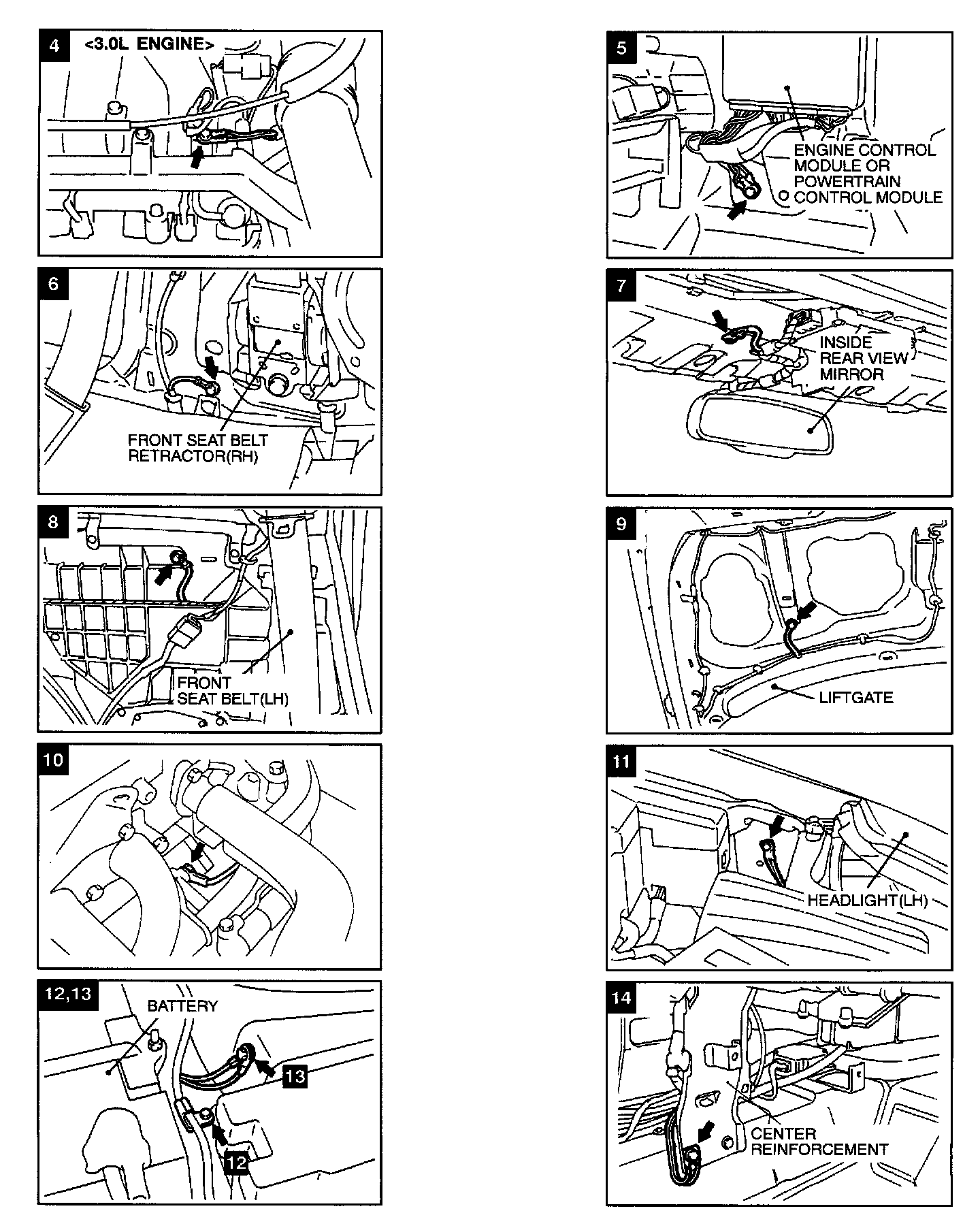

Grounding Locations Views 4-14:

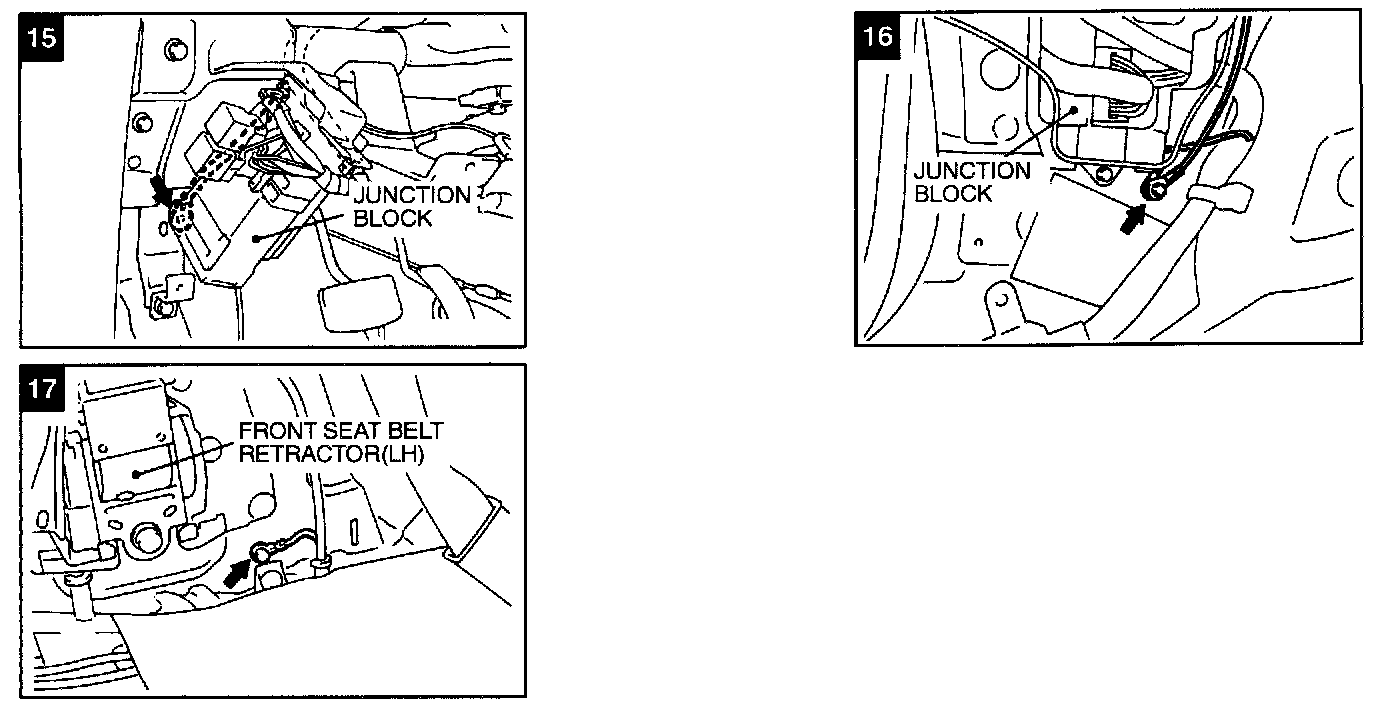

Grounding Locations Views 15-16:
