Wire Color Codes

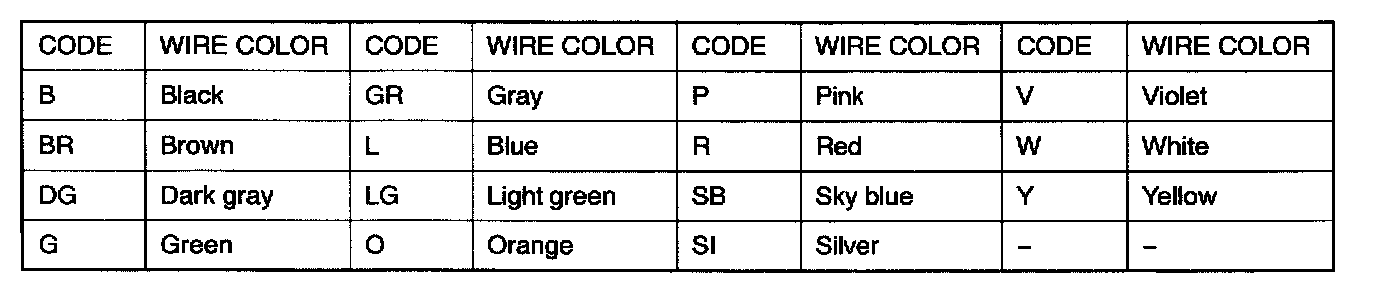

Wire colors are identified by the following color codes.

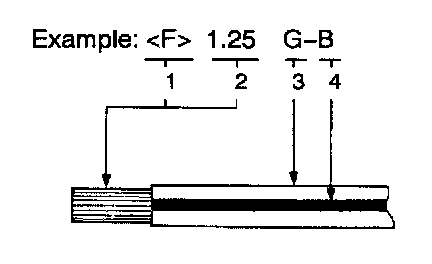

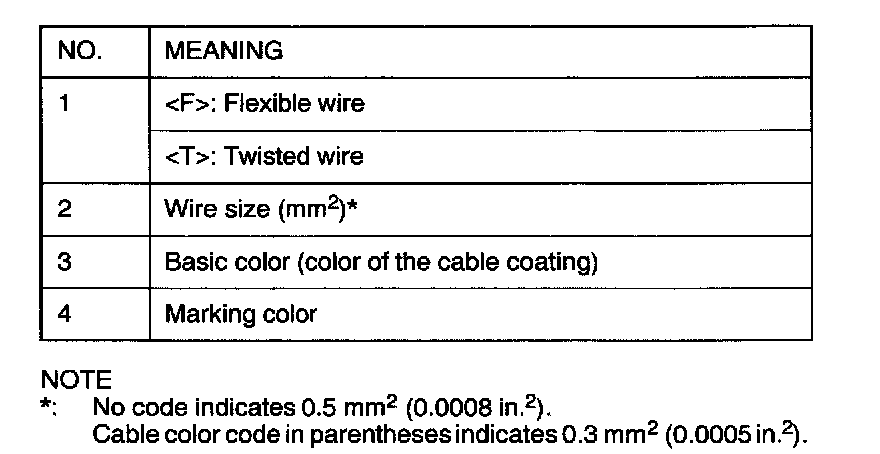

If a cable has two colors, the first of the two color code characters indicates the basic color (color of the cable coating) and the second indicates the marking color.
