Electrical Diagrams

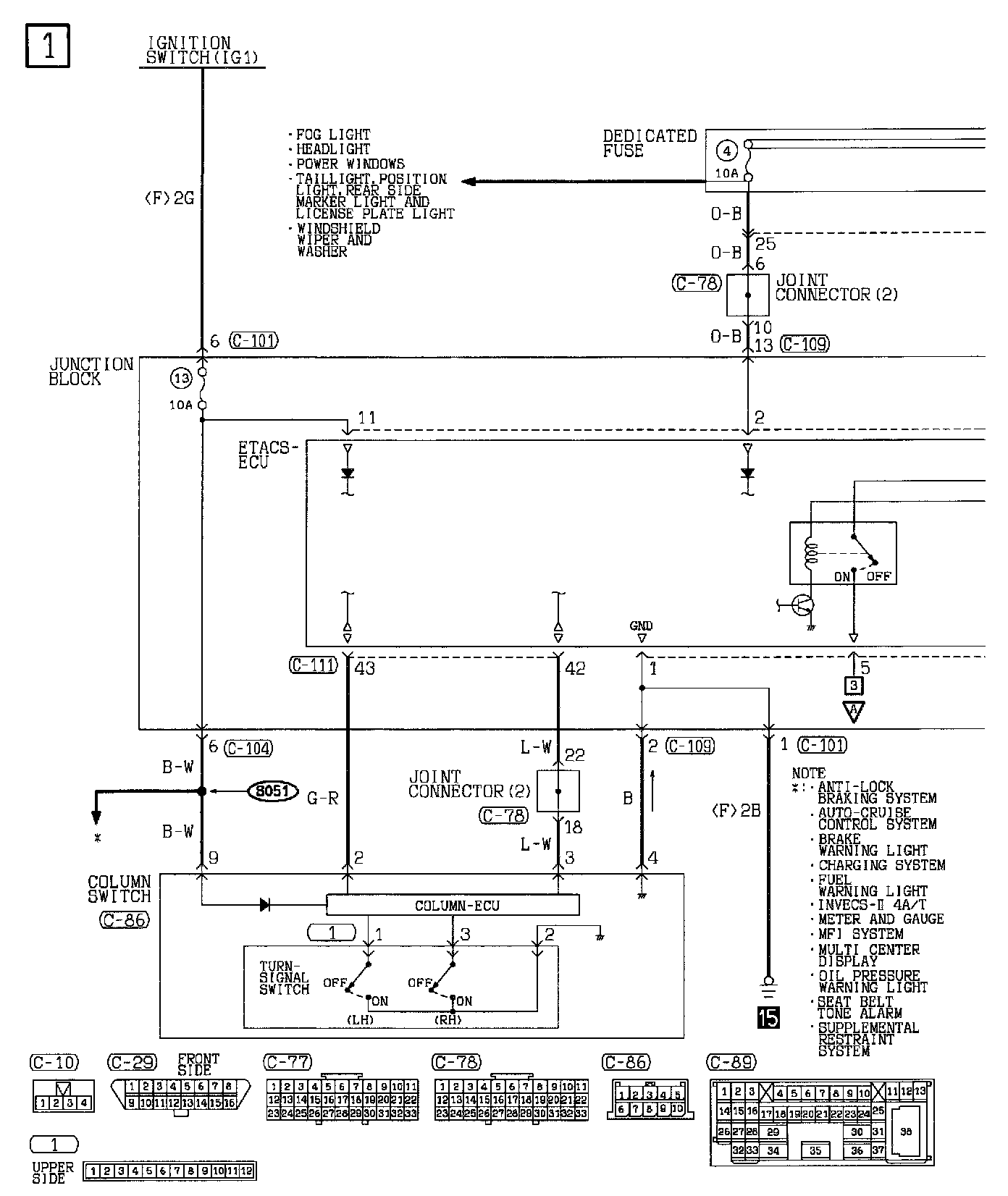

Turn Signal And Hazard Warning Light (Part 1 Of 4):

Dedicated Fuse
Joint Connector
Junction Block
- ETACS-ECU
Joint Connector
Column Switch

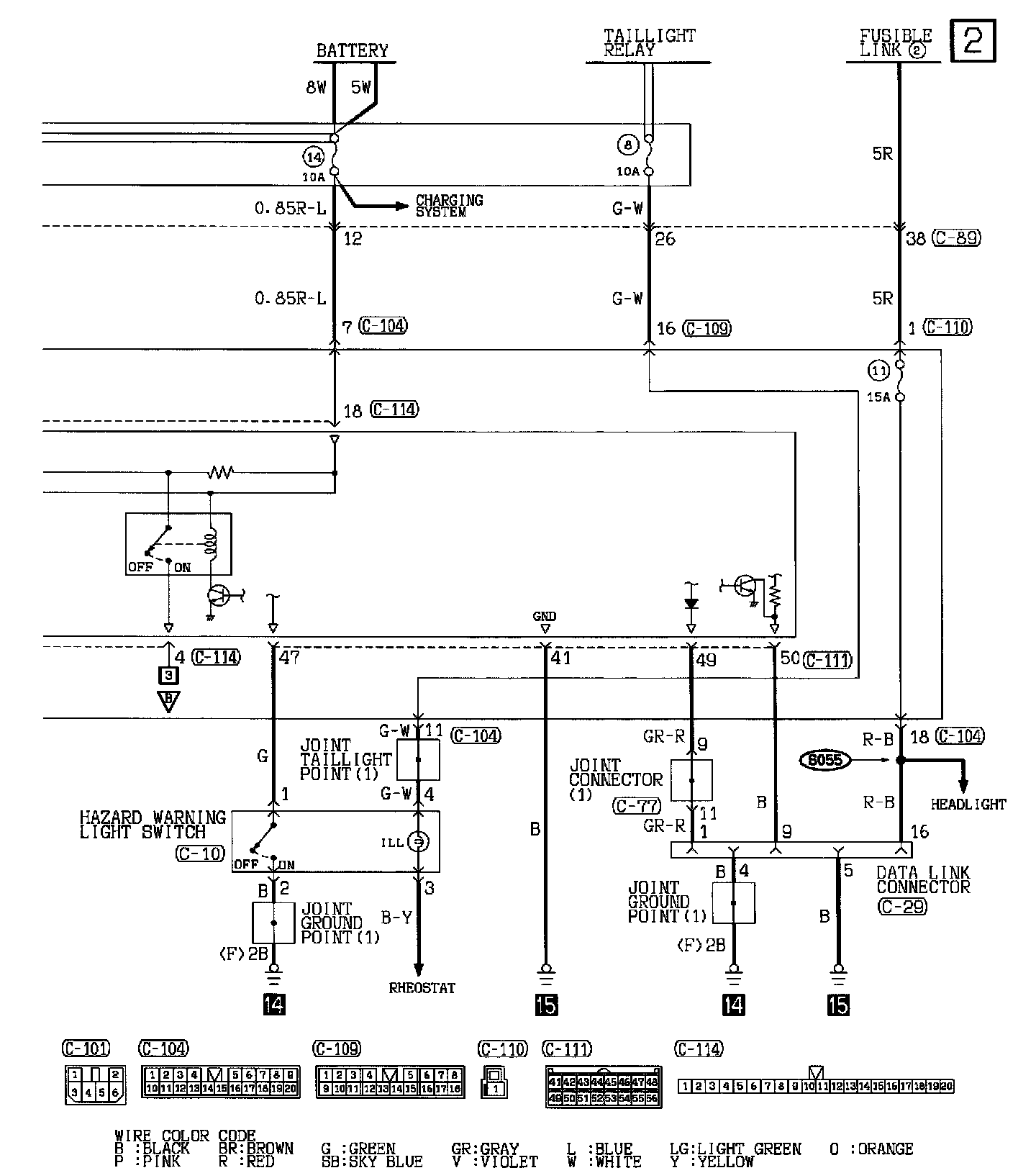

Turn Signal And Hazard Warning Light (Part 2 Of 4):

Joint Tail Light Point
Hazard Warning Light Switch
Joint Connector
Joint Ground Point
Data Link Connector

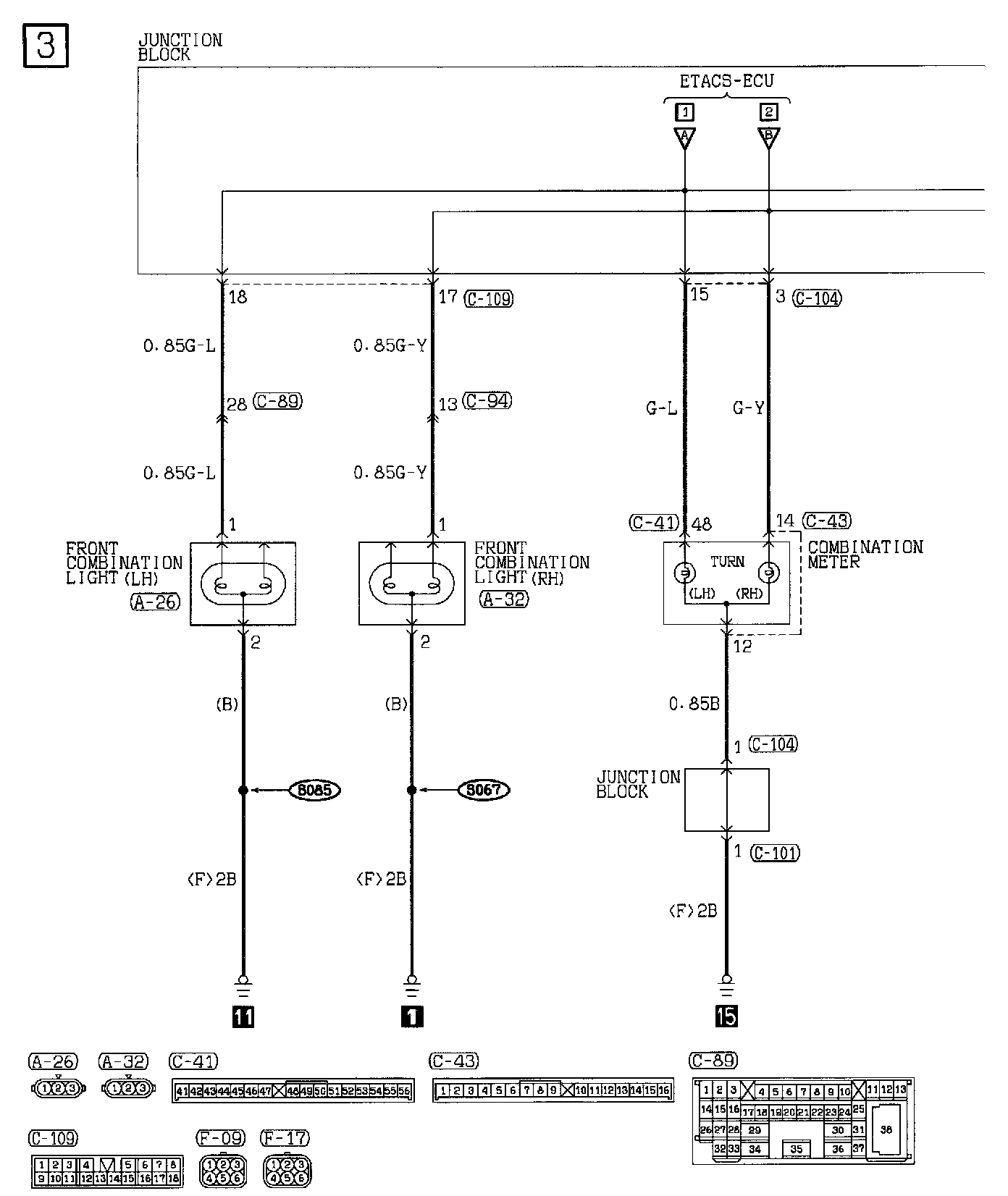

Turn Signal And Hazard Warning Light (Part 3 Of 4):

Junction Block
Front Combination Light (LH & RH)
Combination Meter
Junction Block

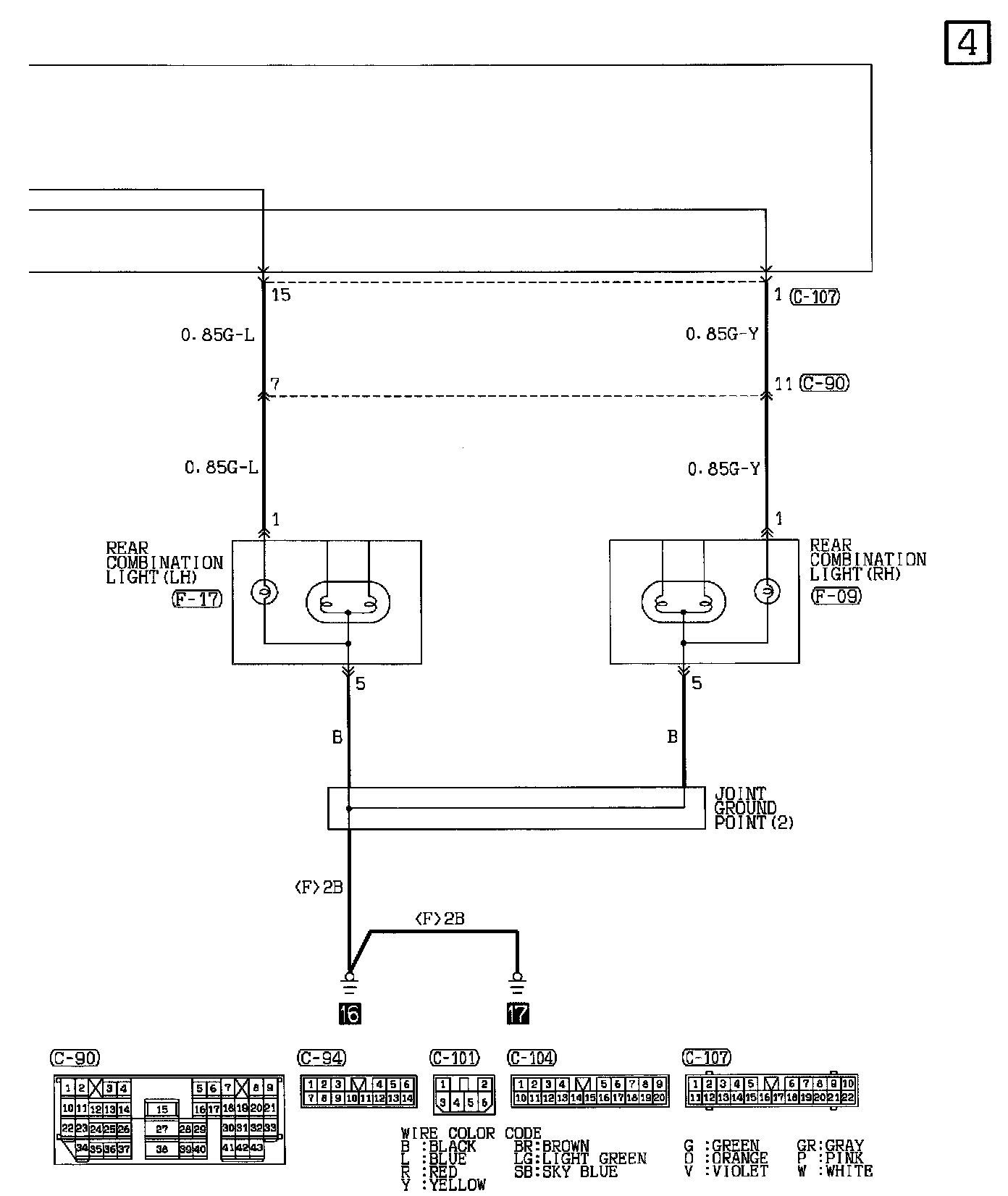

Turn Signal And Hazard Warning Light (Part 4 Of 4):

Rear Combination Light (LH & RH)
Joint Ground Point
