Electrical Diagrams

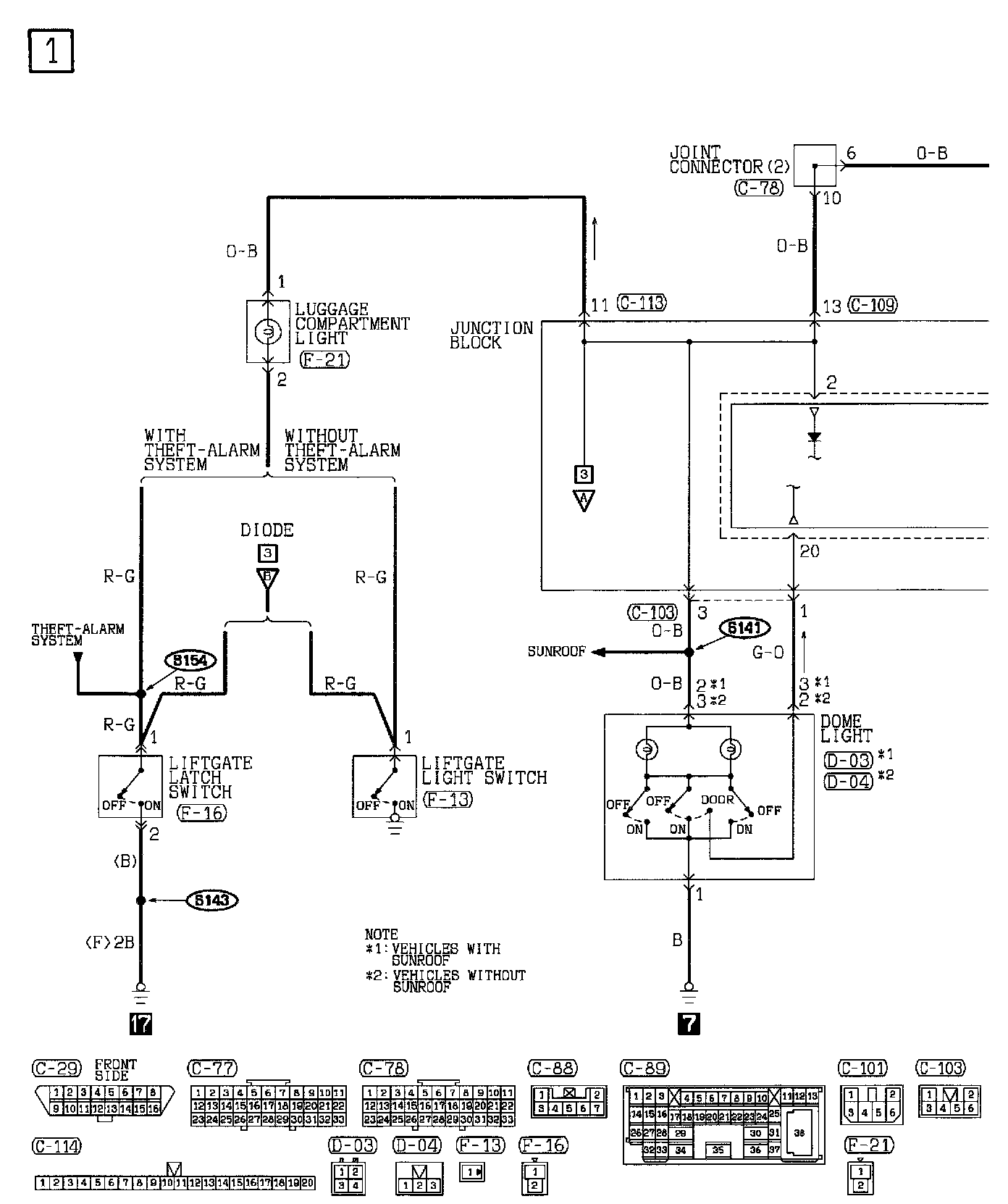

Dome Light and Luggage Compartment Light (Part 1 Of 4):

Joint Connector
Luggage Compartment Light
Junction Block
Dome Light
Liftgate Latch Switch
Liftgate Light Switch

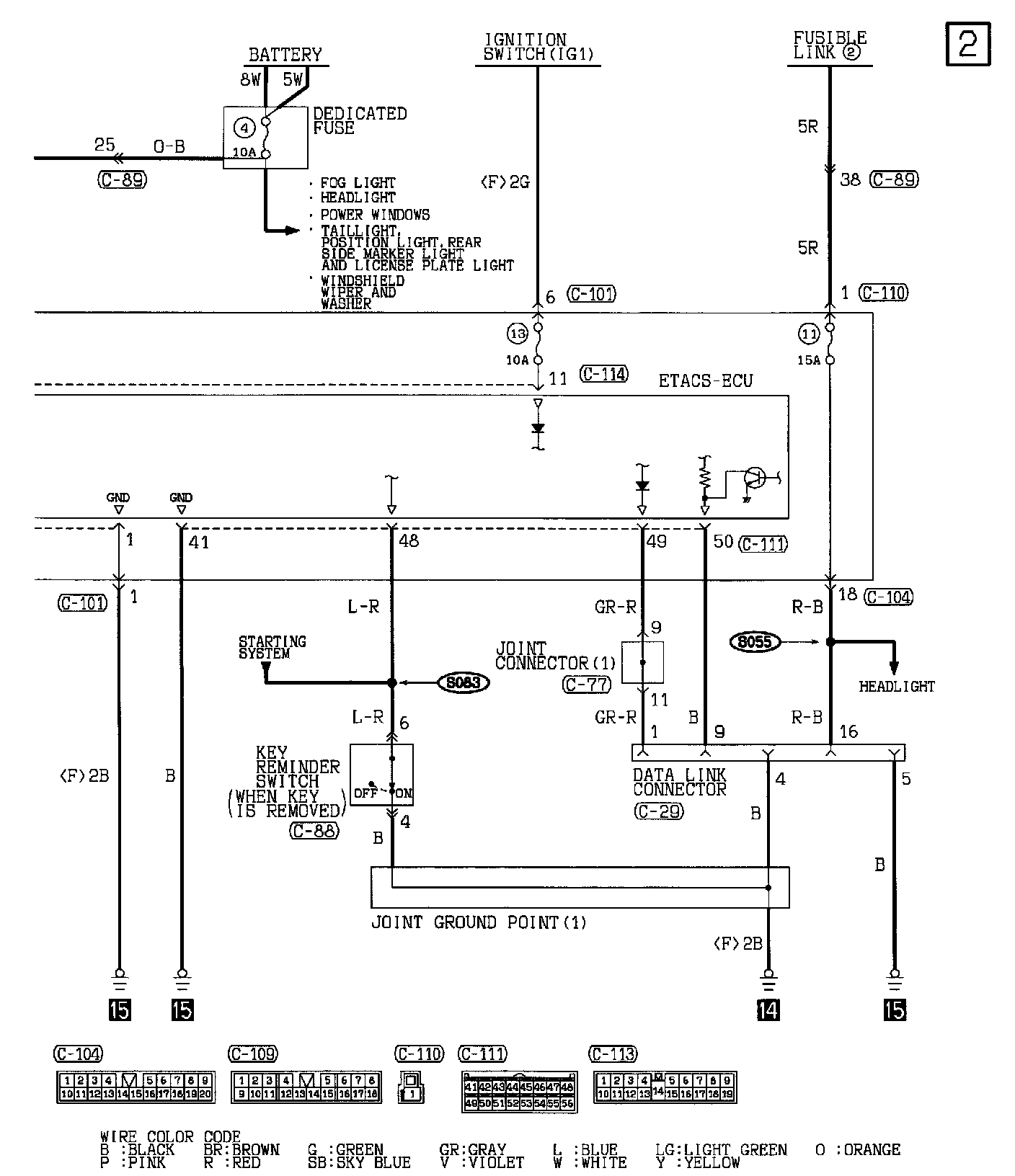

Dome Light and Luggage Compartment Light (Part 2 Of 4):

Dedicated Fuse
Joint Connector
Key Reminder Switch (When key switch is removed)
Data Link Connector
ETACS-ECU
Joint Ground Point

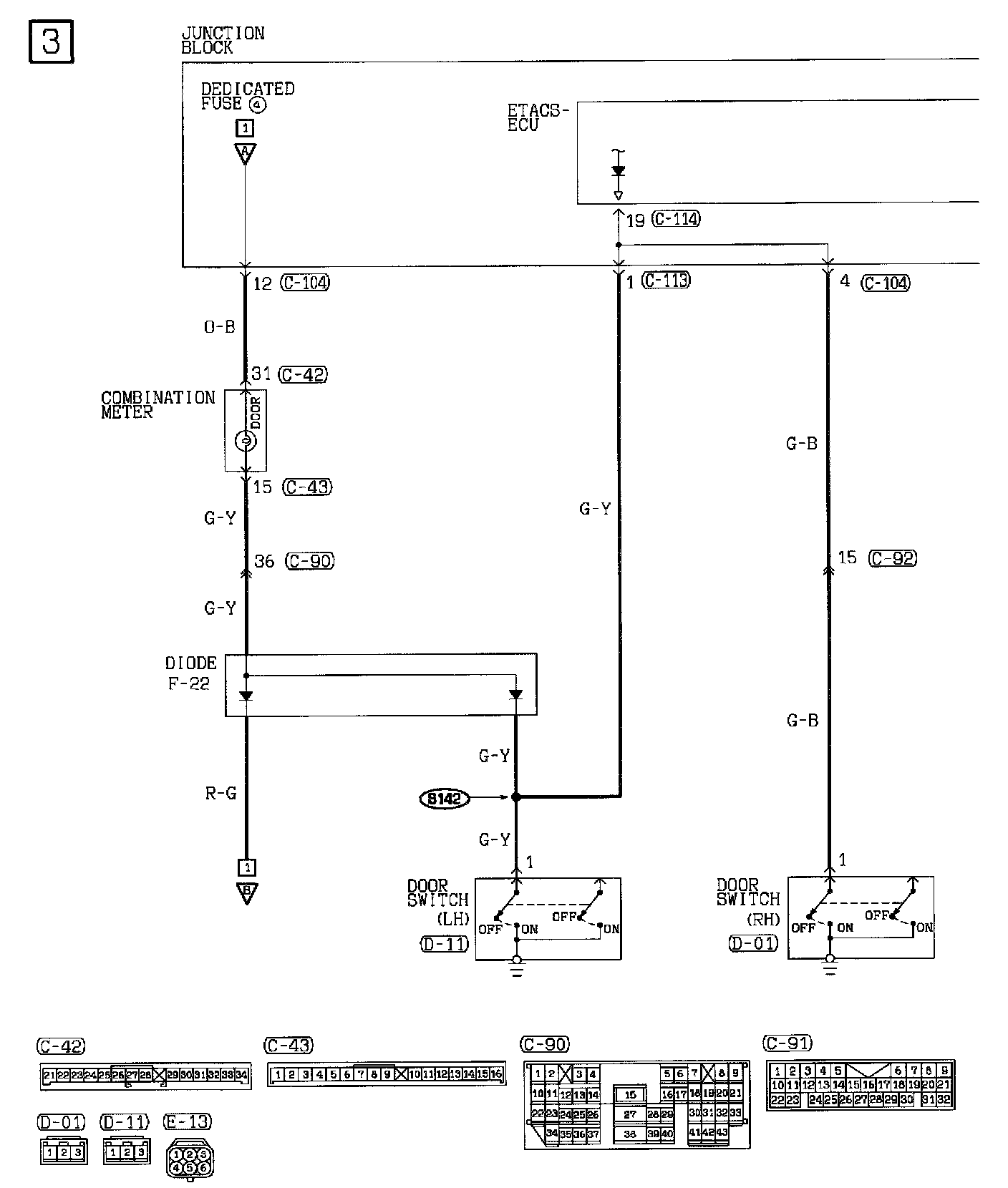

Dome Light and Luggage Compartment Light (Part 3 Of 4):

Junction Block
- ETACS-ECU
Combination Meter
Diode
Door Switch (LH &RH)

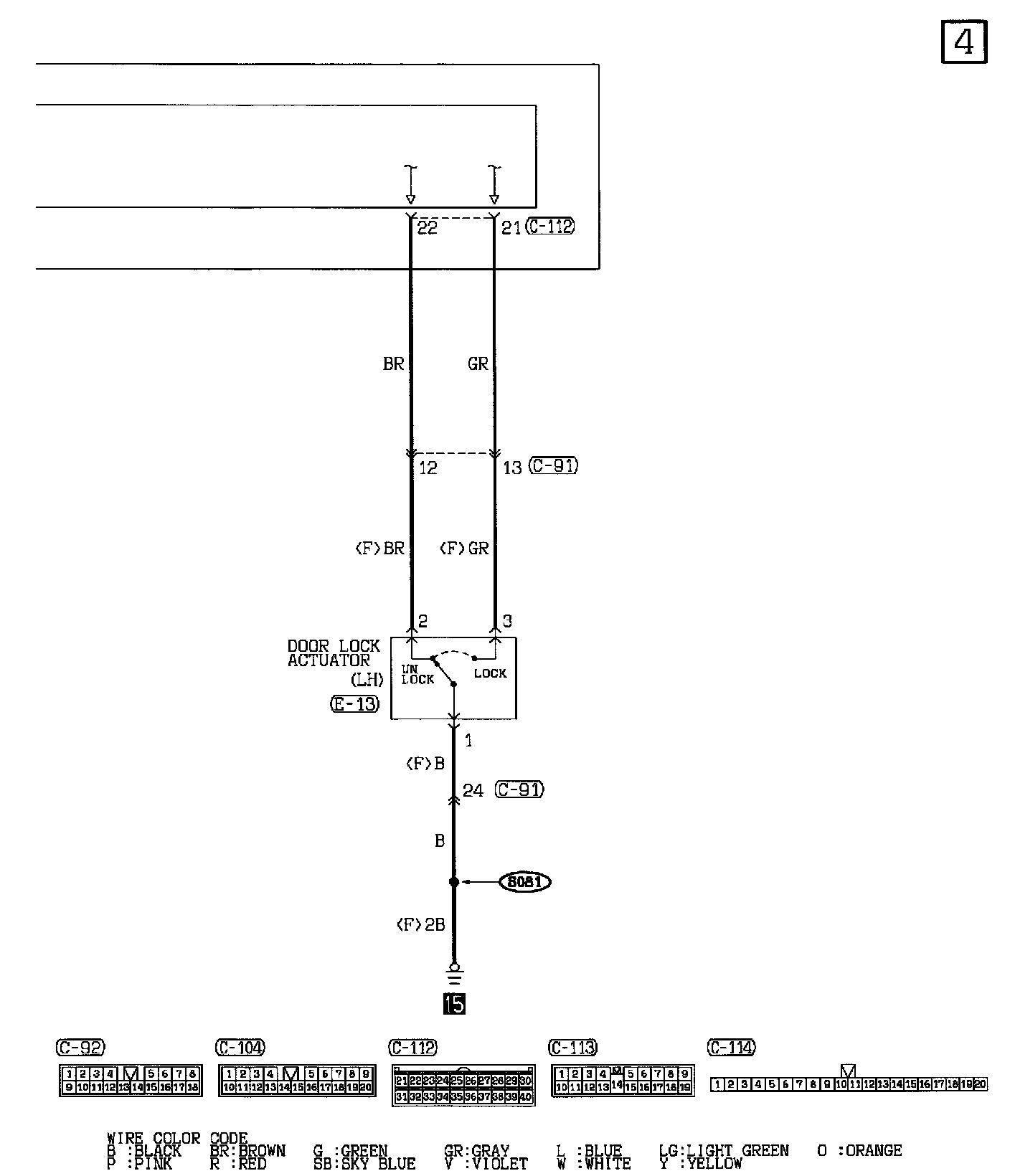

Dome Light and Luggage Compartment Light (Part 4 Of 4):

Door Lock Actuator (LH)
