Electrical Diagrams

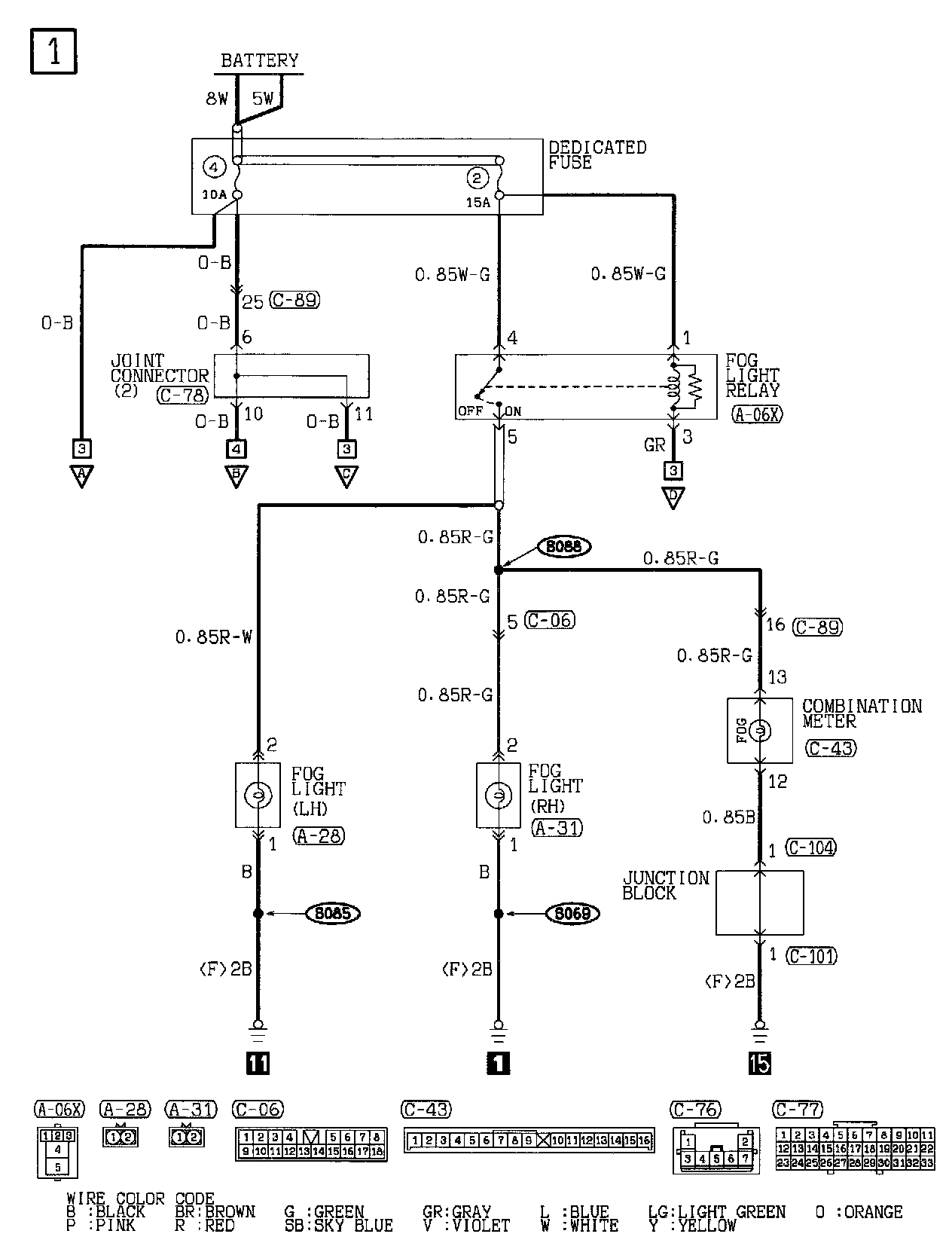

Fog Light (Part 1 Of 4):

Joint Connector
Fog Light Relay
Dedicated Fuse
Fog Light (LH & RH)
Combination Meter
Junction Block

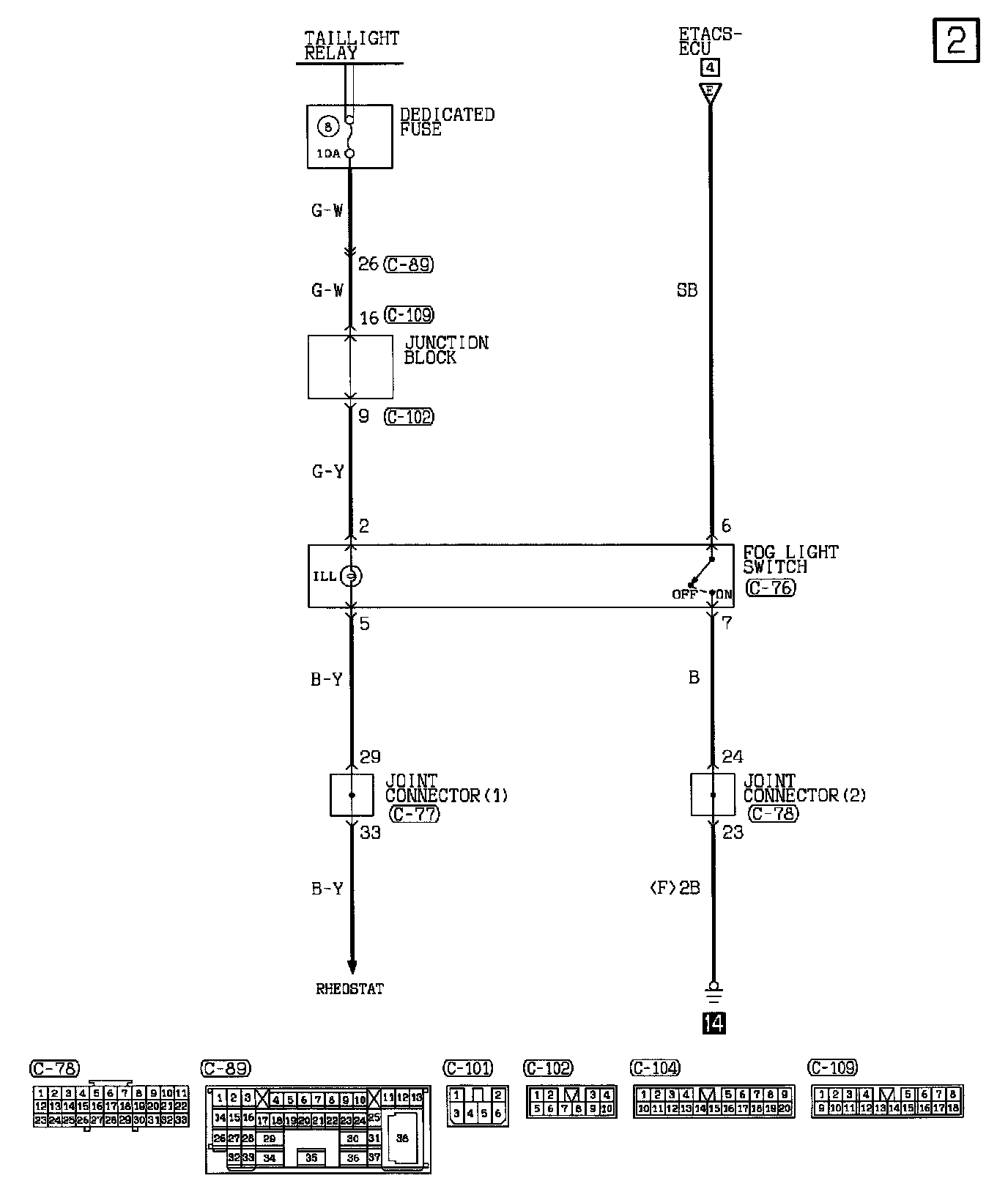

Fog Light (Part 2 Of 4):

Dedicated Fuse
Junction Block
Fog Light Switch
Joint Connector

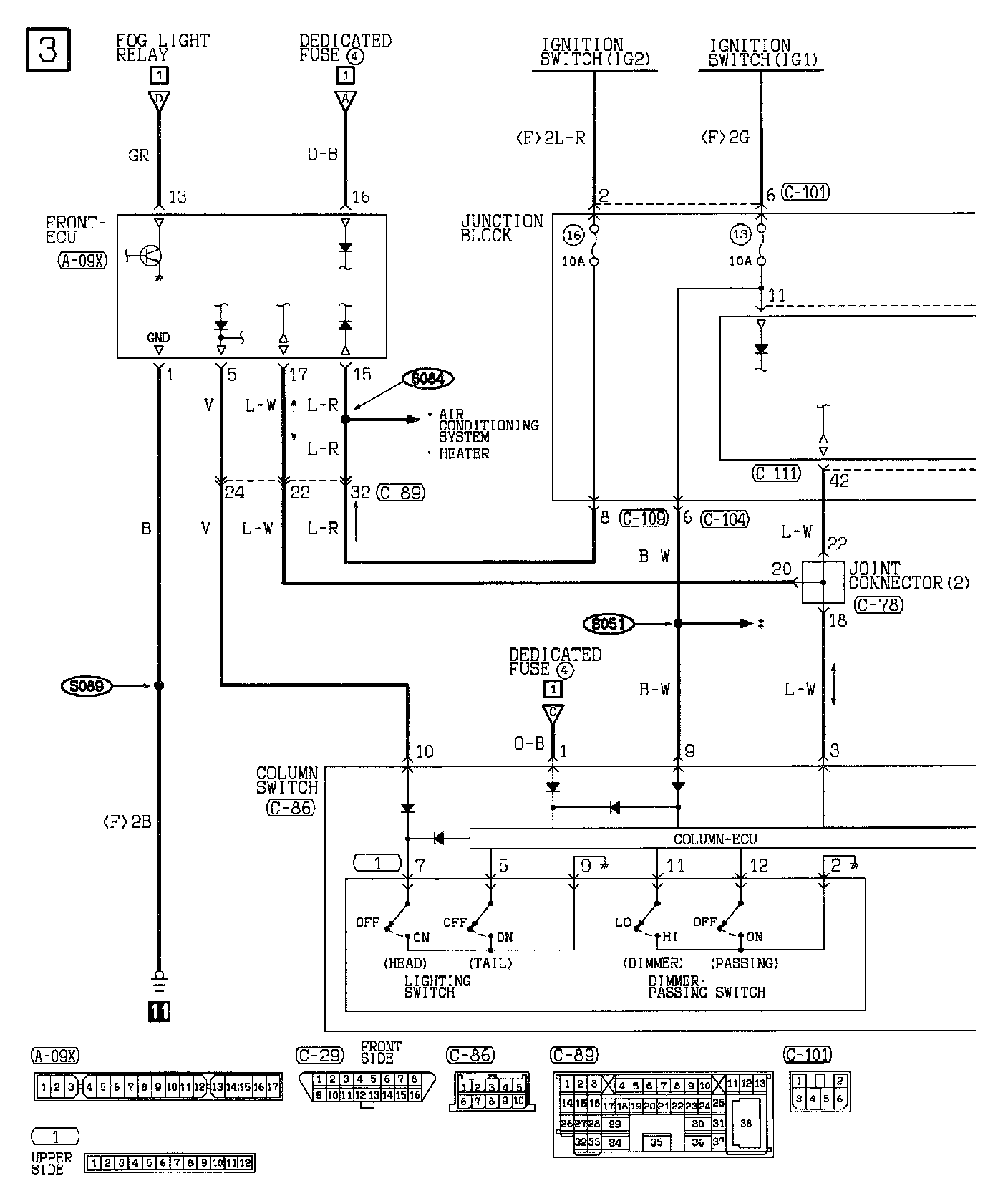

Fog Light (Part 3 Of 4):

Front ECU
Junction Block
Column Switch
Joint Connector

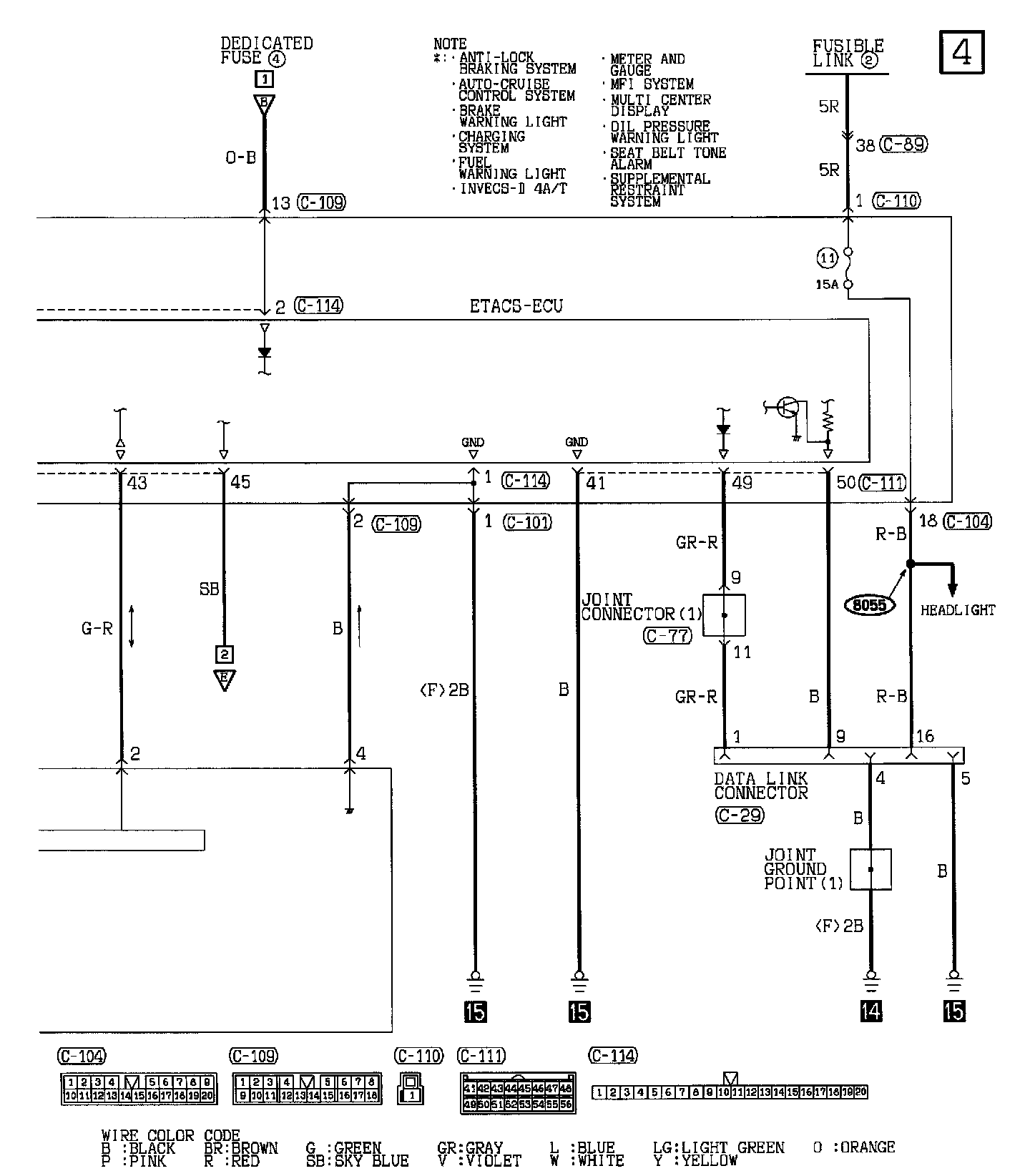

Fog Light (Part 4 Of 4):

Joint Connector
Data Link Connector
Joint Ground Point
