Combination Meter Removal and Installation/Disassembly and Assembly

WARNING: For removal and installation of the passenger's side air bag module, always observe the service procedures described in Air Bag Module and Clock Spring.

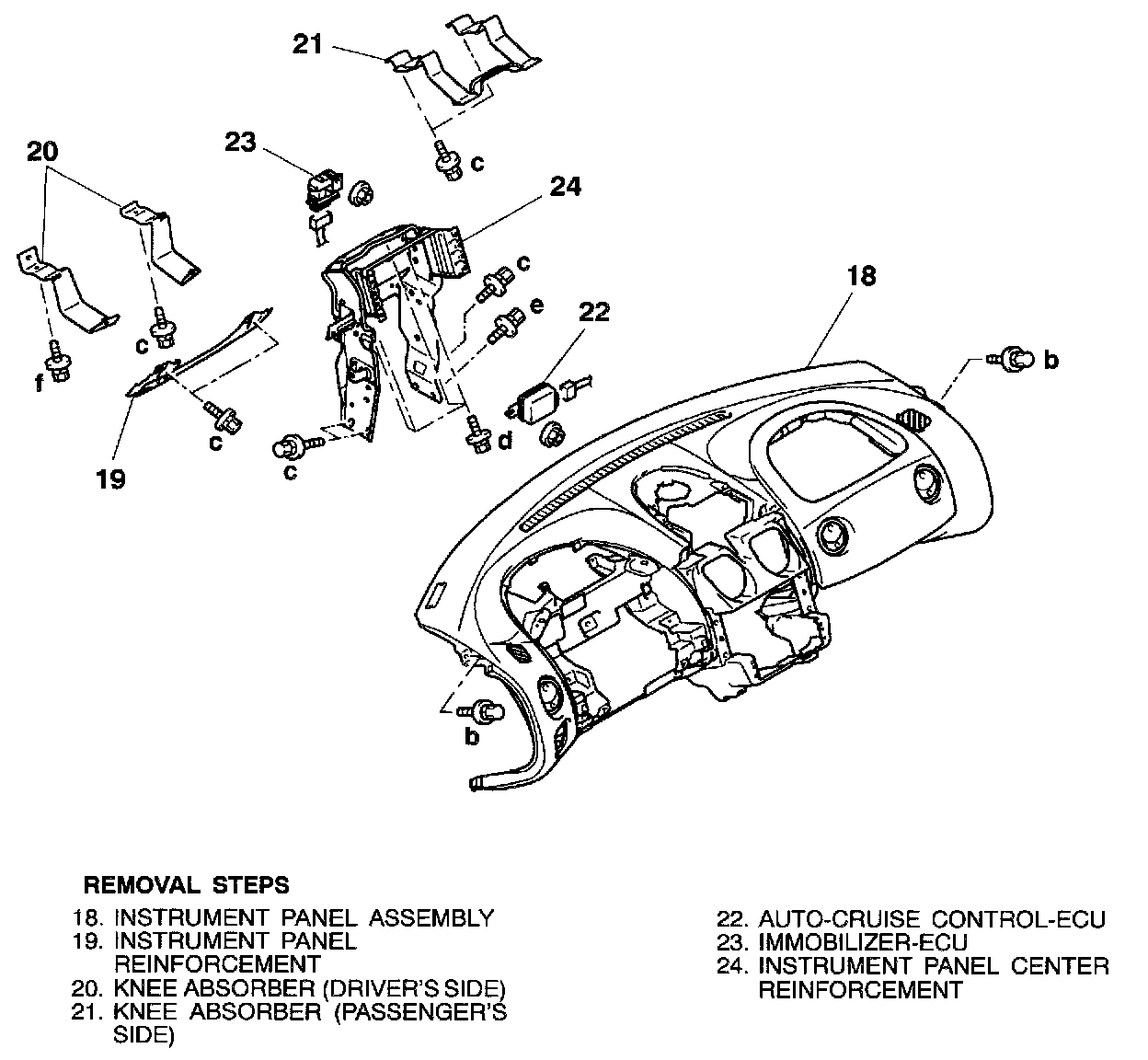

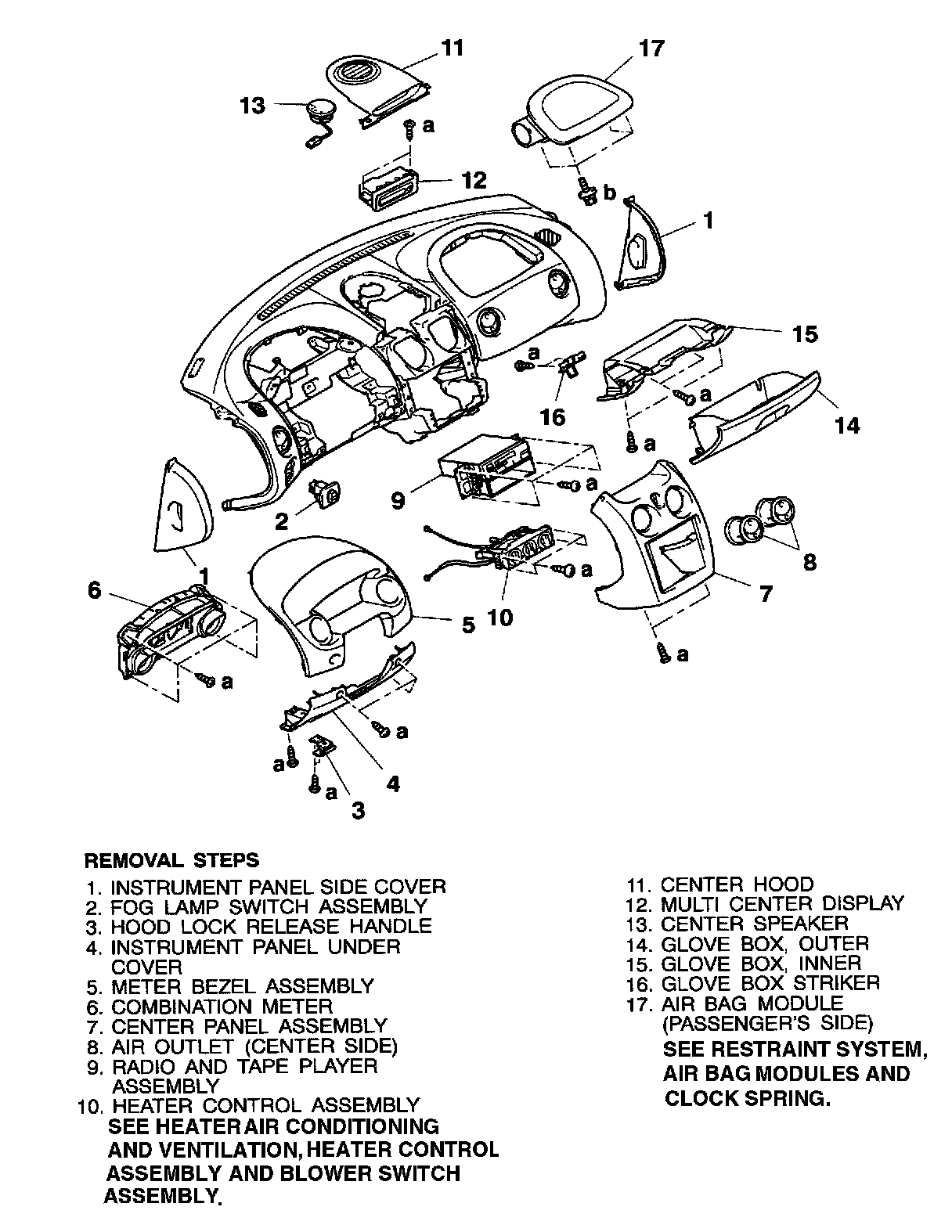

REMOVAL AND INSTALLATION

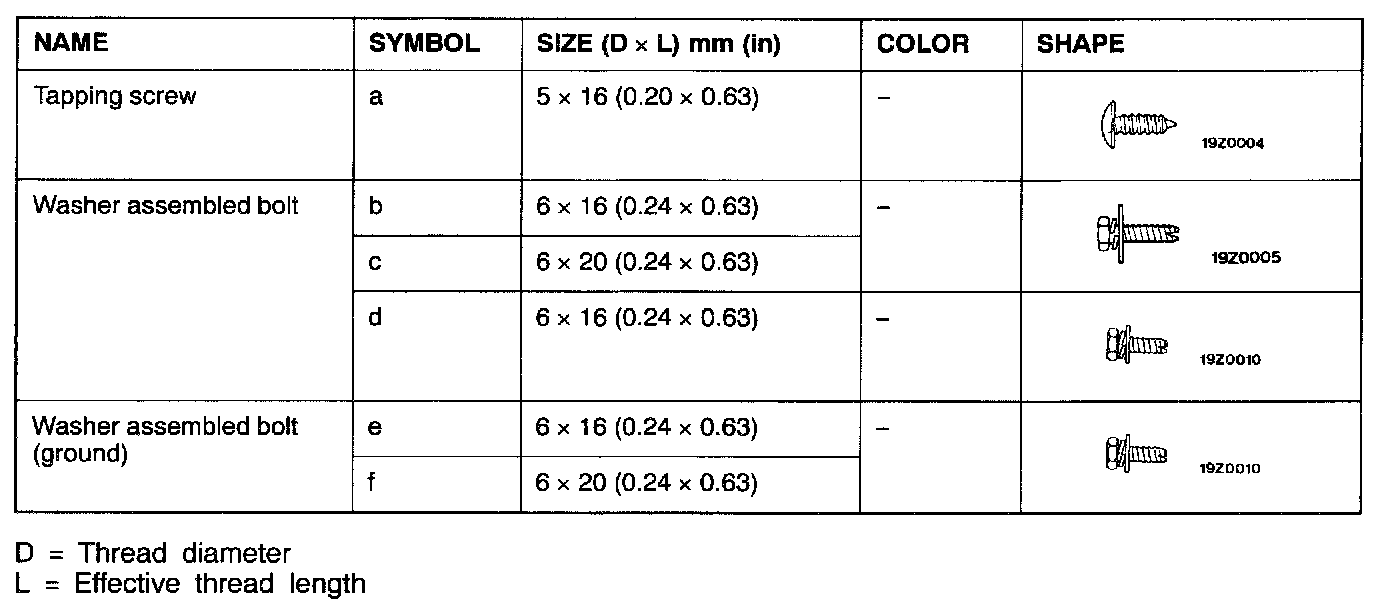

The bolts and screws described below are used for installation of the instrument panel. They are indicated by symbols in the illustration.







Pre-removal and Post-installation Operation
- Floor Console Assembly Removal and Installation.
- Steering Wheel and Shaft Removal and Installation.
Refer to Steering System, Steering Wheel and Shaft
- Front Pillar Trim Removal and Installation.
