Pinout Values and Diagnostic Parameters

Inspection At the Automatic Compressor Controller Terminal:

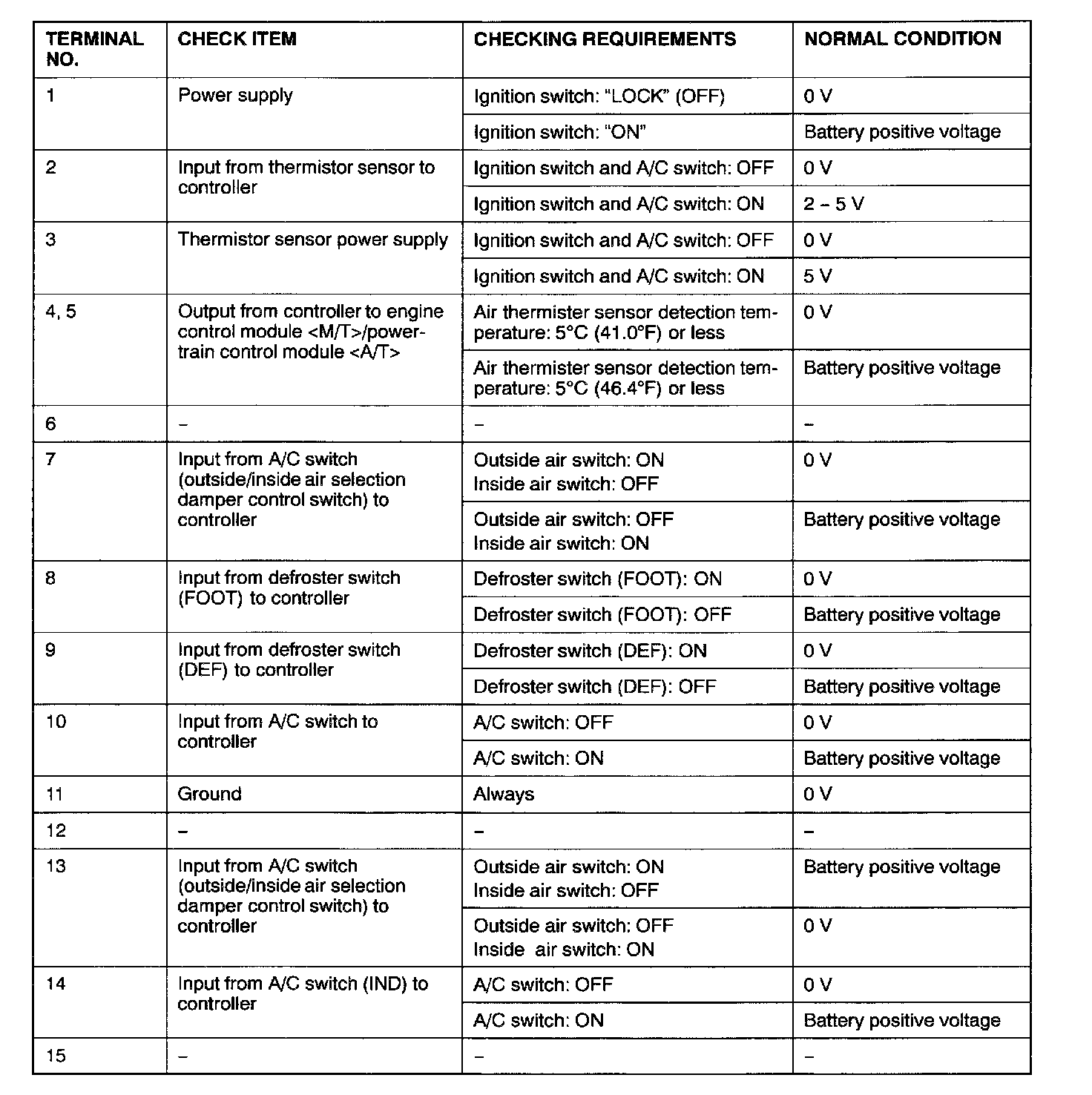

Inspection At the Automatic Compressor Controller Terminal Pinouts - Terminal No. 1 - 15:

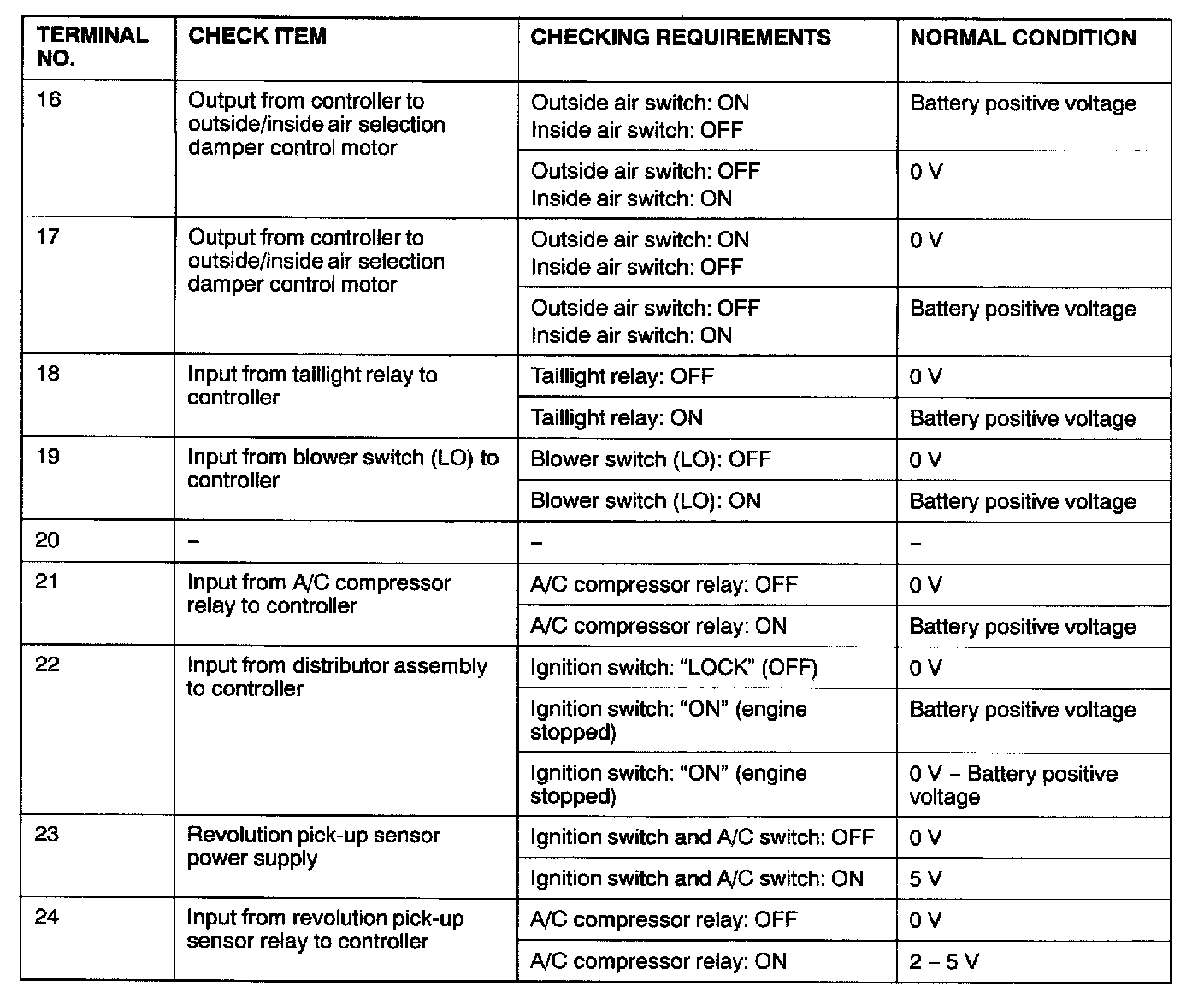

Inspection At the Automatic Compressor Controller Terminal Pinouts - Terminal No. 16 - 24:
