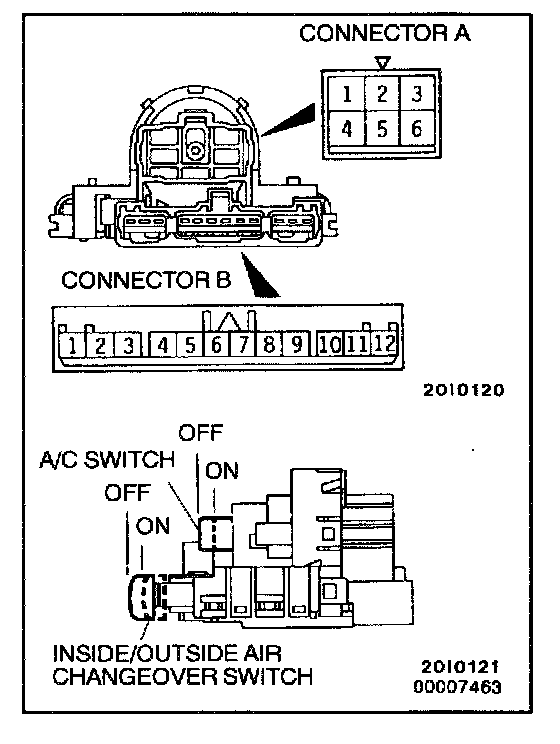

Blower Switch Assembly Continuity Check

Blower Switch Assembly Continuity Check:

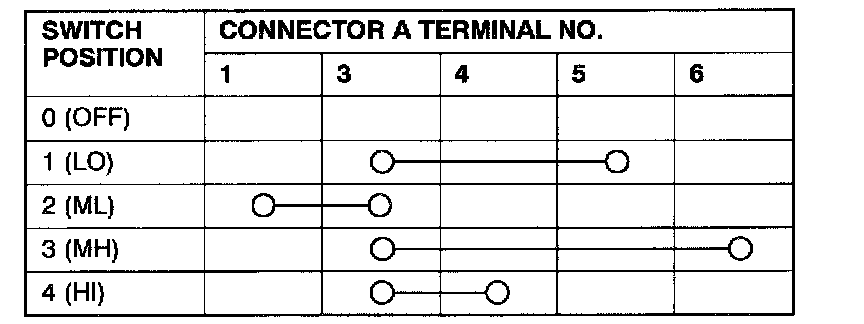

Blower Switch Assembly Continuity Check - Blower Switch:

1. BLOWER SWITCH

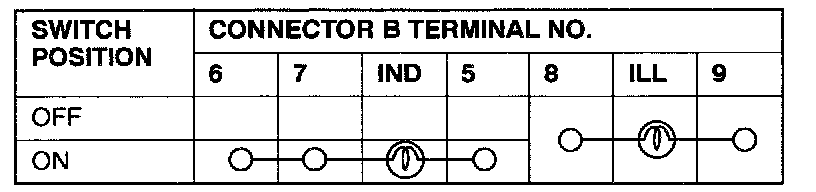

Blower Switch Assembly Continuity Check - A/C Switch:

2. A/C SWITCH

Blower Switch Assembly Continuity Check - A/C Switch:

3. INSIDE/OUTSIDE AIR CHANGEOVER SWITCH
