Manual Air Conditioning System

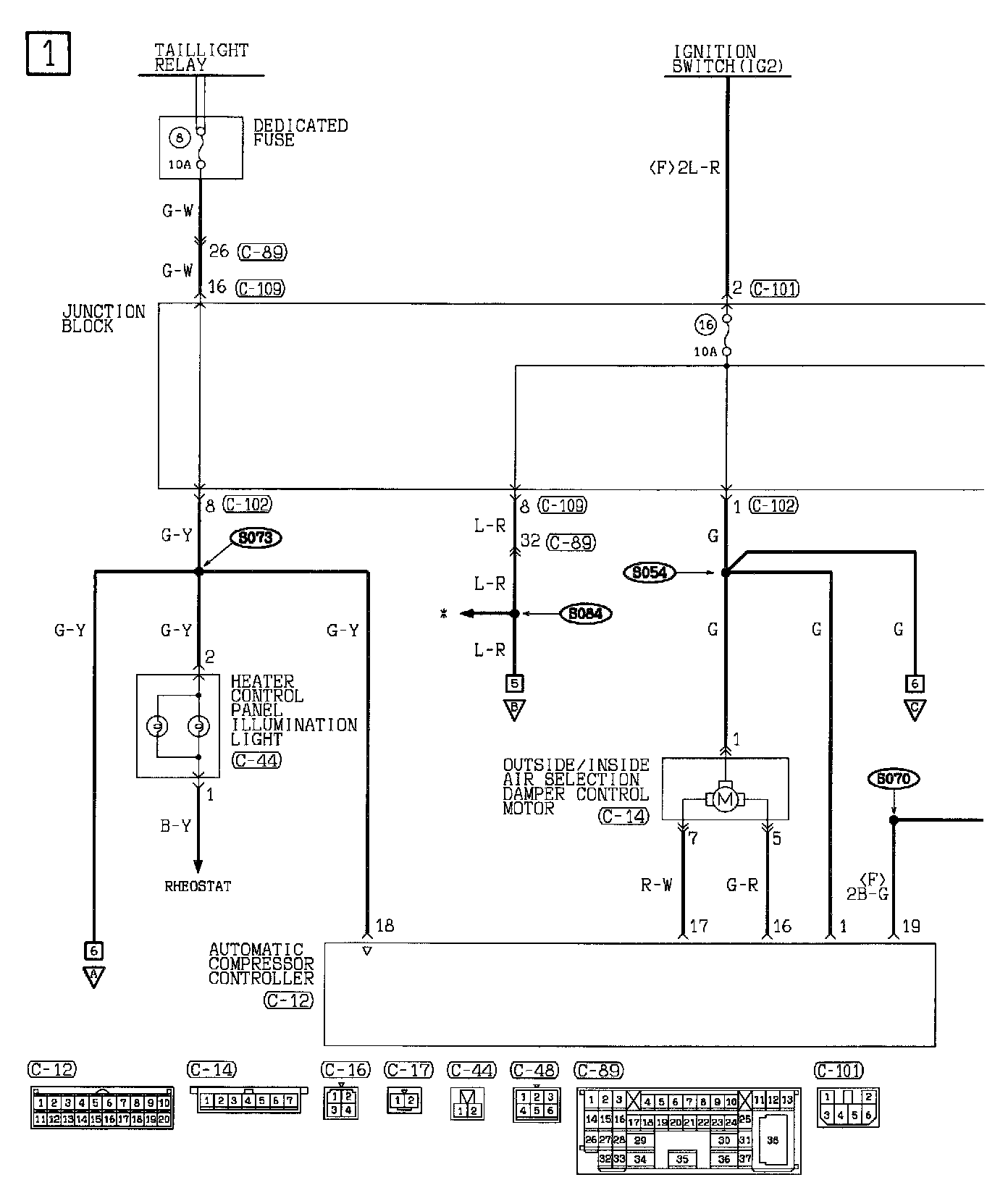

Air Conditioning System (Part 1 Of 7):

Dedicated Fuse
Junction Block
Heater Control Panel Illumination Light
Outside/Inside Air Selection Damper Control Motor
Automatic Compressor Controller

Air Conditioning System (Part 2 Of 7):

Blower Relay
Blower Motor
Resistor
Blower Switch

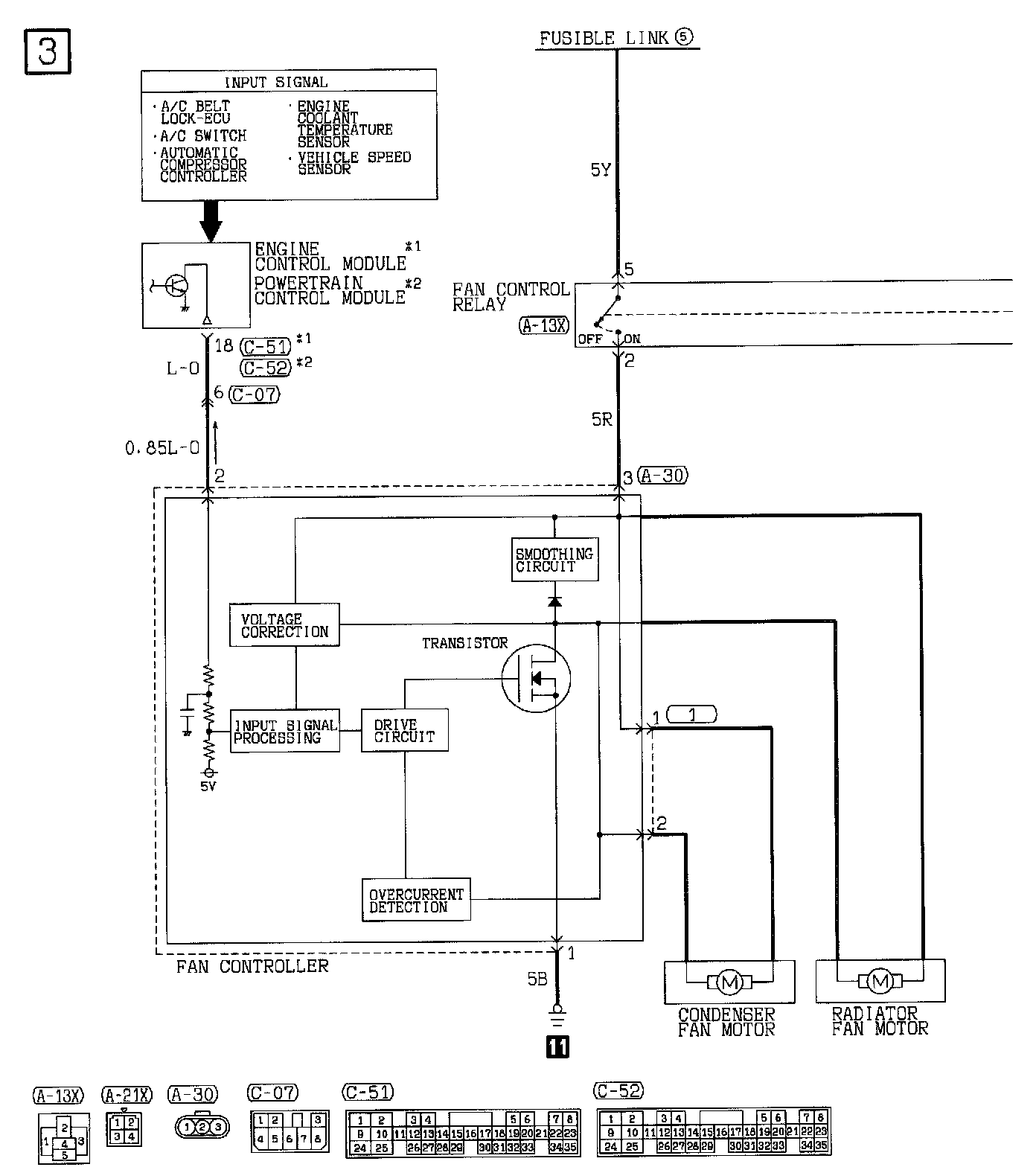

Air Conditioning System (Part 3 Of 7):

Engine Control Module
Powertrain Control Module
Fan Control Relay
Fan Controller
- Smoothing Circuit
- Voltage Correction
- Transistor
- Input Signal Processing
- Drive Circuit
- Overcurrent Detection
Condenser Fan Motor
Radiator Fan Motor

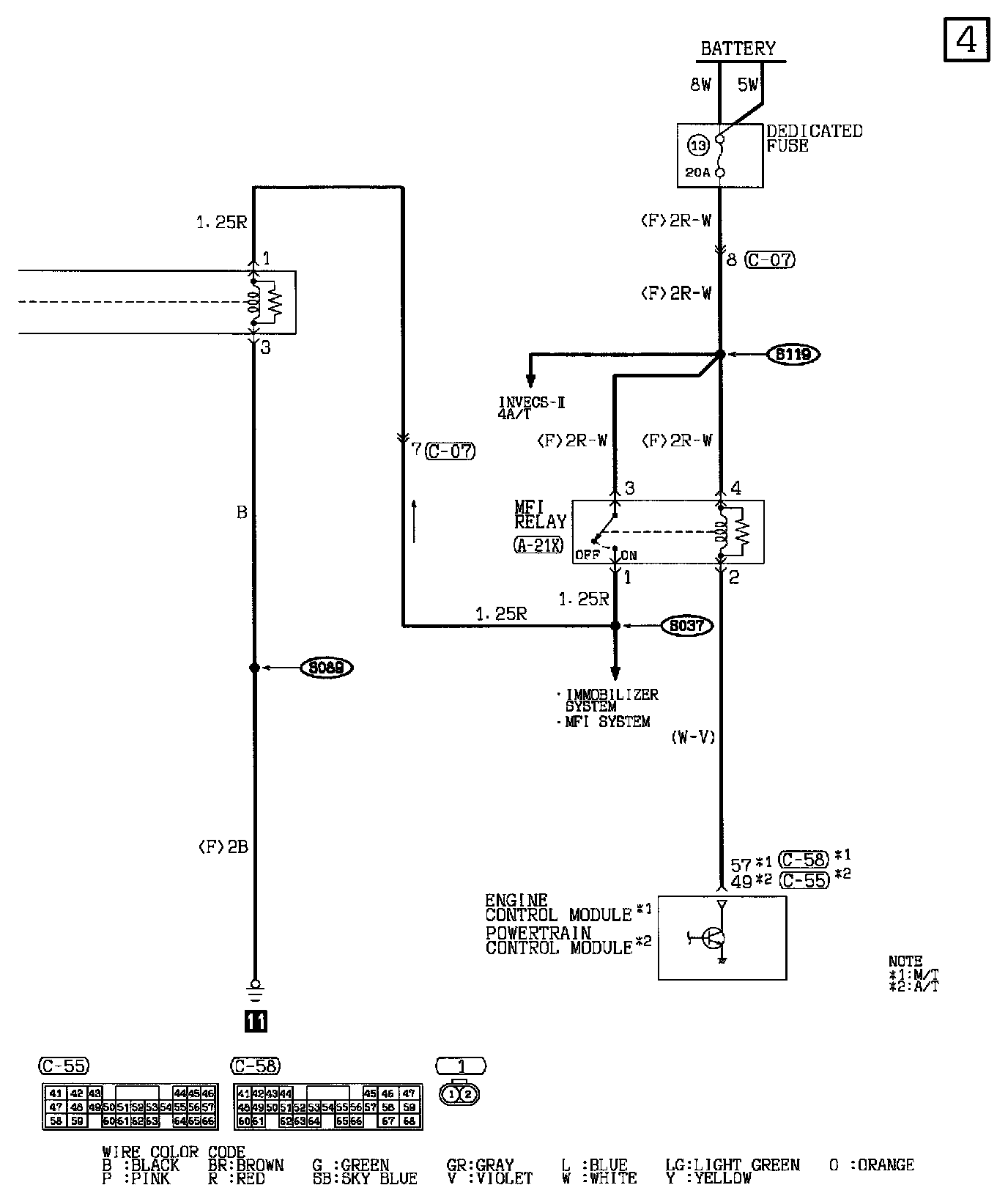

Air Conditioning System (Part 4 Of 7):

Dedicated Fuse
MFI Relay
Engine Control Module
Powertrain Control Module

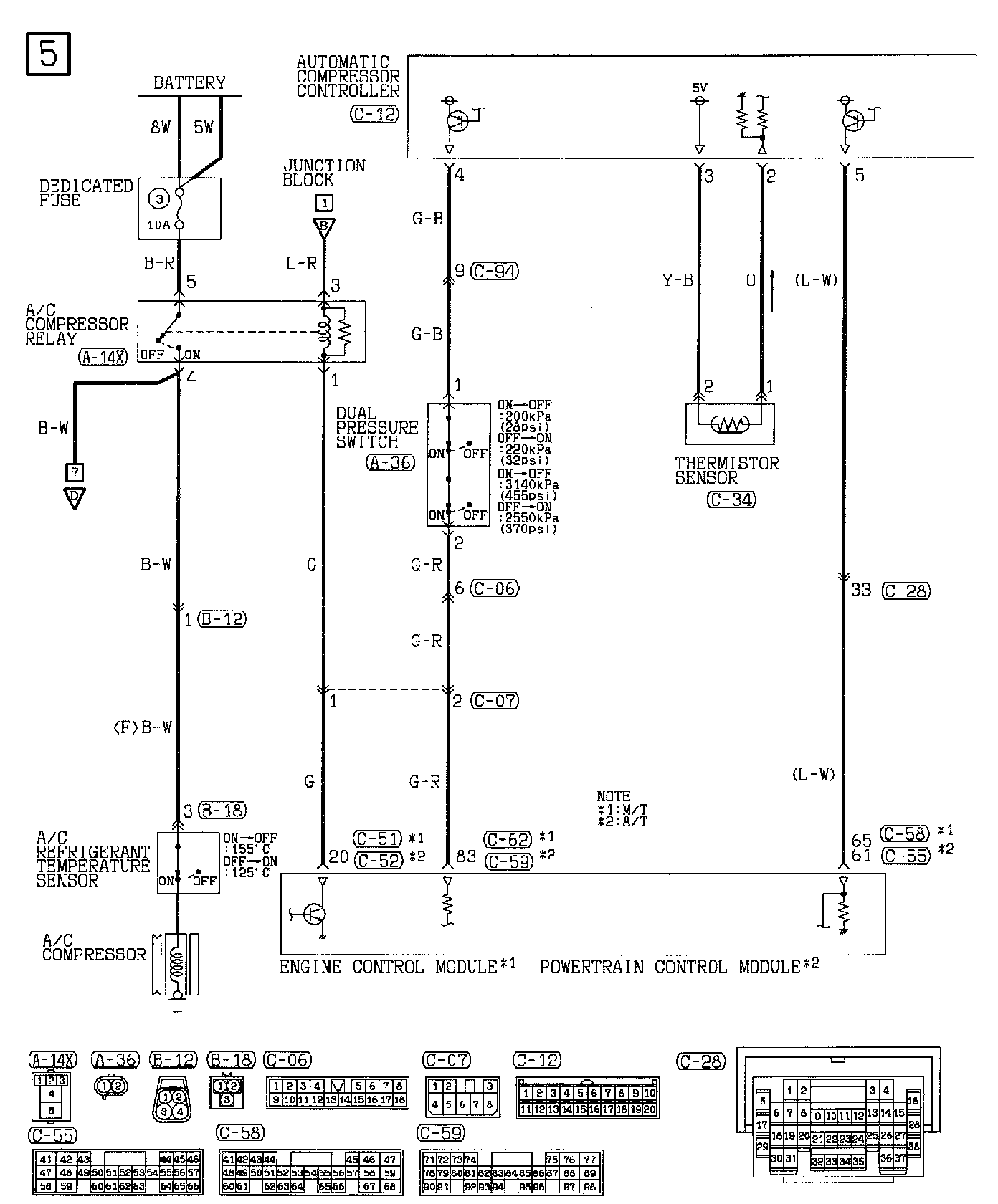

Air Conditioning System (Part 5 Of 7):

Automatic Compressor Controller
Dedicated Fuse
A/C Compressor Relay
Dual Pressure Switch
Thermistor Sensor
A/C Refrigerant Temperature Sensor
A/C Compressor
Engine Control Module
Powertrain Control Module

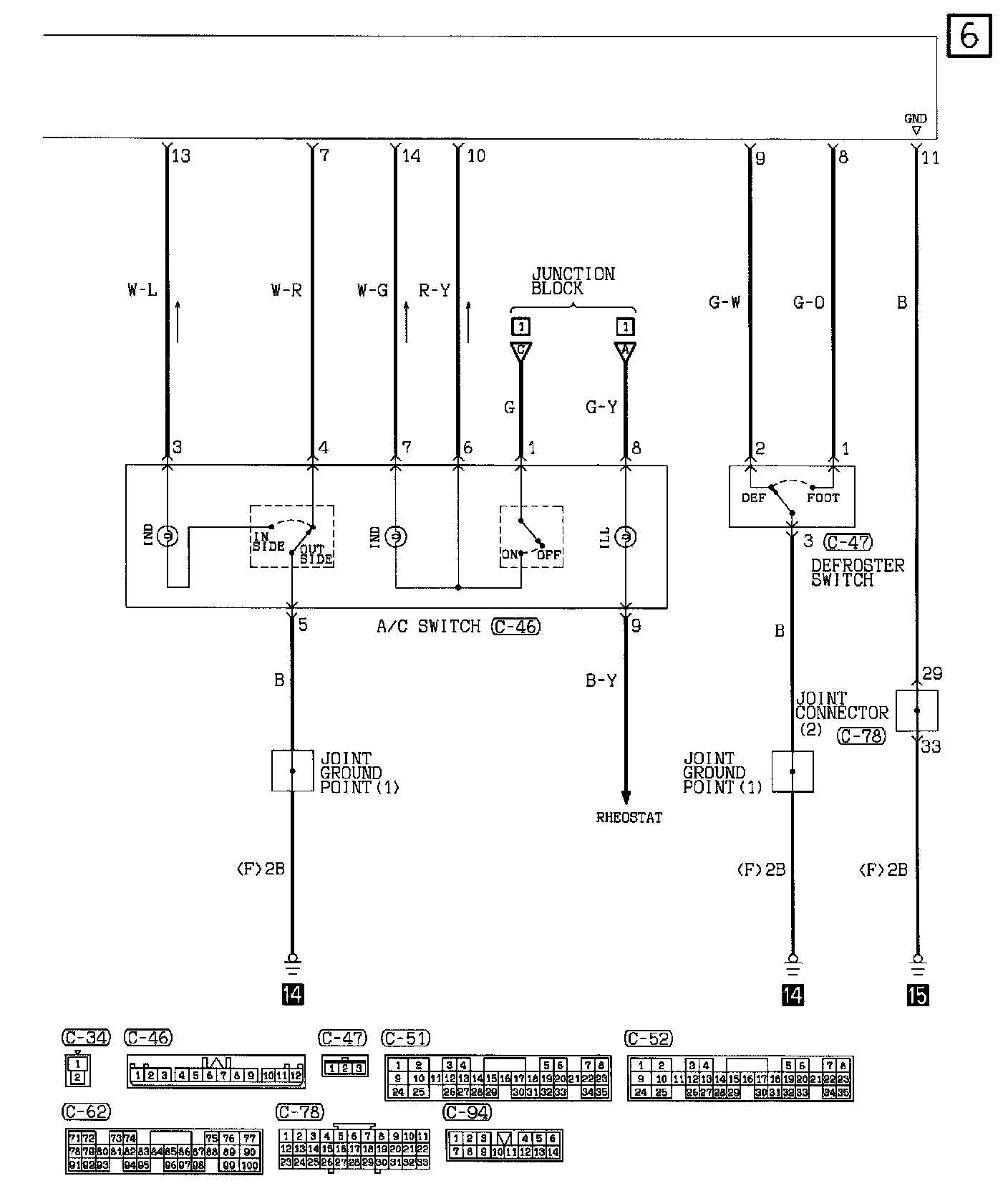

Air Conditioning System (Part 6 Of 7):

Defroster Switch
A/C Switch
Joint Connector
Joint Ground Point

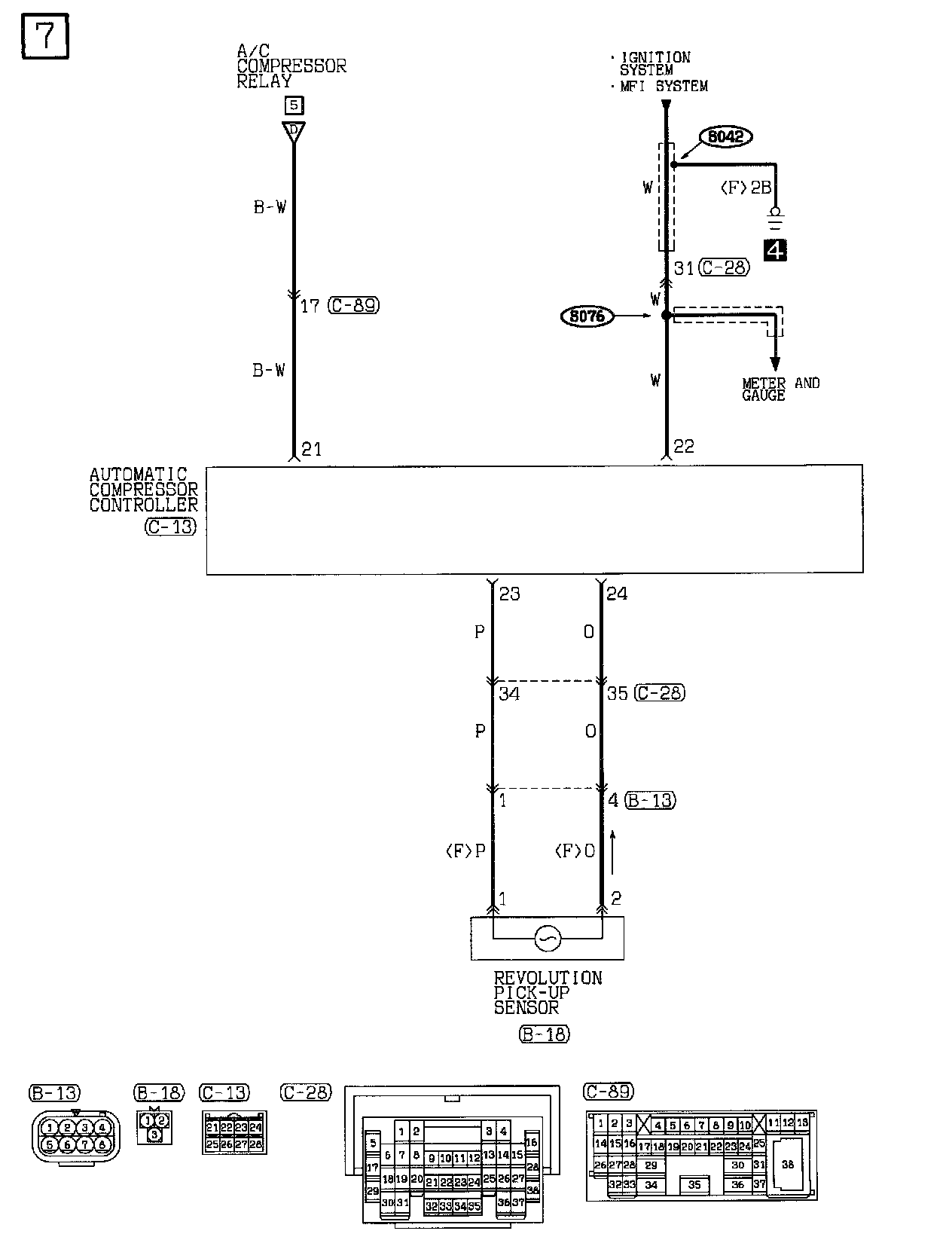

Air Conditioning System (Part 7 Of 7):

A/C Compressor Relay
Automatic Compressor Controller
Revolution Pick-Up Sensor
