A/C System Operation Diagram/Description

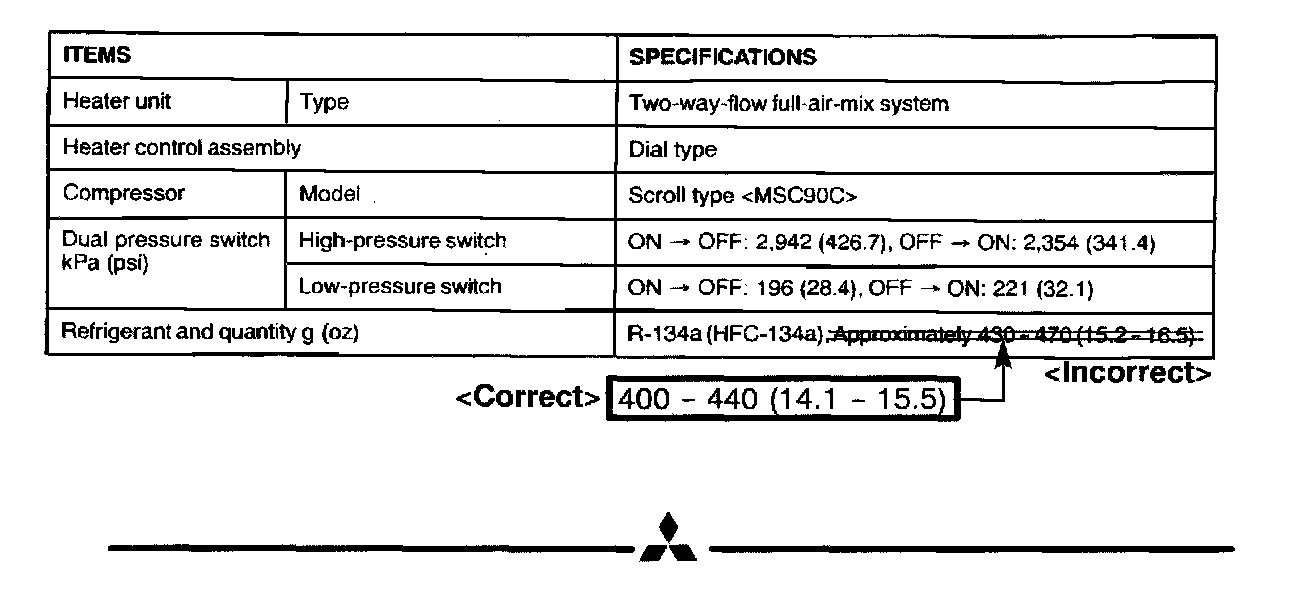

*****The content of this article/image reflects the changes called out by TSB-03-55-002






The heater system uses a two-way, flow-full, air mix system that features high performance and low operating noise. It includes an independent face air blowing function.
In addition, an air purifier has been included.
