Exhaust Pipe: Service and Repair

For models with dual catalytic converters contact your local Mitsubishi dealer with the last 8 digits of the VIN for parts information.

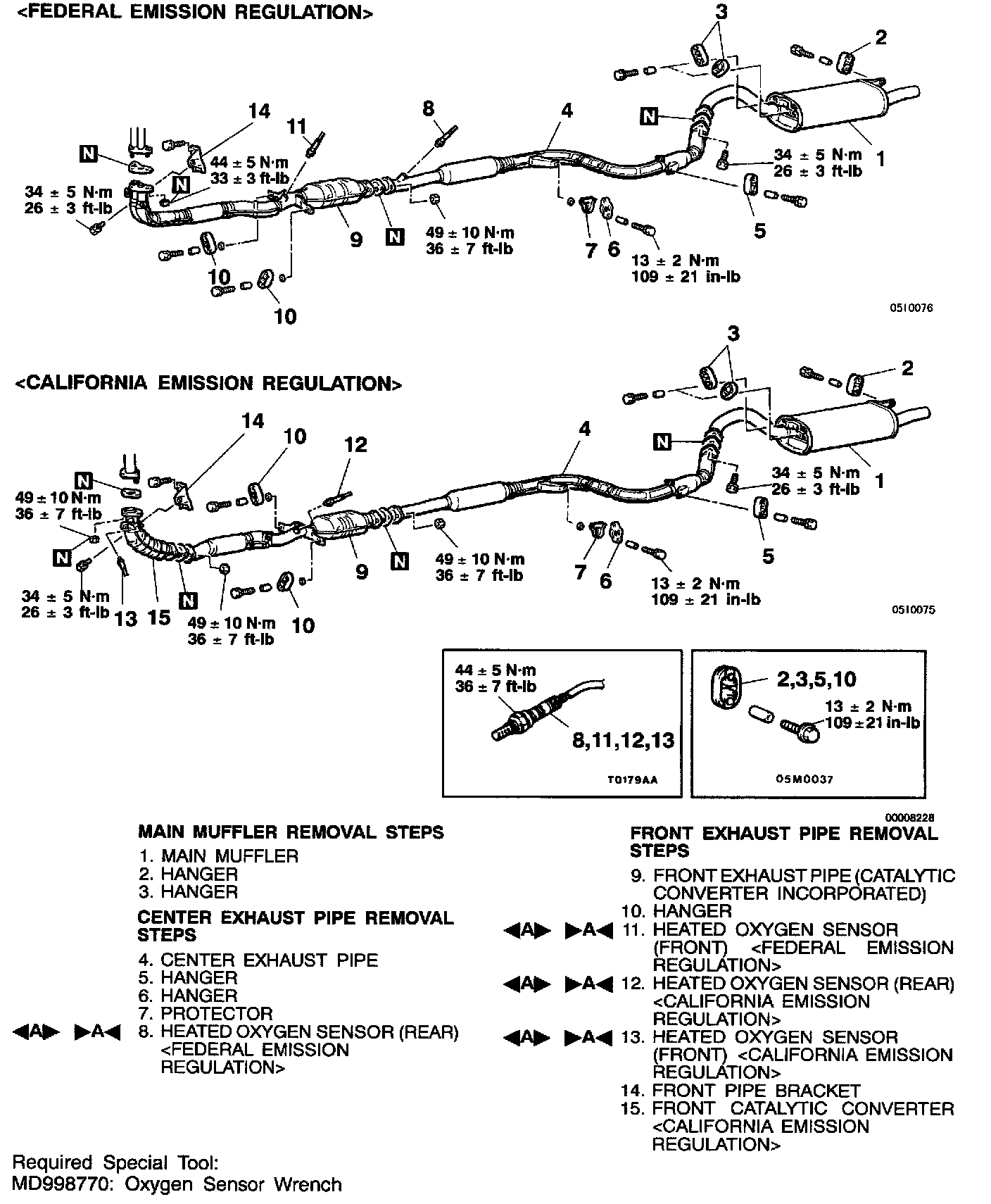

REMOVAL AND INSTALLATION






<2.4L ENGINE>








<3.0L ENGINE>

Removal Service Points

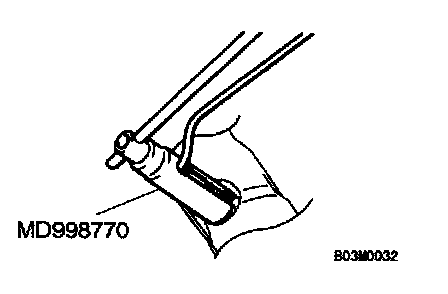

[A] Heated Oxygen Sensor Removal





Use special tool MD998770 to remove the heated oxygen sensor.

Installation Service Points
]A[ Heated Oxygen Sensor Installation
Use special tool MD998770 to install the heated oxygen sensor.
