Generator and Drive Belt

REMOVAL AND INSTALLATION

Removal Service Points
[A] Crankshaft Bolt Loosening

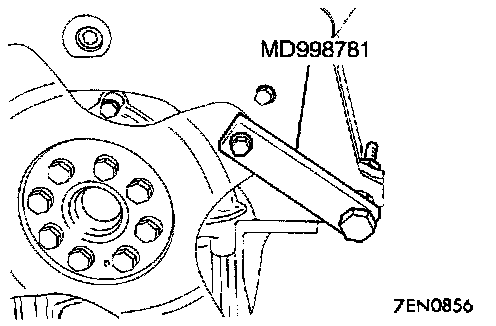

1. Install special tool MD998781 to hold the flywheel or drive plate.
2. Loosen and remove the crankshaft bolt and washer.

Installation Service Points
[A] Crankshaft Bolt Tightening

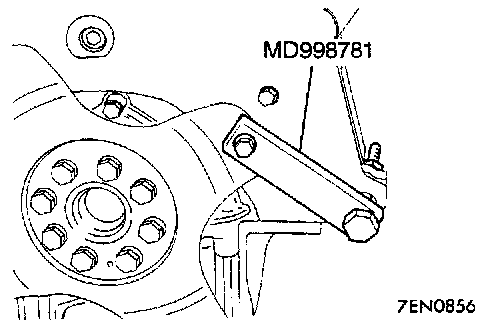

1. Install special tool MD998781 to hold the flywheel or drive plate.
2. Install the washer and crankshaft bolt, and then tighten the bolt.
Tightening torque: 181 ± 5 Nm (134 ± 4 ft. lbs.)
