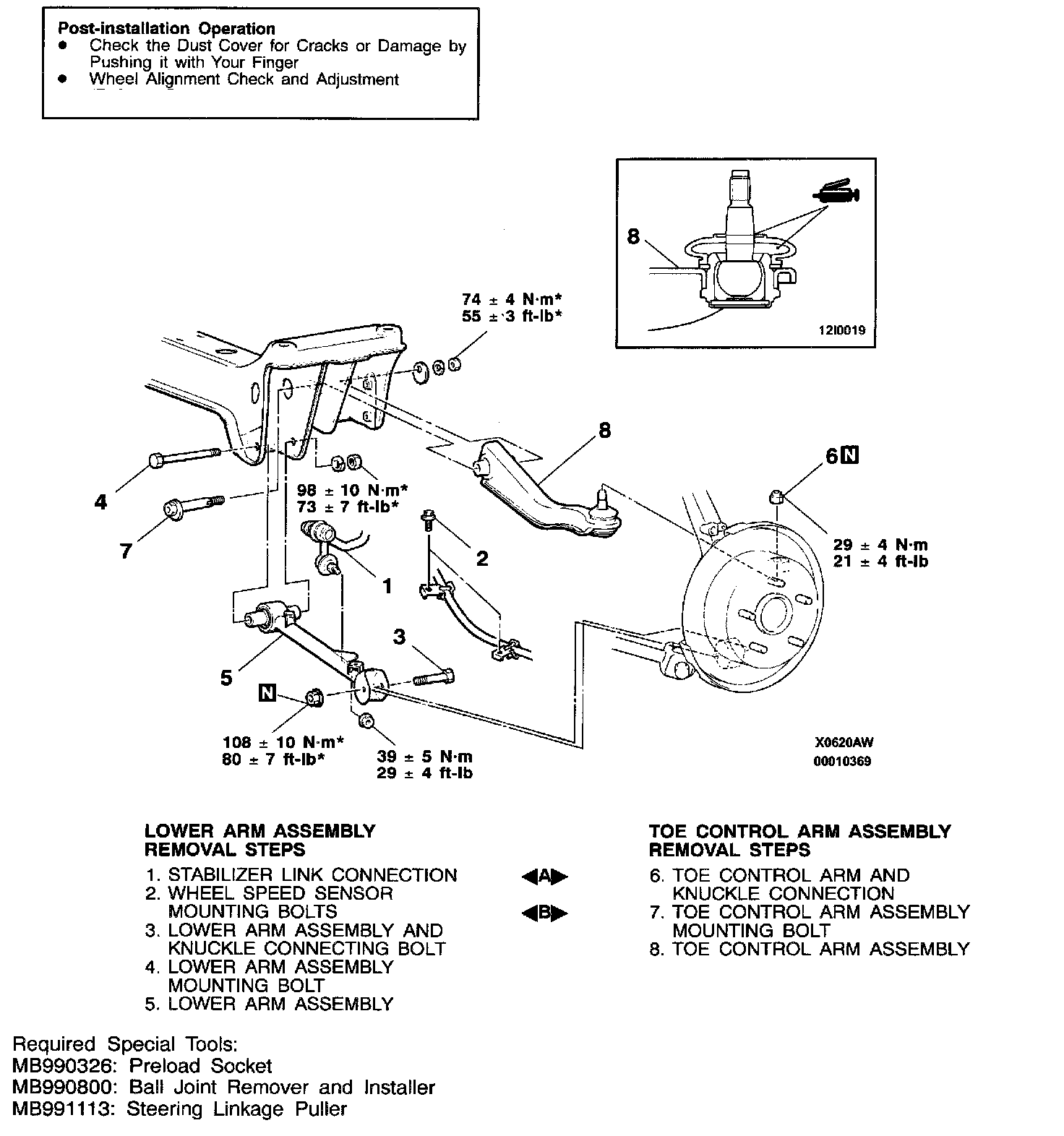

LOWER ARM AND TOE CONTROL ARM ASSEMBLIES REPLACEMENT W/ RELATED COMPONENTS
CAUTION:
*: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.
