Removal and Installation

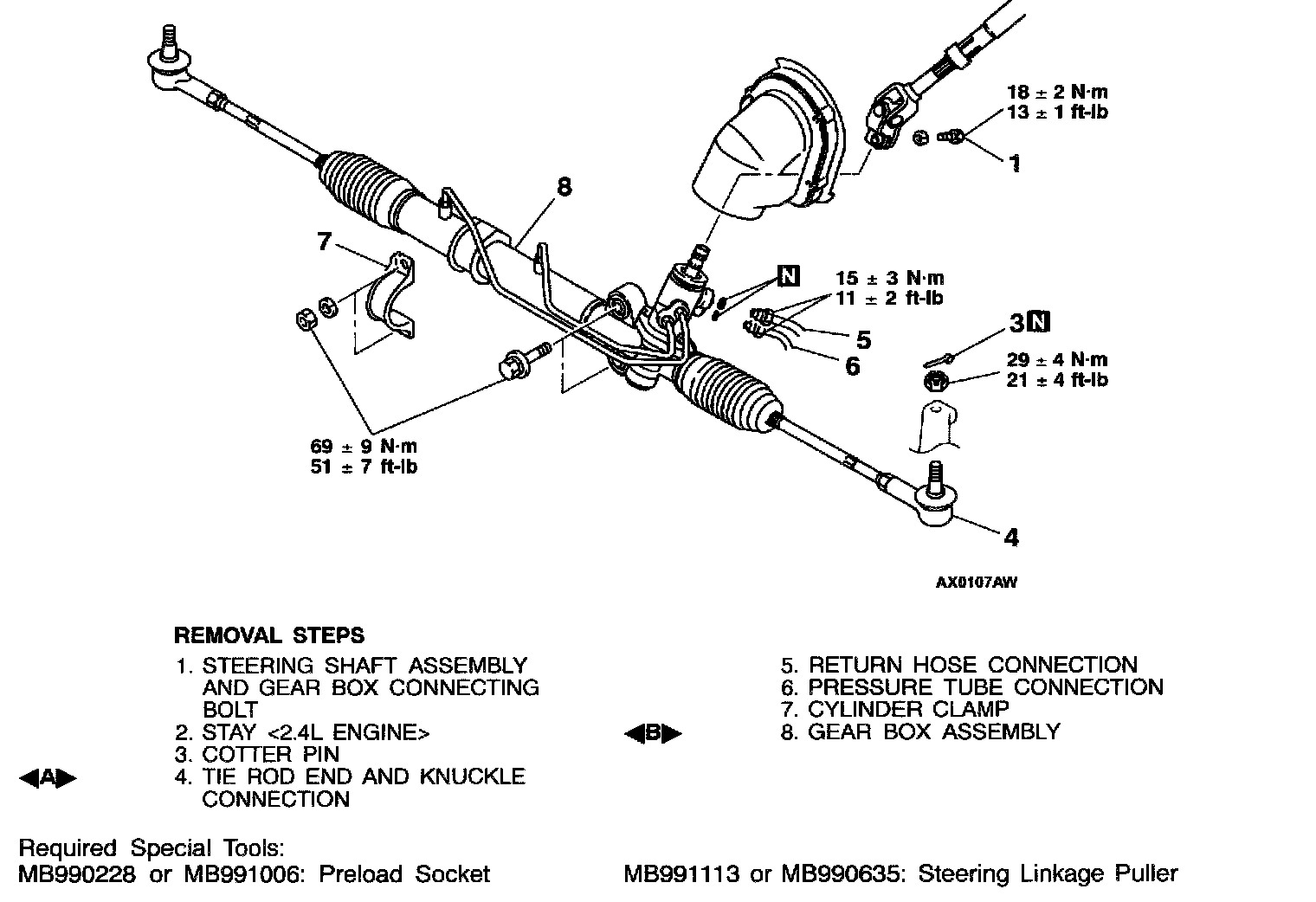

POWER STEERING GEAR BOX REPLACEMENT W/ RELATED COMPONENTS





WARNING: For vehicles with SRS, before removing the steering gear box review the precautions for Air Bag and Clockspring. Center the front wheels and remove the ignition key. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.
