Disassembly and Assembly

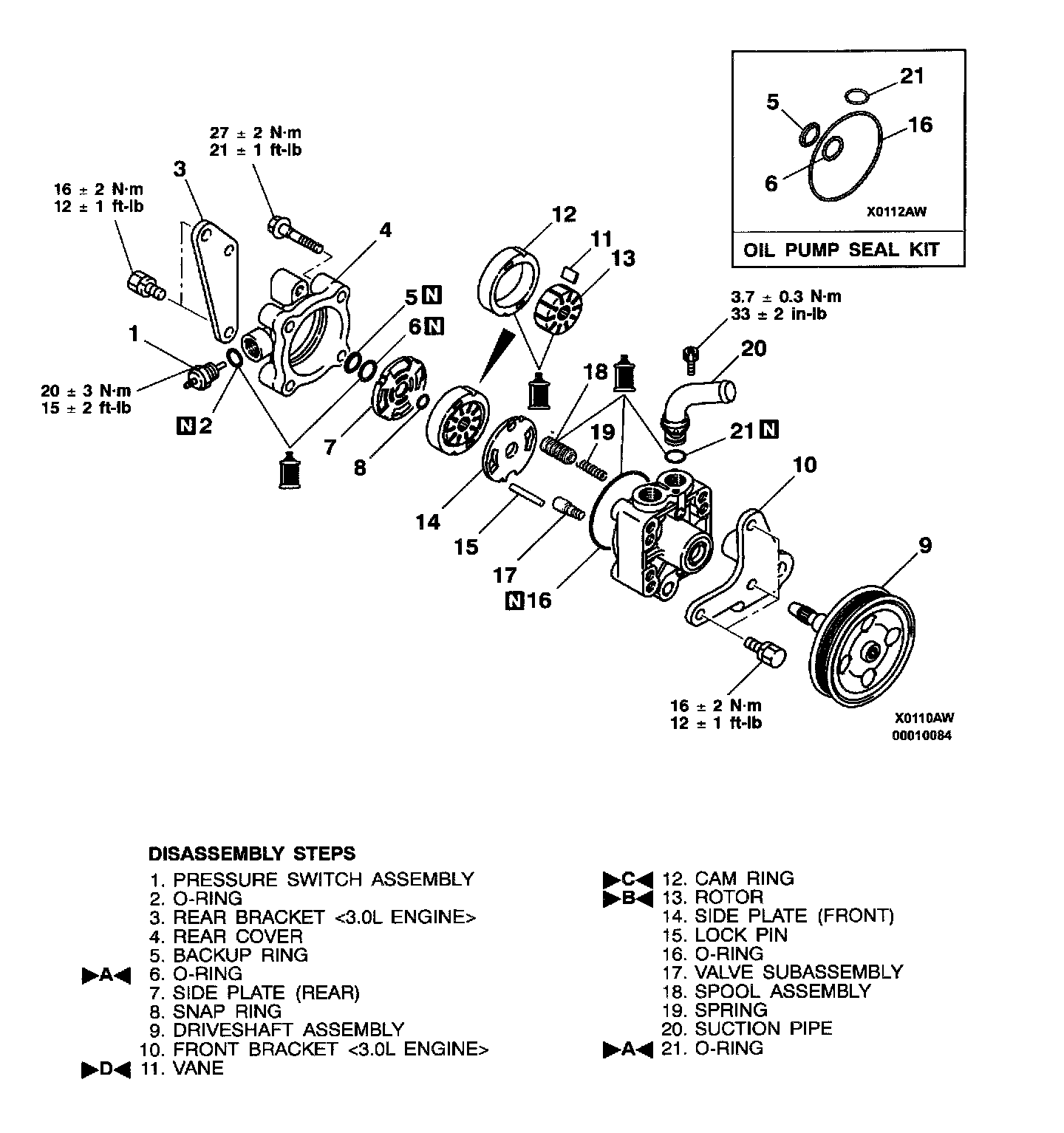

POWER STEERING OIL PUMP OVERHAUL W/ RELATED COMPONENTS
CAUTION:
Do not disassemble the pressure switch assembly and valve subassembly.
