Manual Transmission

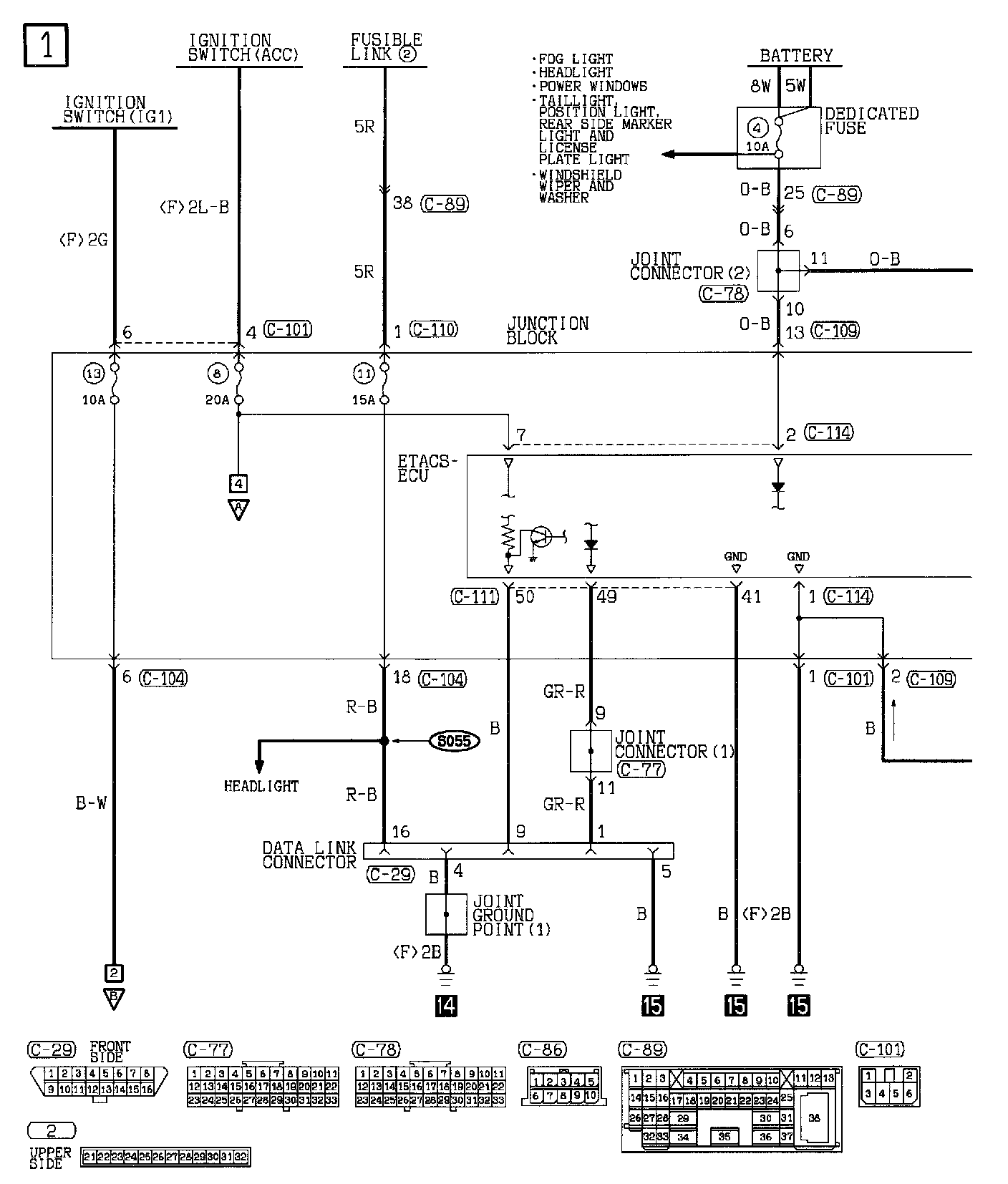

Rear Wiper And Washer (Part 1 Of 4):

Dedicated Fuse
Joint Connector
Junction Block
- ETACS-ECU
Joint Ground Point
Data Link Connector

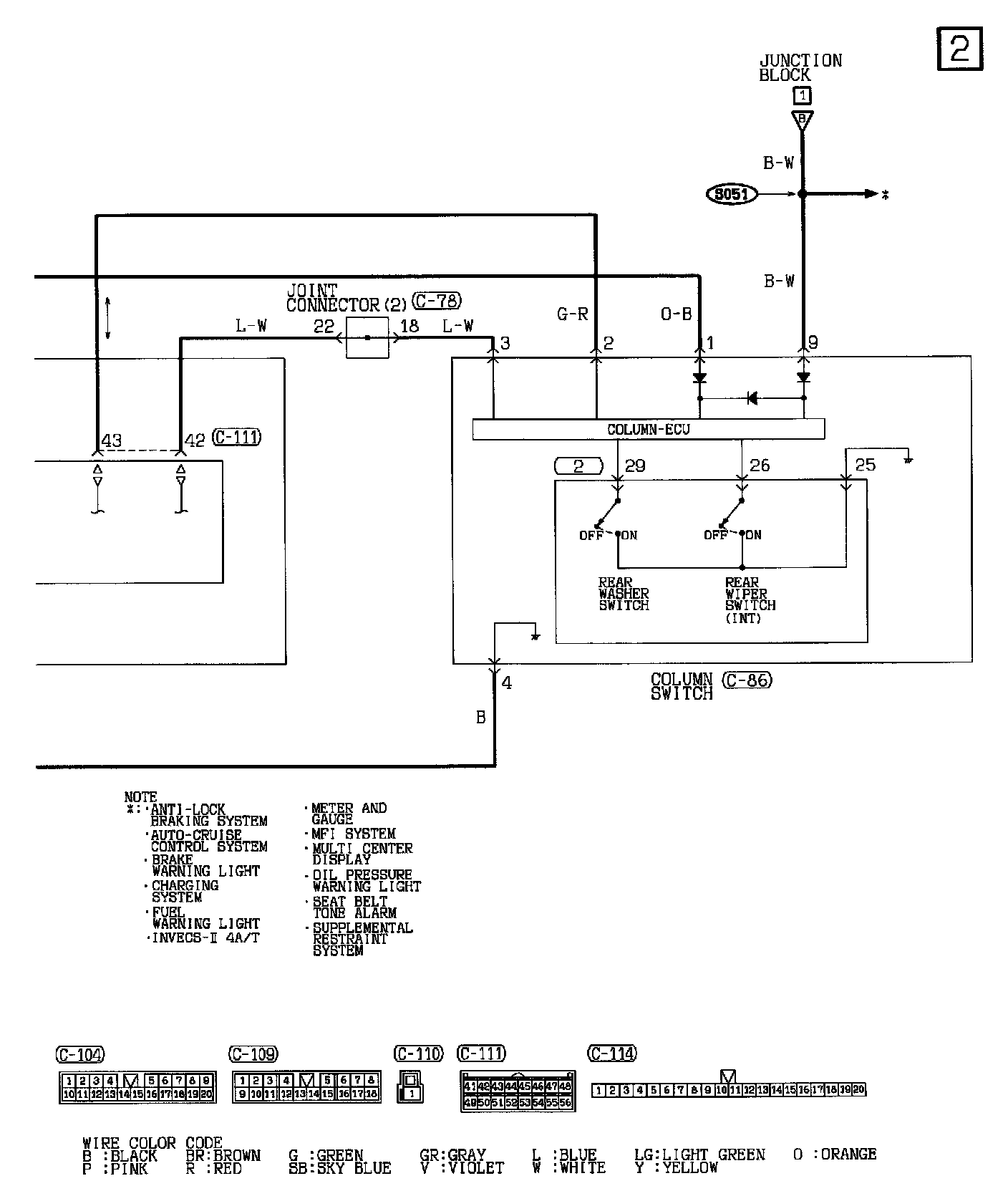

Rear Wiper And Washer (Part 2 Of 4):

Joint Connector
Column Switch
- Rear Washer Switch
- Rear Wiper Switch

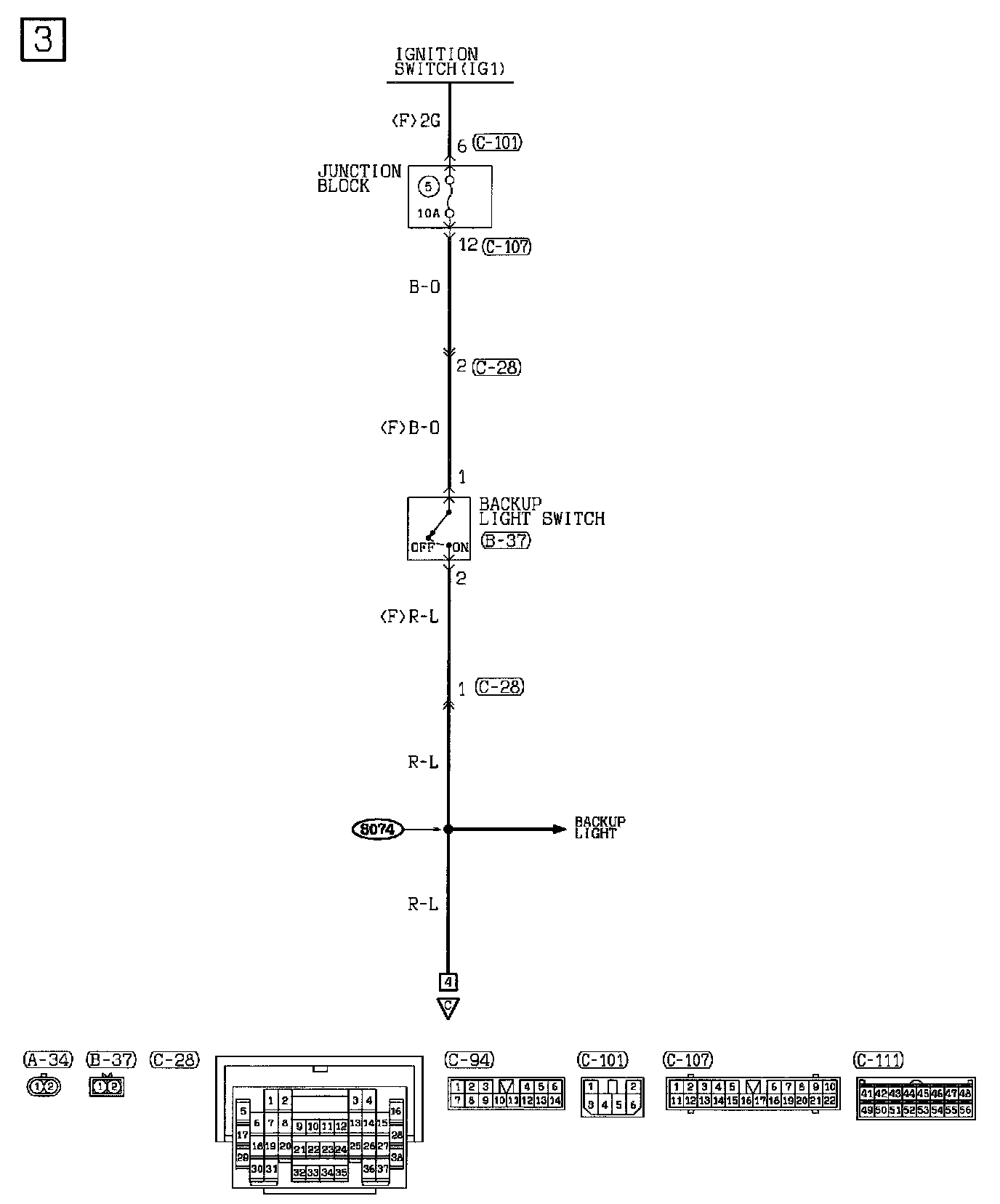

Rear Wiper And Washer (Part 3 Of 4):

Junction Block
Back Up Light Switch

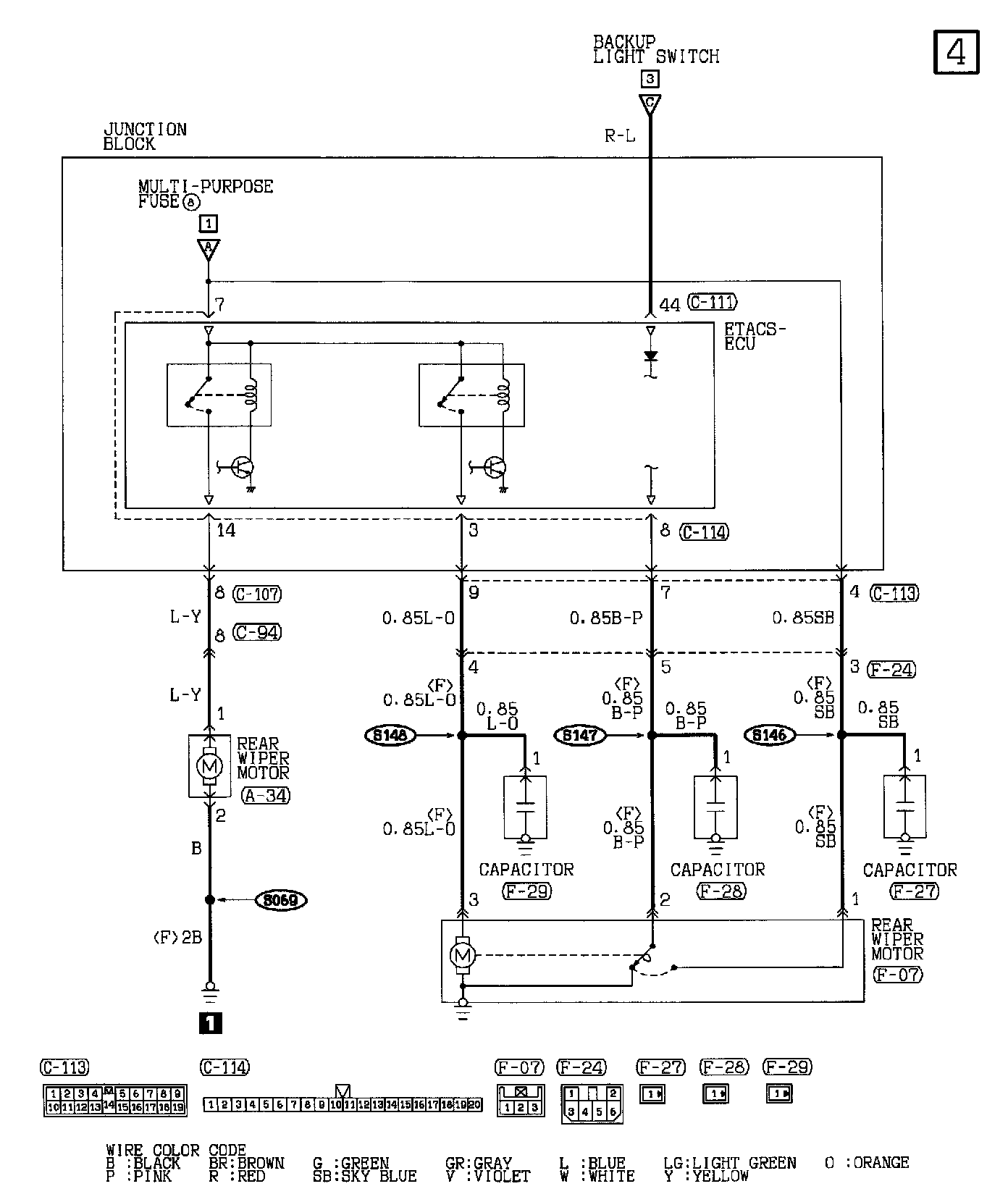

Rear Wiper And Washer (Part 4 Of 4):

Junction Block
- Multi-Purpose Fuse
- ETACS-ECU
Rear Wiper Motor
Capacitor
