Manual Transmission

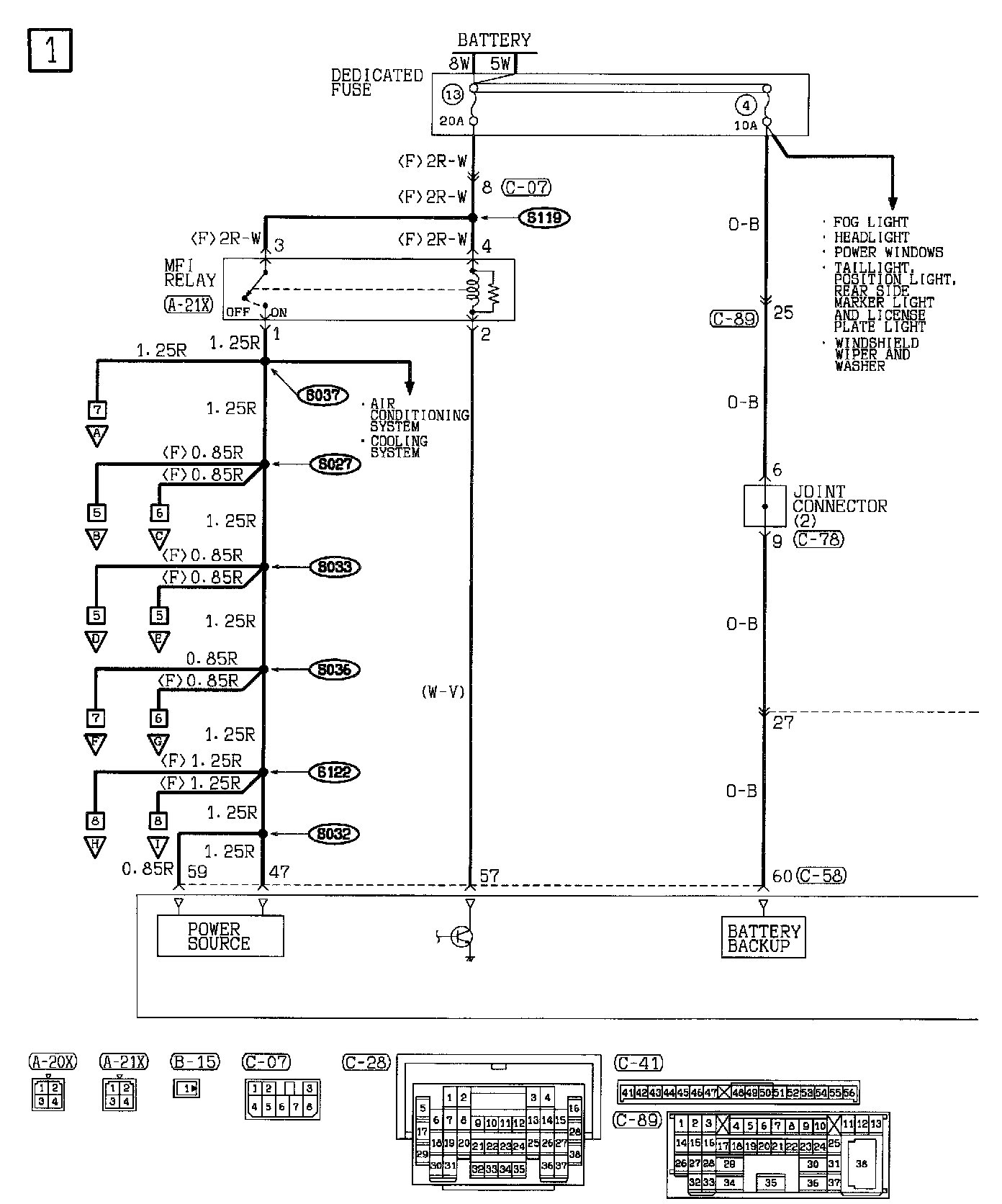

MFI System (Part 1 Of 10):

Dedicated Fuse
MFI Relay
Joint Connector
Power Source
Battery Back Up

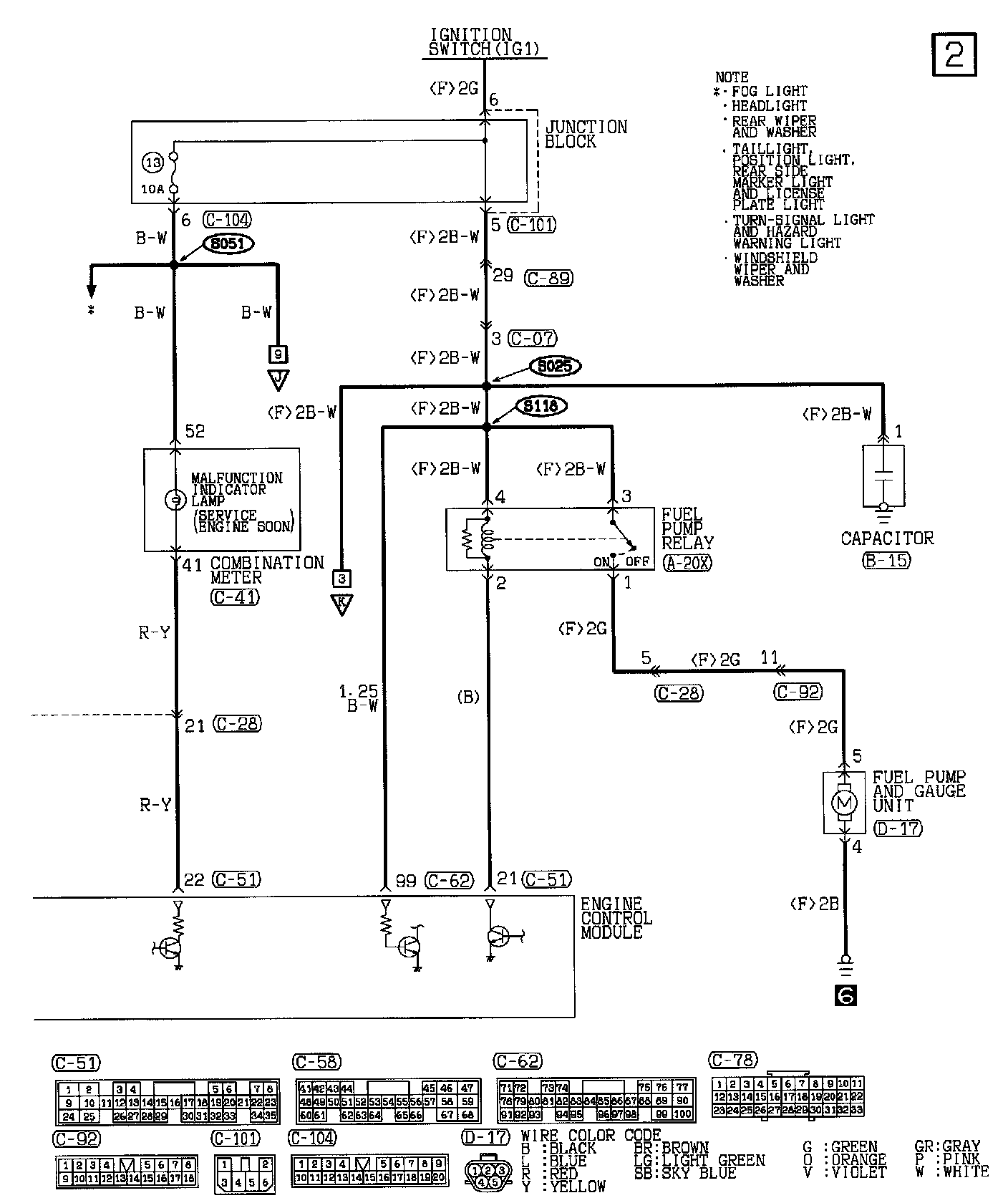

MFI System (Part 2 Of 10):

Junction Block
Combination Meter
Fuel Pump Relay
Capacitor
Fuel Pump And Gauge Unit
Engine Control Module

MFI System (Part 3 Of 10):

Distributor Assembly
- Ignition Coil
- Distributor
- Top Dead Center Sensor

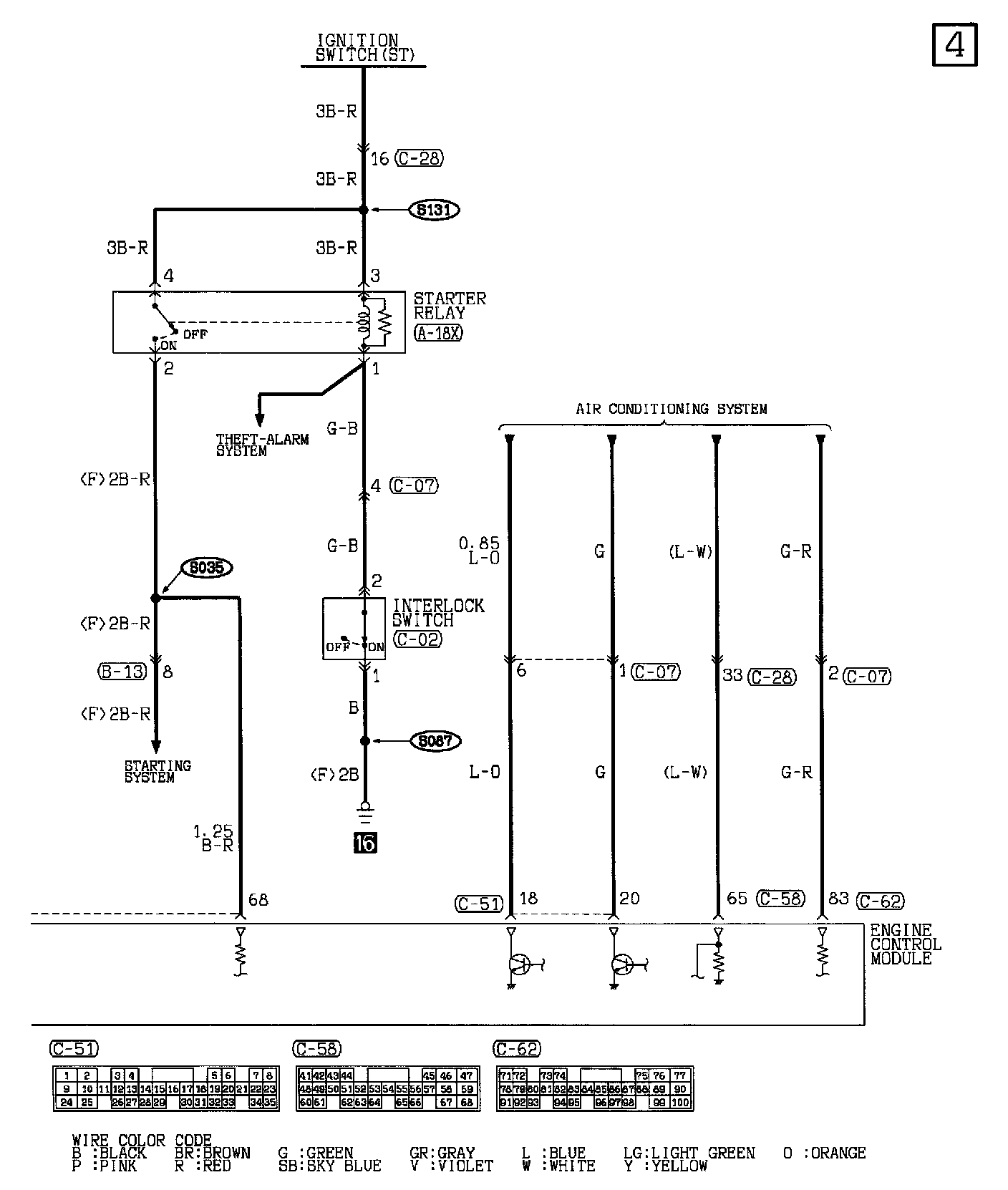

MFI System (Part 4 Of 10):

Starter Relay
Interlock Switch
Engine Control Module

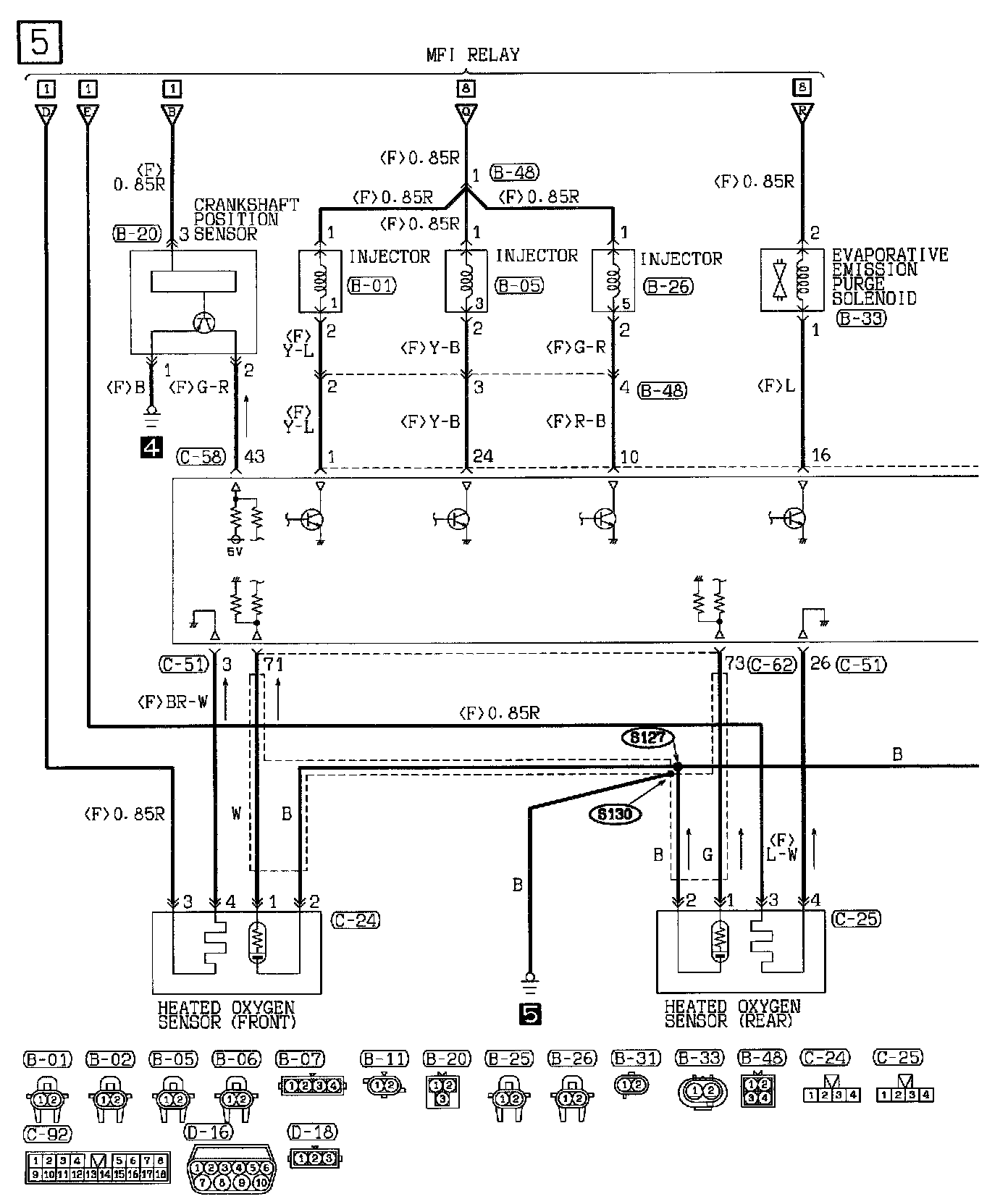

MFI System (Part 5 Of 10):

Crankshaft Position Sensor
Injector
Evaporative Emission Purge Solenoid
Heated Oxygen Sensor (Front & Rear)

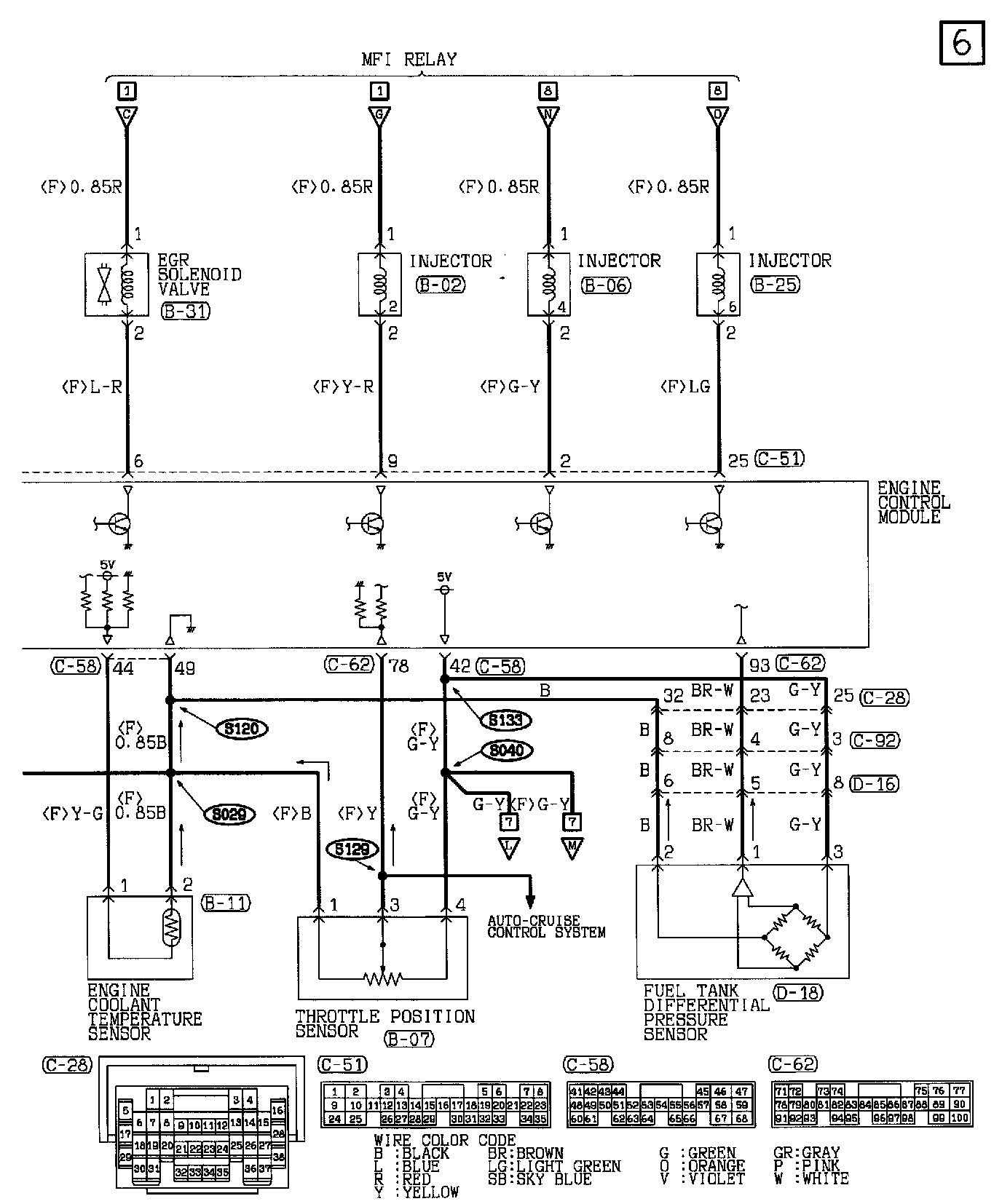

MFI System (Part 6 Of 10):

EGR Solenoid Valve
Injector
Engine Control Module
Engine Coolant Temperature Sensor
Throttle Position Sensor
Fuel Tank Differential Pressure Sensor

MFI System (Part 7 Of 10):

Volume Air Flow Sensor
Evaporative Emission Ventilation Solenoid
Manifold Differential Pressure Sensor
Power Steering Pressure Switch

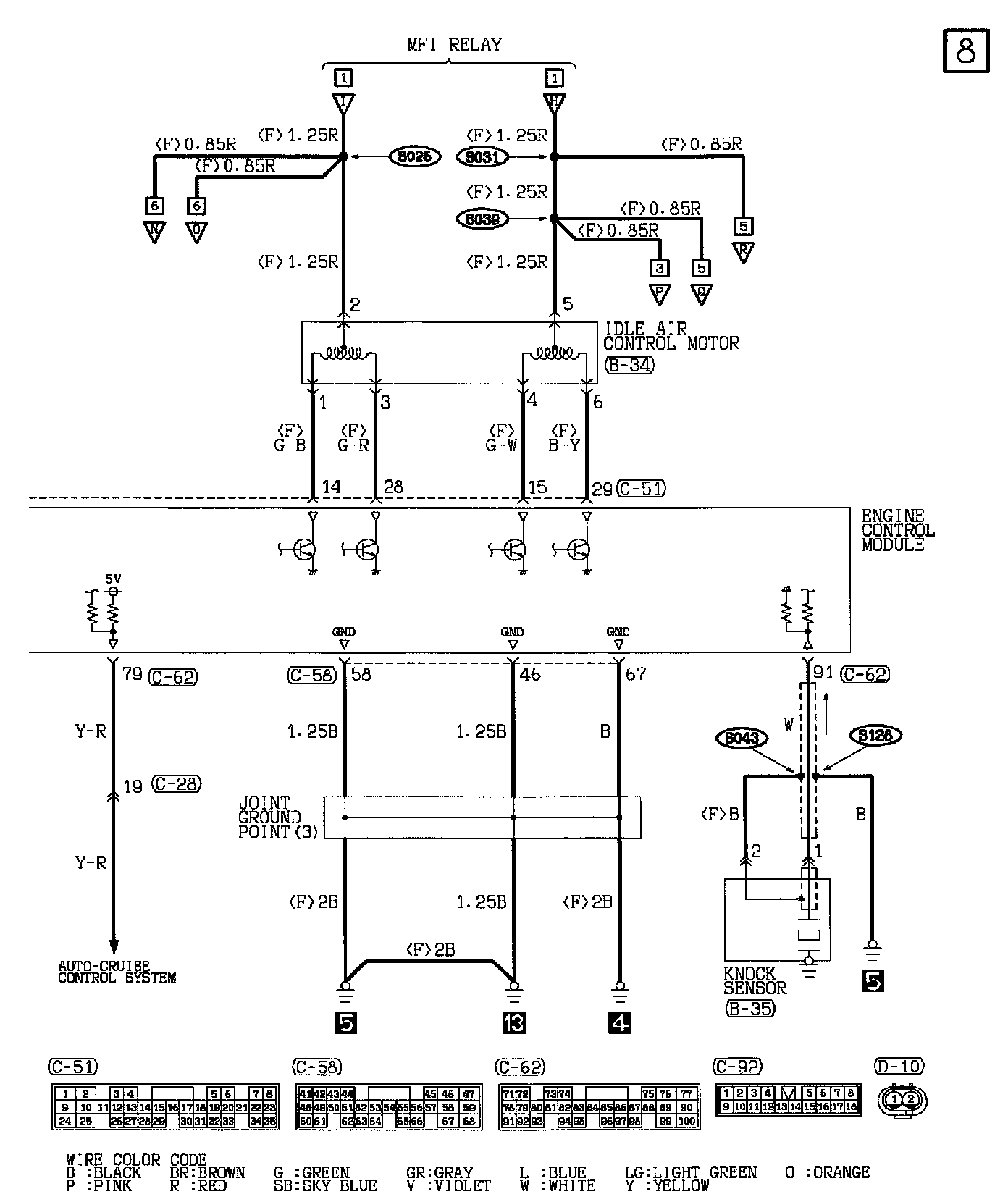

MFI System (Part 8 Of 10):

Idle Air Control Motor
Engine Control Module
Joint Ground Point
Knock Sensor

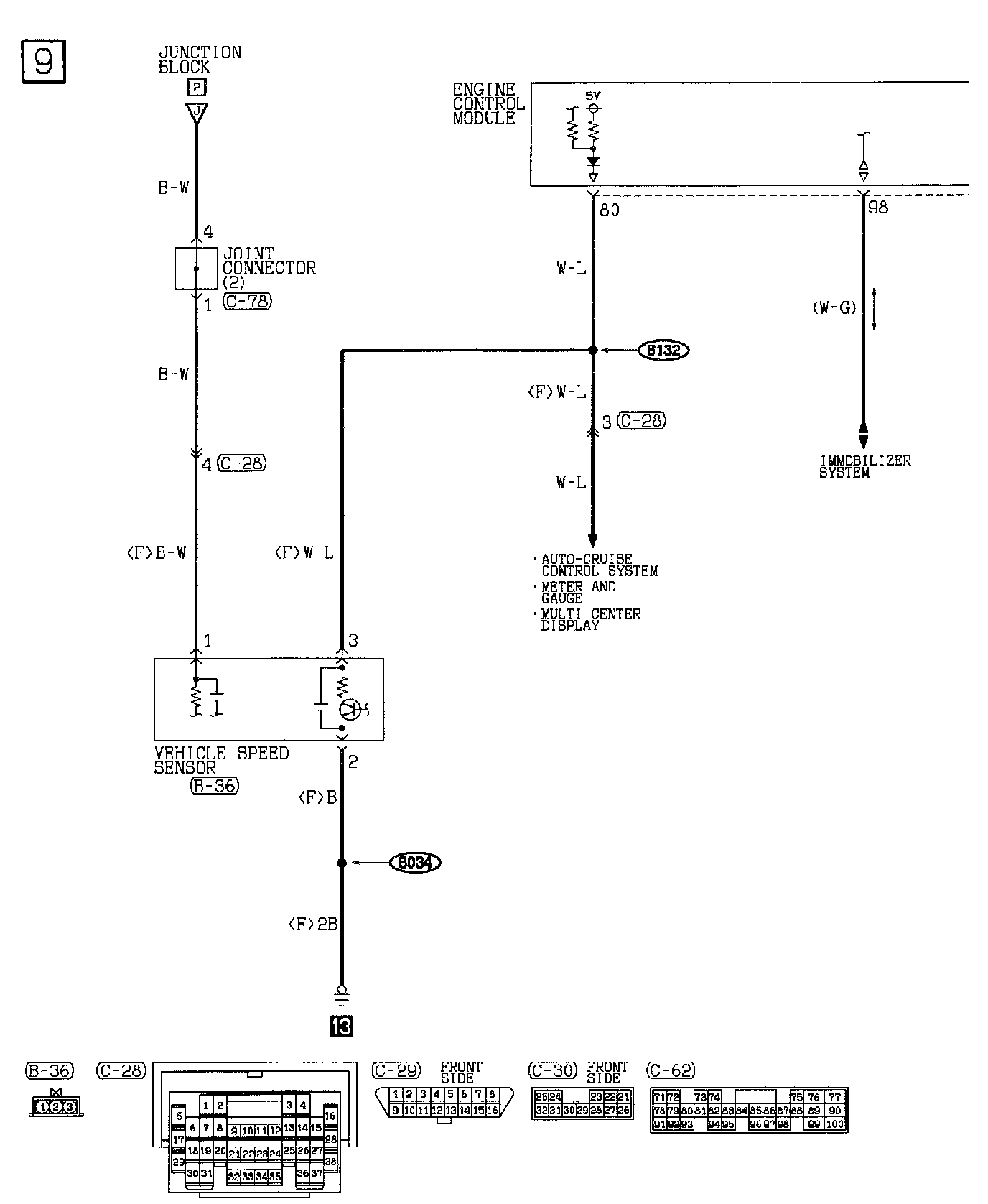

MFI System (Part 9 Of 10):

Joint Connector
Engine Control Module
Vehicle Speed Sensor

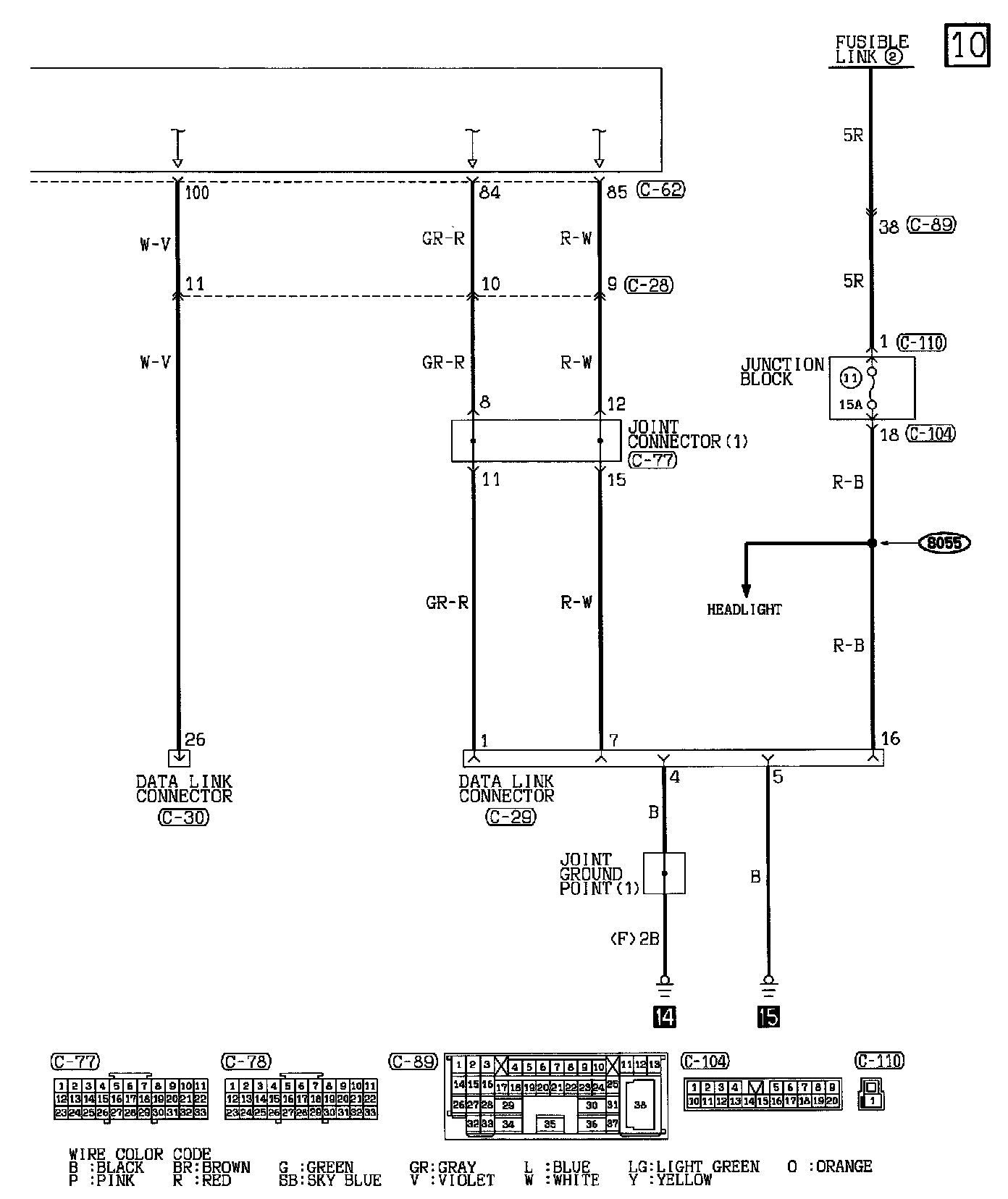

MFI System (Part 10 Of 10):

Joint Connector
Junction Block
Joint Ground Point
