Automatic Transmission

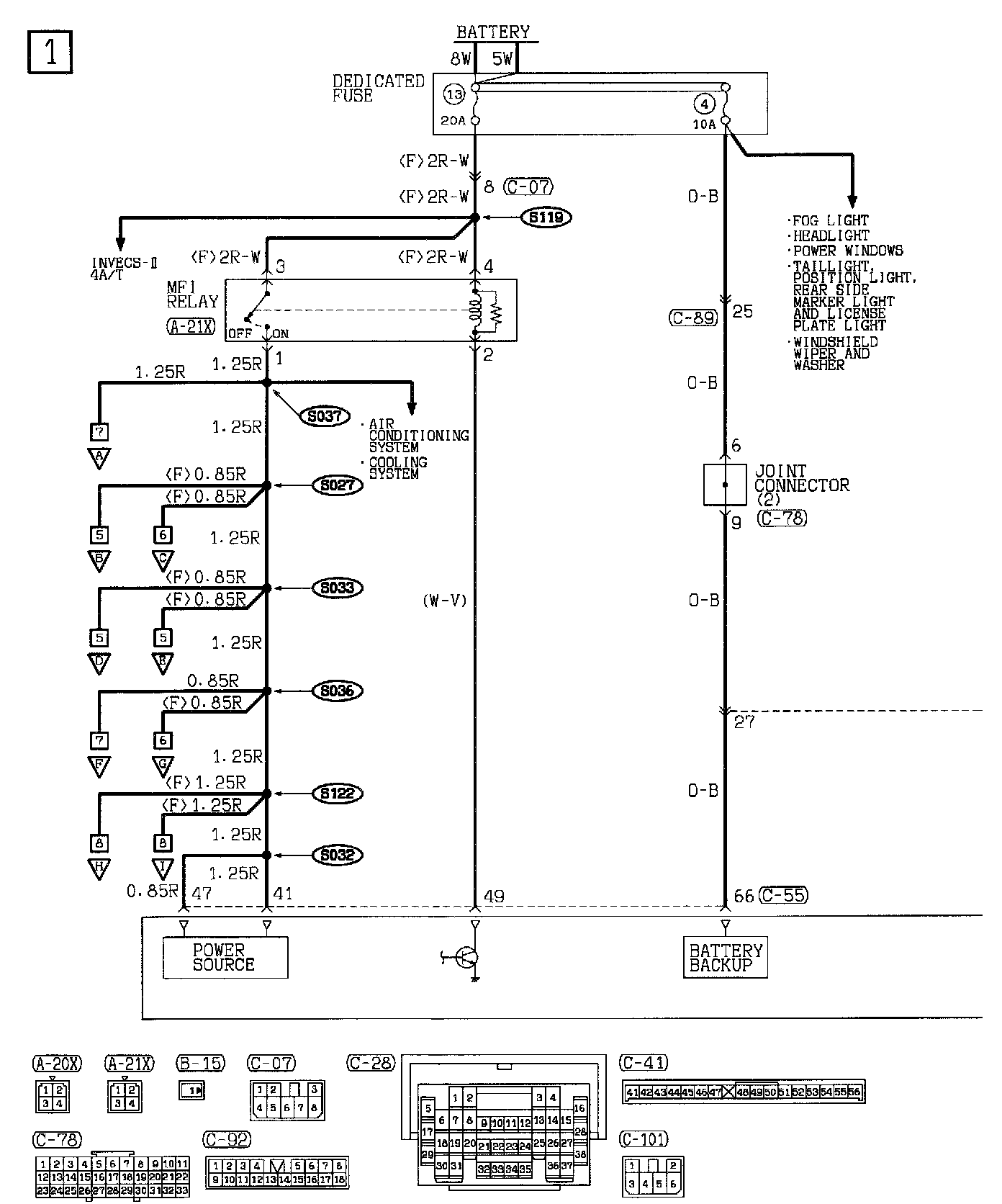

MFI System (Part 1 Of 10):

Dedicated Fuse
MFI Relay
Joint Connector
Power Source
Battery Back Up

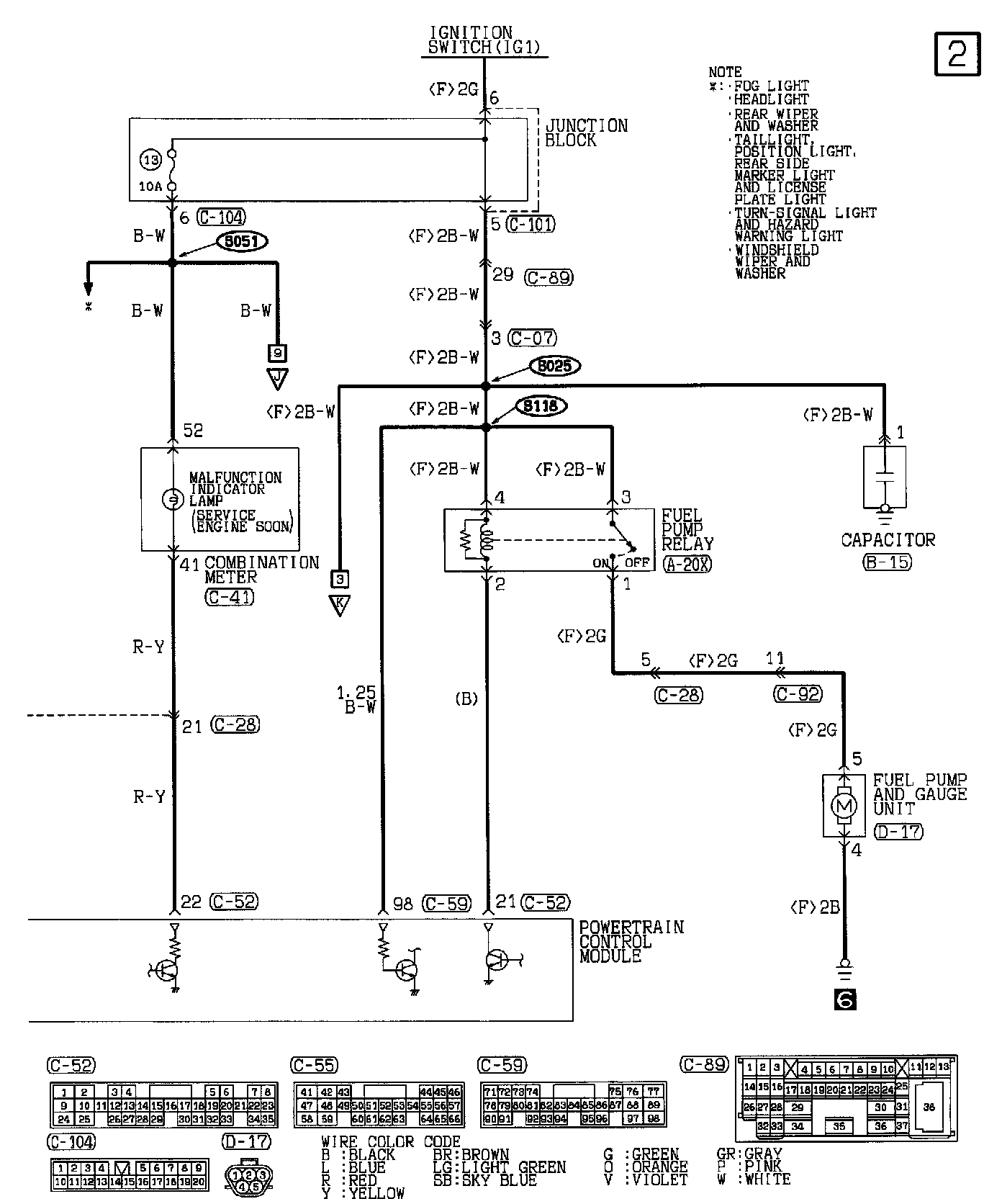

MFI System (Part 2 Of 10):

Junction Block
Combination Meter
Fuel Pump Relay
Capacitor
Fuel Pump And Gauge Unit
Powertrain Control Module

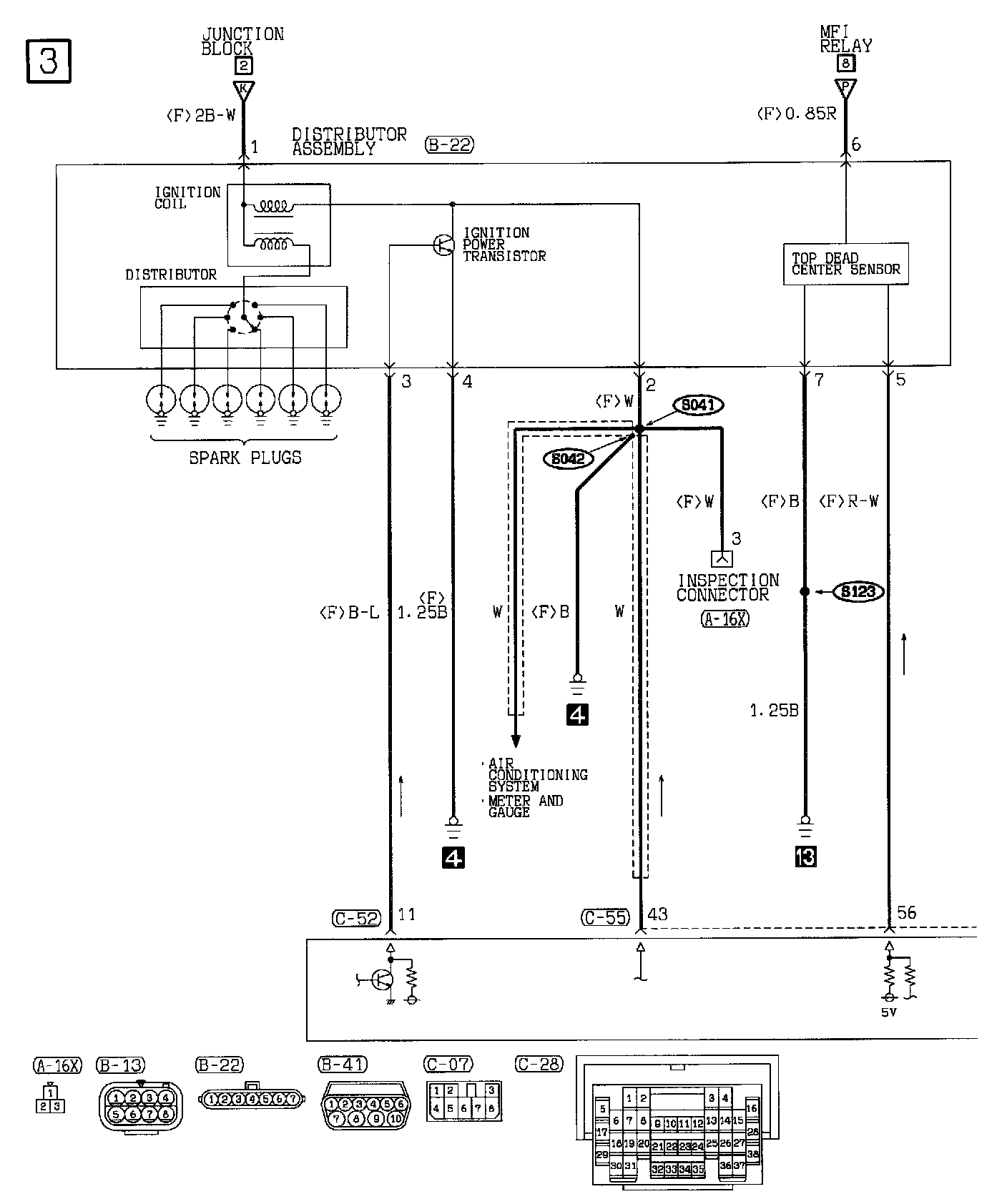

MFI System (Part 3 Of 10):

Distributor Assembly
- Ignition Coil
- Distributor
- Top Dead Center Sensor

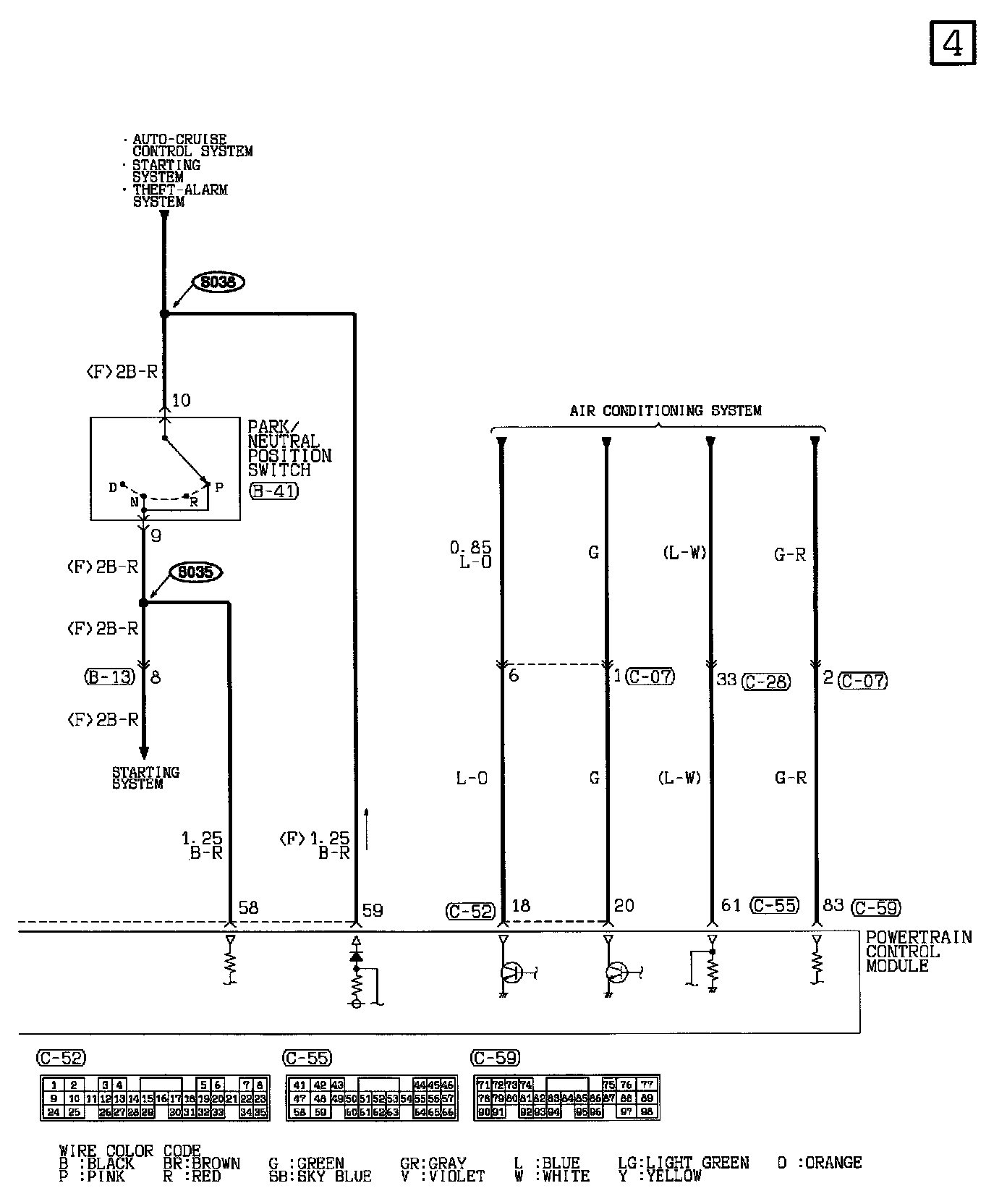

MFI System (Part 4 Of 10):

Park/Neutral Position Switch
Powertrain Control Module

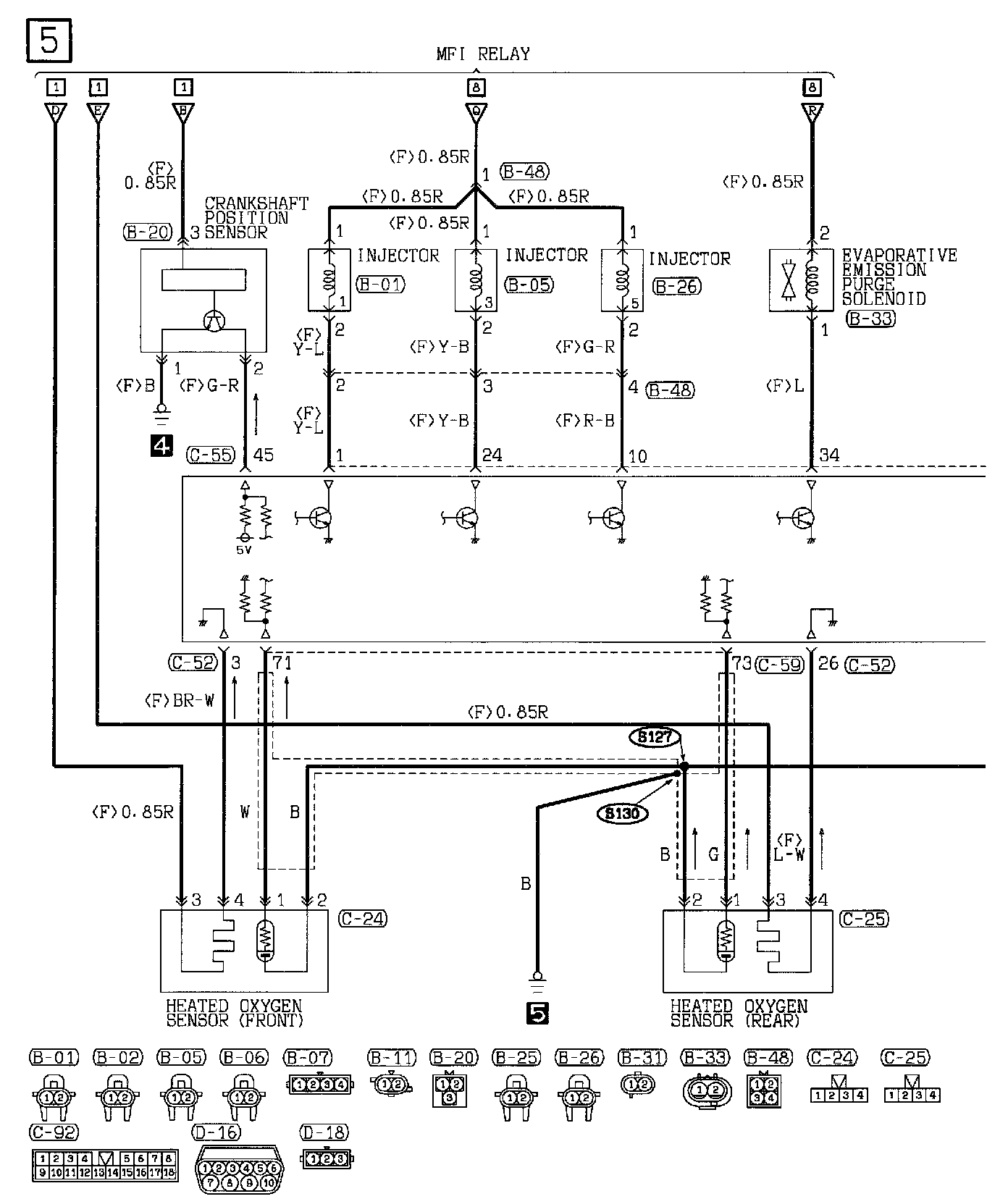

MFI System (Part 5 Of 10):

Crankshaft Position Sensor
Injector
Evaporative Emission Purge Solenoid
Heated Oxygen Sensor (Front & Rear)

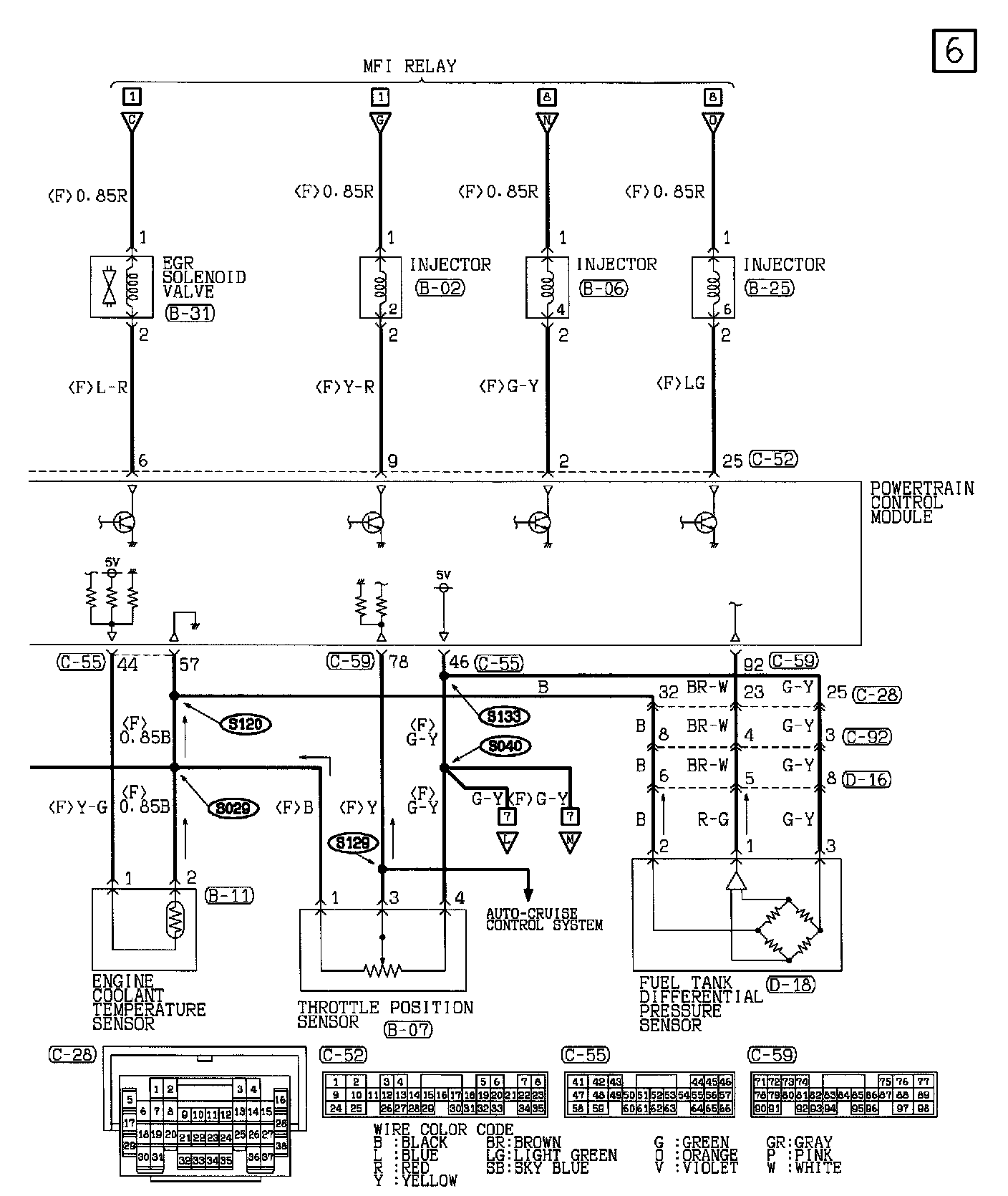

MFI System (Part 6 Of 10):

EGR Solenoid Valve
Injector
Powertrain Control Module
Engine Coolant Temperature Sensor
Throttle Position Sensor
Fuel Tank Differential Pressure Sensor

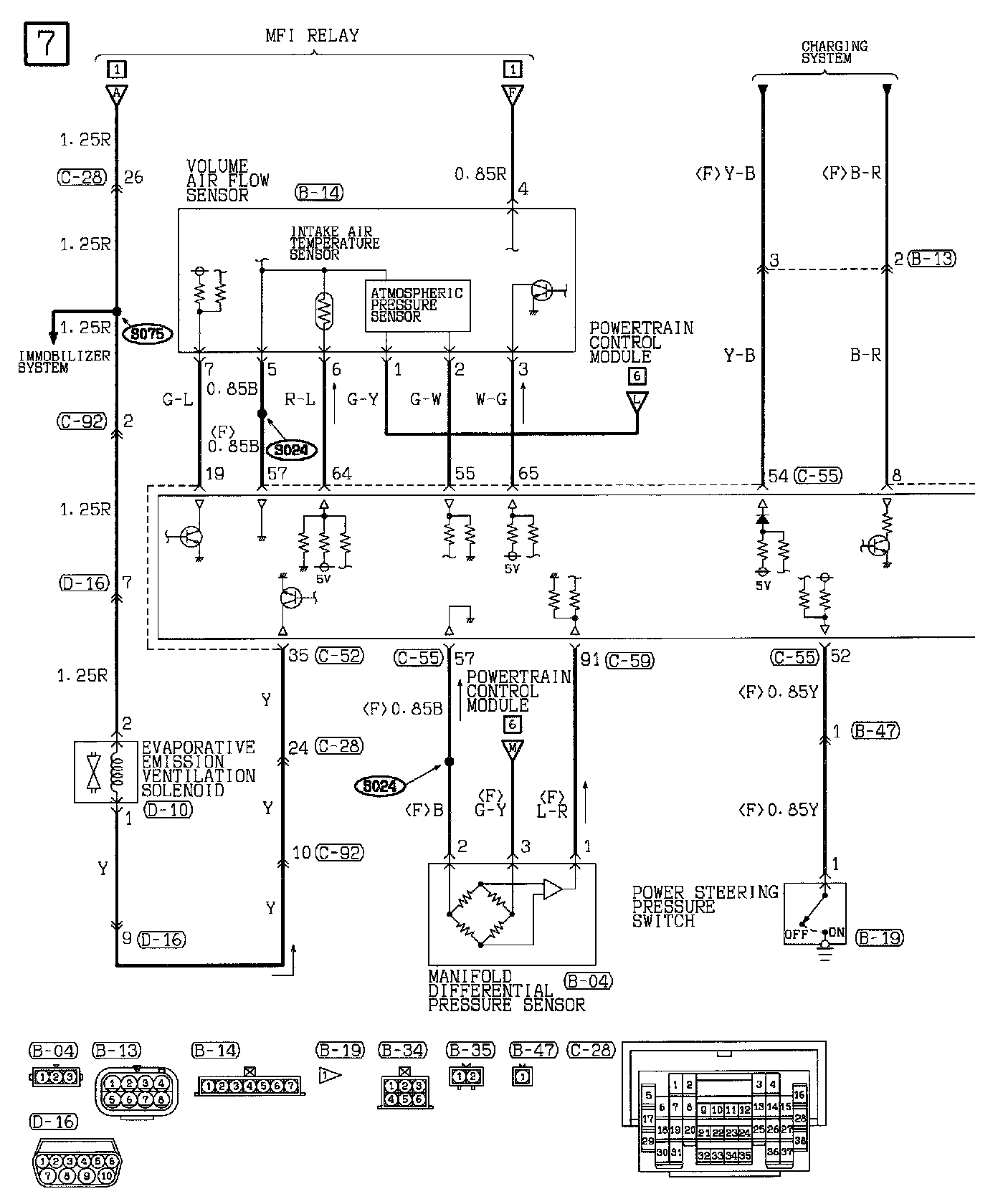

MFI System (Part 7 Of 10):

Volume Air Flow Sensor
Evaporative Emission Ventilation Solenoid
Manifold Differential Pressure Sensor
Power Steering Pressure Switch

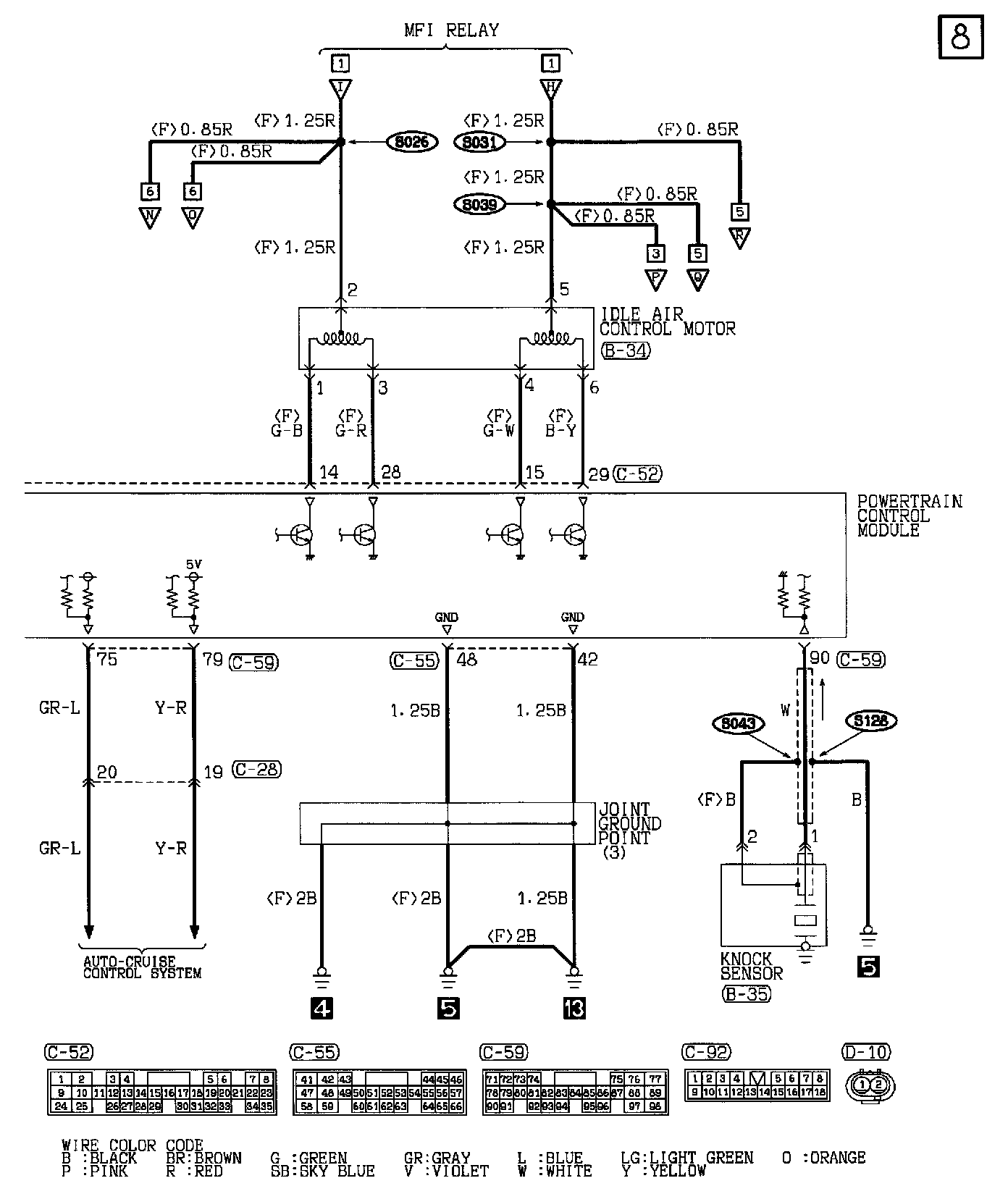

MFI System (Part 8 Of 10):

Idle Air Control Motor
Powertrain Control Module
Joint Ground Point
Knock Sensor

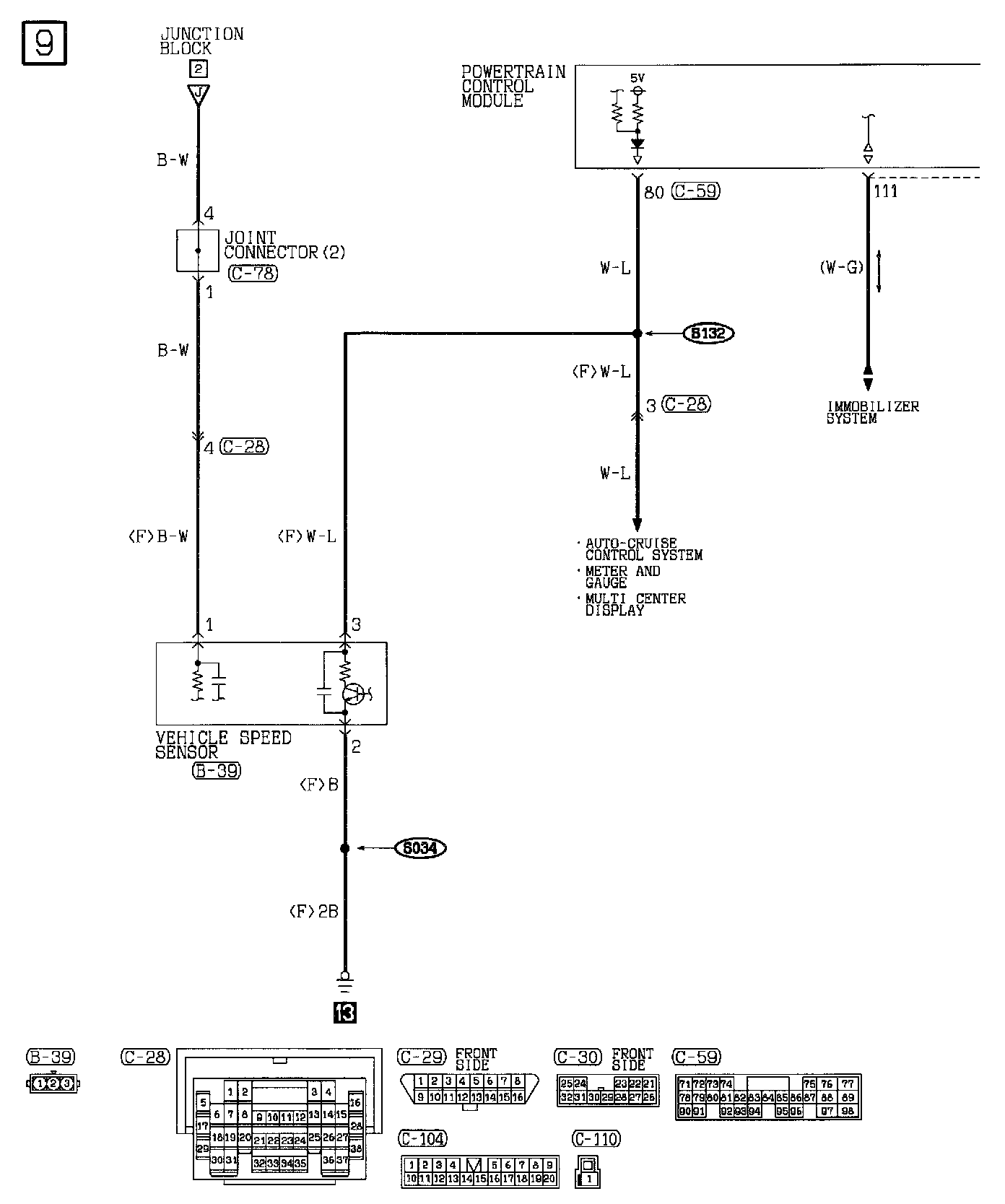

MFI System (Part 9 Of 10):

Joint Connector
Powertrain Control Module
Vehicle Speed Sensor

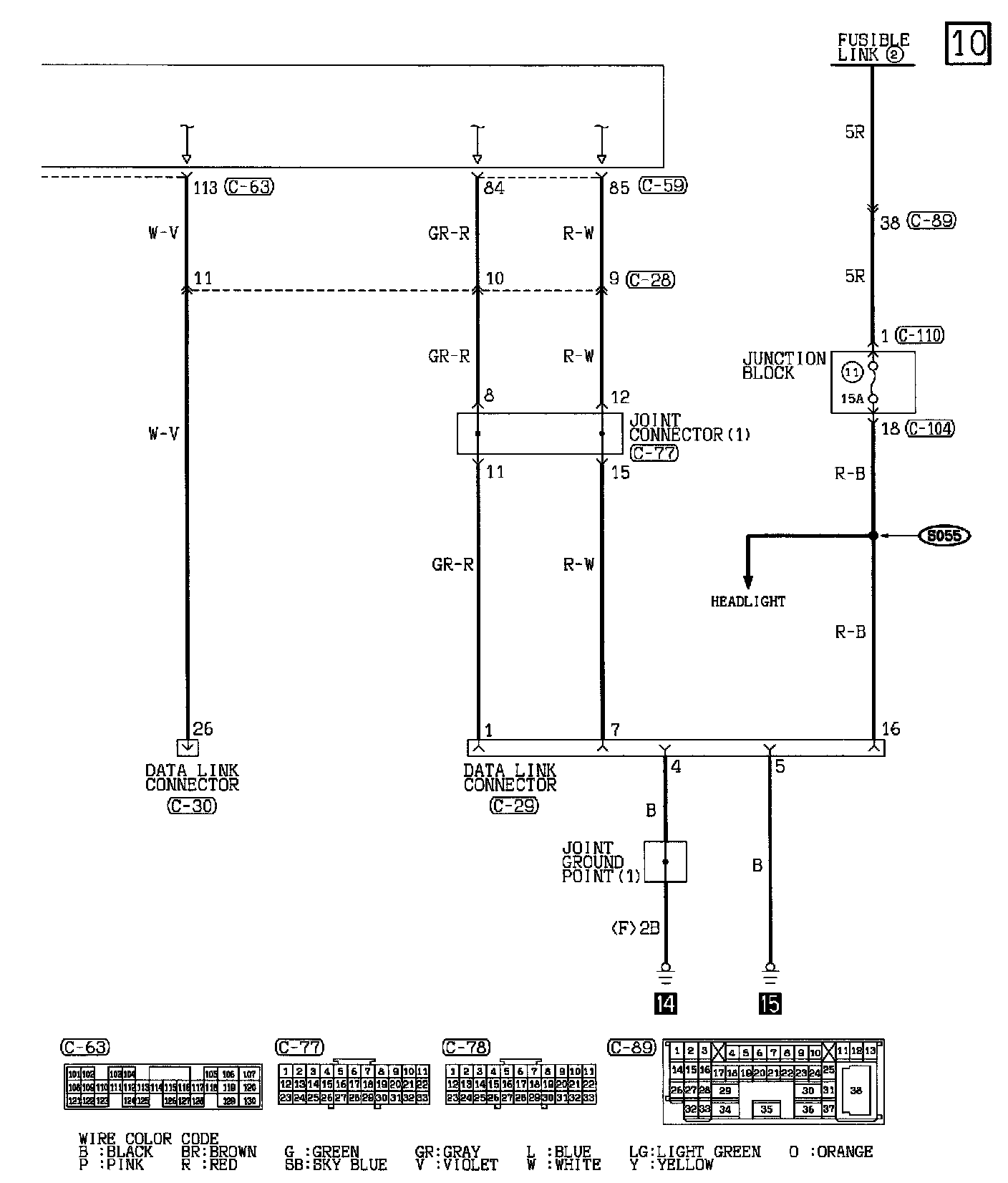

MFI System (Part 10 Of 10):

Joint Connector
Junction Block
Joint Ground Point
