System Diagram

Power Distribution System (Part 1 Of 5):

Battery
Fusible Link
Taillight Relay
Headlight Relay (Low)
Power Window Relay

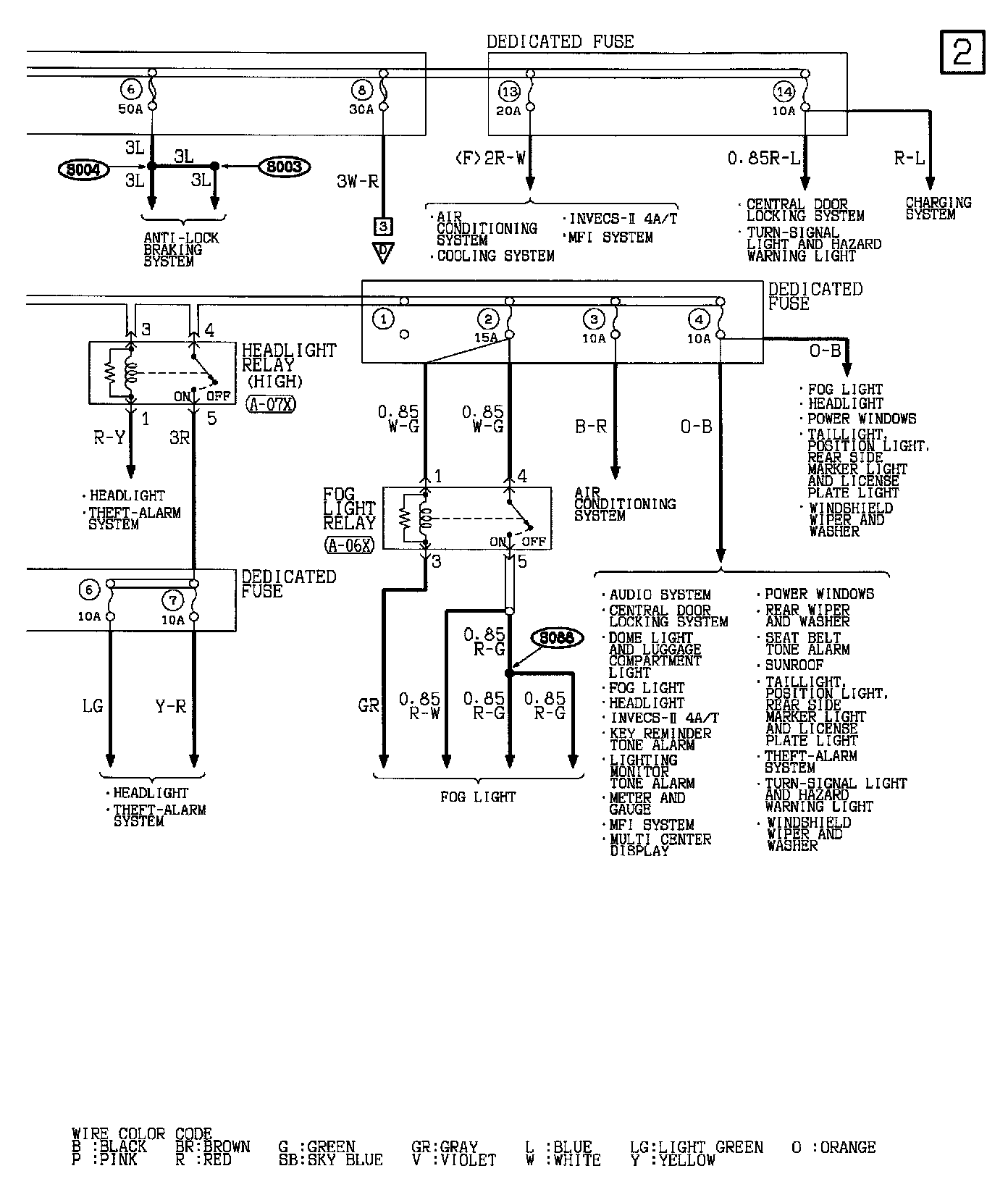

Power Distribution System (Part 2 Of 5):

Dedicated Fuse
Headlight Relay (High)
Fog Light Relay

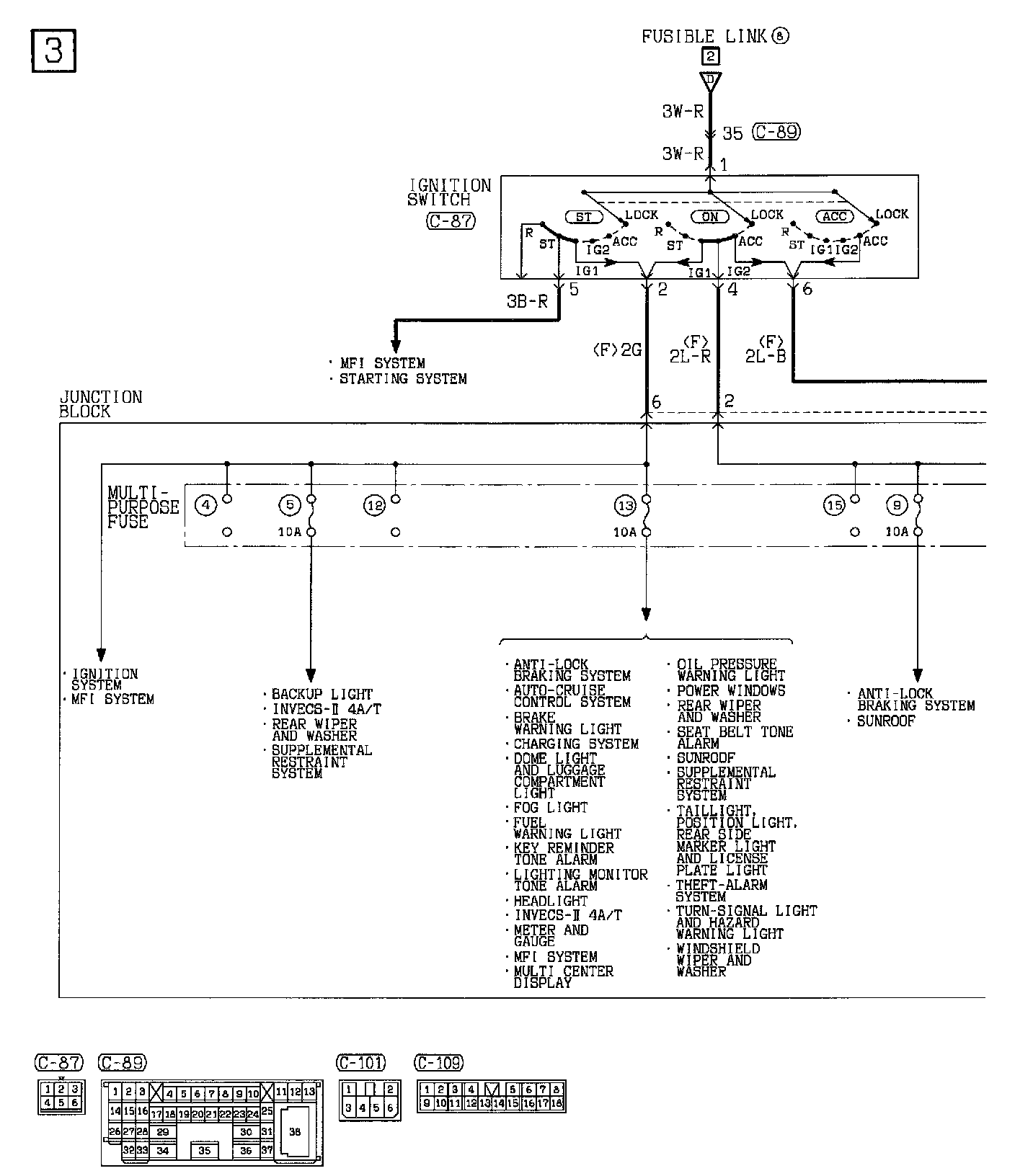

Power Distribution System (Part 3 Of 5):

Ignition Switch
Fusible Link

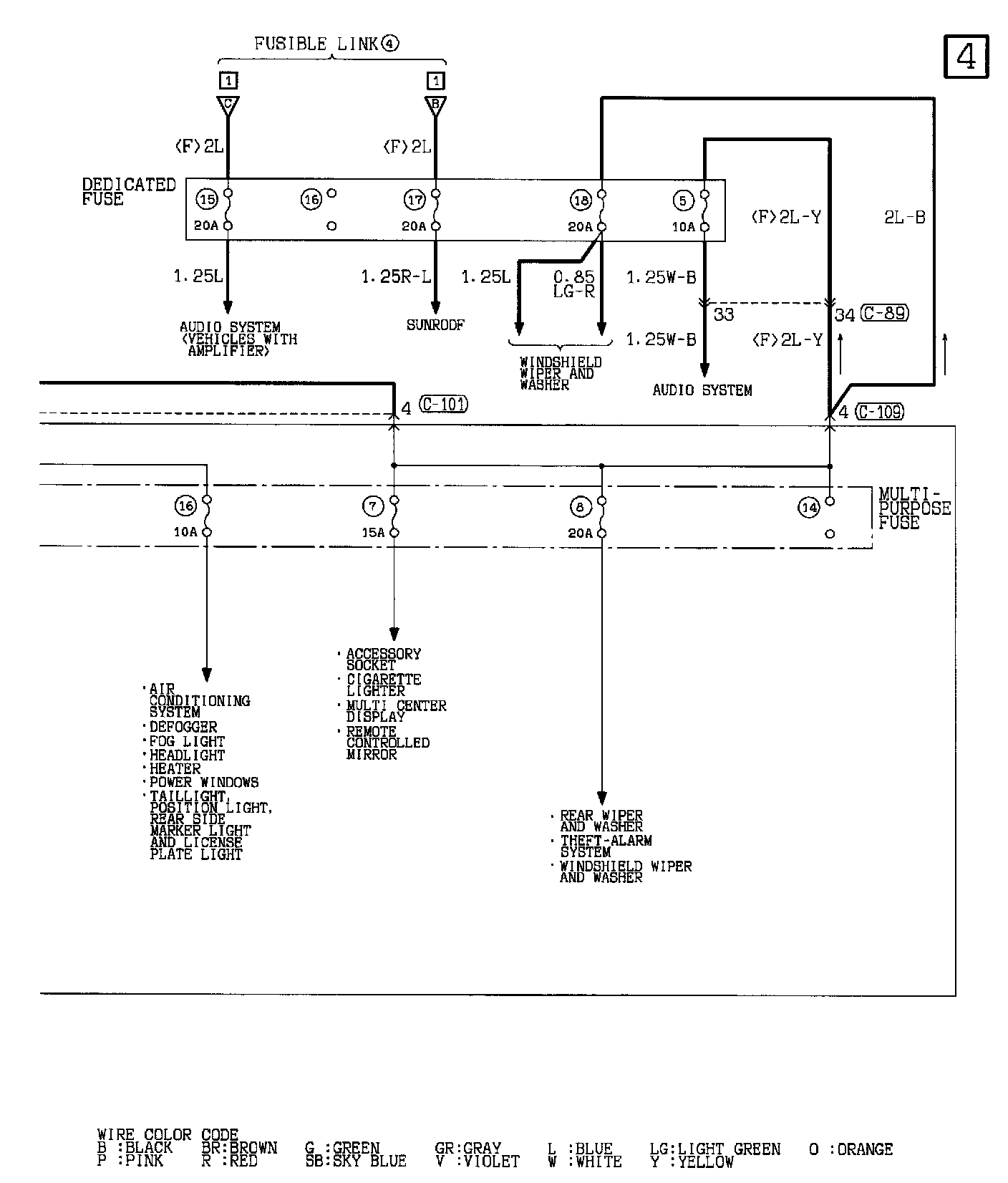

Power Distribution System (Part 4 Of 5):

Dedicated Fuse

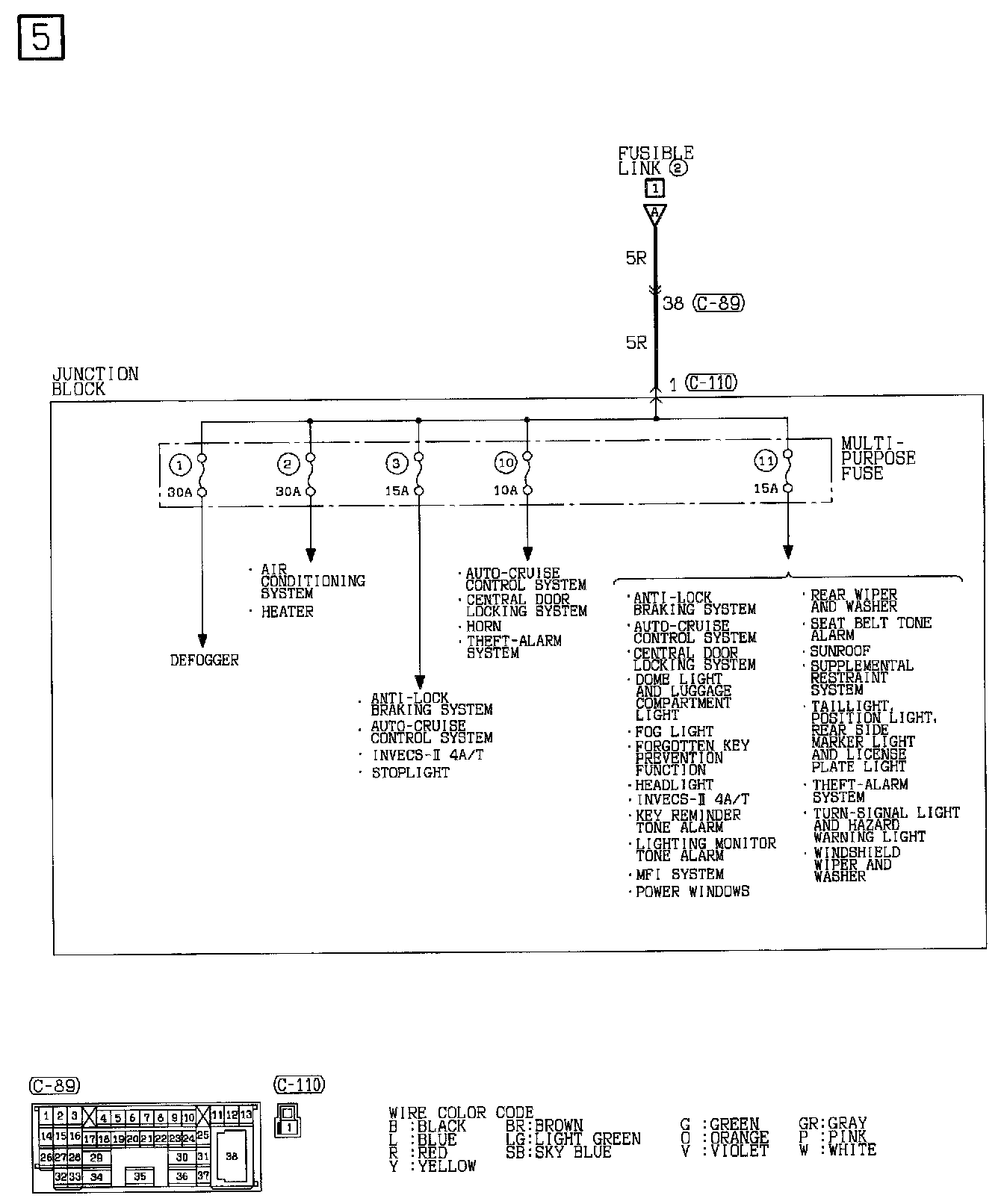

Power Distribution System (Part 5 Of 5):

Junction Block
Multi-Purpose Fuse
