C Connectors - Instrument Panel Harness

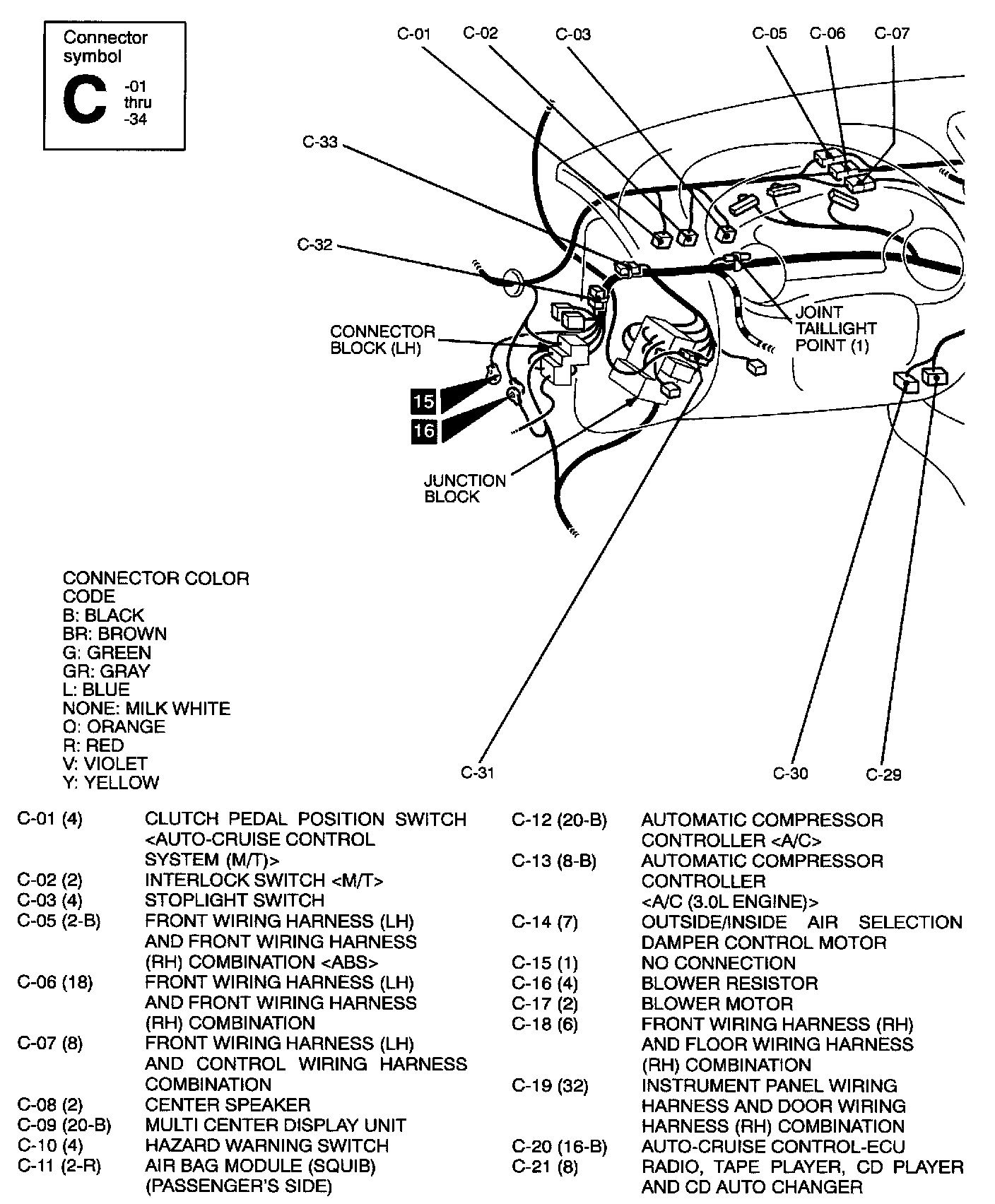

Dash Panel - C Connector (01 (4) Thru 21 (8)):

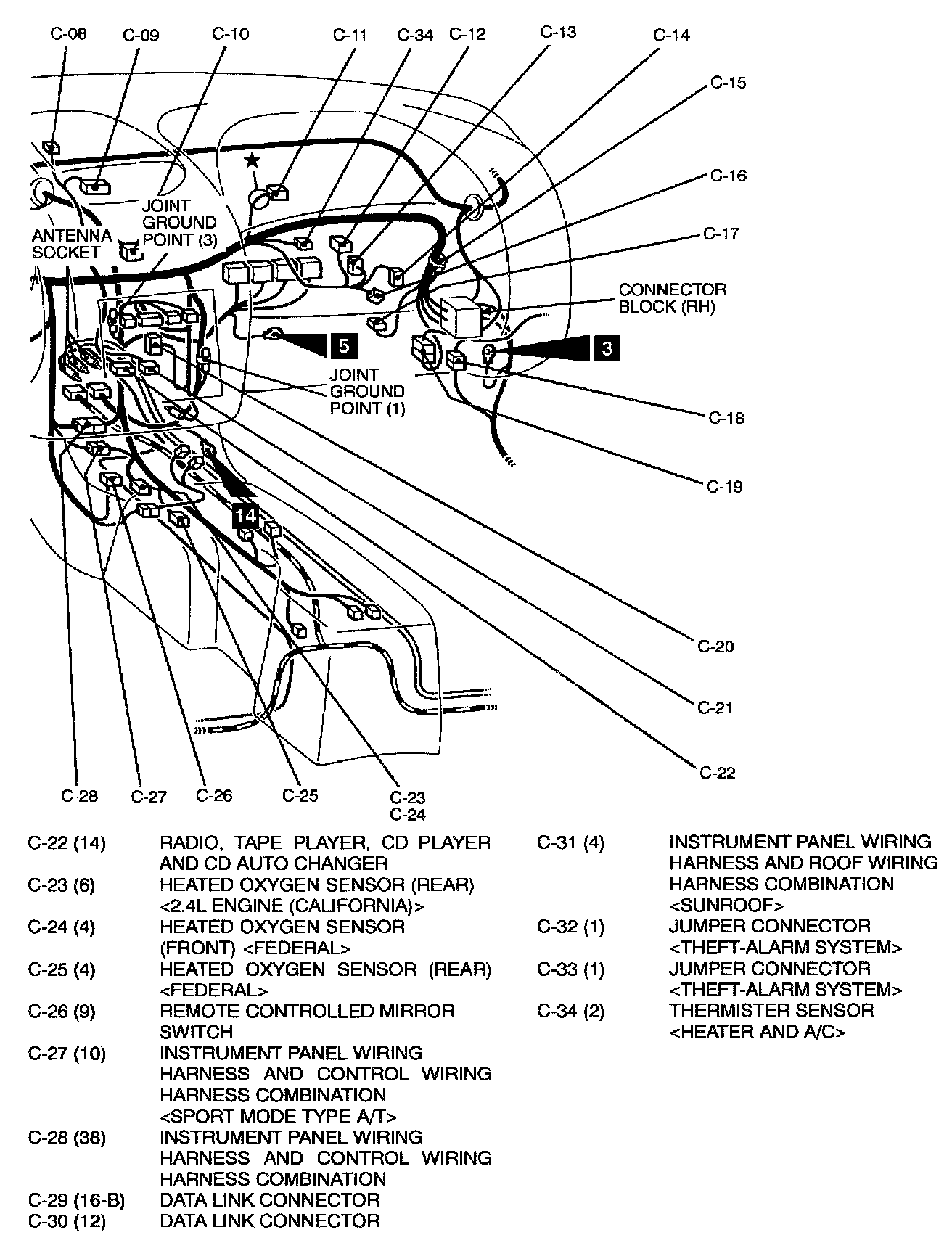

Dash Panel - C Connector (22 (14) Thru 34 (2)):

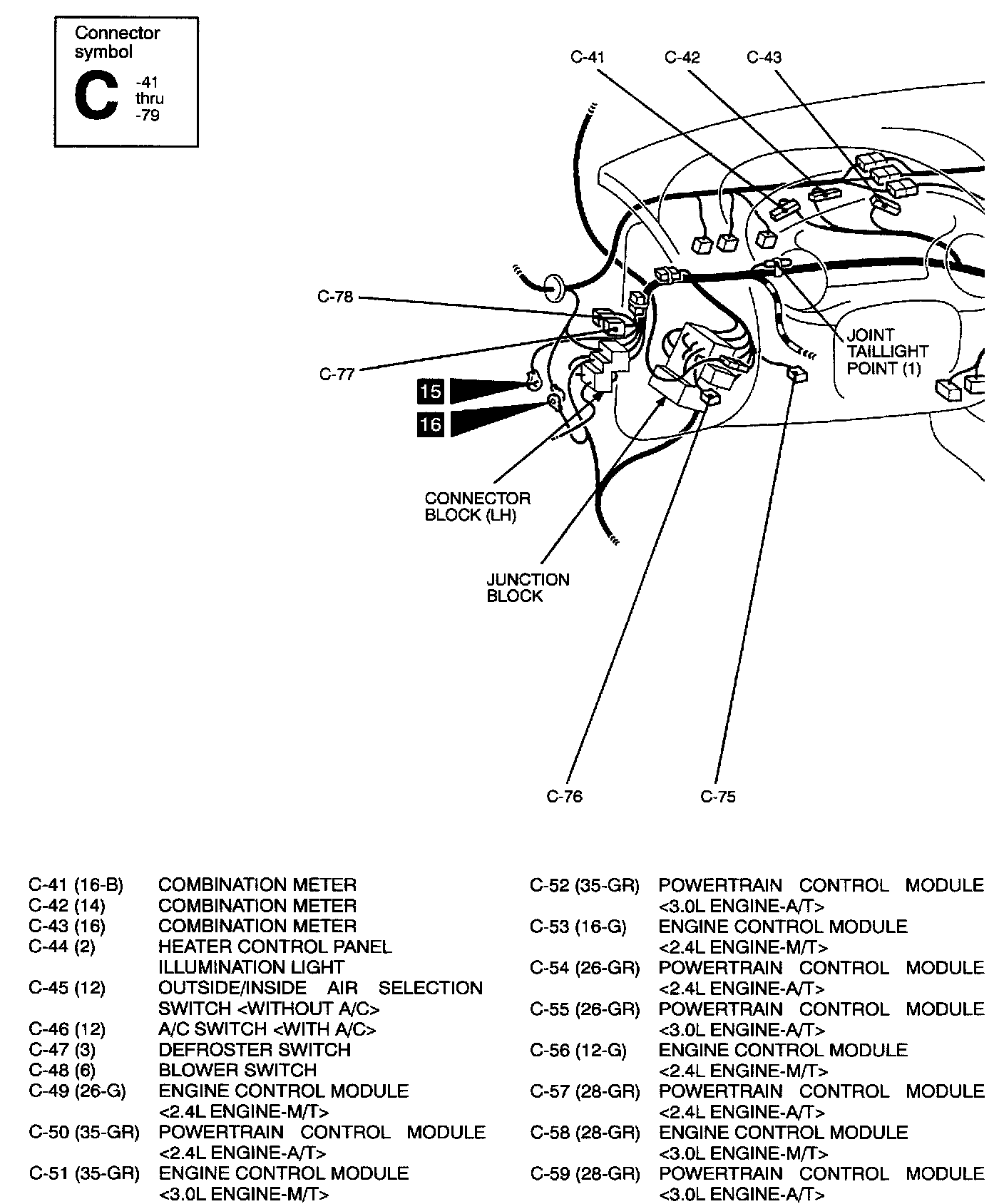

Dash Panel - C Connector (41 (16-B) Thru 59 (28-GR)):

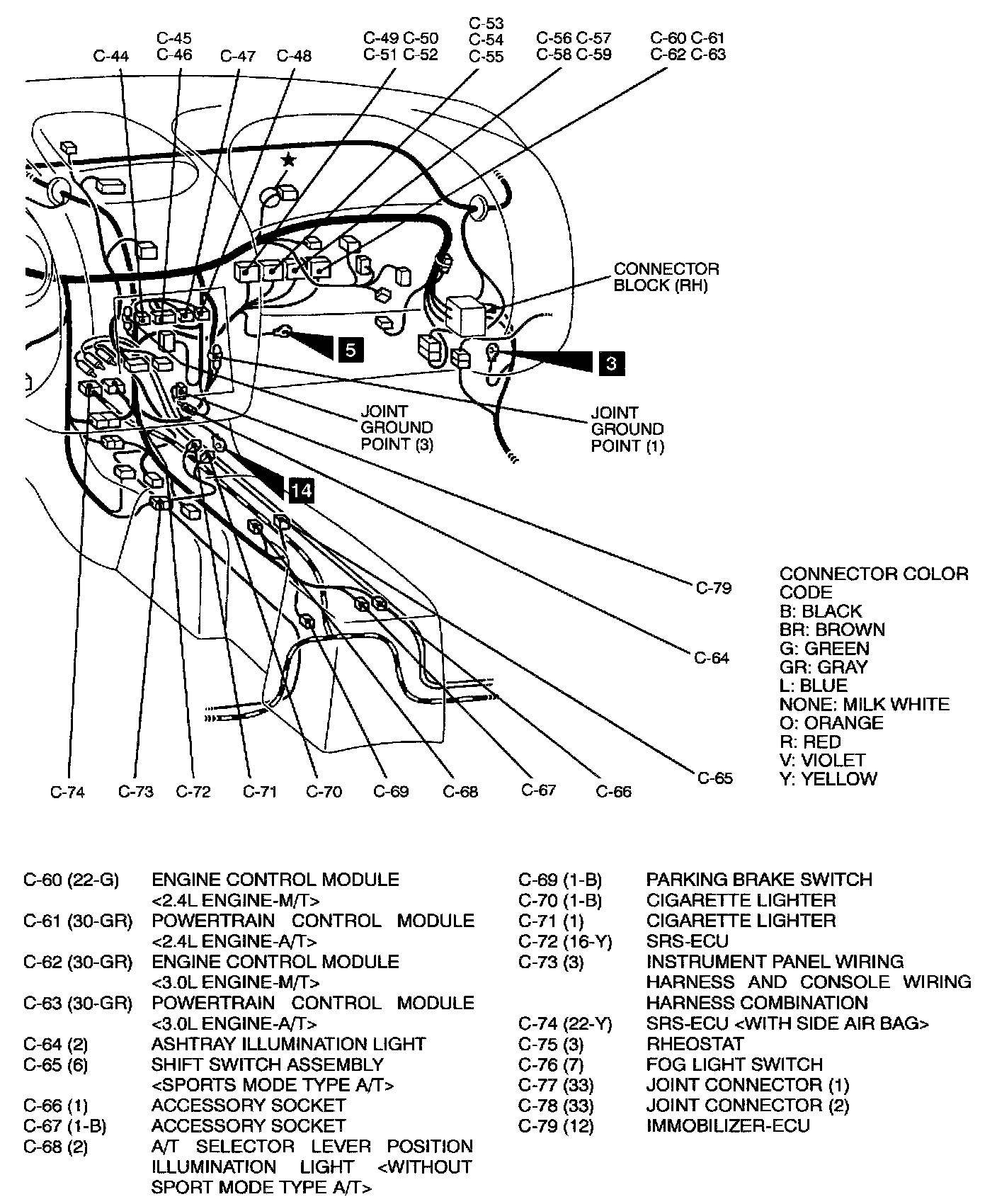

Dash Panel - C Connector (60 (22-G) Thru 79 (12)):

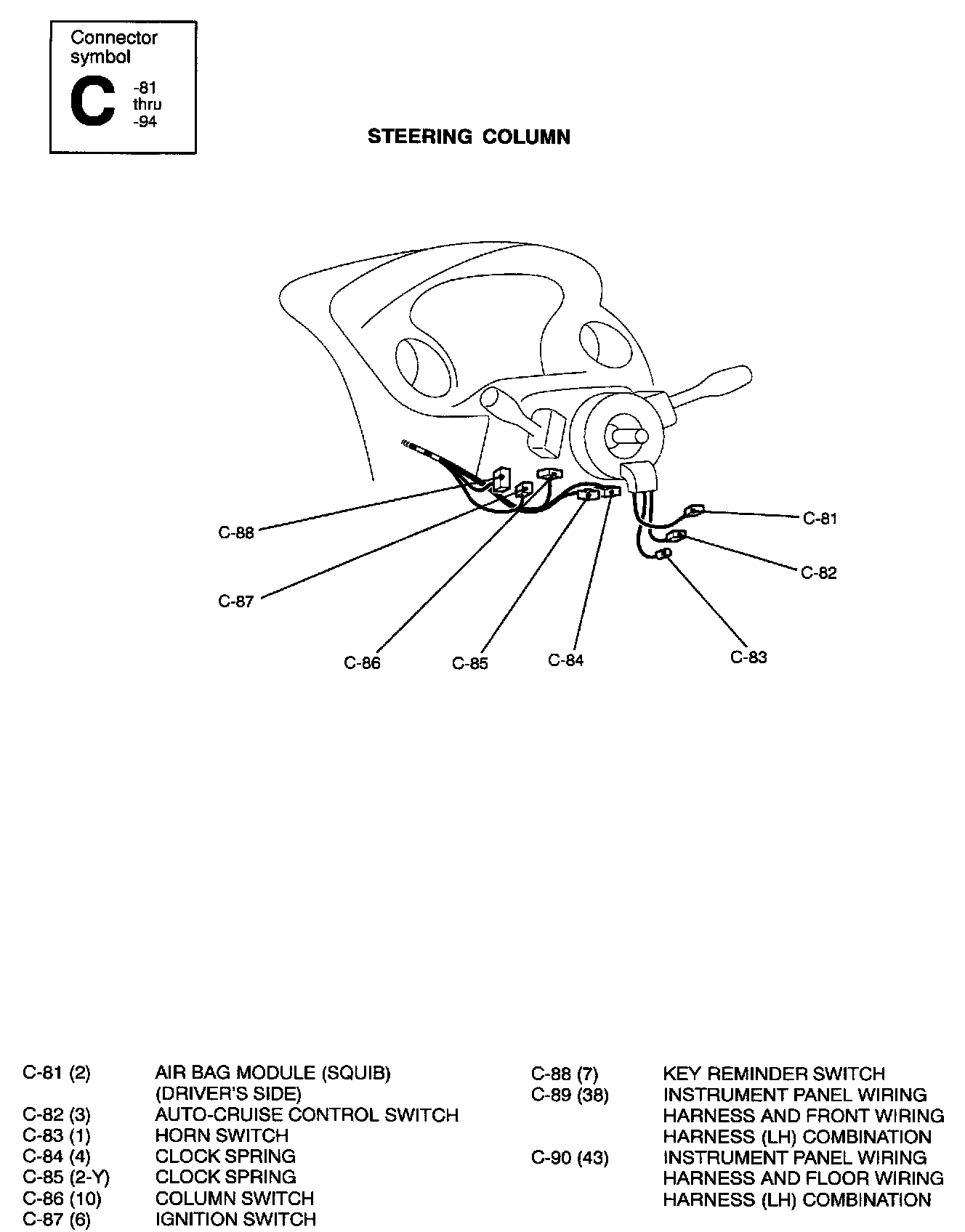

Dash Panel - C Connector (81 (2) Thru 90 (43)):

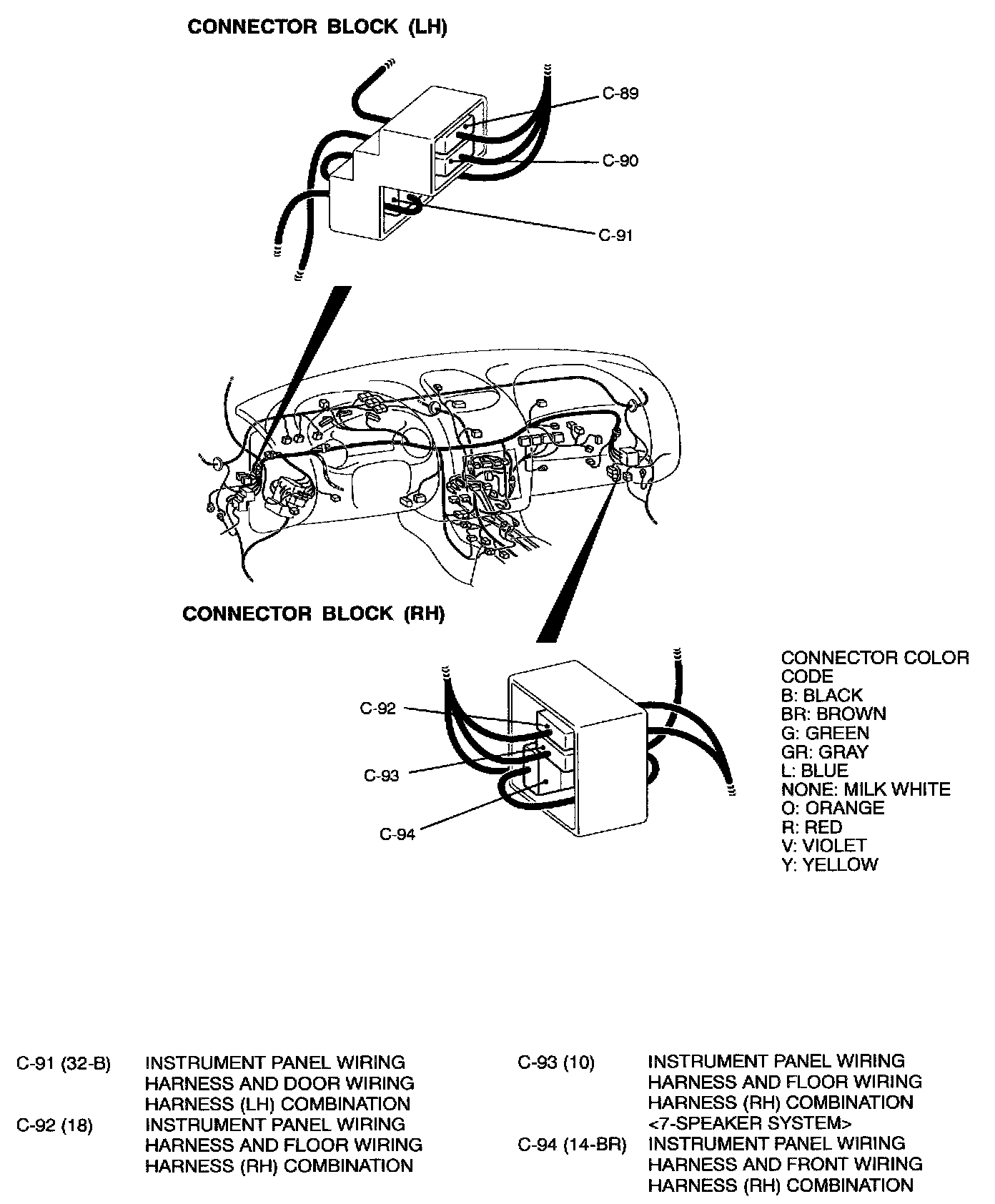

Dash Panel - C Connector (91 (32-B) Thru 94 (14-BR)):

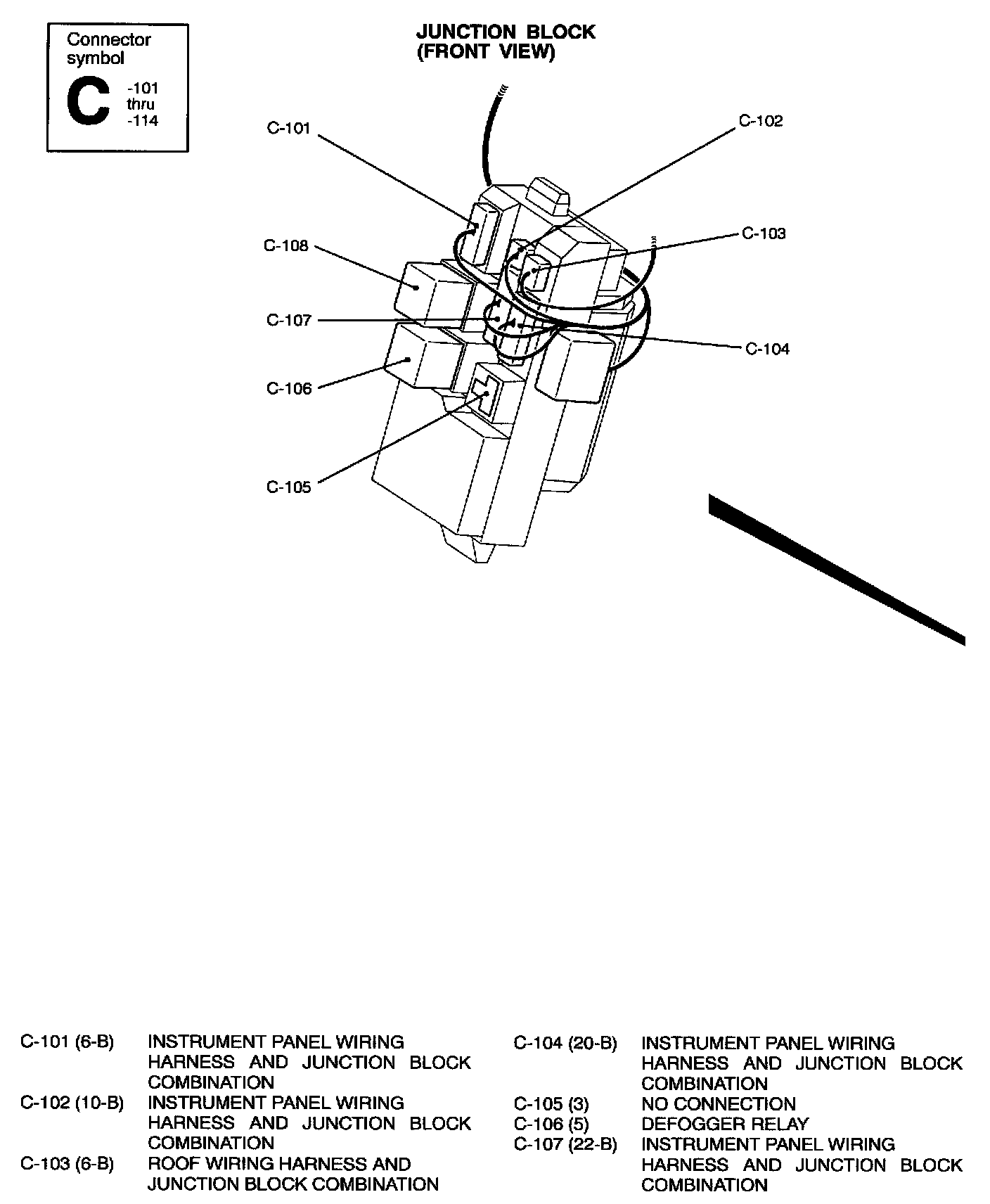

Dash Panel - C Connector (101 (6-B) Thru 107 (22-B)):

Dash Panel - C Connector (108 (5) Thru 114 (20)):
