B Connectors - Engine and Transaxle Harness

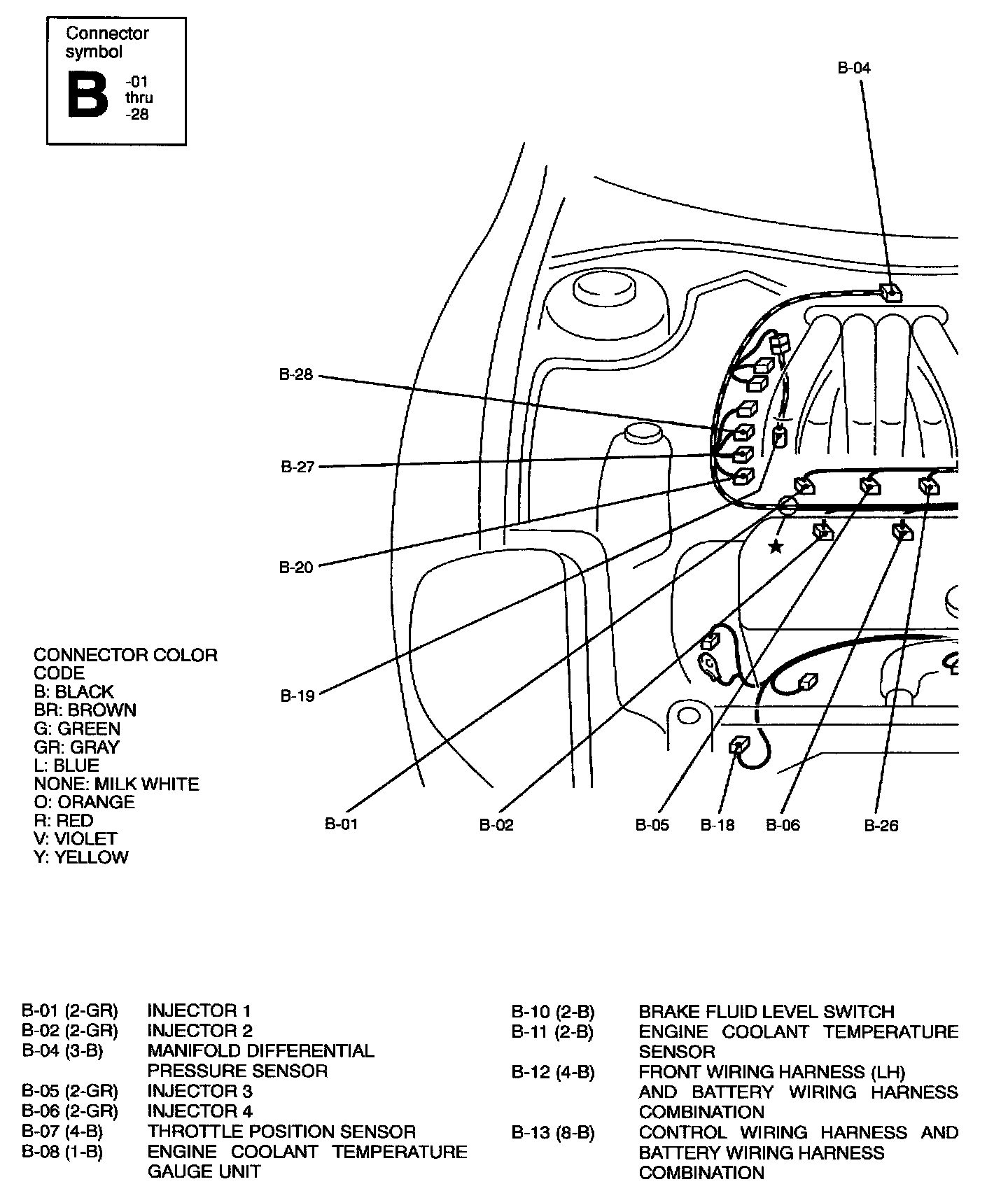

Engine And Transaxle - B Connector (01 (2-GR) Thru 13 (8-B)):

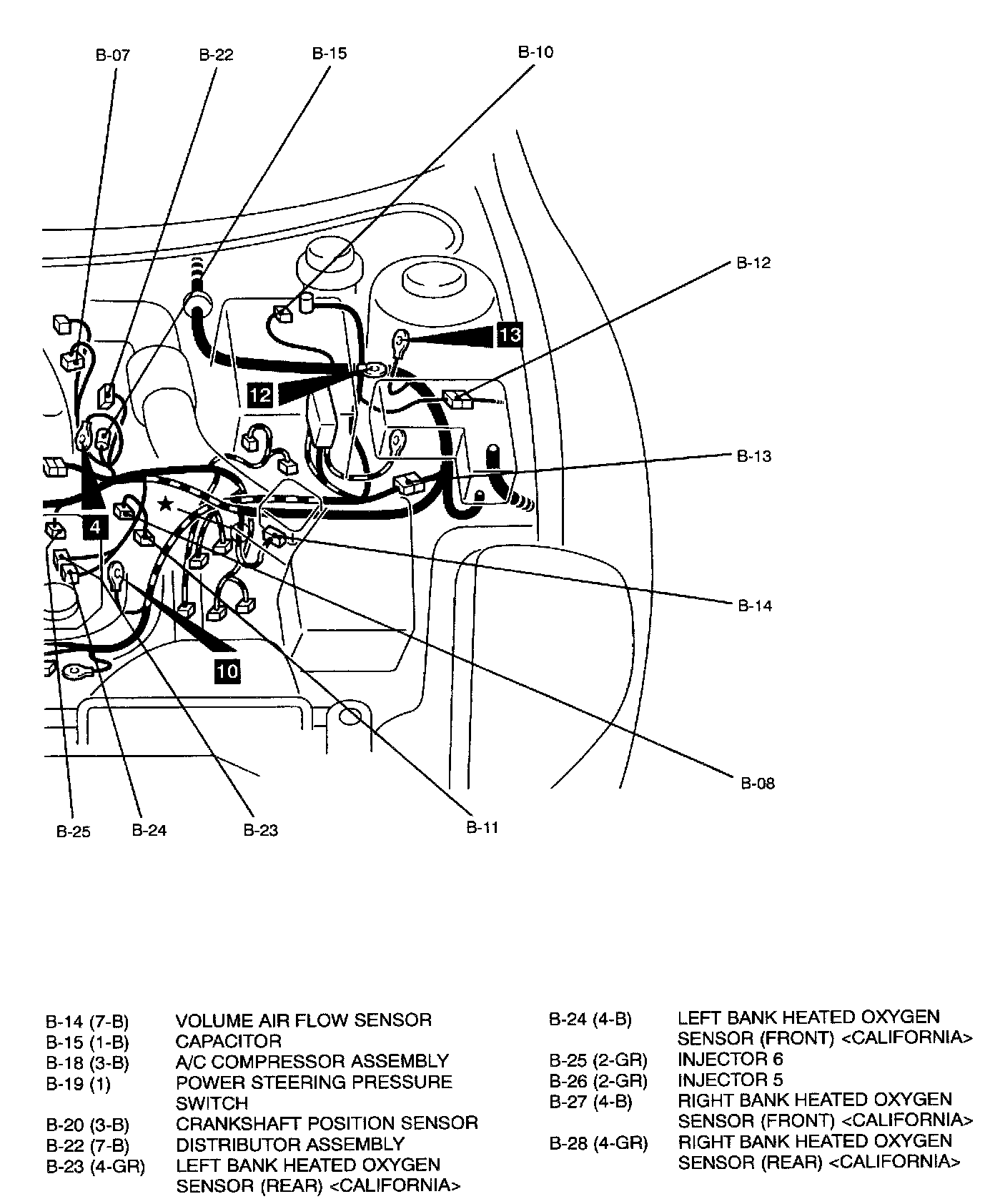

Engine And Transaxle - B Connector (14 (7-B) Thru 26 (4-GR)):

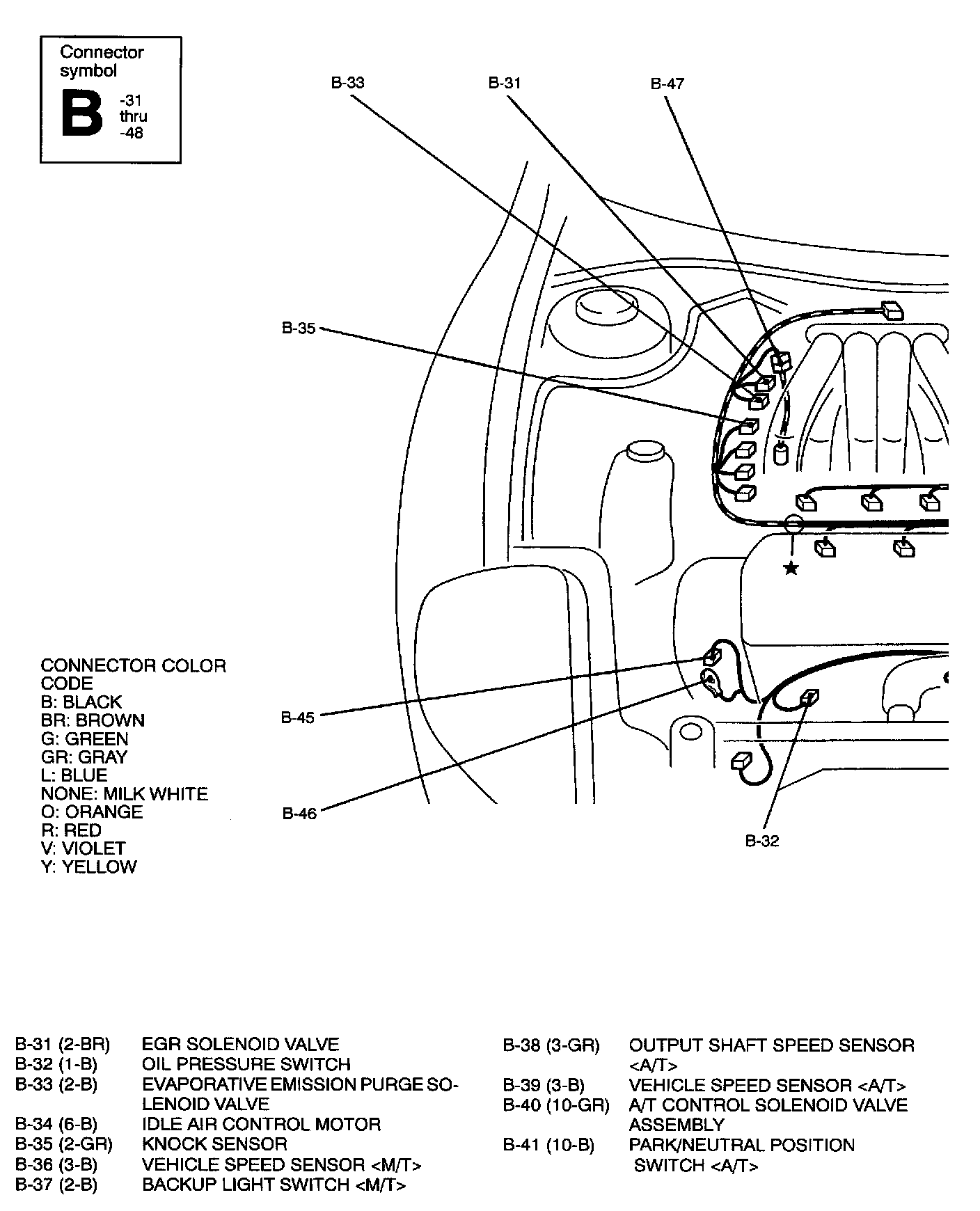

Engine And Transaxle - B Connector (31 (2-BR) Thru 41 (10-B)):

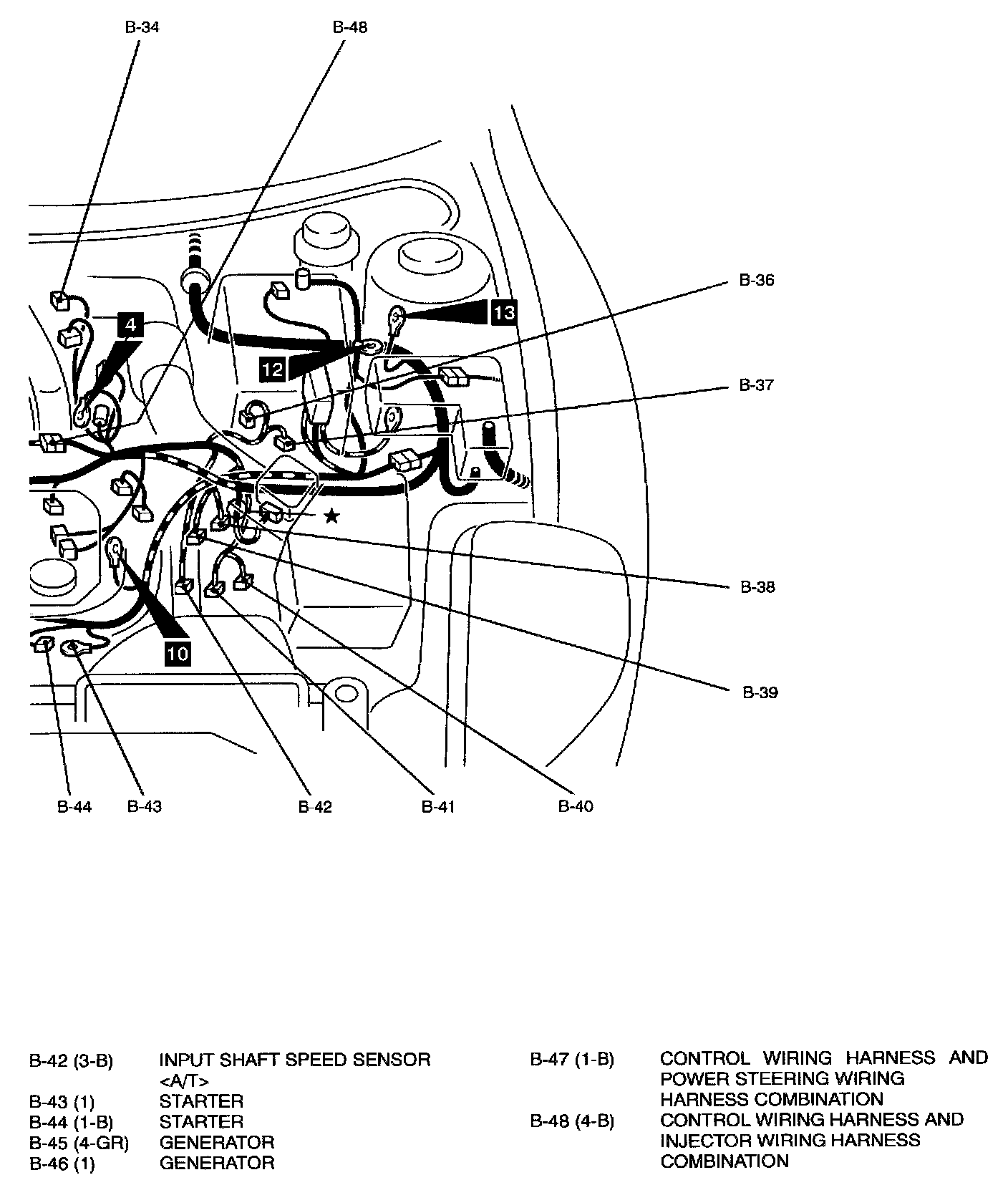

Engine And Transaxle - B Connector (42 (3-B) Thru 48 (4-B)):
