A Connectors - Engine Compartment Harness
A Connectors - Engine Compartment Harness

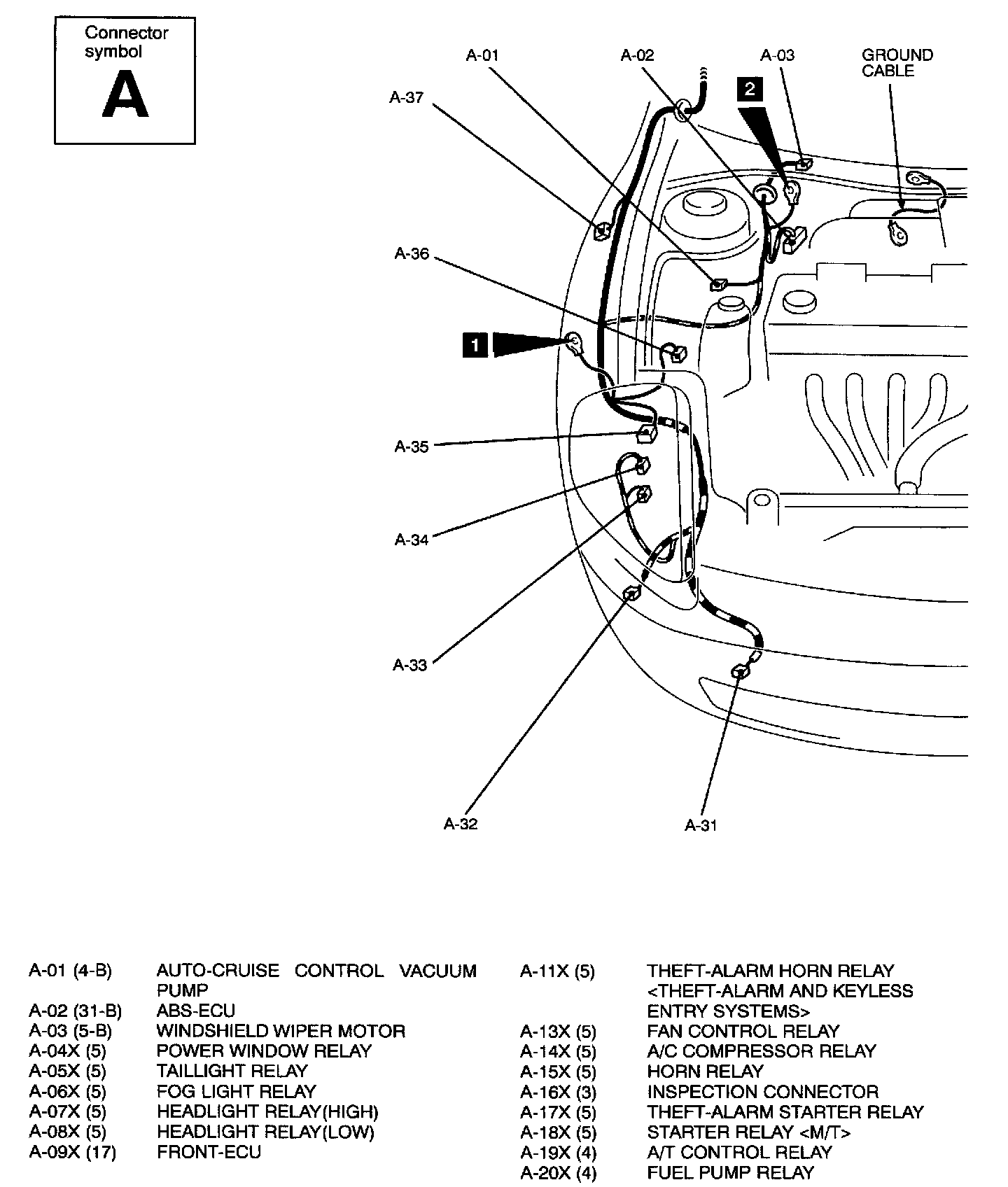

Engine Compartment - A Connector (01 (4-B) Thru 20X (4)):

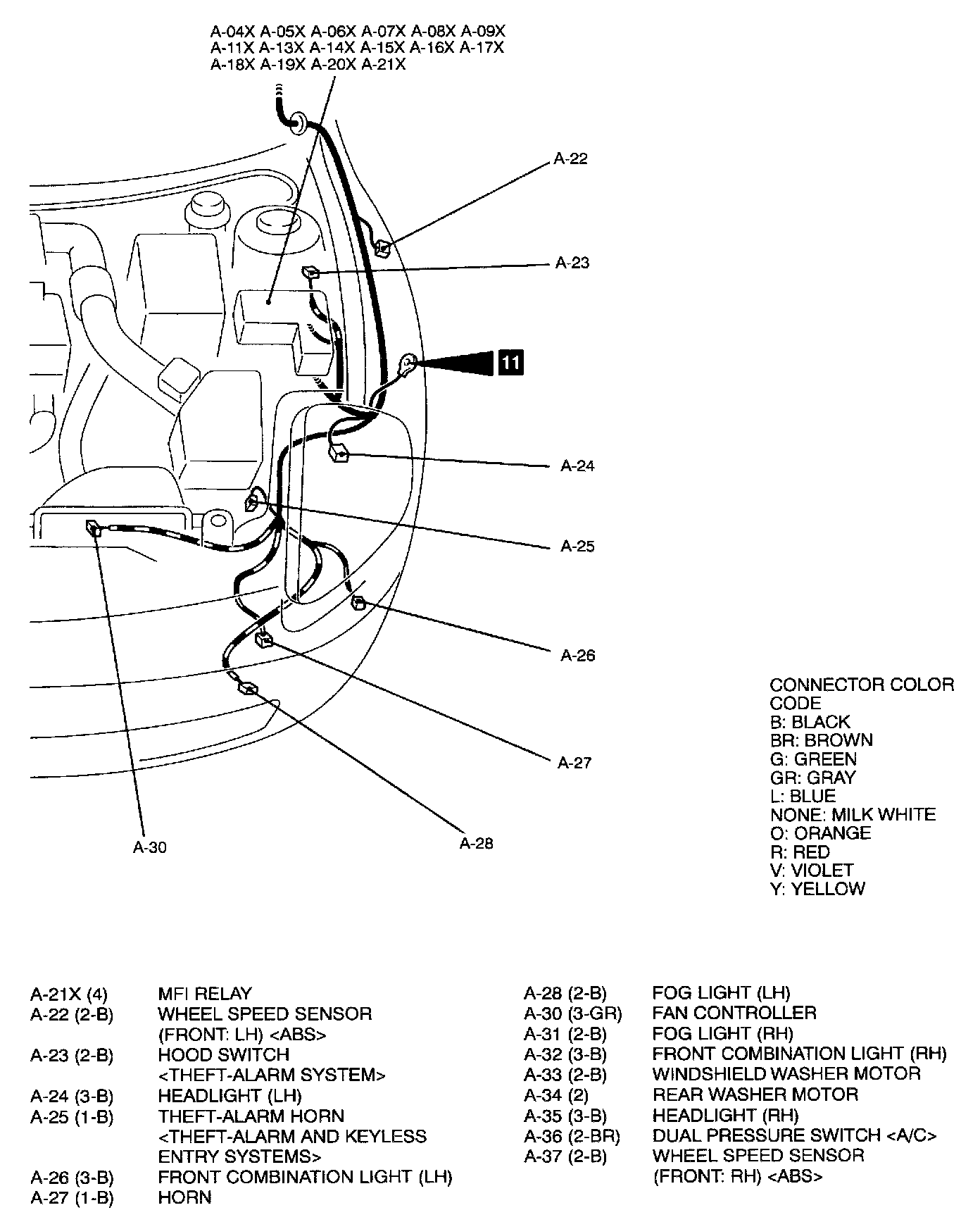

Engine Compartment - A Connector (21X (4) Thru 37 (2-B)):
