Sensors

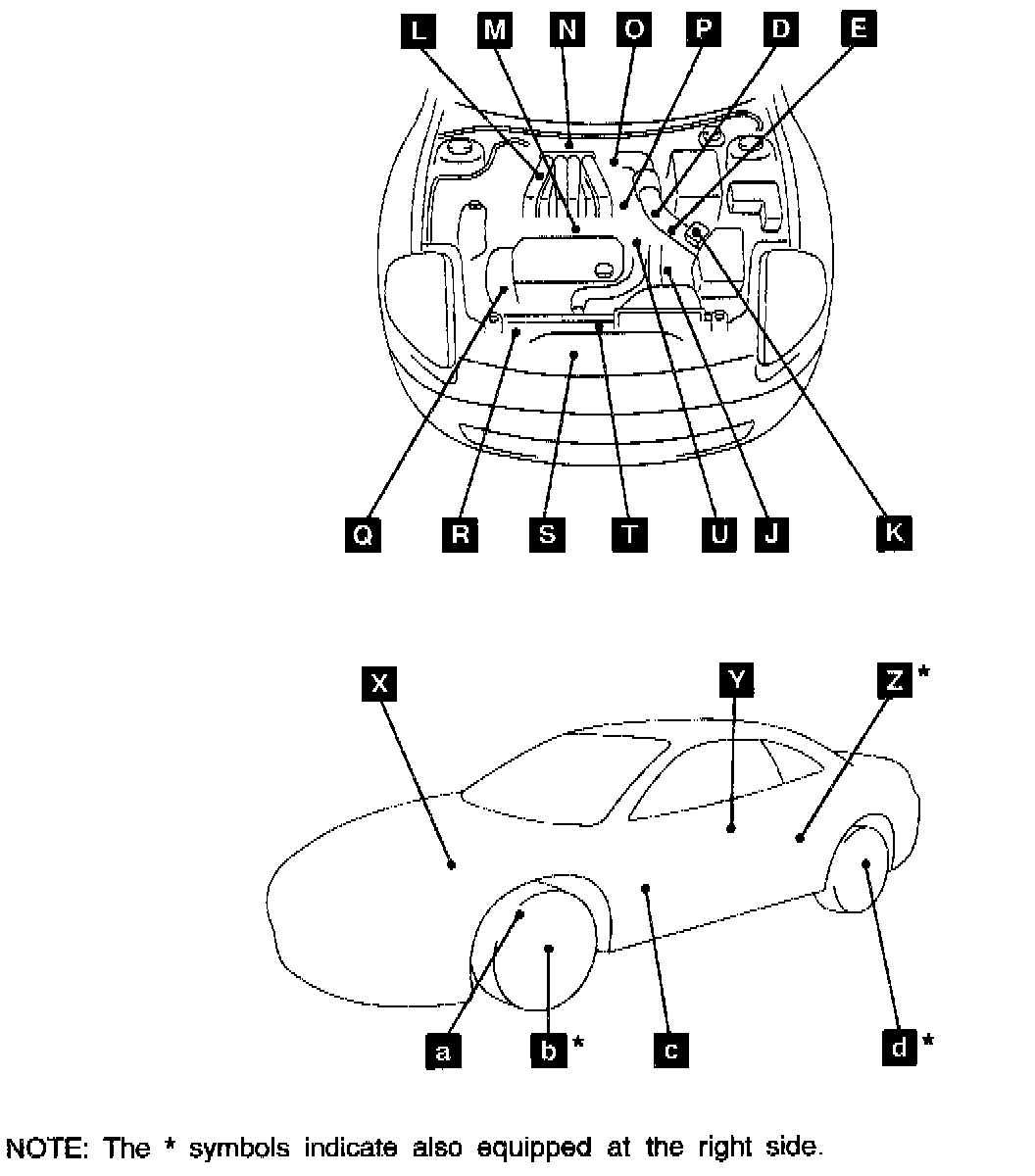

Sensor Locations Overall View:
Sensor Locations View L:

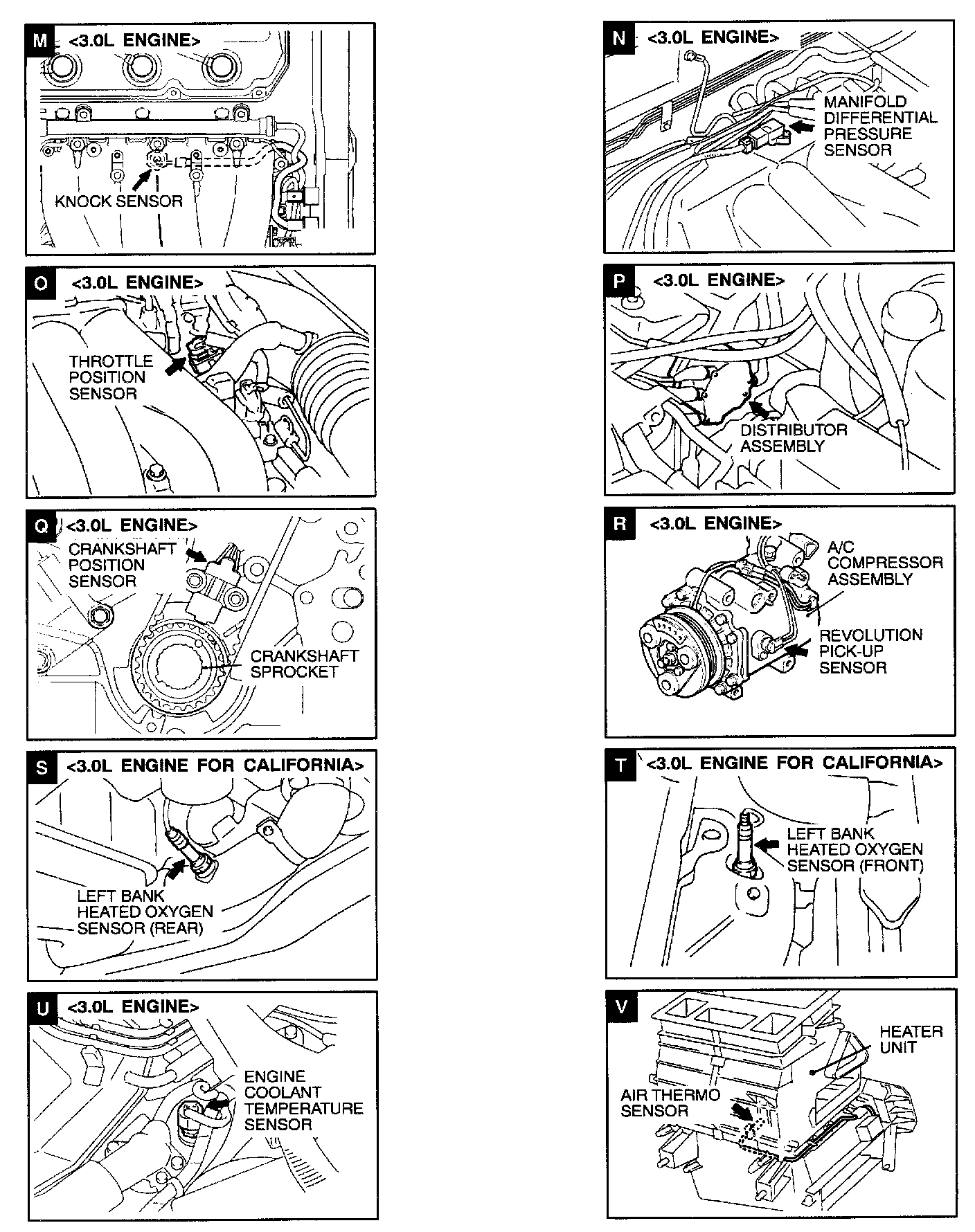

Sensor Locations View M-V:

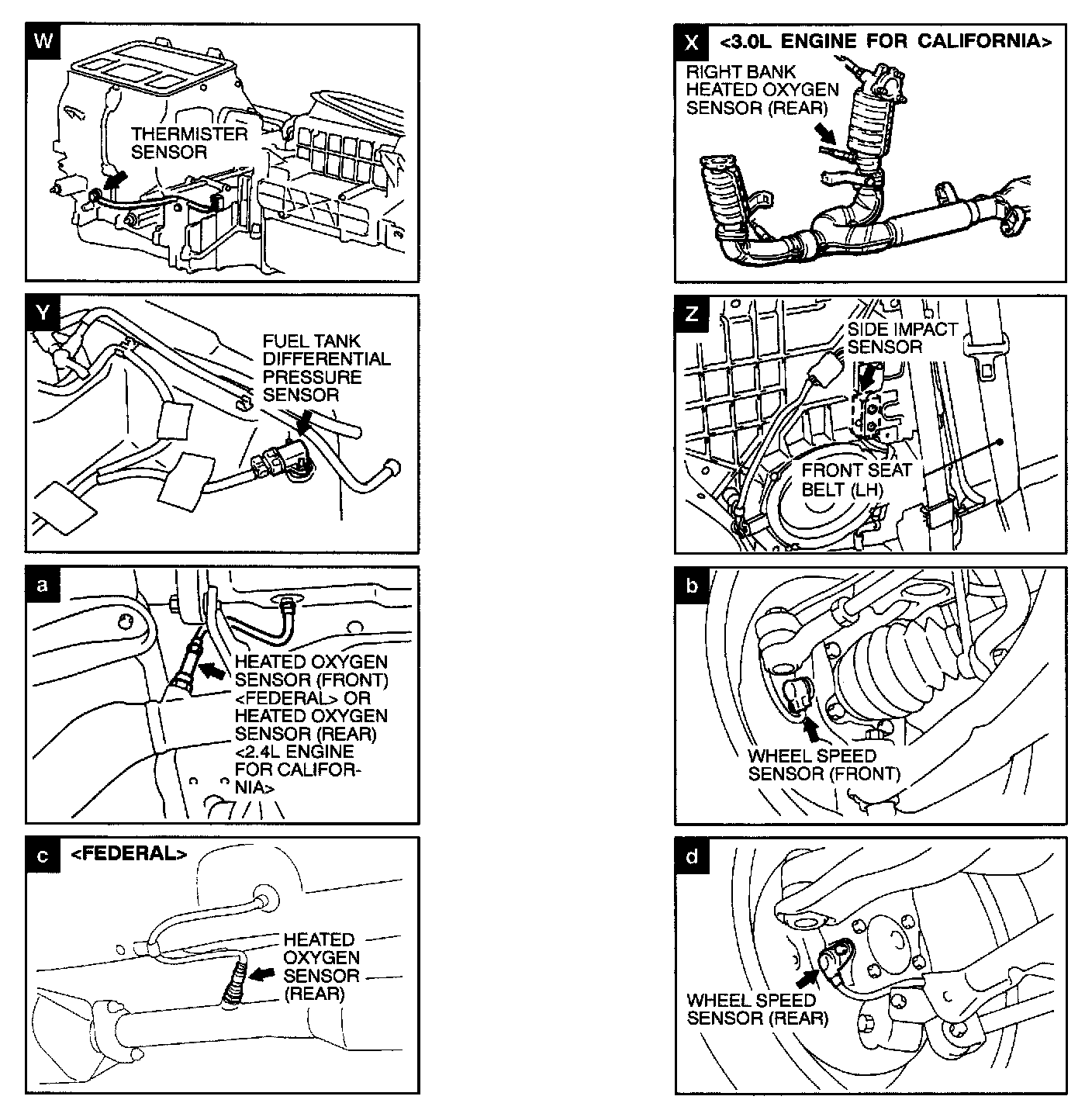

Sensor Locations View W-d:
Name Symbol
A/C Compressor Assembly R
(With built in revolution pick-up sensor)
A/T Control Solenoid Valve Assembly J
(With built-in A/T fluid temperature sensor)
Air Thermo Sensor V
Crankshaft Position Sensor Q
Distributor Assembly P
(With built-in top dead center sensor)
Engine Coolant Temperature Sensor U
Fuel Tank Differential Pressure Sensor Y
Heated Oxygen Sensor (Front) A
Heated Oxygen Sensor (Rear) C
Input Shaft Speed Sensor E
Knock Sensor M
Left Bank Heated Oxygen Sensor (Front) T
Left Bank Heated Oxygen Sensor (Rear) S
Manifold Differential Pressure Sensor N
Output Shaft Speed Sensor E

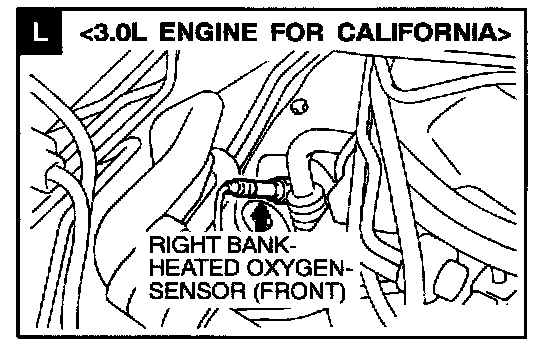

Right Bank Heated Oxygen Sensor (Front) L
Right Bank Heated Oxygen Sensor (Rear) X
Side Impact Sensor
Thermistor Sensor
Throttle Position Sensor O
Vehicle Speed Sensor D
Volume Air Flow Sensor K
Wheel Speed Sensor (Front) B
Wheel Speed Sensor (Rear) D
