Modules

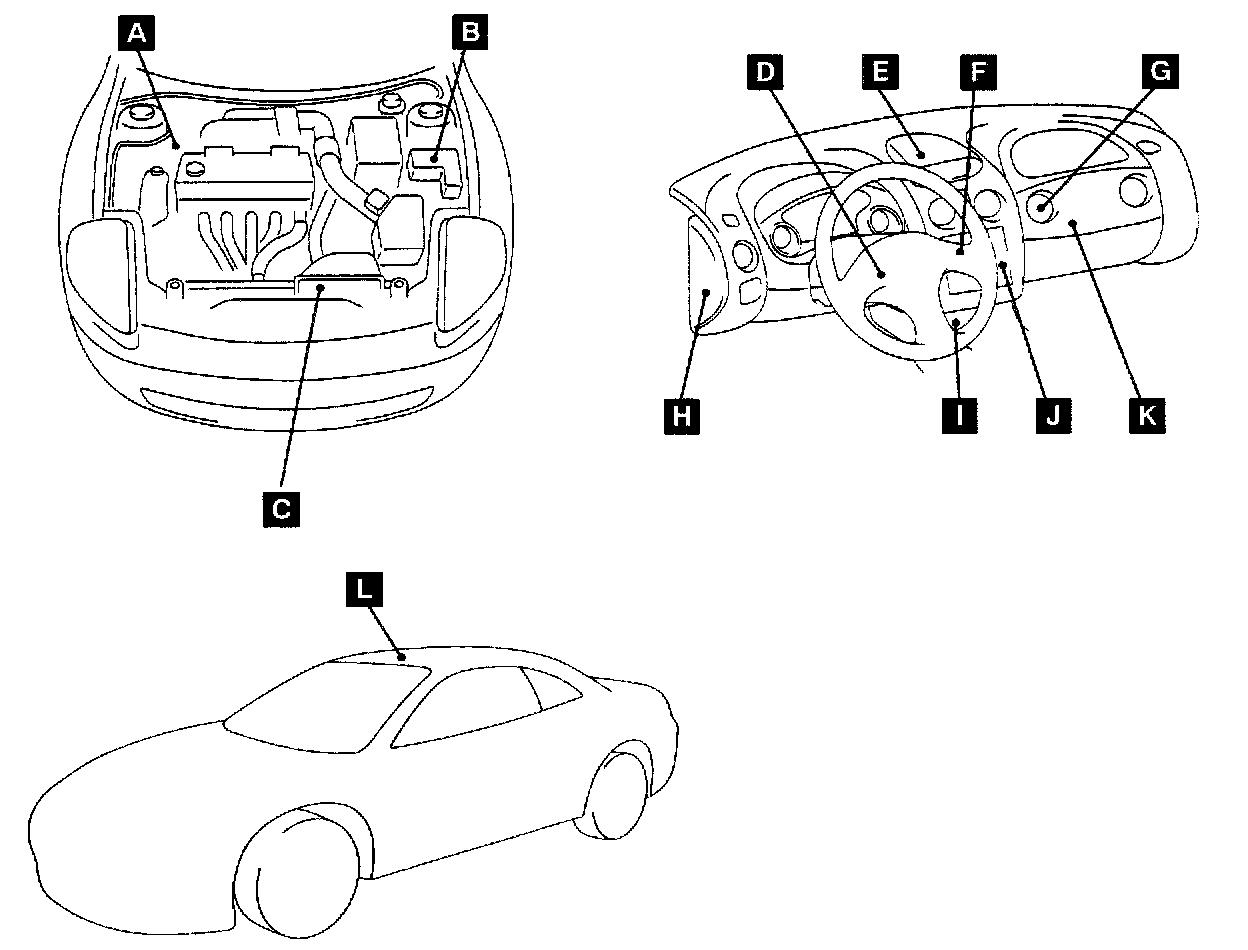

Control Unit Locations Overall View:

Control Unit Location View A-B:

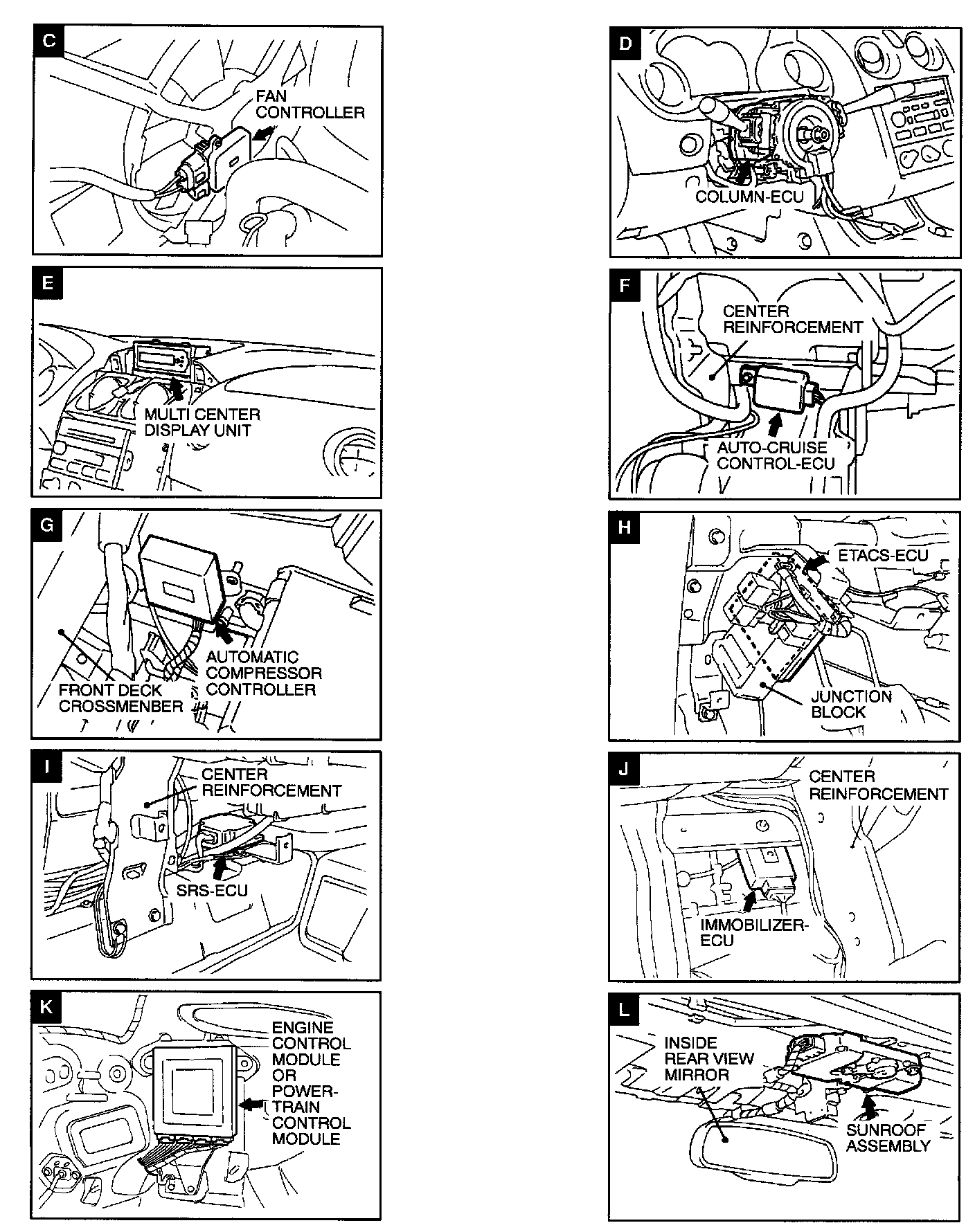

Control Unit Location View C-L:

Name Symbol
ABS-ECU A
Auto Cruise Control-ECU F
Automatic Compressor Controller G
Column-ECU D
Engine Control Module K
ETACS-ECU H
Fan Controller C
Front-ECU B
Immobilizer-ECU J
Multi Center Display Unit E
Powertrain Control Module K
SRS-ECU I
Sunroof Assembly L
(With built-in sunroof-ECU)
