Pinout Values and Diagnostic Parameters

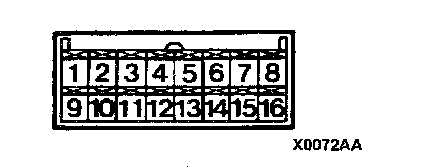

Connector View:

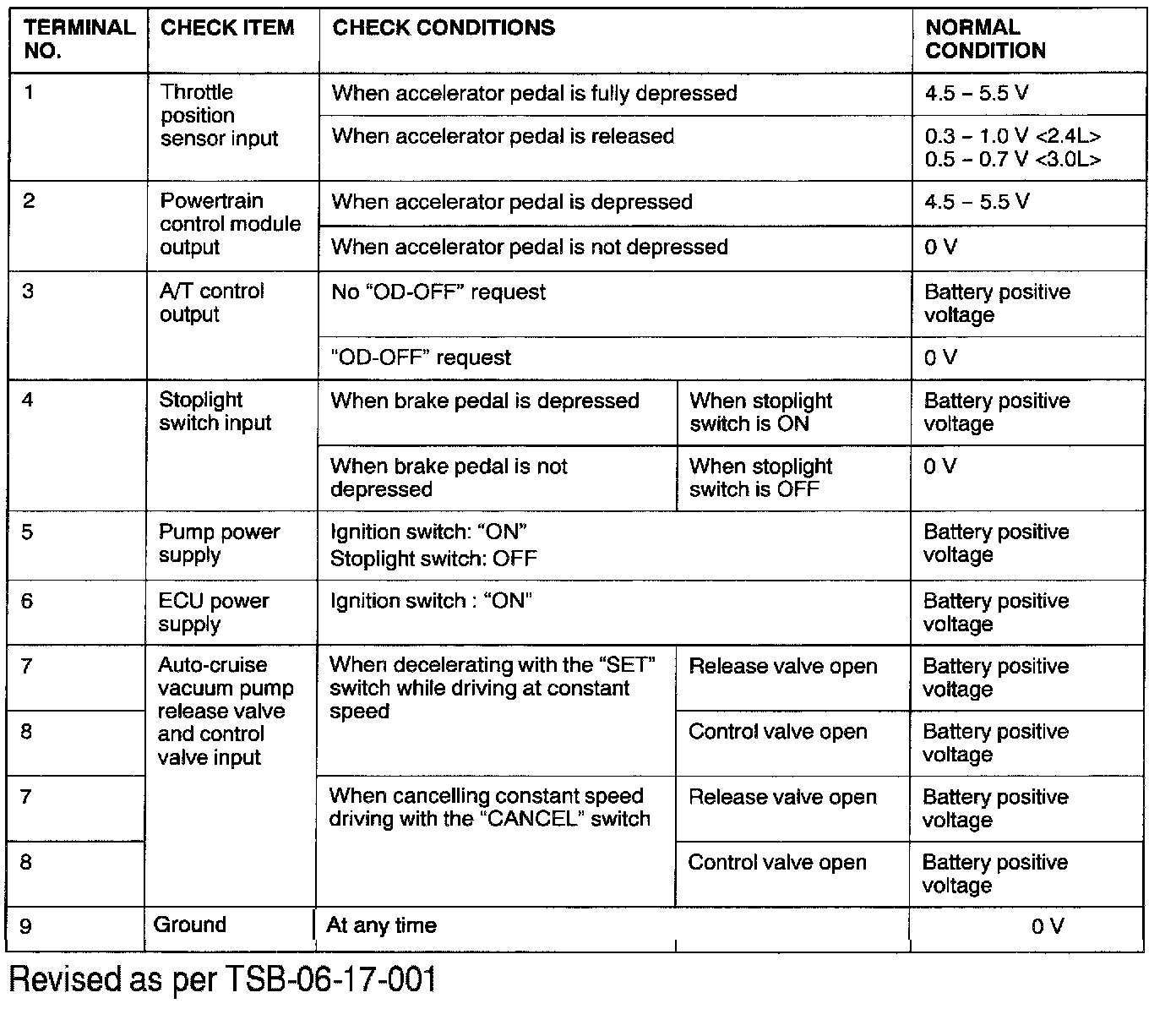

Pinouts [Terminals 1 - 9]:

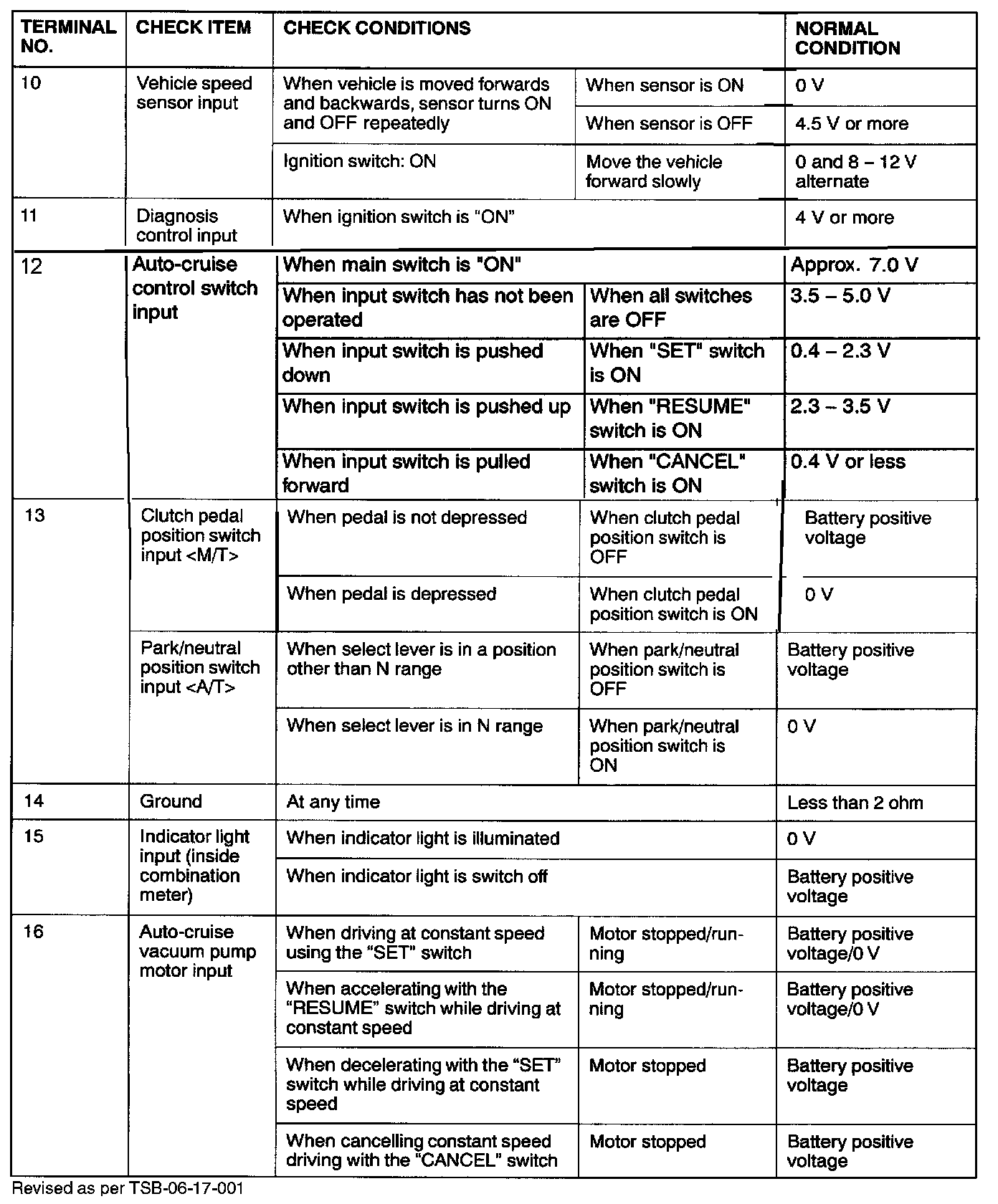

Pinouts [Terminals 10 - 16]:
