Manual Transmission

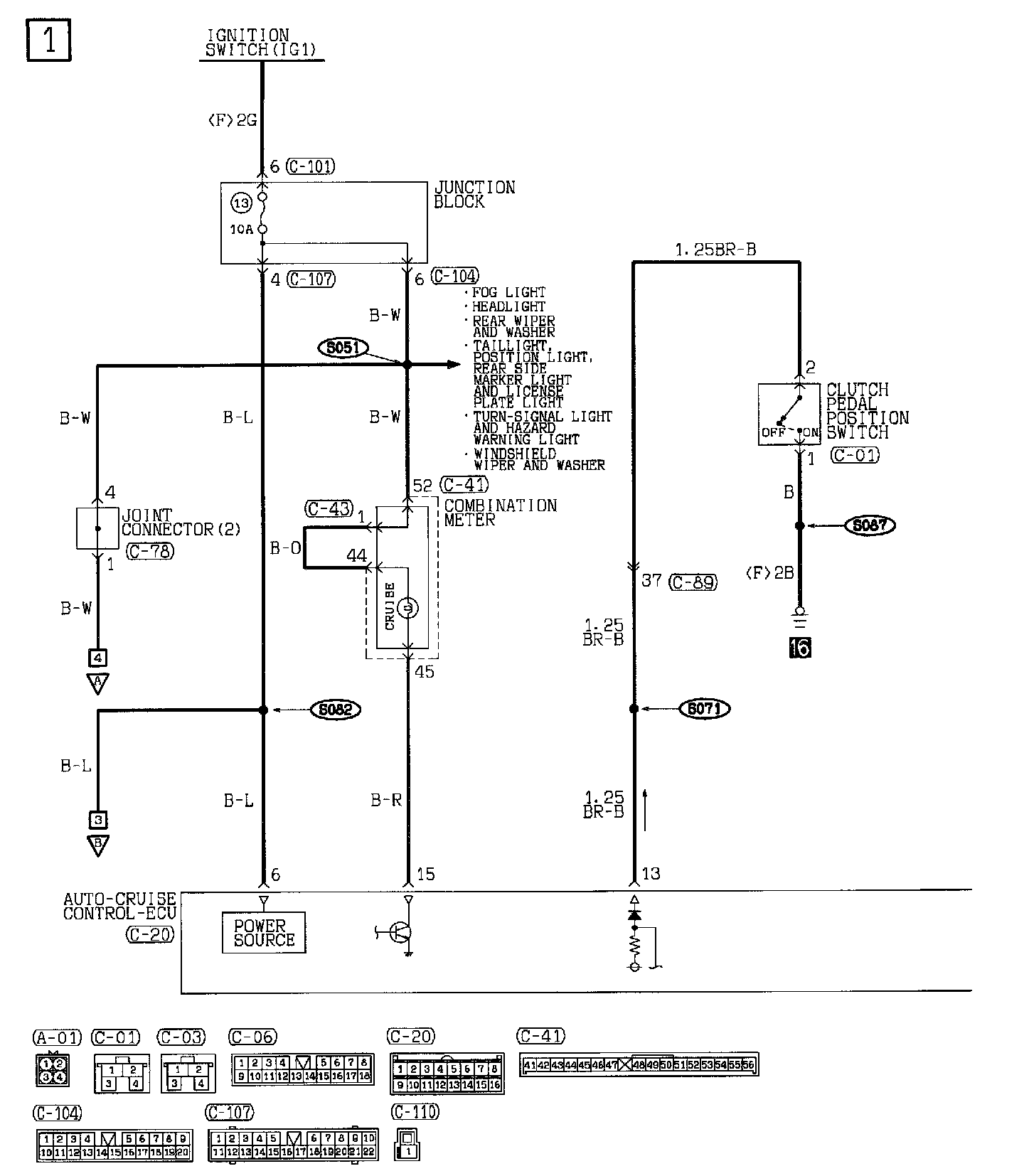

Auto-Cruise Control System (Part 1 Of 4):

Junction Block
Joint Connector
Combination Meter
Clutch Pedal Position Switch
Auto-Cruise Control-ECU
- Power Source

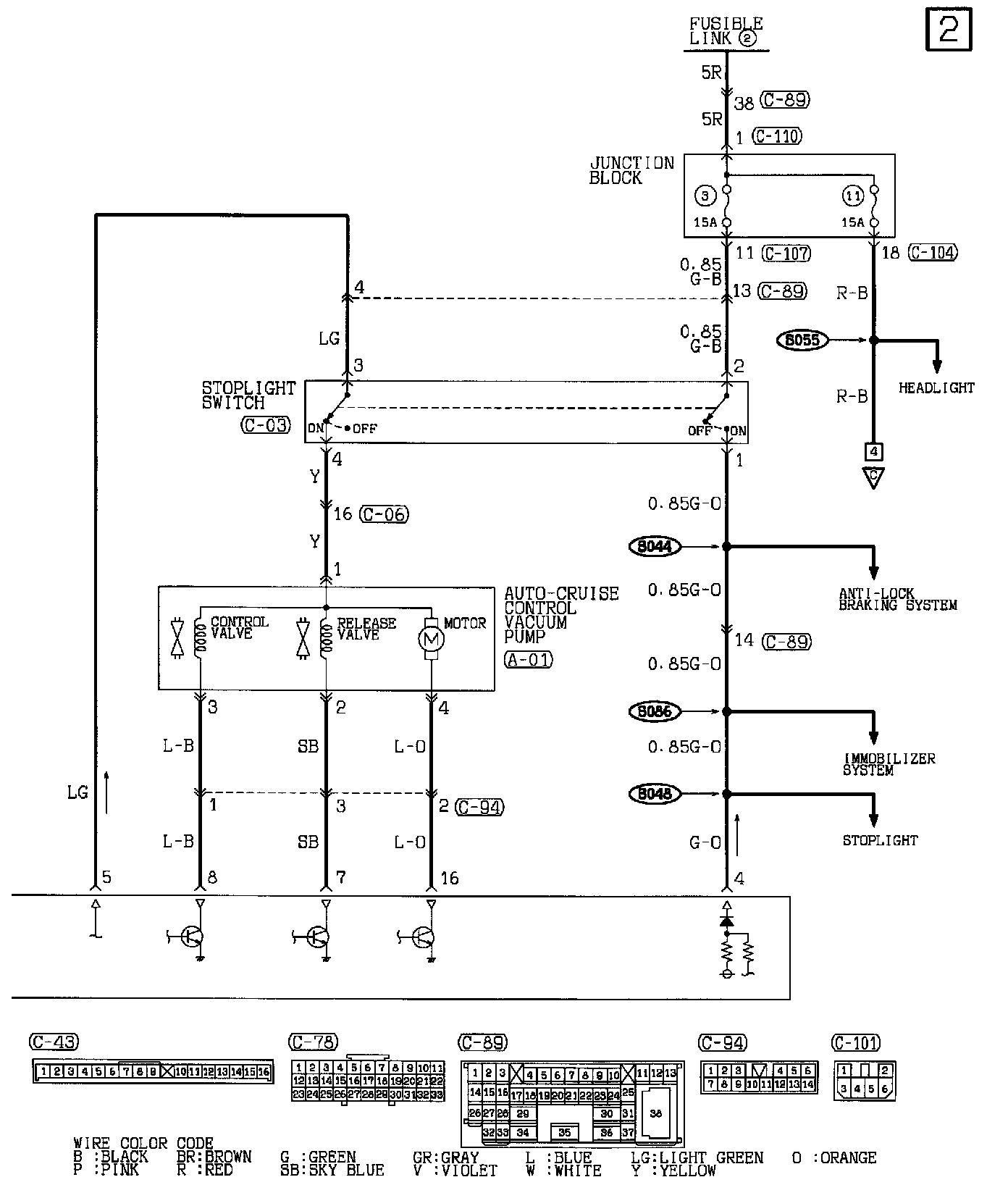

Auto-Cruise Control System (Part 2 Of 4):

Junction Block
Stop Light Switch
Auto-Cruise Control Vacuum Pump

Auto-Cruise Control System (Part 3 Of 4):

Clock Spring
Auto-Cruise Control Switch
Auto-Cruise Control-ECU
Engine Control Module
Throttle Position Sensor

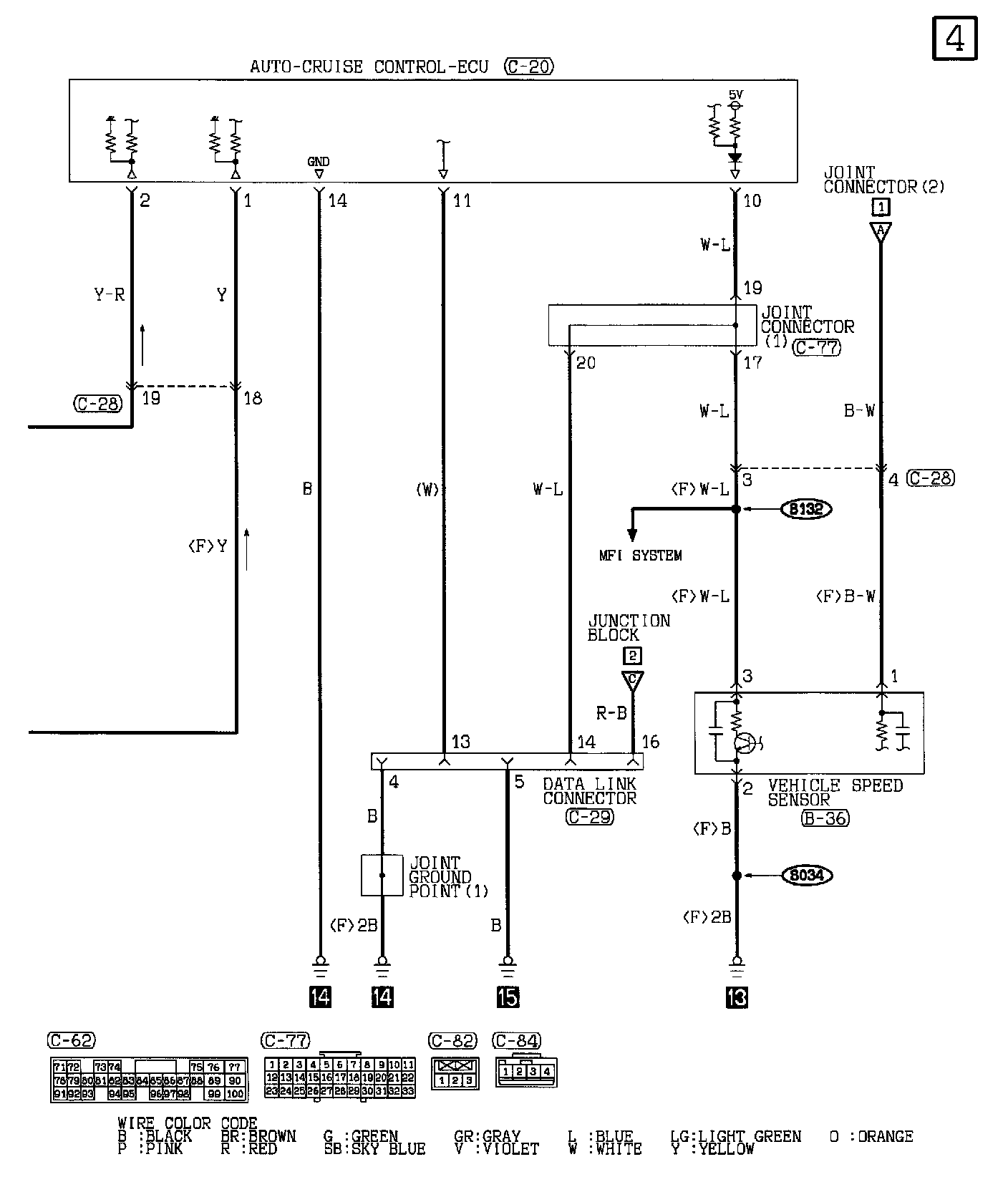

Auto-Cruise Control System (Part 4 Of 4):

Auto-Cruise Control-ECU
Joint Connector
Data Link Connector
Joint Ground Point
Vehicle Speed Sensor
