Home >> Mitsubishi >> 2000 >> Eclipse GT V6-3.0L SOHC >> Repair and Diagnosis >> Body and Frame >> Seats >> Service and Repair >> Front Seat >> Removal and Installation

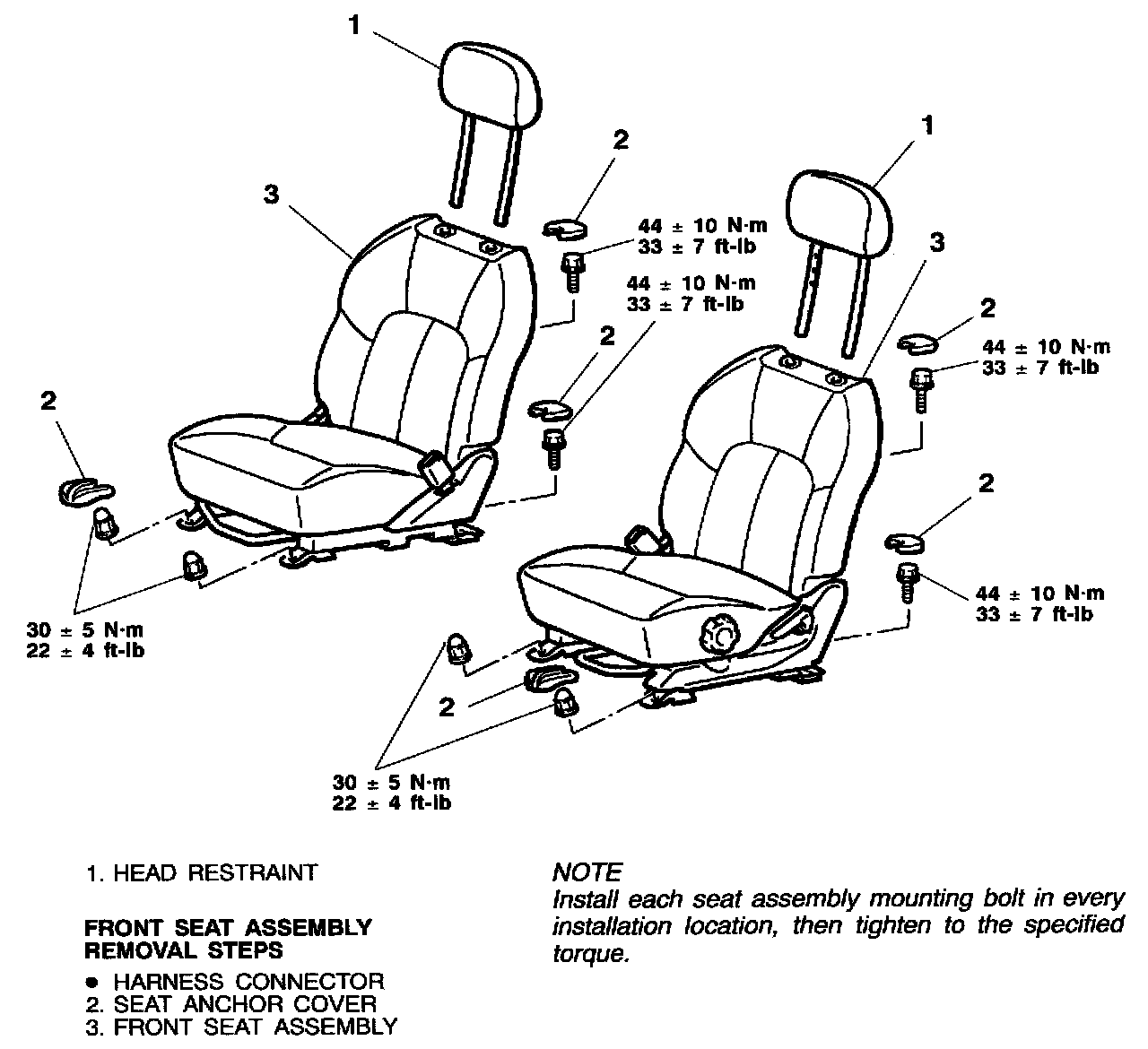

Removal and Installation

WARNING: Before removing a the seat equipped with a side air bag module, refer to Restraint System, SRS Service Precautions.
