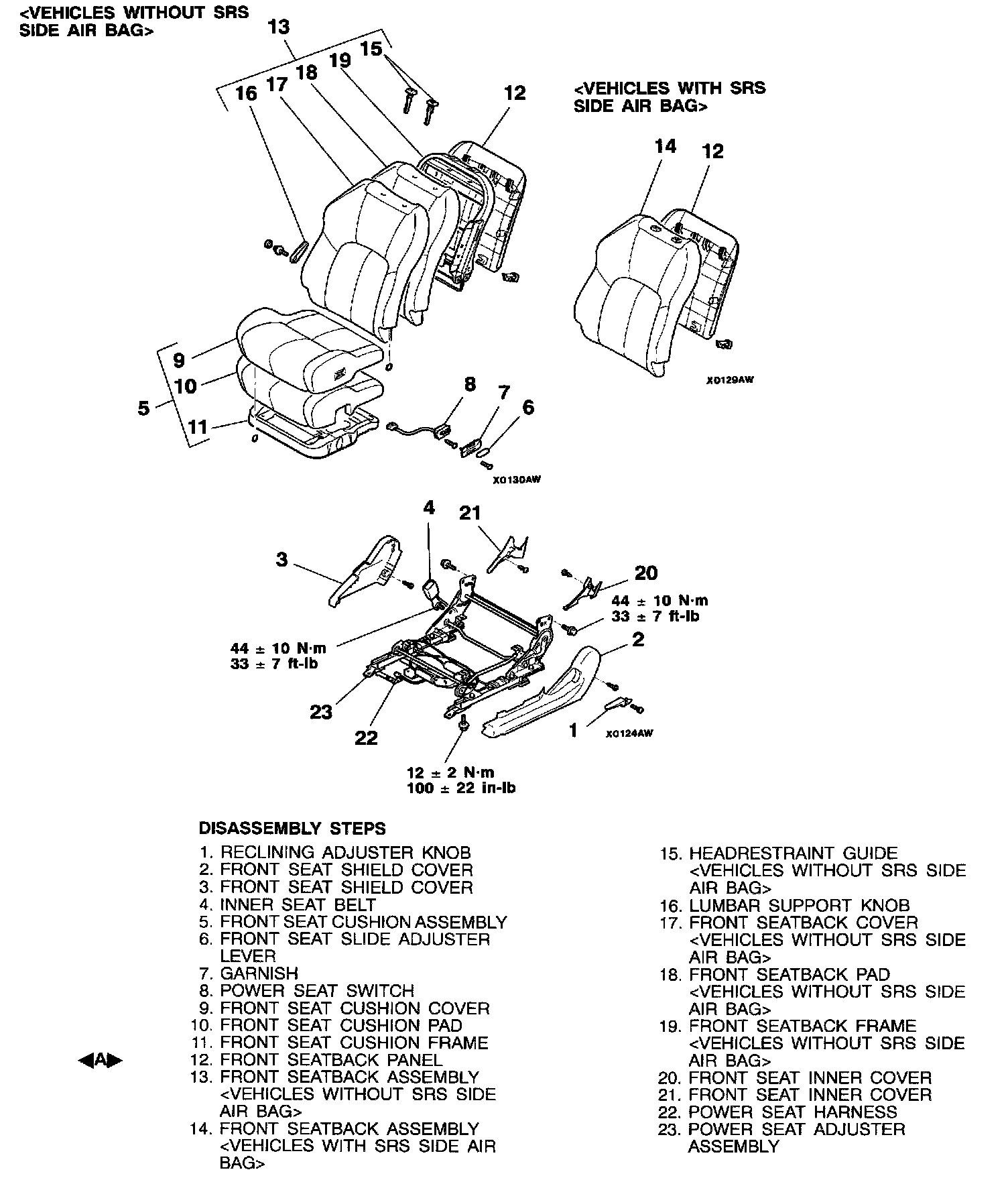

Disassembly and Reassembly (Power Seat)

CAUTION: Do not disassemble a front seatback assembly with built-in side air bag module.

DISASSEMBLY SERVICE POINT

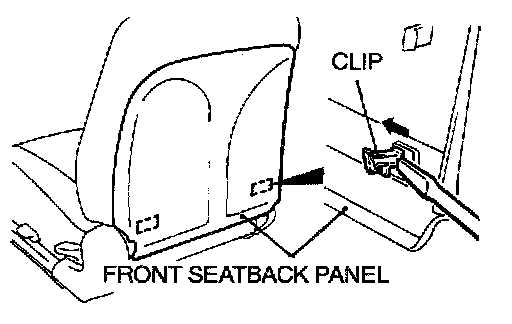

FRONT SEATBACK PANEL REMOVAL
1. Using a screwdriver or similar tool, push in the clip of the front seatback panel lower portion to remove it.
2. Pull down the front seatback panel to remove it.
