Home >> Mitsubishi >> 2000 >> Eclipse GT V6-3.0L SOHC >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Headliner >> Service and Repair

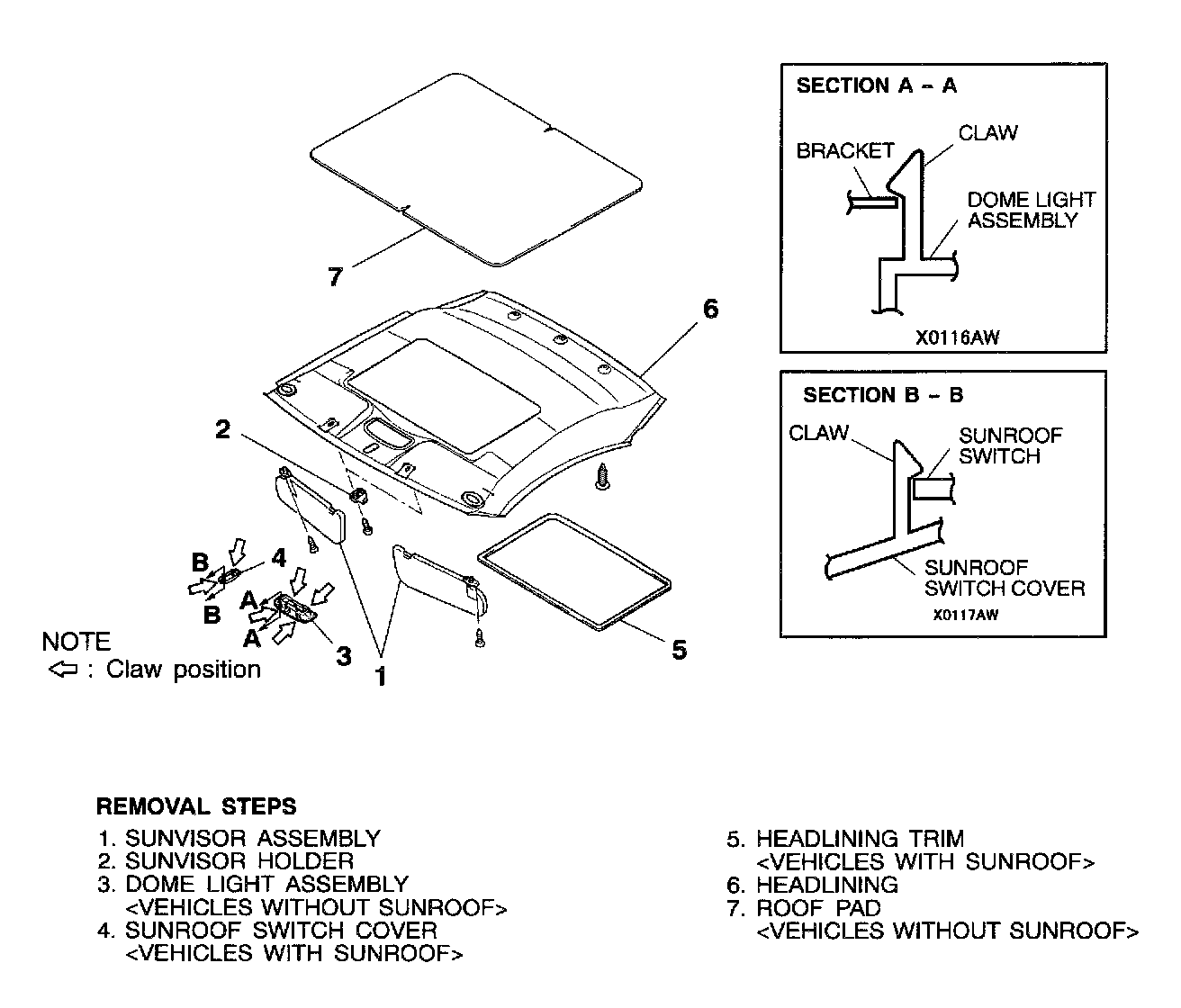

Headliner: Service and Repair




Pre-removal and Post-installtion Operation
Front Pillar Trim and Quarter Trim, Upper Removal and Installtion.
