Home >> Mitsubishi >> 2000 >> Eclipse GT V6-3.0L SOHC >> Repair and Diagnosis >> Body and Frame >> Bumper >> Front Bumper >> Service and Repair >> Removal and Installation

Removal and Installation




REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

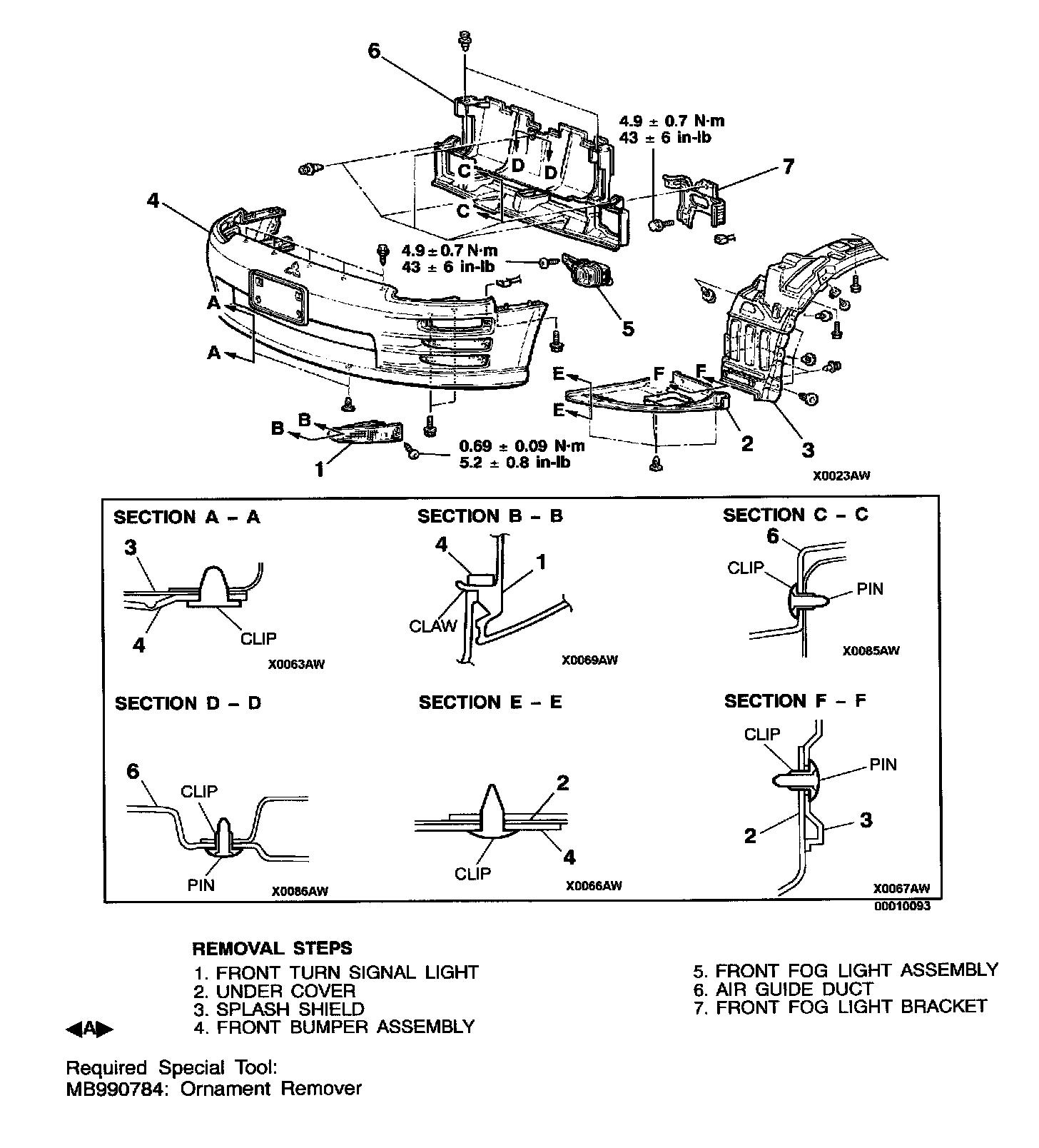

FRONT BUMPER ASSEMBLY REMOVAL

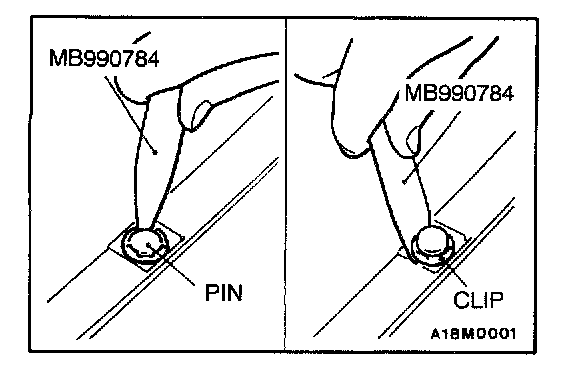

1. Use special tool MB990784 to pull up the center pin in the clip.
2. Remove the clip.
