Disassembly and Assembly

DISASSEMBLY AND ASSEMBLY

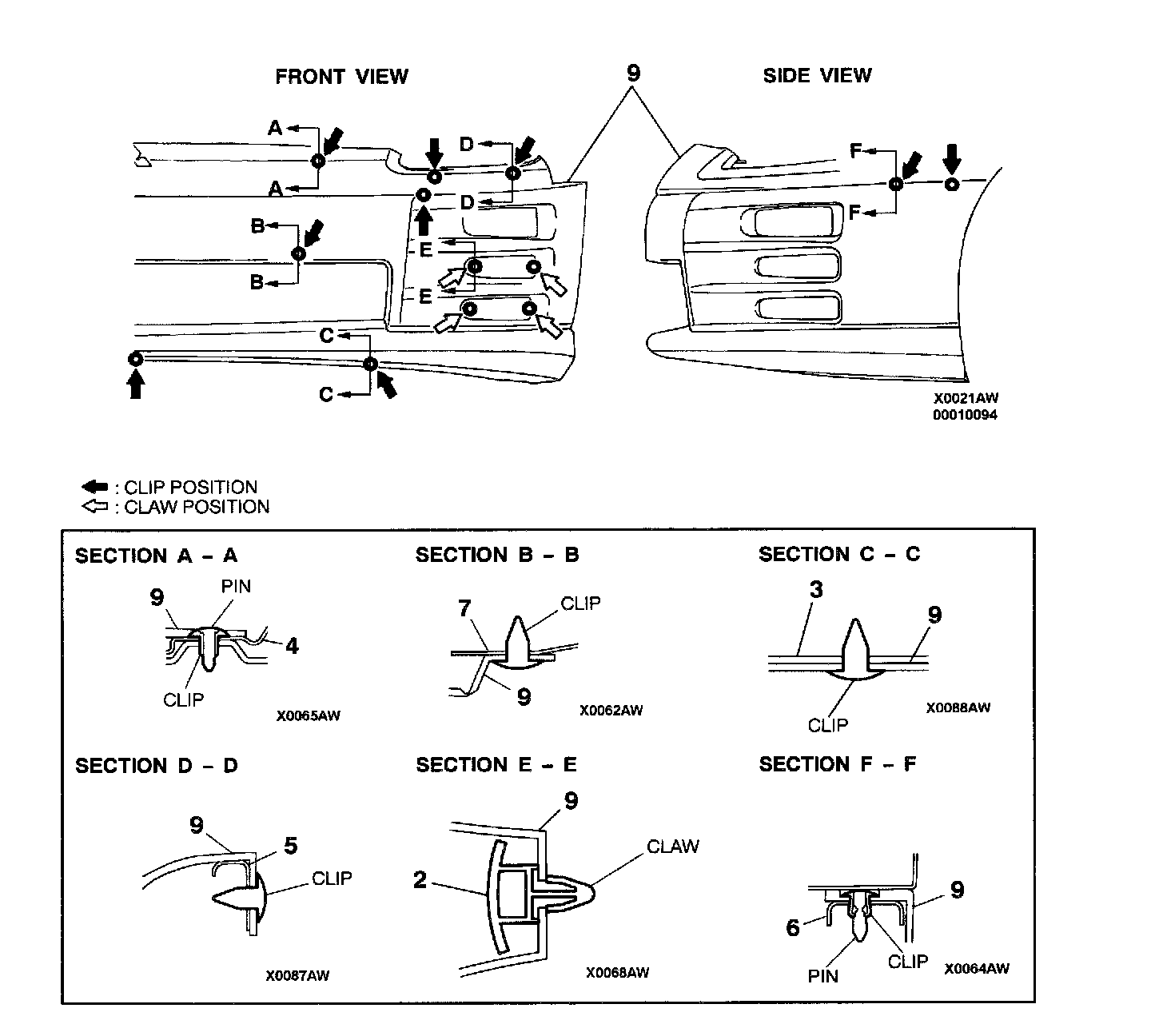

CLIP AND CLAW POSITION

DISASSEMBLY SERVICE POINT

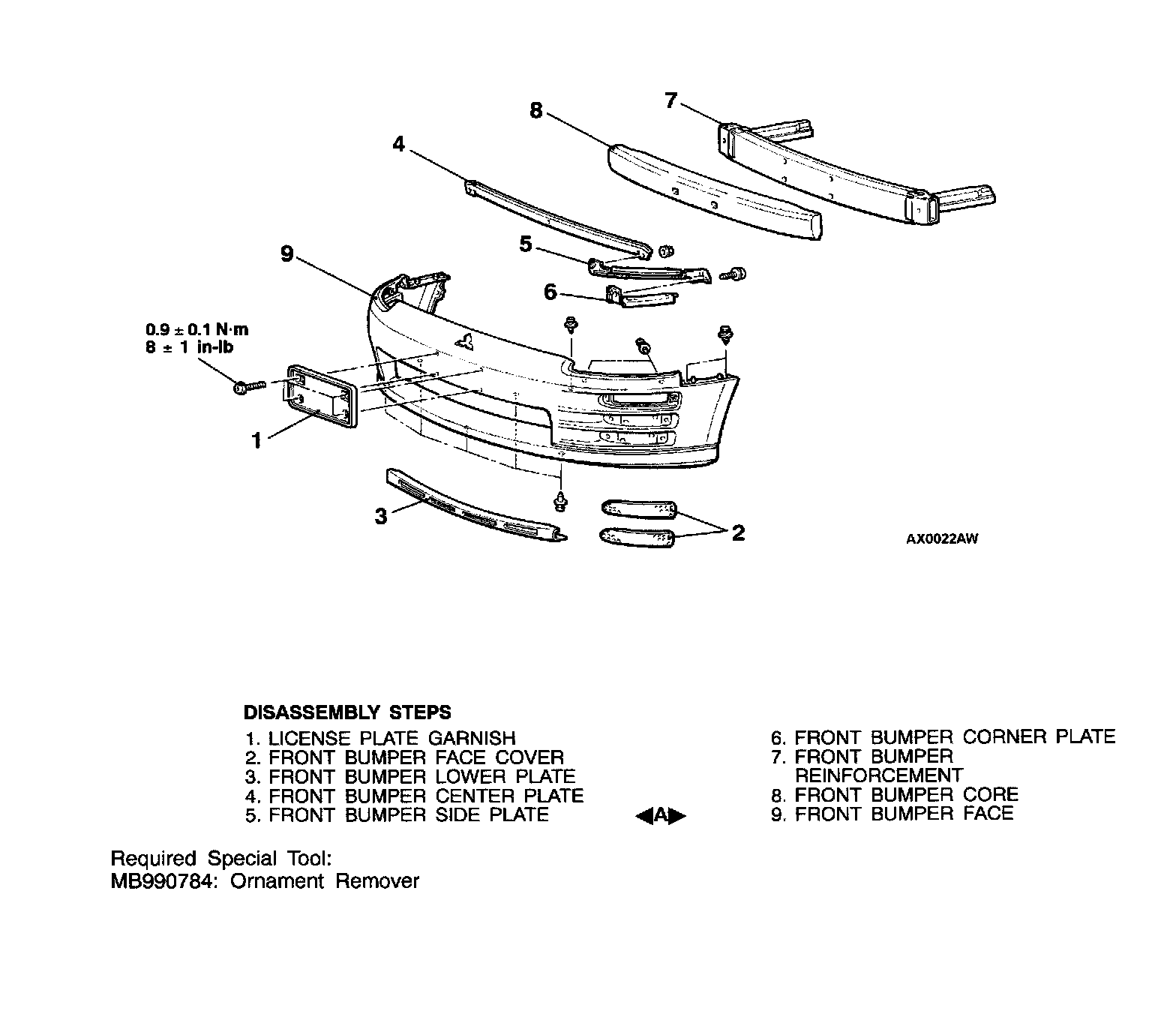

FRONT BUMPER FACE REMOVAL

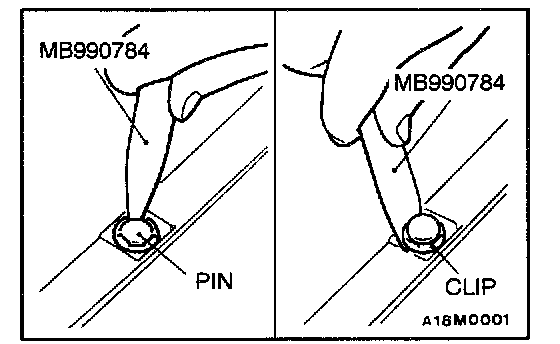

1. Use special tool MB990784 to pull up the center pin in the clip.
2. Remove the clip.
