Antitheft - Starting Using Immobilizer Override Function

NO.: TSB-99-54-006
DATE: September, 1999
MODEL: See Below

SUBJECT:
ENGINE STARTING WITH THE IMMOBILIZER OVERRIDE FUNCTION - SERVICE MANUAL REVISION

[TSB Revision TSB-99-54-006]

PURPOSE
This bulletin contains instructions for starting the engine of an Immobilizer-equipped Mitsubishi vehicle using the Immobilizer Override function. This procedure would be necessary in the event that all keys for a vehicle are lost and the vehicle needs to be started using a key cut from a non-transponder key blank. The instructions in this bulletin are not included in the service manuals for the listed affected vehicles.

NOTE:
For more information about the Immobilizer feature, its function, related PDI procedures, Override Code retrieval (through ADNS), and key registration, refer to TSB-99-00-003 REV.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES
2000 Eclipse
2000 Galant
2000 Montero Sport (ONLY with factory-installed RKE/Security System)

AFFECTED SERVICE MANUAL
2000 Eclipse Service Manual, Volume 3, Page 54A-8
1999-2000 Galant Service Manual, Volume 3, Page 54A-8
2000 Montero Sport Service Manual, Volume 3, Page 54-6

SERVICE MANUAL REVISIONS





2000 Eclipse Service Manuals, Volume 3, Page 54A-8
1999-2000 Galant Service Manual, Volume 3, Page 54A-8
2000 Montero Sport Service Manual, Volume 3, Page 54-6

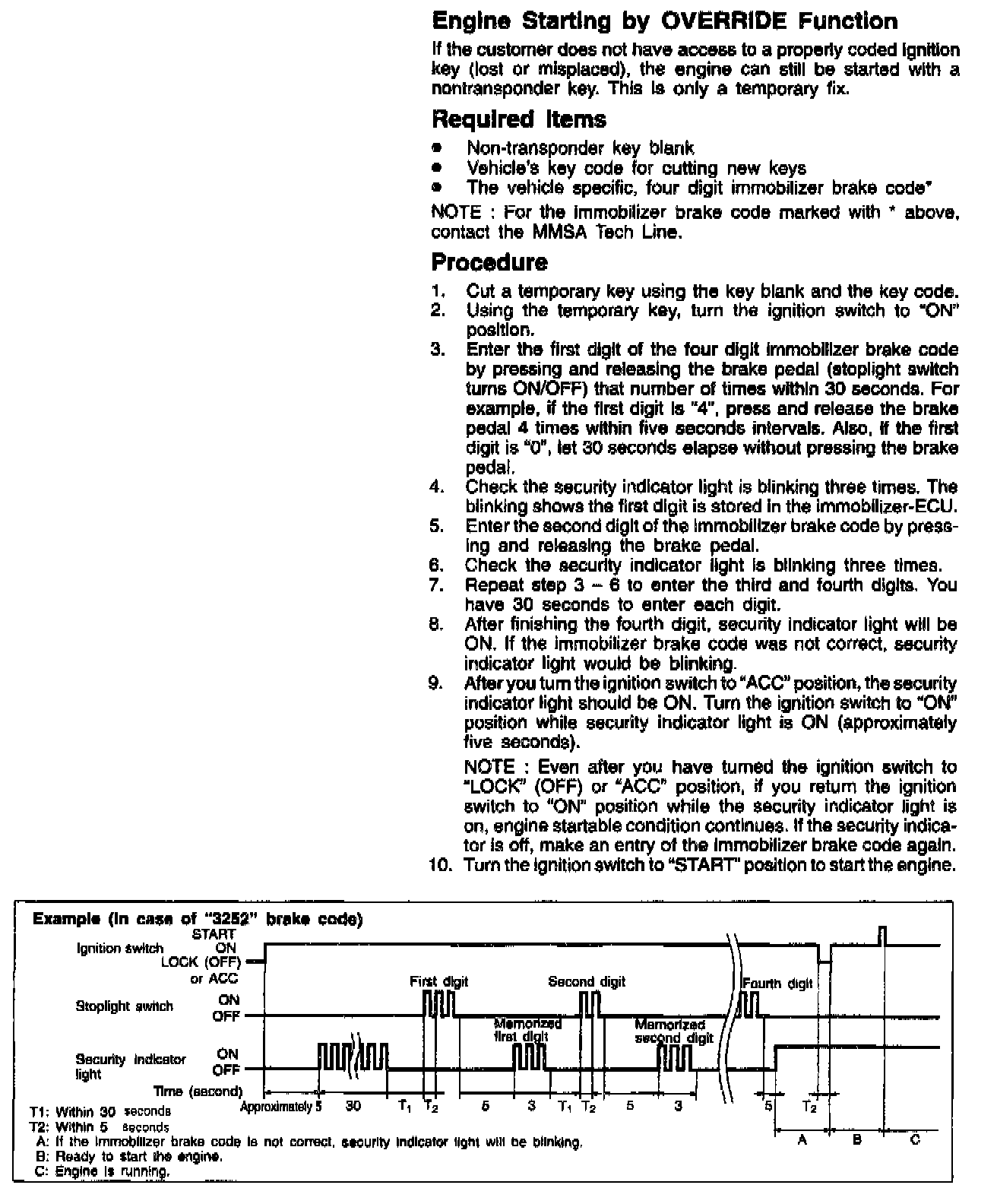

Add the new information to the indicated service manual page:
