Antitheft and Alarm Systems: Service and Repair

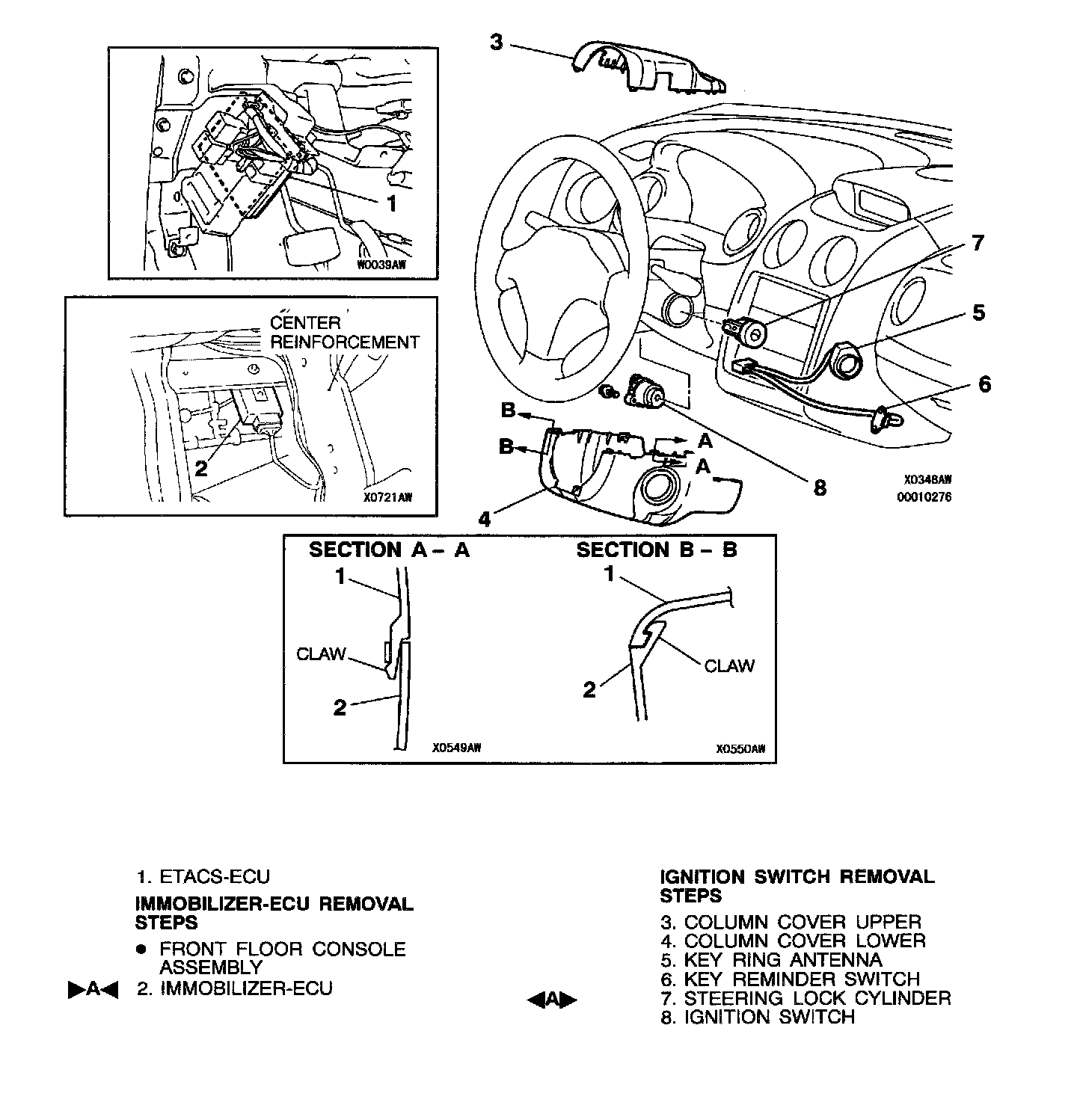

IGNITION SWITCH AND IMMOBILIZER SYSTEM
REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT

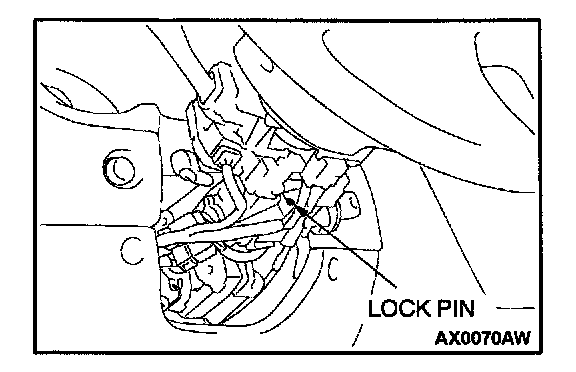

STEERING LOCK CYLINDER REMOVAL
1. Insert the key in the steering lock cylinder and turn it to the "ACC" position.
2. Using a small Phillips head screwdriver, pull the steering lock cylinder toward you.
INSTALLATION SERVICE POINT
>A< IMMOBILIZER-ECU INSTALLATION

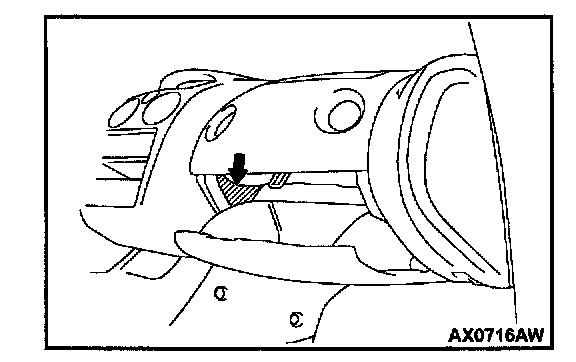

If the immobilizer-ECU is replaced, peel off the immobilizer serial number sticker from shown position. Then attach a new immobilizer-ECU identification sticker.
