P0110

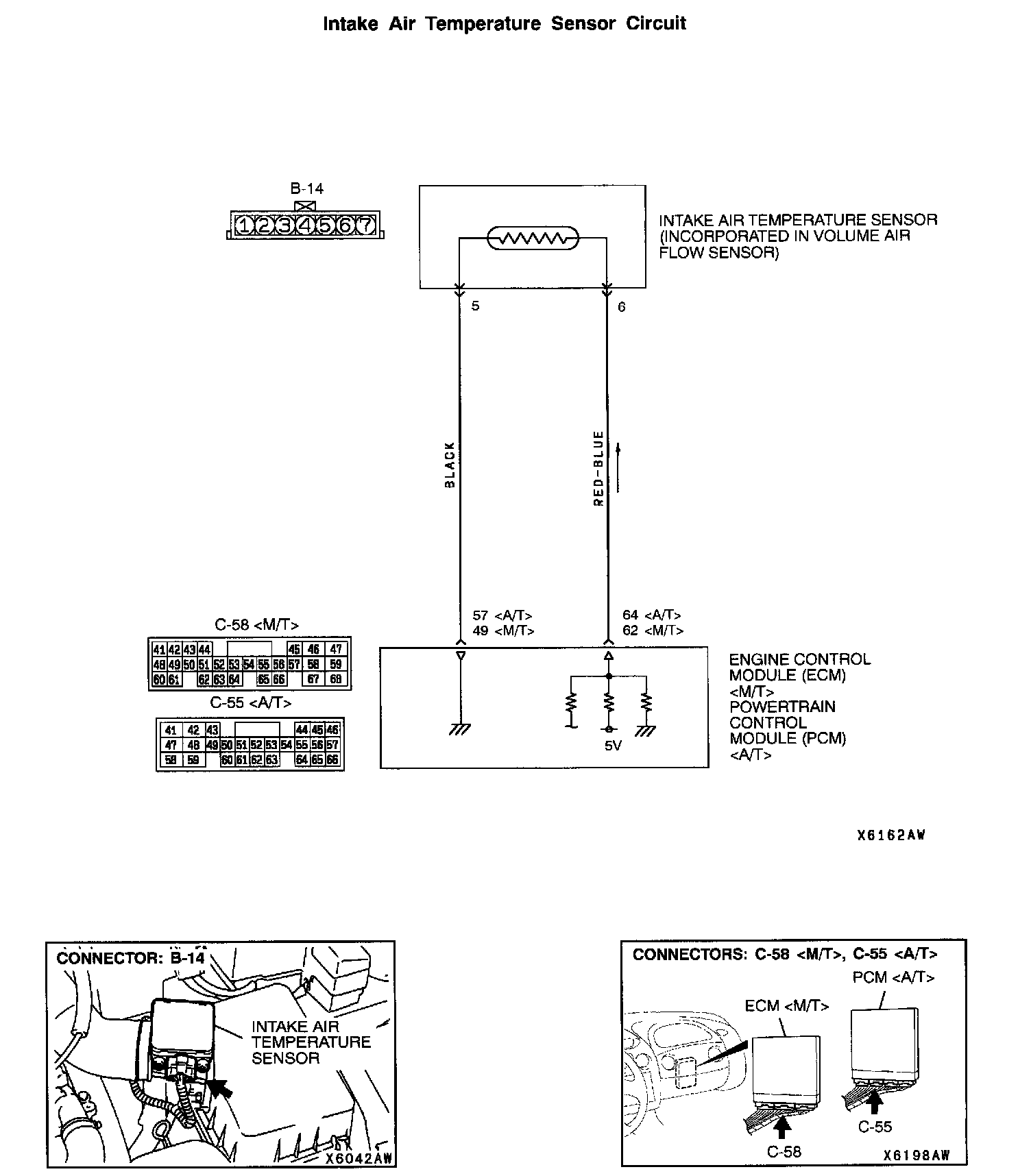

Intake Air Temperature Sensor Circuit:
CIRCUIT OPERATION
- Approximately 5 volts are applied to the intake air temperature sensor output terminal (terminal 6. from the ECM (terminal 62)
- The intake air temperature sensor is a negative temperature coefficient type of resistor. When the intake air temperature rises, the resistance decreases.
- The intake air temperature sensor output voltage increases when the resistance increases and decreases when the resistance decreases.
TECHNICAL DESCRIPTION
- The intake air temperature sensor converts the intake air temperature to a voltage.
- The ECM
DTC SET CONDITIONS
Check Conditions
- Two seconds or more have passed since the engine was started.
Judgement Criteria
- Intake air temperature sensor output voltage has continued to be 4.6 volts or higher [corresponding to an air intake temperature of -45°C (-49°F) or lower] for 2 seconds.
or
- Intake air temperature sensor output voltage has continued to be 0.2 volt or lower [corresponding to an air intake temperature of 125°C (257°F) or higher] for 2 seconds.
TROUBLESHOOTING HINTS
The most likely causes for this code to be set are:
- Intake air temperature sensor failed.
- Open or shorted intake air temperature sensor circuit, or loose connector.
- ECM failed.
- PCM failed.
DIAGNOSIS
Required Special Tools:
MB991502: Scan Tool (MUT-II)
CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502.
STEP 1. Using scan tool MB991502, check data list item 13: Intake Air Temperature Sensor.

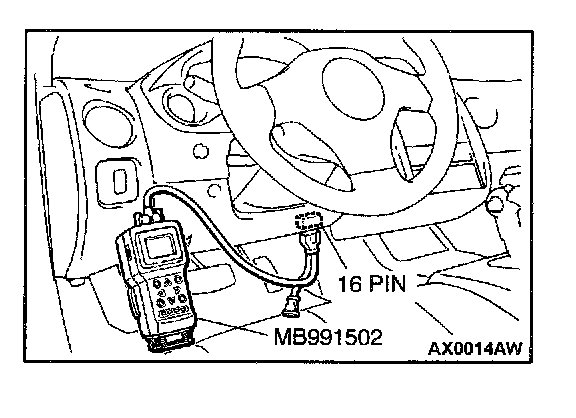

1. Connect scan tool MB991502 to the data link connector.
2. Turn the ignition switch to "ON" position.
3. Set scan tool MB991502 to the data reading mode for item 13, Intake Air Temperature Sensor.
- The intake air temperature and temperature shown with the scan tool should approximately match.
If they match, this malfunction is intermittent. Refer to How to Use Troubleshooting/Inspection Service Points - How to Cope With Intermittent Malfunction.
If they don't match, go to Step 2.
STEP 2. Check the intake air temperature sensor.

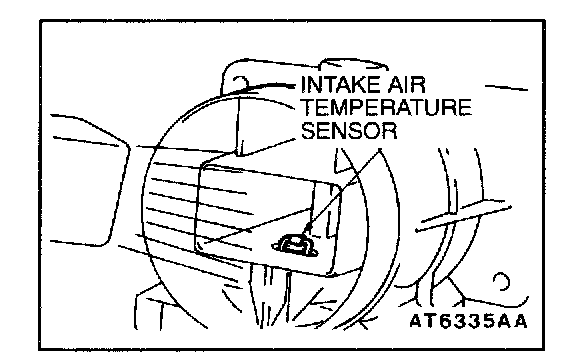

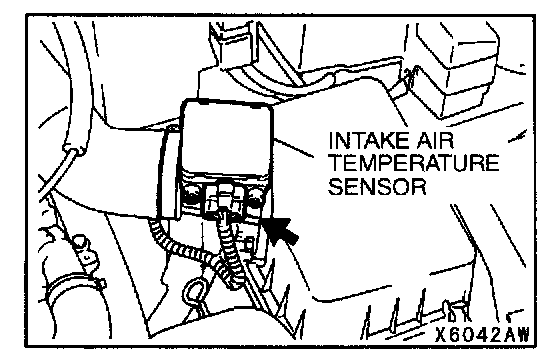

1. Disconnect the intake air temperature sensor connector B-14.

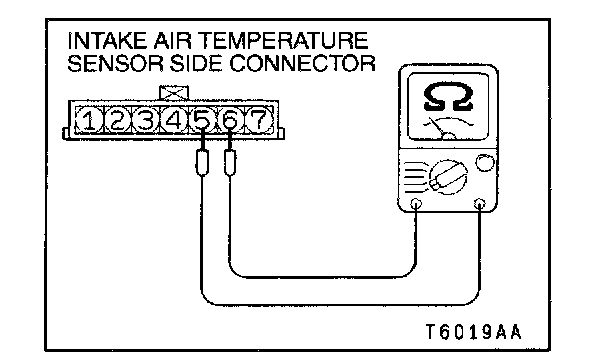

2. Measure the continuity between the intake air temperature sensor side connector terminals 5 and 6.
- There should be continuity. (0.14 - 50 kohms)
If continuity, go to Step 3.
If no continuity, replace the volume air flow sensor. Then go to Step 8.

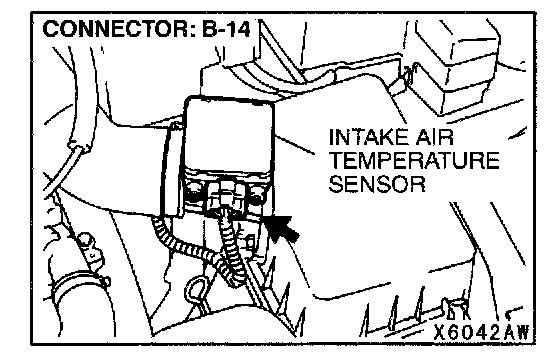

STEP 3. Check the circuit at intake air temperature sensor connector B-14.
1. Disconnect connector B-14 and measure at the harness side.
2. Turn the ignition switch to "ON" position.

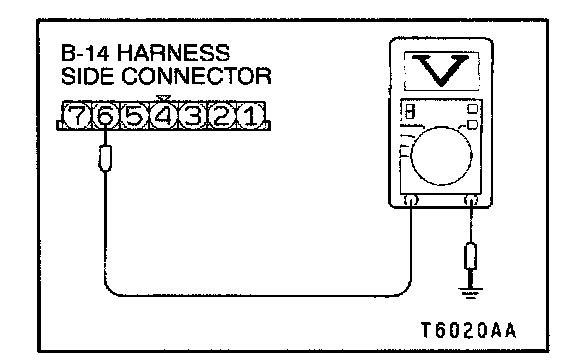

3. Measure the voltage between terminal 6 and ground.
- Voltage should be between 4.5 and 4.9 volts.
4. Turn the ignition switch to "LOCK" (OFF) position.

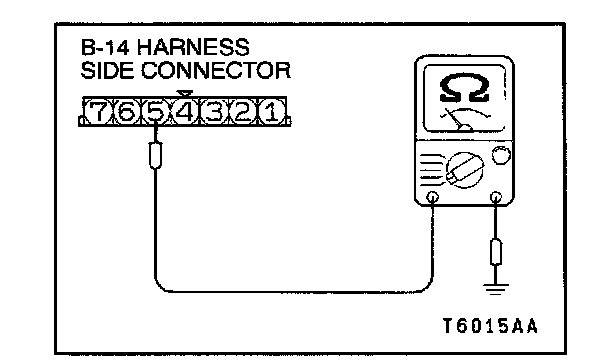

5. Check for the continuity between terminal 5 and ground.
- Should be less than 2 ohms.
If all checks above meet the specifications, go to Step 4.
If any check above does not meet the specifications, go to Step 5.
STEP 4. Check harness connector B-14 at the intake air temperature sensor for damage.
If harness connector B-14 is in good condition, replace the volume air flow sensor. Then go to Step 8.
If harness connector B-14 is damaged, repair or replace it. Refer to Harness Connector Inspection. Then go to Step 8.

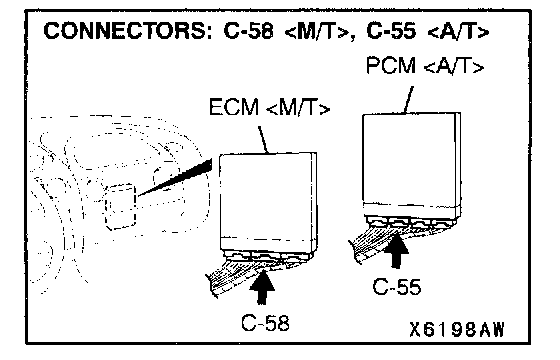

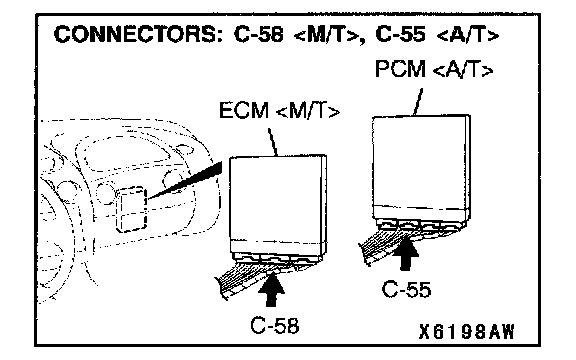

STEP 5. Check harness connector C-58 at the ECM
If harness connector C-58
If harness connector C-58
STEP 6. Check the harness wire between intake air temperature sensor connector B-14 and ECM connector C-58
If the wire between intake air temperature sensor connector B-14 and the ECM connector C-58
If the wire between intake air temperature sensor connector B-14 and ECM connector C-58
STEP 7. Check the intake air temperature sensor.
1. Disconnect intake air temperature sensor connector B-14.

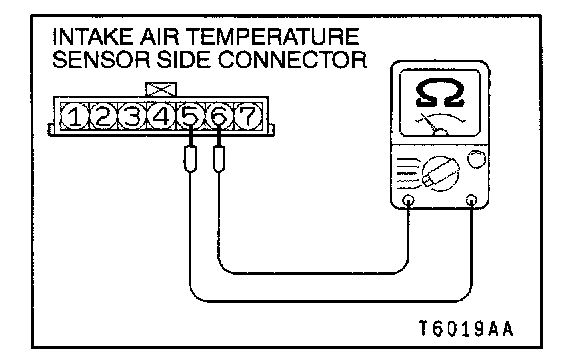

2. Measure the resistance between intake air temperature sensor side connector terminals 5 and 6.
Standard value:
5.3 - 6.7 kohms [at 0°C (320F)]
2.3 - 3.0 kohms [at 20°C (680F)]
1.0 - 1.5 kohms [at 40°C (680F)]
0.30 - 0.42 kohms [at 80°C (1760F)]
3. Measure resistance while heating the sensor using a hot dry air.
- As the temperature rises, the resistance value should drop.
If within specifications, replace the ECM or PCM. Then go to Step 8.
If not within specifications, replace the volume air flow sensor. Then go to Step 8.
STEP 8. Test the OBD-II drive cycle.
1. Carry out a test drive with the drive cycle pattern. Refer to Procedure 6 - Other Monitor.
2. Read the diagnostic trouble code, and confirm that diagnostic trouble code P0110 does not reset.
