Connecting Rod Bearing Clearance

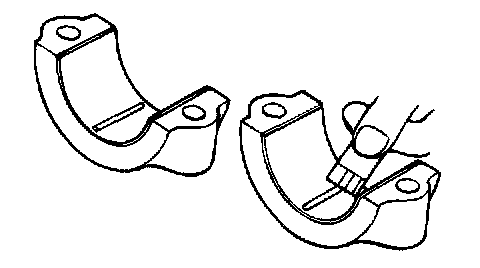

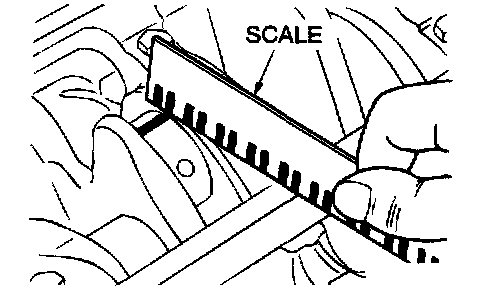

Crankshaft Pin Oil Clearance









Standard value: 0.02 - 0.05 mm (0.0008 - 0.0019 inch)
Limit: 0.1 mm (0.003 inch)
