Scan Tool Test Index

Part 1 Of 2:

Part 2 Of 2:

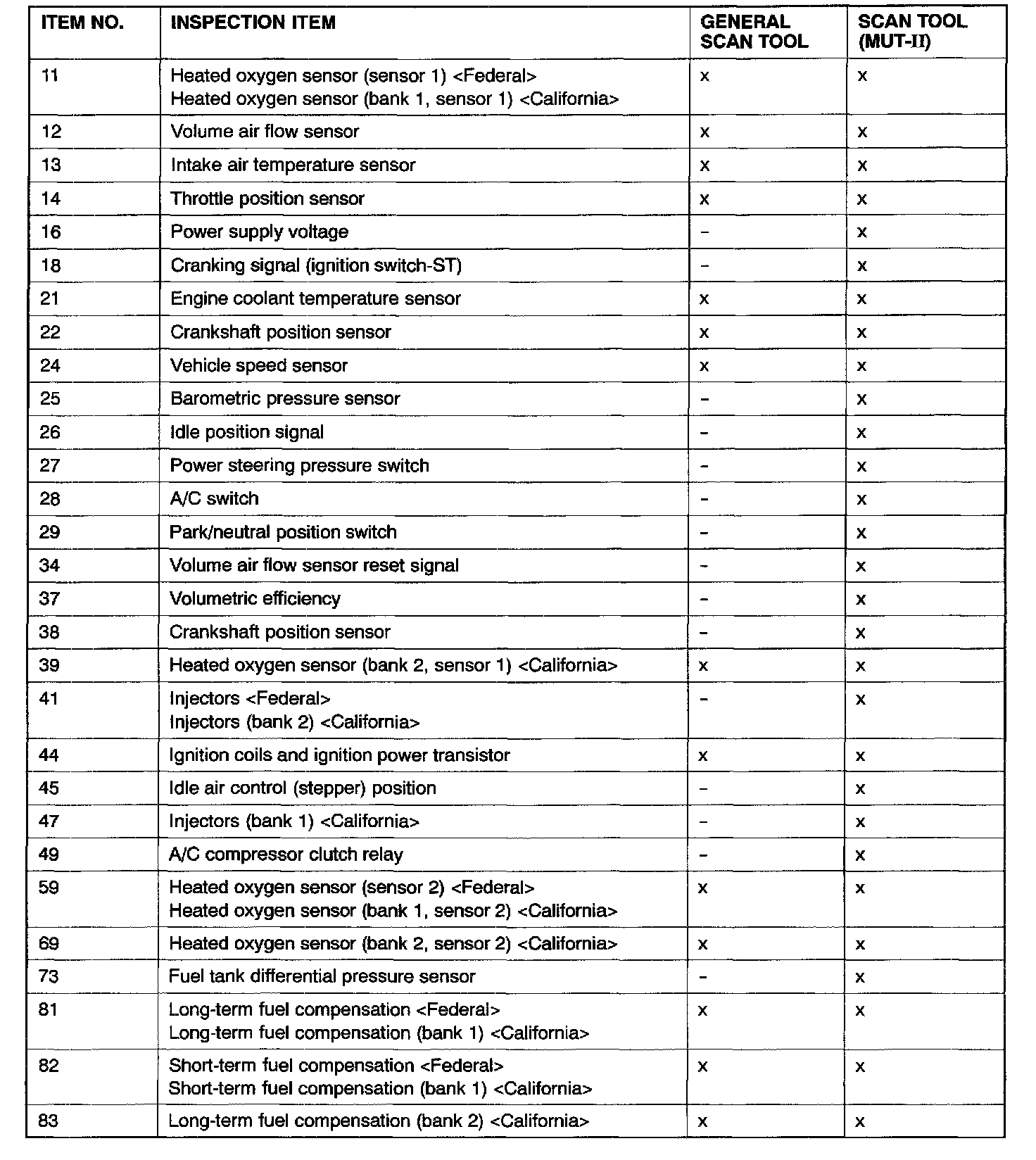

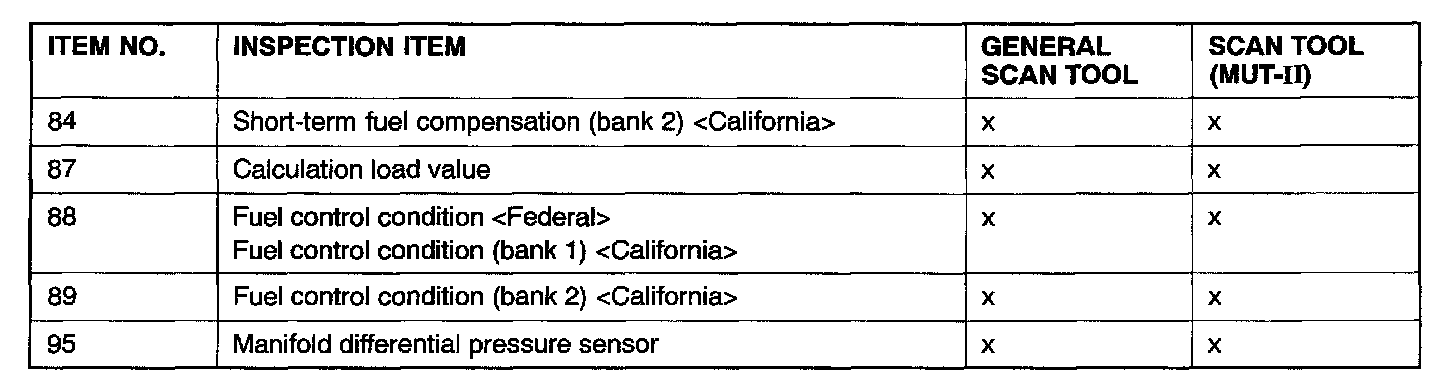

DATA LIST REFERENCE TABLE

Sensor 1 indicates the sensor mounted at a position closest to the engine, and sensor 2 indicates the sensor mounted at the position second close to the engine.
Bank 1 indicates the right bank cylinder, and bank 2 indicates the left bank cylinder

CAUTION
- When shifting the select lever to D range, the brakes should be applied so that the vehicle does not move forward.
- Driving tests always need two persons: one driver and one observer.
