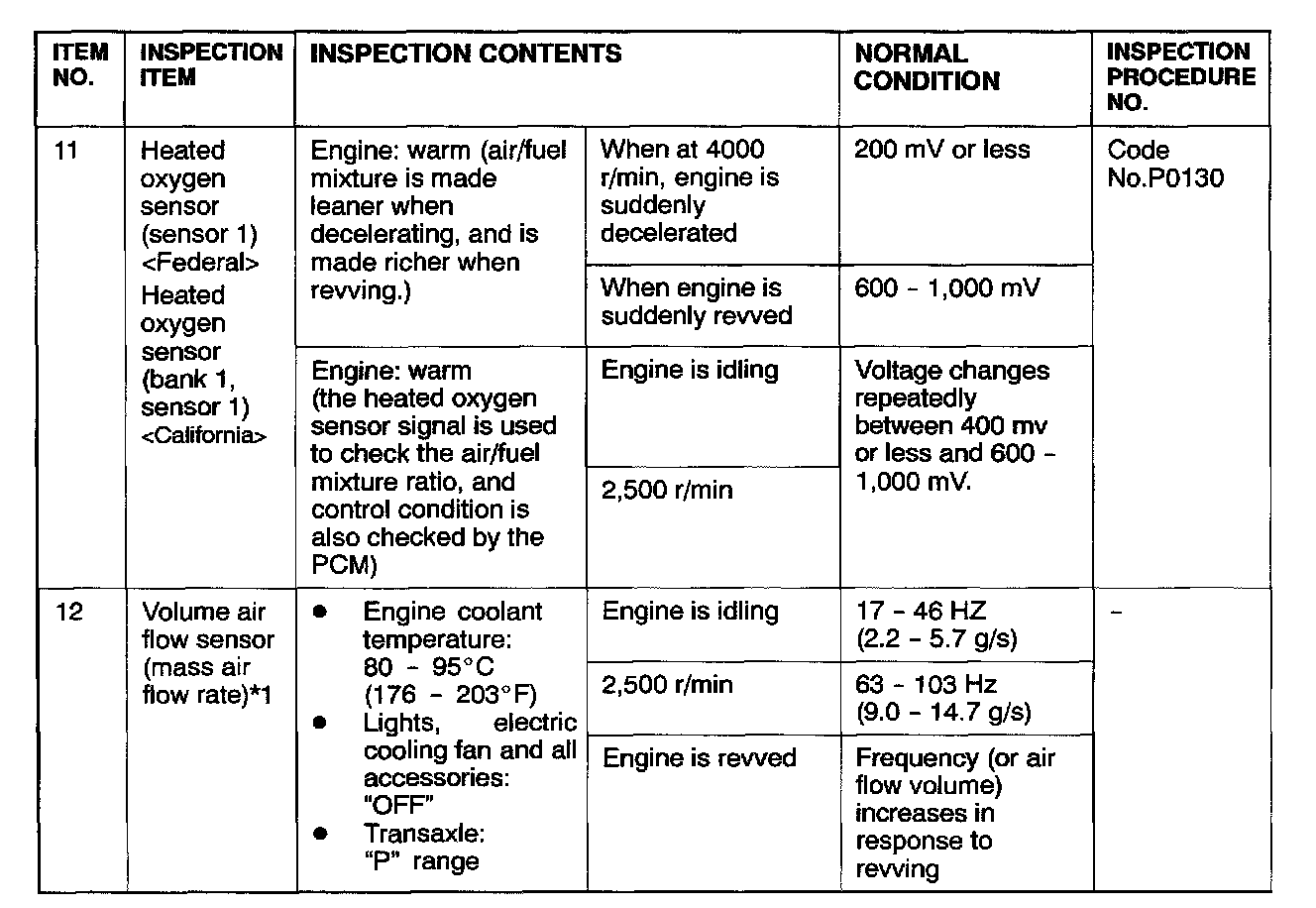

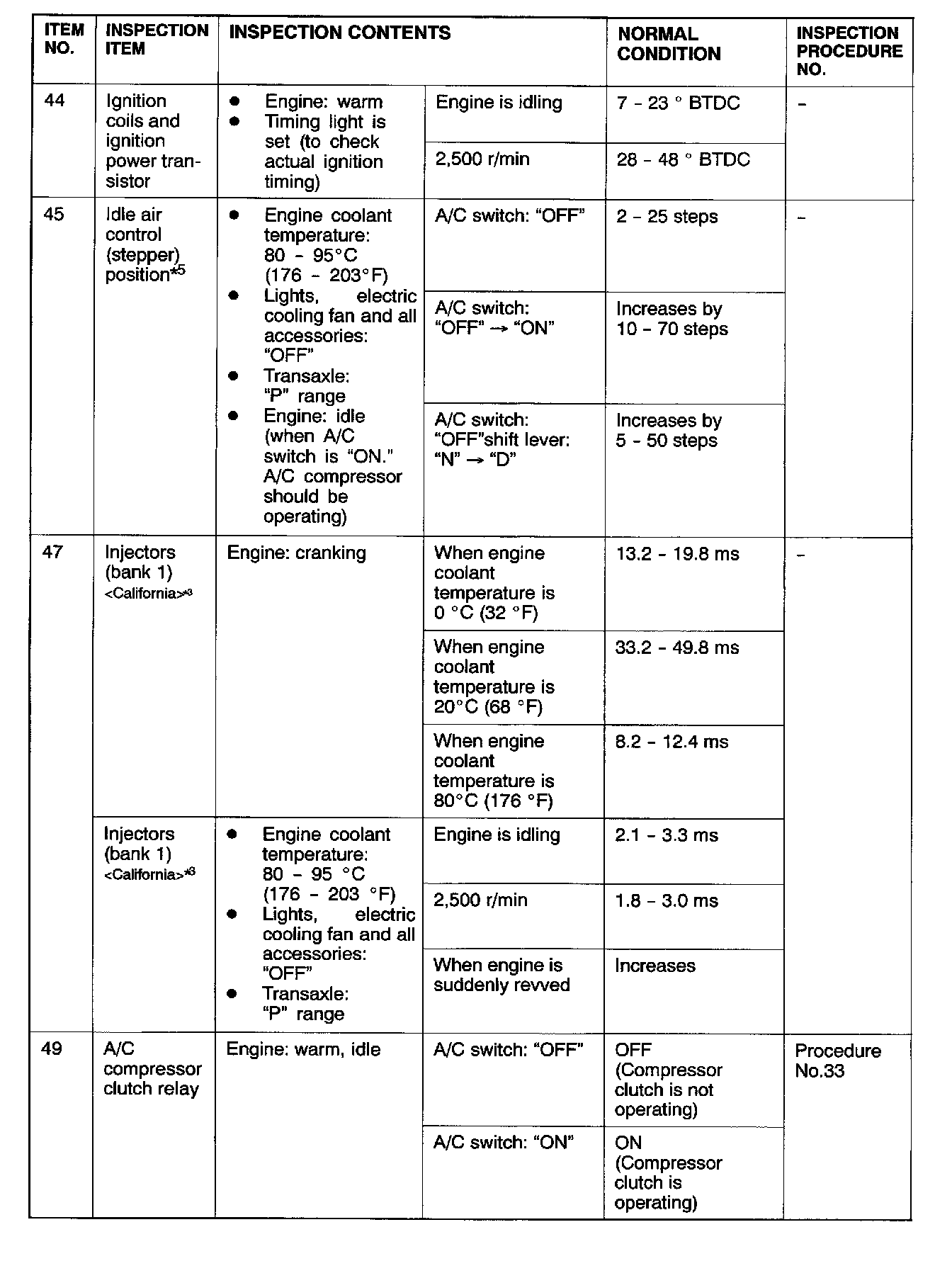

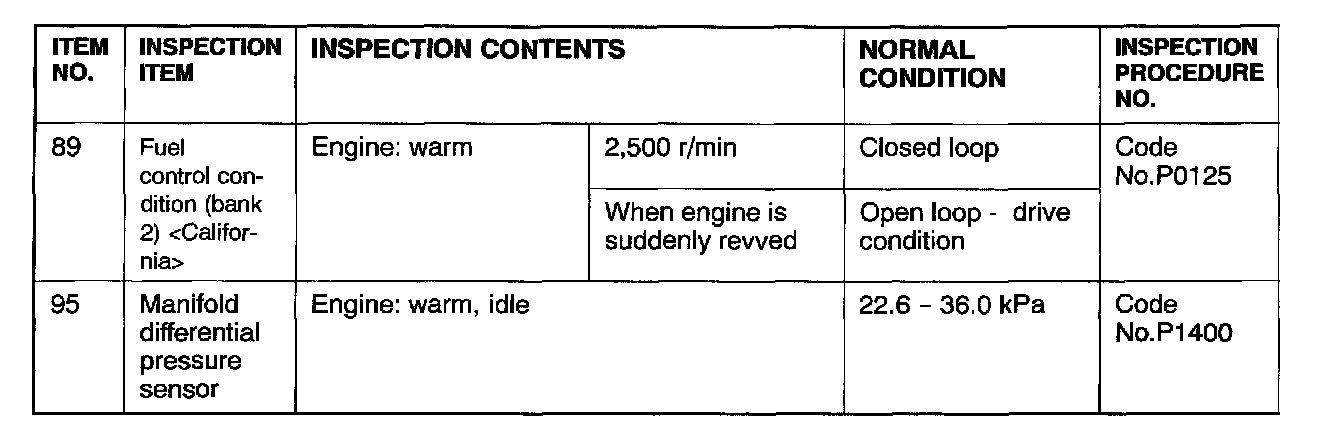

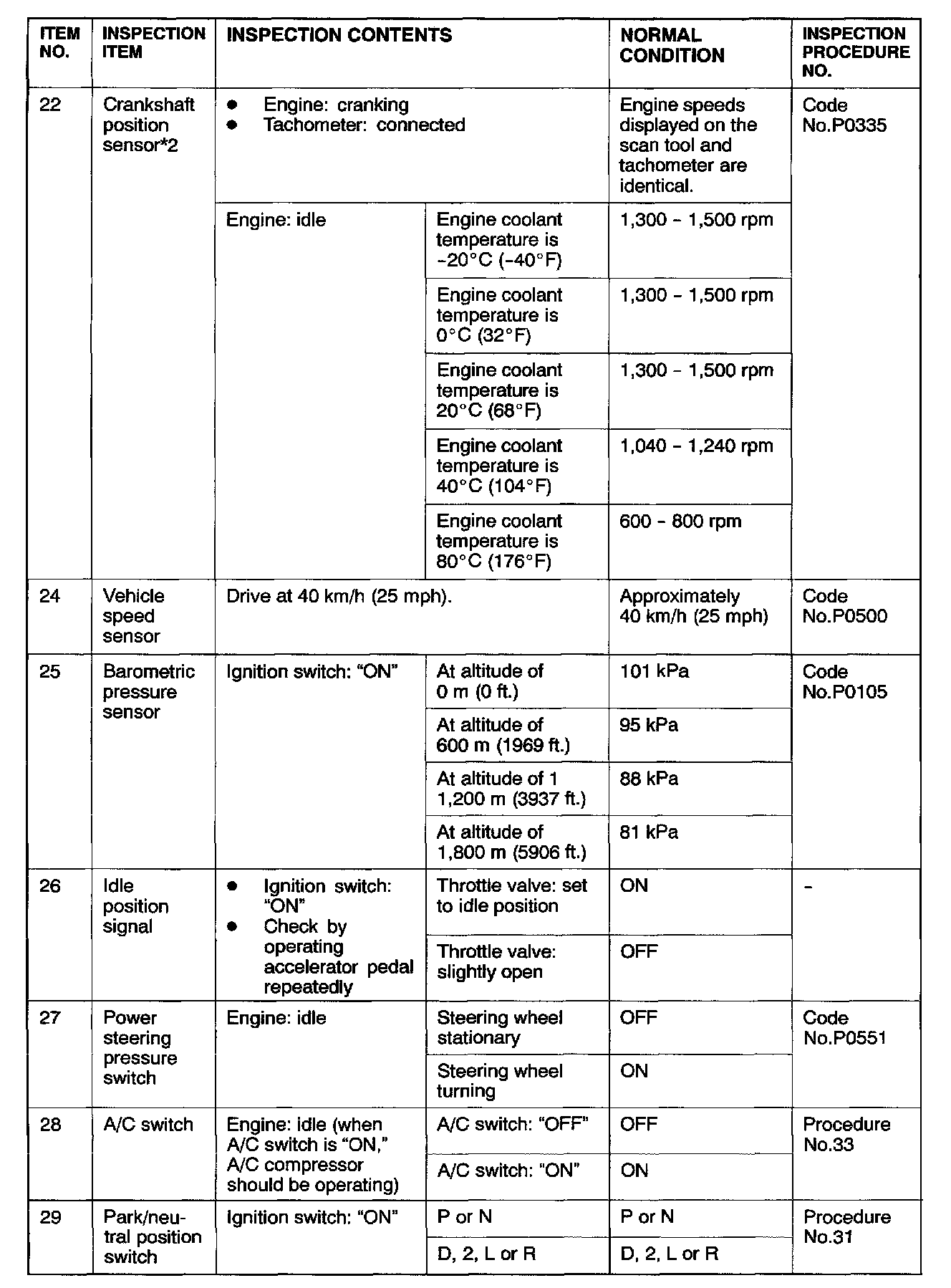

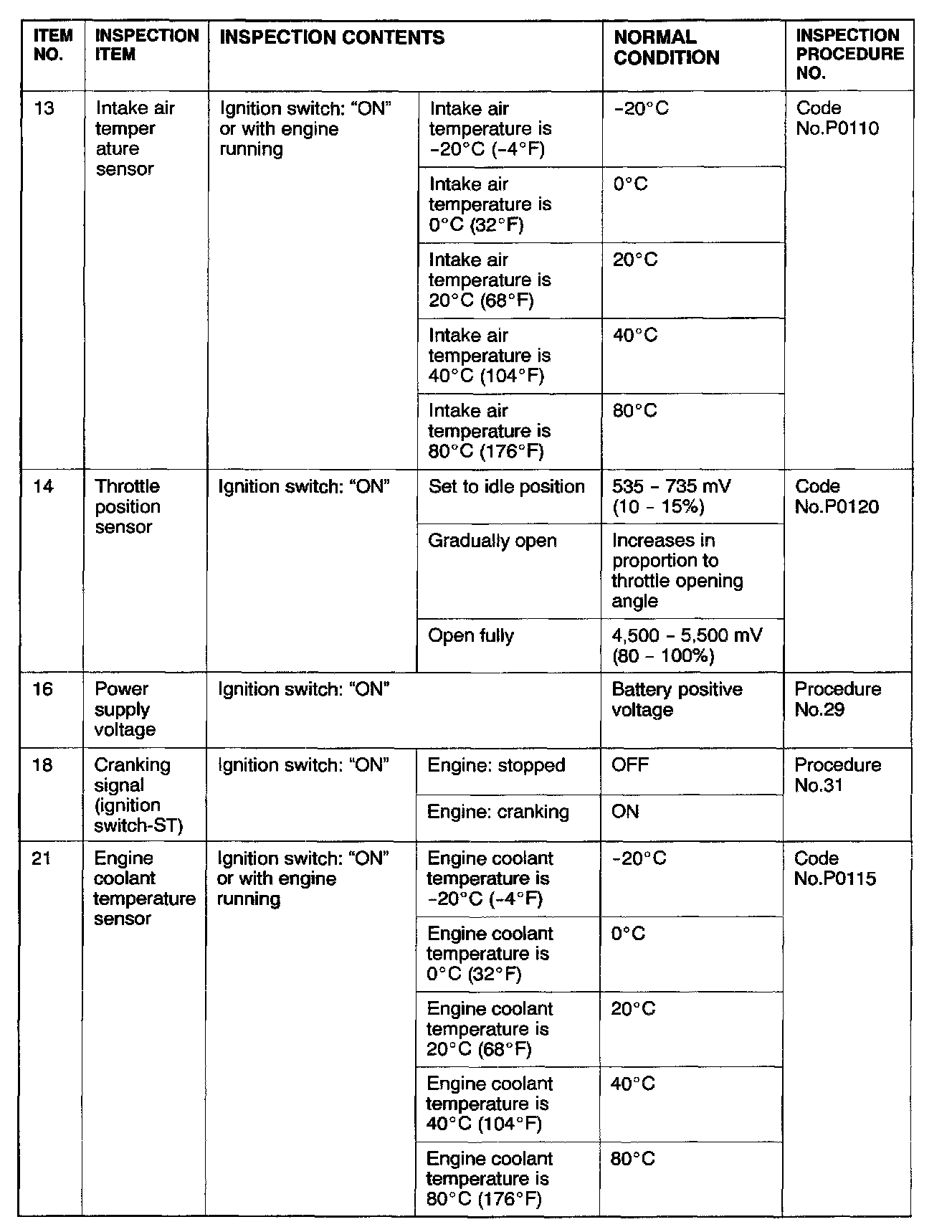

Normal Scan Data Values

Part 1 Of 7:

Part 2 Of 7:

Part 3 Of 7:

Part 4 Of 7:

Part 5 Of 7:

Part 6 Of 7:

Part 7 Of 7:

NORMAL SCAN DATA VALUES

NOTES FOR DATA LIST ITEMS

Sensor 1 indicates the sensor mounted at a position closest to the engine, and sensor 2 indicates the sensor mounted at the position second close to the engine.

Bank 1 indicates the right bank cylinder, and bank 2 indicates the left bank cylinder

*1: In a new vehicle [driven approximately 500 km (311 mile) or less], the volume air flow sensor output frequency is sometimes 10% higher than the standard frequency

*2: If the idle speed is lower than the standard value on a very cold engine (approximately -20° C (-4° F) even when the IAC motor is fully opened, The air volume limiter built in the throttle body could be defective.

*3: The injector drive time represents the time when the cranking speed is at 250 r/min or below when the power supply voltage is 11 volts.

*4: In a new vehicle [driven approximately 500 km (311 mile) or less], the injector drive time is sometimes 10% longer than the standard time.

*5: In a new vehicle [driven approximately 500 km (311 mile) or less], the step of the stepper motor is sometimes 30 steps greater than the standard value.
