Control Unit

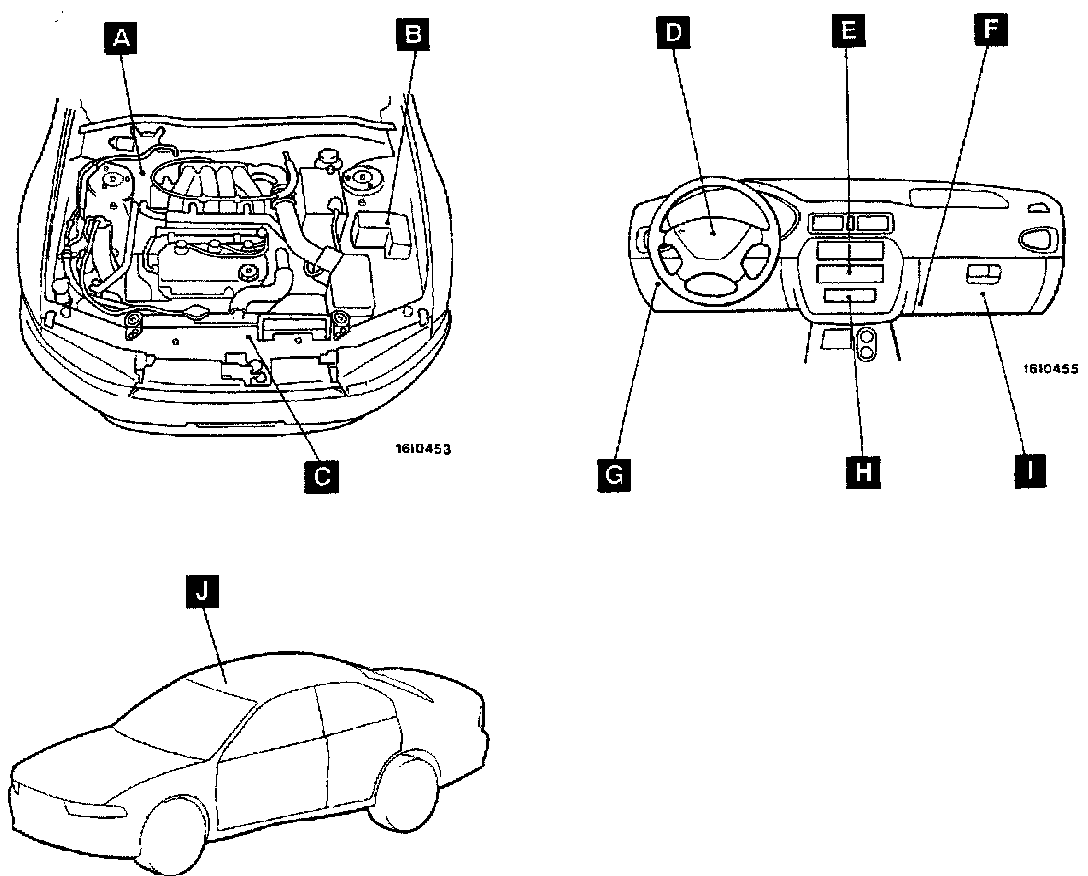

Control Unit Overall View:

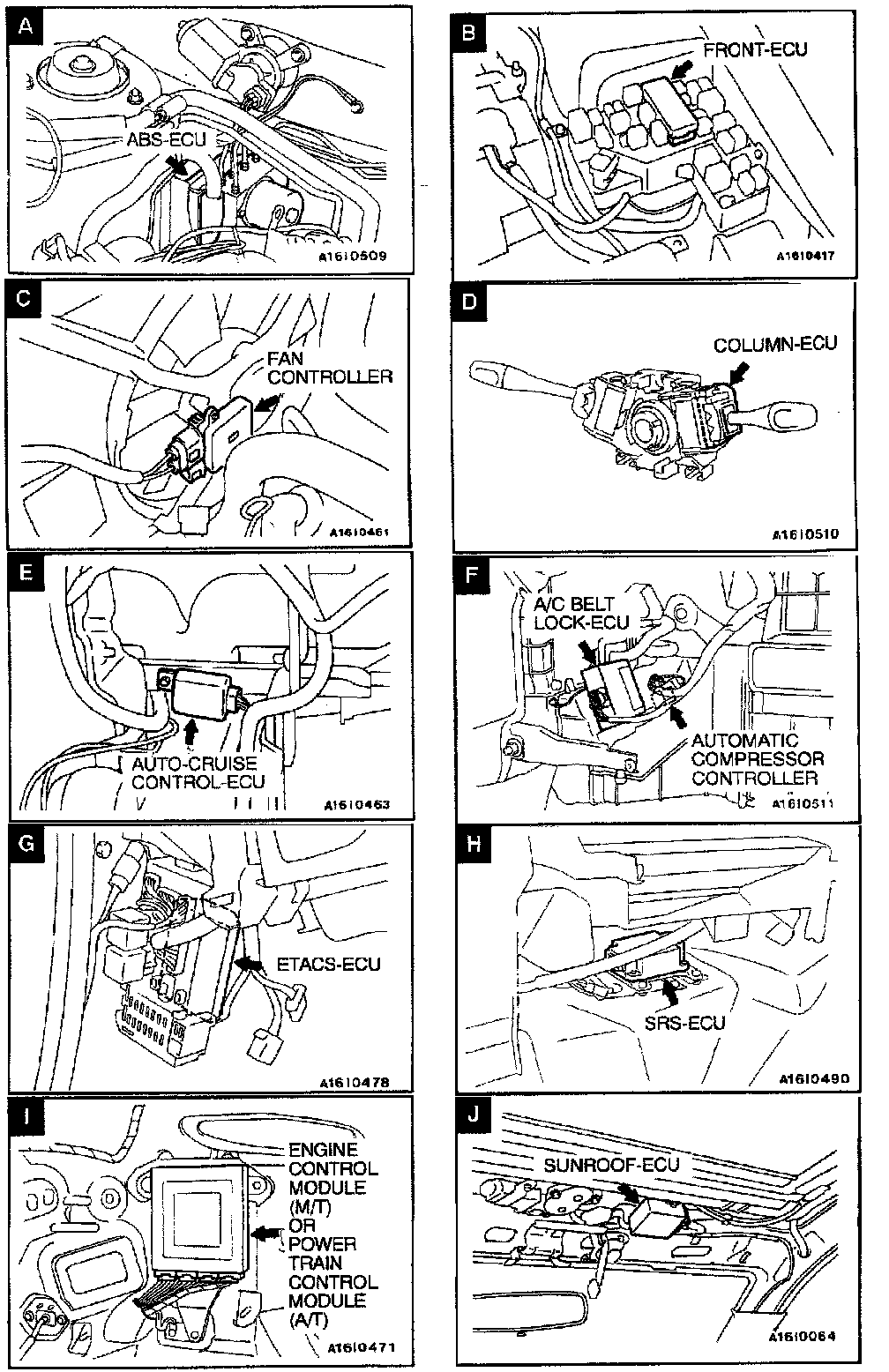

Control Unit Views A - J:

NAME SYMBOL
ABS-ECU A
A/C Belt Lock-ECU F
Auto-Cruise Control ECU E
Automatic Compressor Controller F
Column ECU D
Engine Control Module I
ETACS-ECU G
Fan Controller C
Front-ECU B
Powertrain Control Module I
SRS-ECU H
Sunroof-ECU J
