Electrical Diagrams

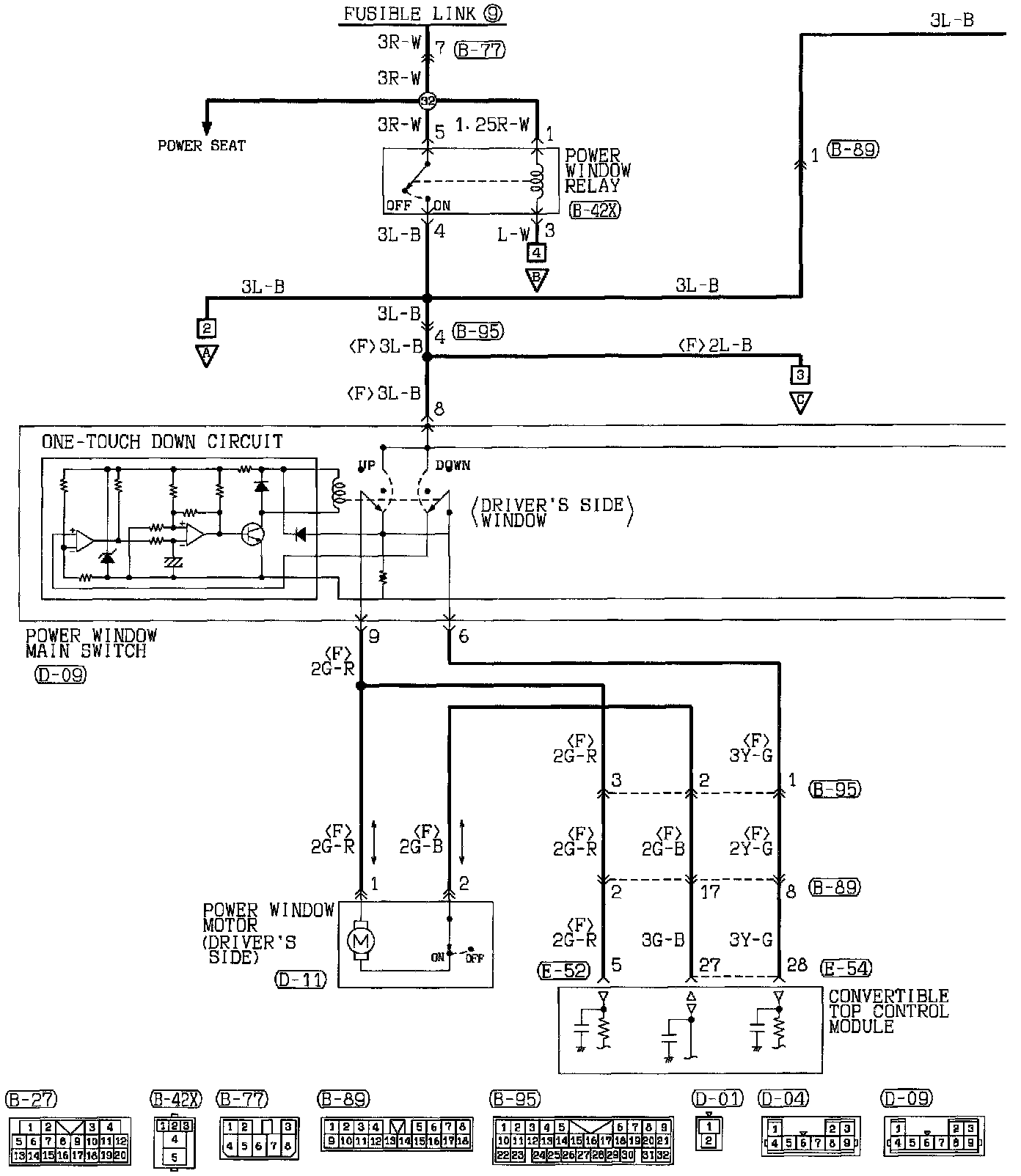

Power Windows (Part 1 Of 4):

Convertible Top Control Module
Power Window Main Switch
Power Window Relay
Power Window Motor (Driver's Side)

Power Windows (Part 2 Of 4):

Convertible Top Control Module
Power Window Main Switch
Power Window Motor (Passenger's Side)
Power Window Sub Switch

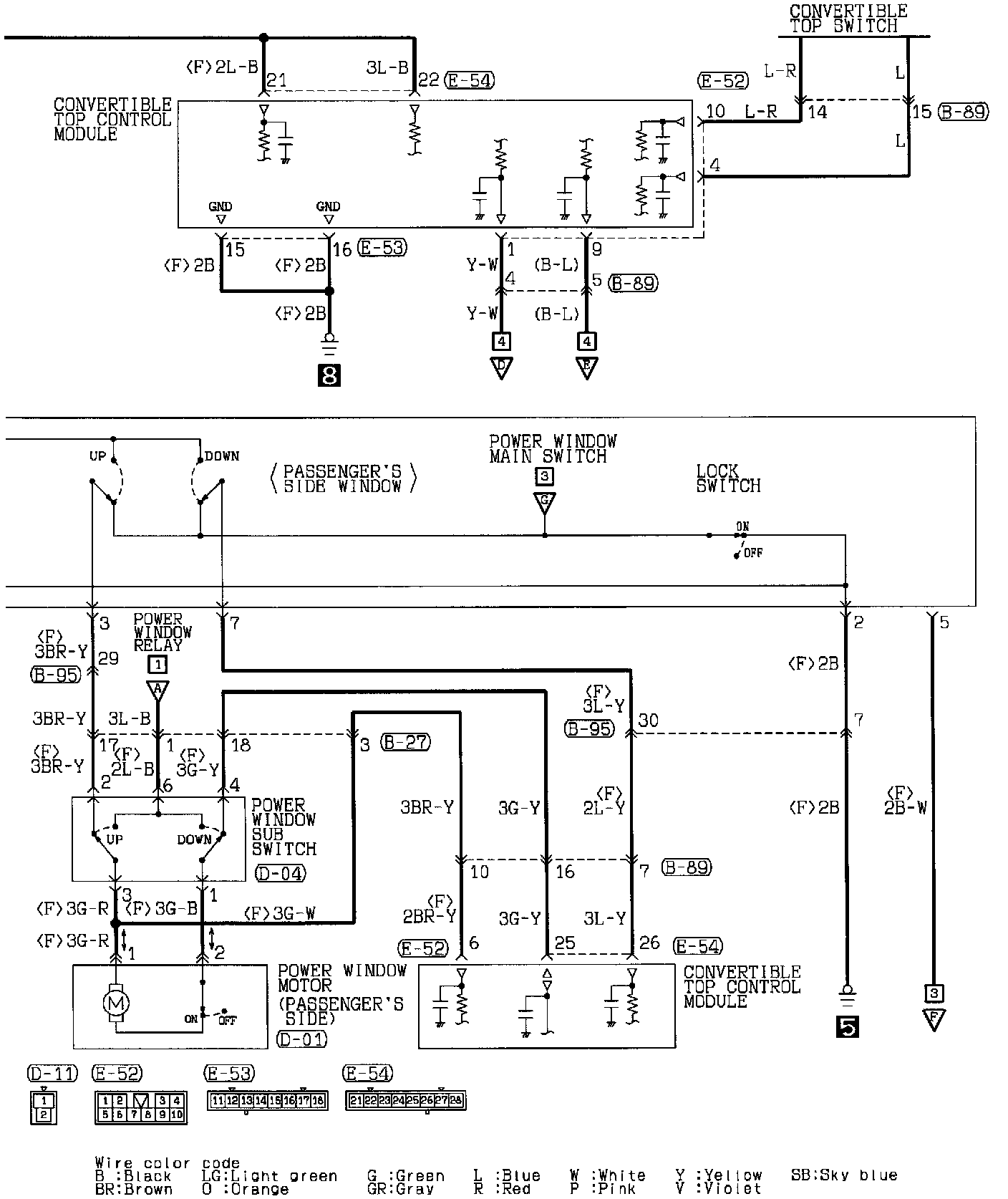

Power Windows (Part 3 Of 4):

Convertible Top Control Module
Power Window Main Switch
Power Window Motor (Quarter: Left & Right Side)

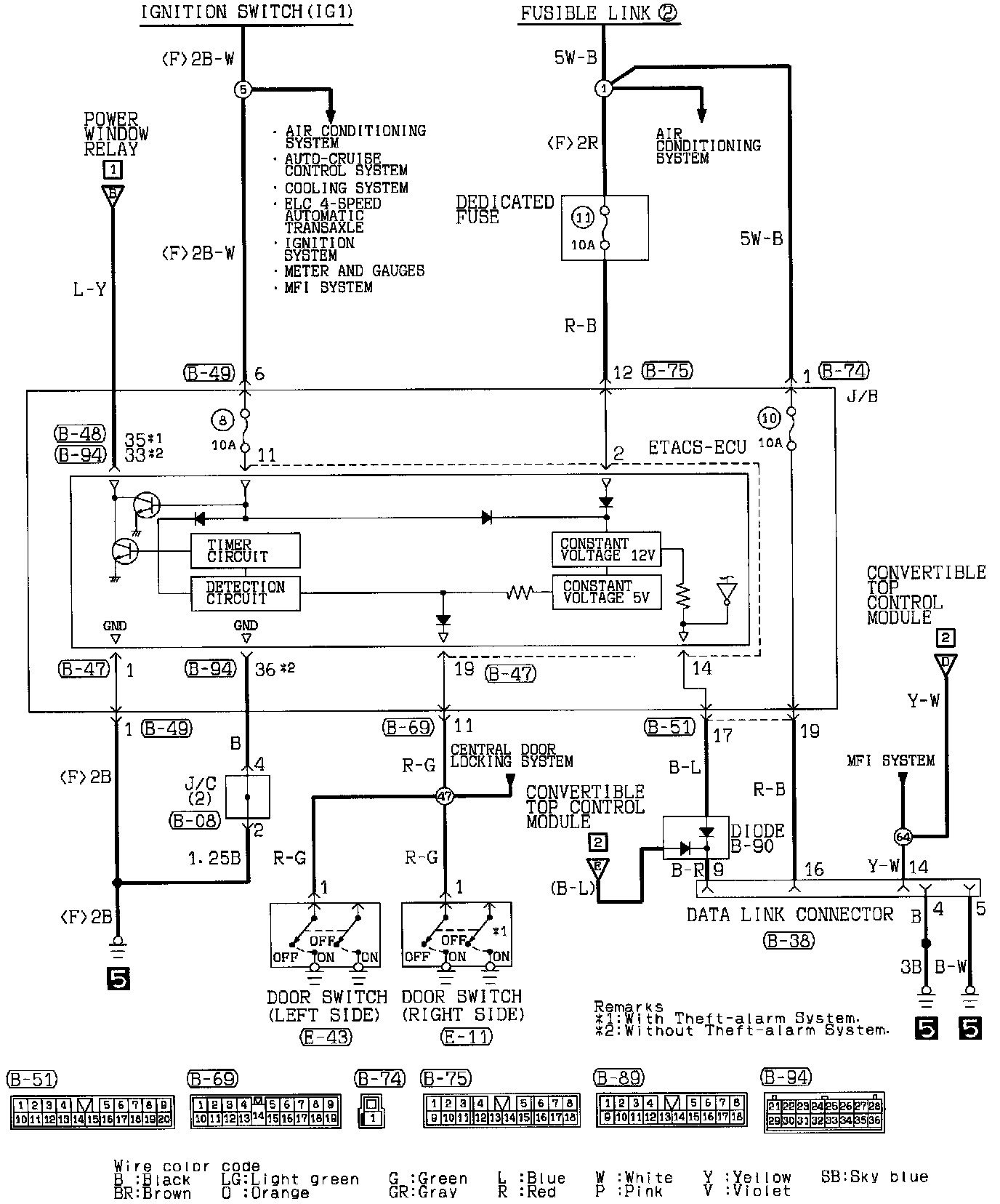

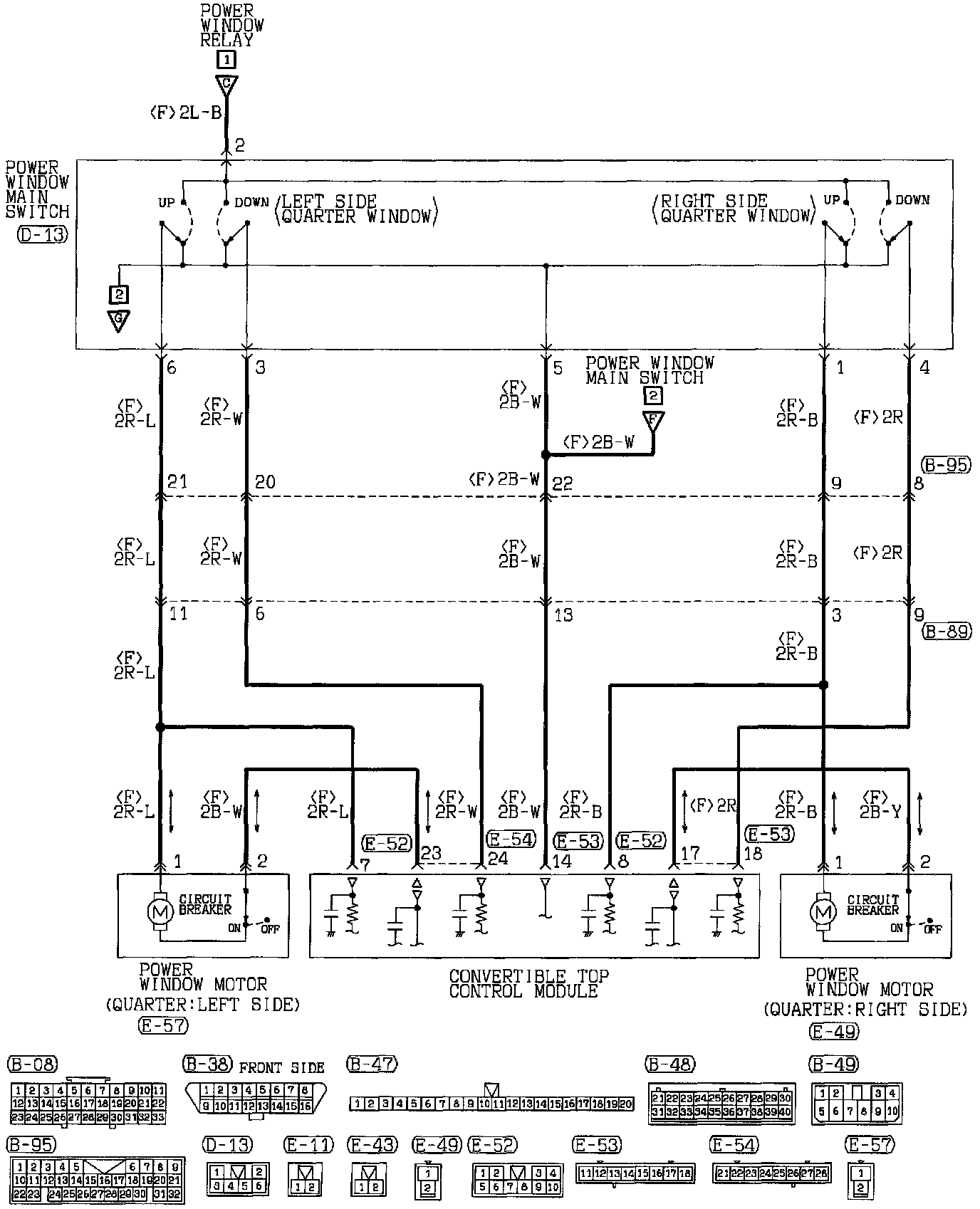

Power Windows (Part 4 Of 4):

Data Link Connector
Dedicated Fuse
Diode
Door Switch (Left & Right Side)
J/B
- ETACS-ECU
J/C (2)
