Transfer Shaft






DISASSEMBLY AND REASSEMBLY
DISASSEMBLY SERVICE POINT

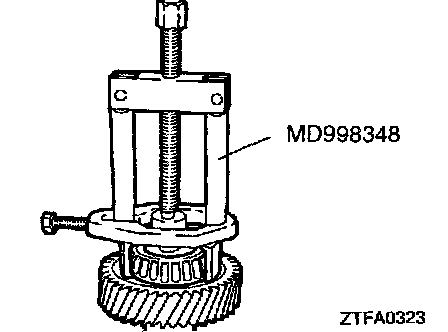

TAPER ROLLER BEARING REMOVAL

REASSEMBLY SERVICE POINTS

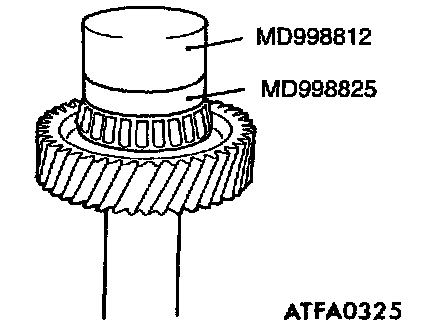

>A< TAPER ROLLER BEARING INSTALLATION

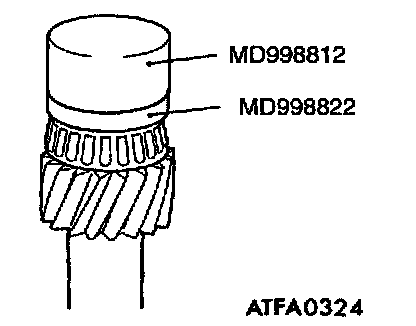

>B< TAPER ROLLER BEARING INSTALLATION
