Fuel Gauge Sender: Service and Repair

FUEL GAUGE UNIT AND PUMP ASSEMBLY REPLACEMENT




1. Remove the rear seat cushion.

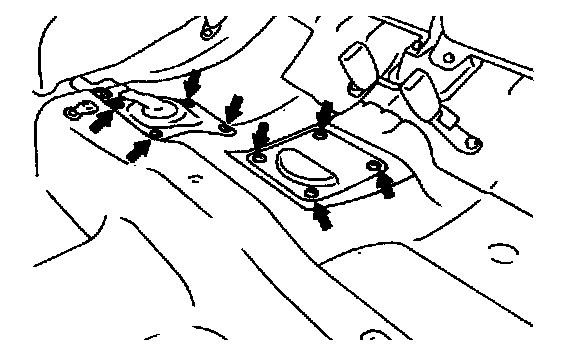

2. Remove the protector.

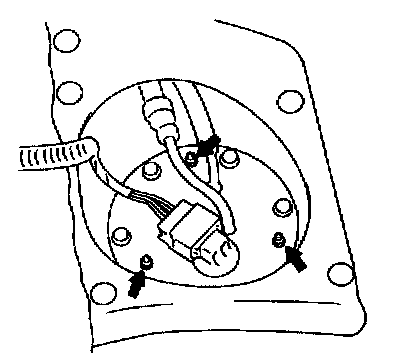

3. Disconnect the hoses and connectors to remove the fuel pump assembly or fuel gauge unit.
4. Align the packing positioning projections with the holes in the fuel pump assembly.
