Fuel Tank: Service and Repair

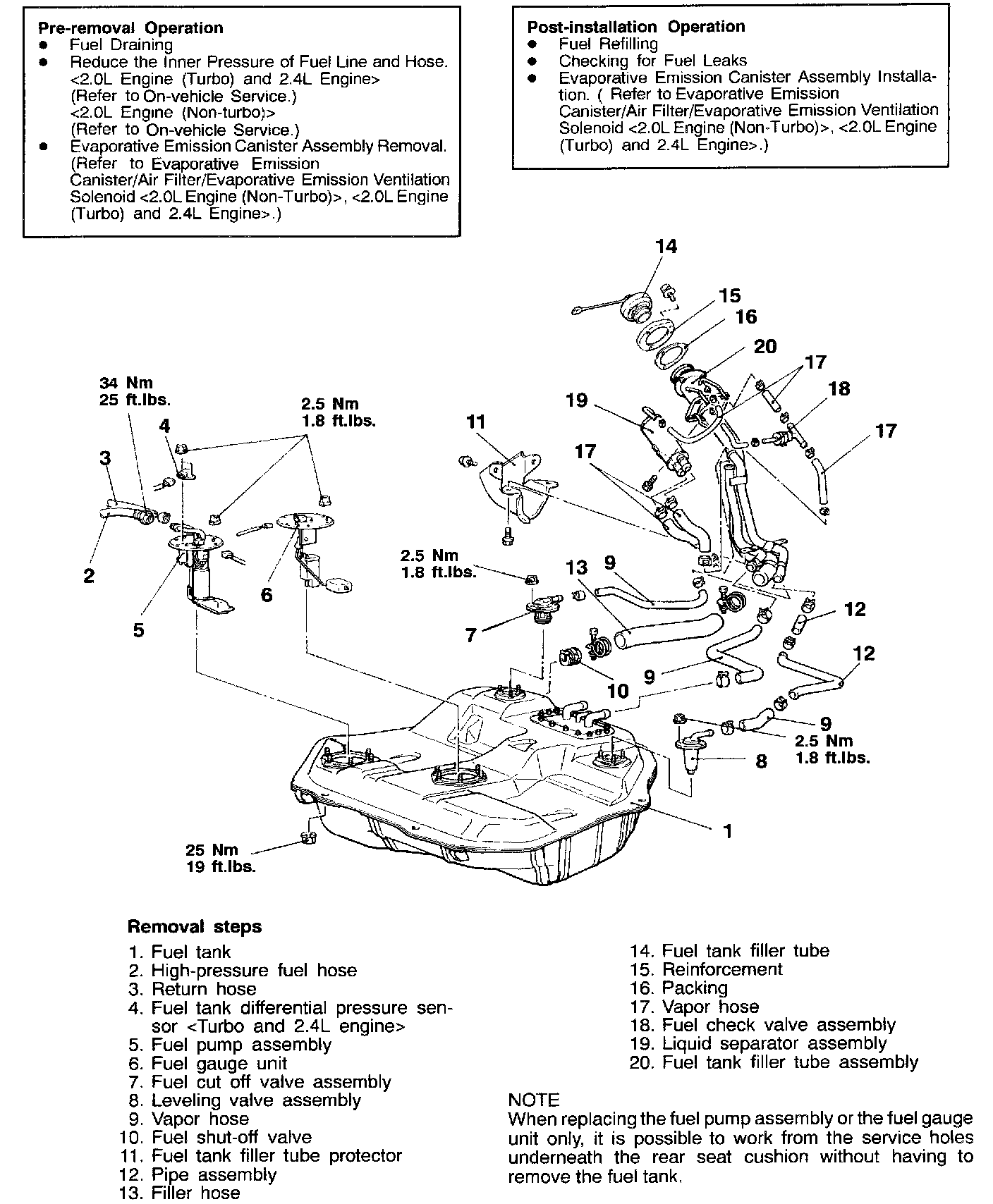

COMPONENTS
REMOVAL STEPS
1. Fuel tank
2. High-pressure fuel hose
3. Return hose
4. Fuel tank differential pressure sensor
5. Fuel pump assembly
6. Fuel gauge unit
7. Fuel cut off valve assembly
8. Leveling valve assembly
9. Vapor hose
10. Fuel shut-off valve
11. Fuel tank filler tube protector
12. Pipe assembly
13. Filler hose
14. Fuel tank filler tube
15. Reinforcement
16. Packing
17. Vapor hose
18. Fuel check valve assembly
19. Liquid separator assembly
20. Fuel tank filler tube assembly
INSTALLATION STEPS
Installation is in the reverse order of Removal.
1. Fuel tank
2. High-pressure fuel hose
3. Return hose
4. Fuel tank differential pressure sensor
CAUTION: When removing or installing the sensor, take care not to damage sealing.
5. Fuel pump assembly
6. Fuel gauge unit
7. Fuel cut off valve assembly
8. Leveling valve assembly
9. Vapor hose
10. Fuel shut-off valve
11. Fuel tank filler tube protector
12. Pipe assembly
13. Filler hose
14. Fuel tank filler tube
15. Reinforcement
16. Packing
17. Vapor hose
18. Fuel check valve assembly
19. Liquid separator assembly
20. Fuel tank filler tube assembly
