System Diagram

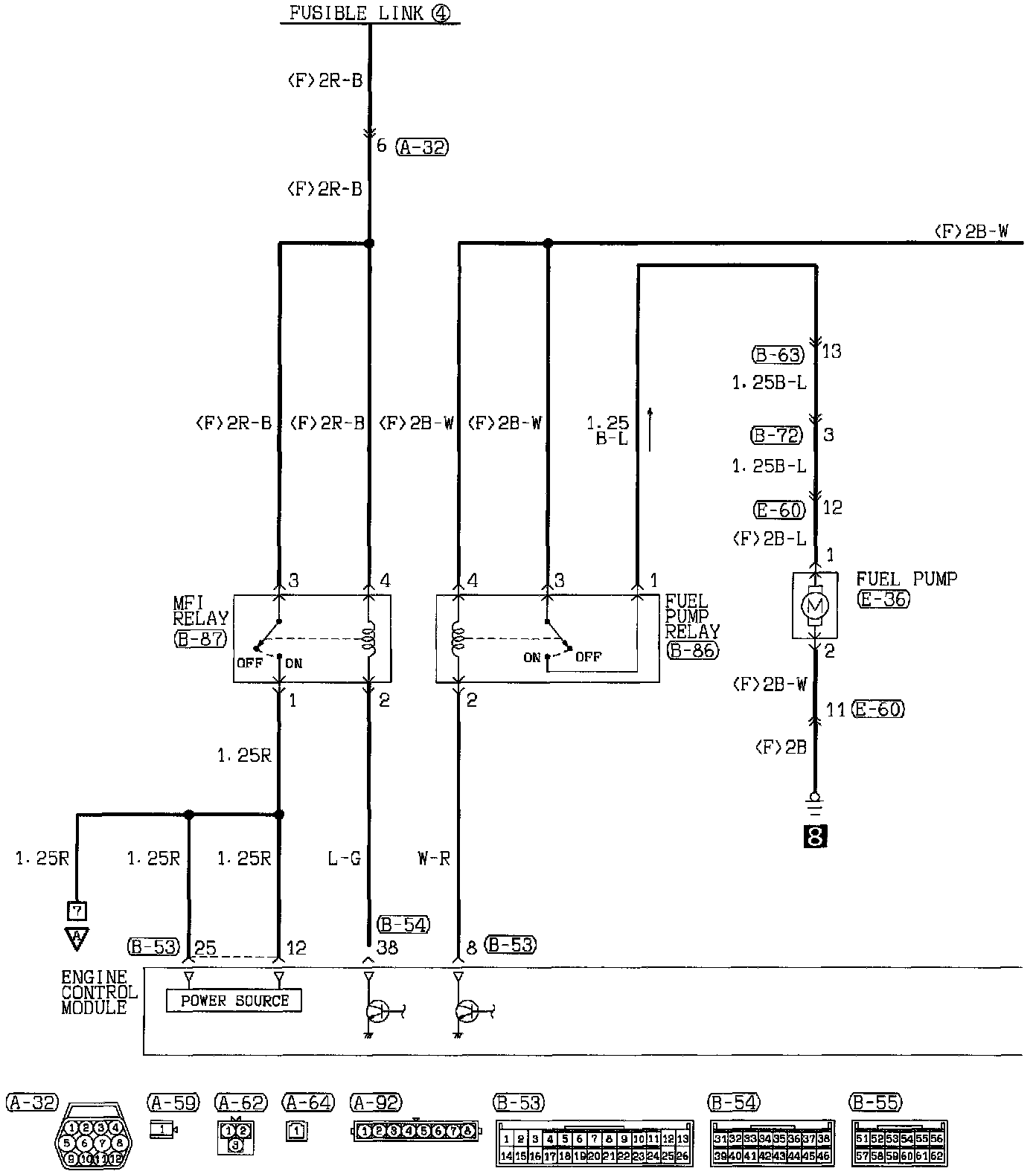

MFI System (Part 1 Of 8):

Engine Control Module
- Power Source
Fuel Pump
Fuel Pump Relay
MFI Relay

MFI System (Part 2 Of 8):

Capacitor
Engine Control Module
Ignition Coil
Ignition Power Transistor
- TACHO

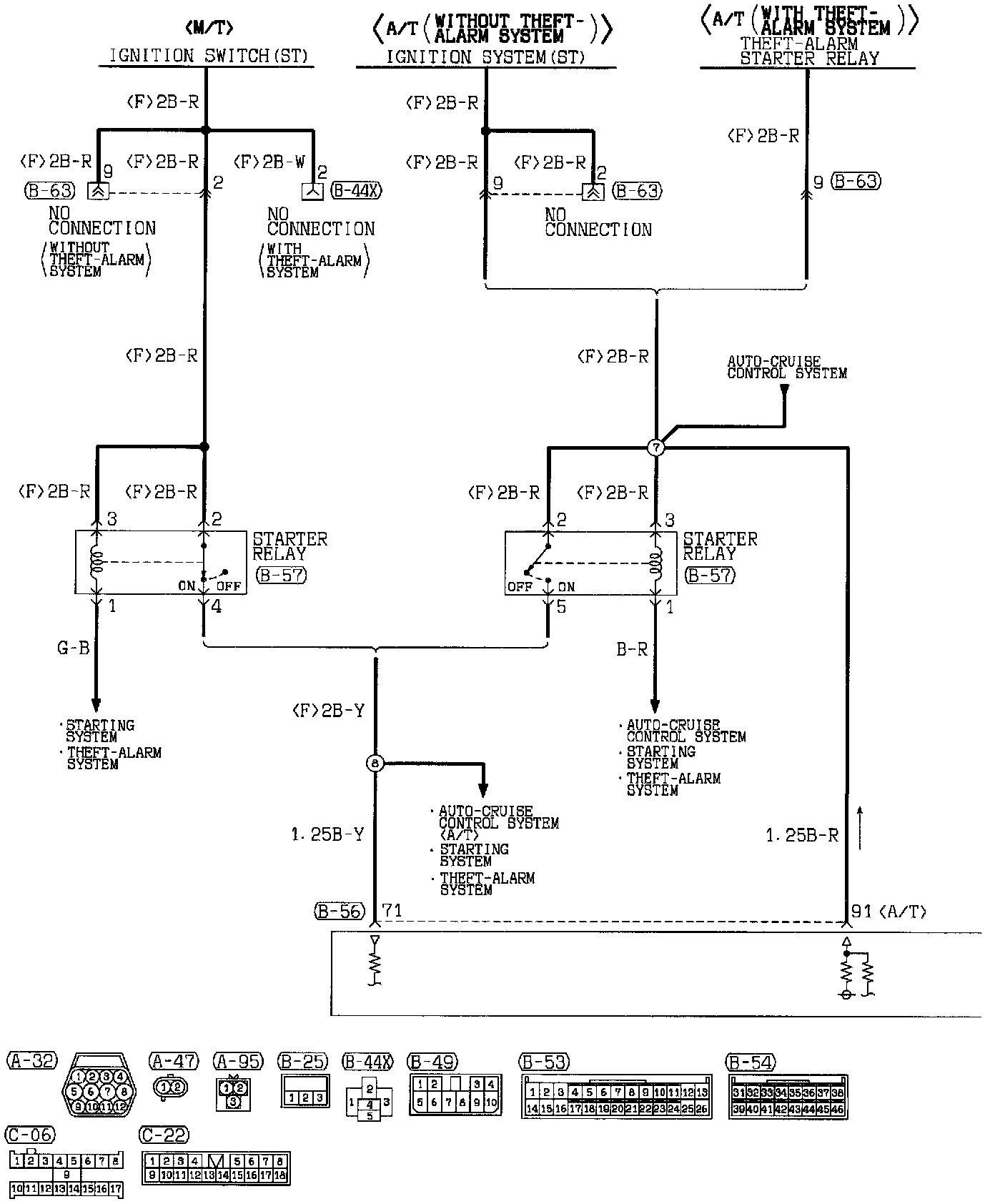

MFI System (Part 3 Of 8):

Engine Control Module
Starter Relay

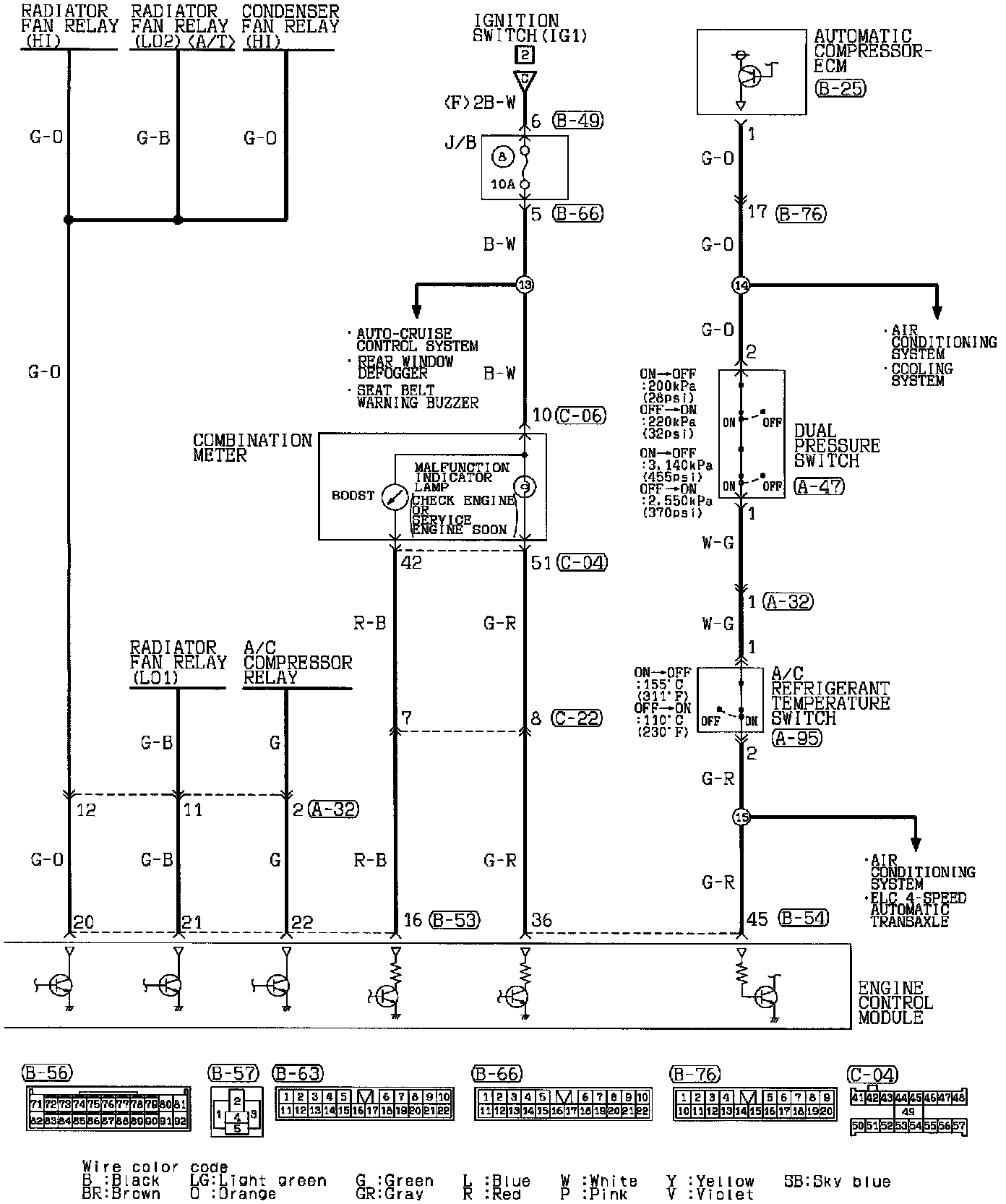

MFI System (Part 4 Of 8):

A/C Refrigerant Temperature Switch
Automatic Compressor-ECM
Combination Meter
Dual Pressure Switch
Engine Control Module
J/B

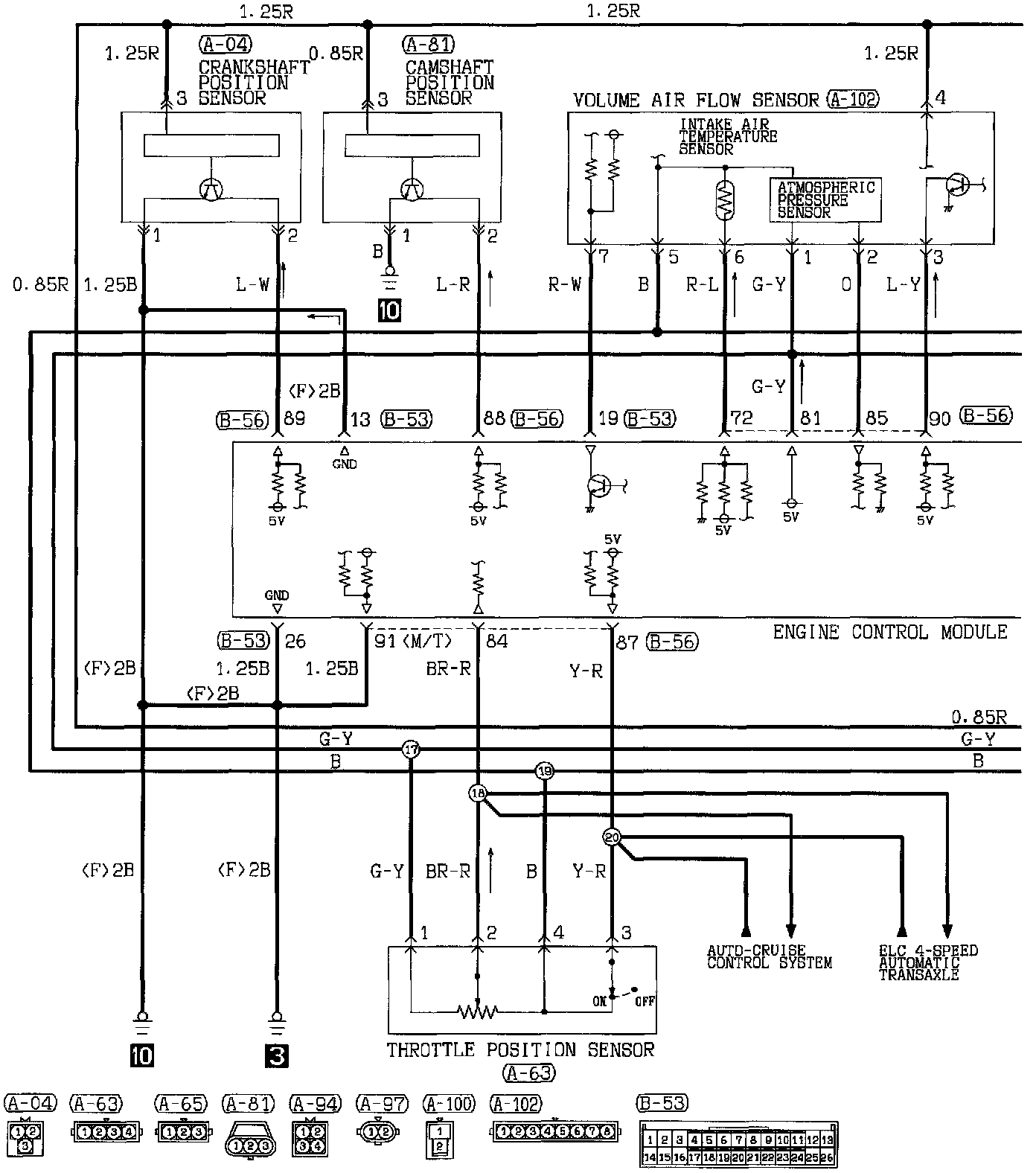

MFI System (Part 5 Of 8):

Camshaft Position Sensor
Crankshaft Position Sensor
Engine Control Module
Throttle Position Sensor
Volume Air Flow Sensor
- Atmospheric Pressure Sensor

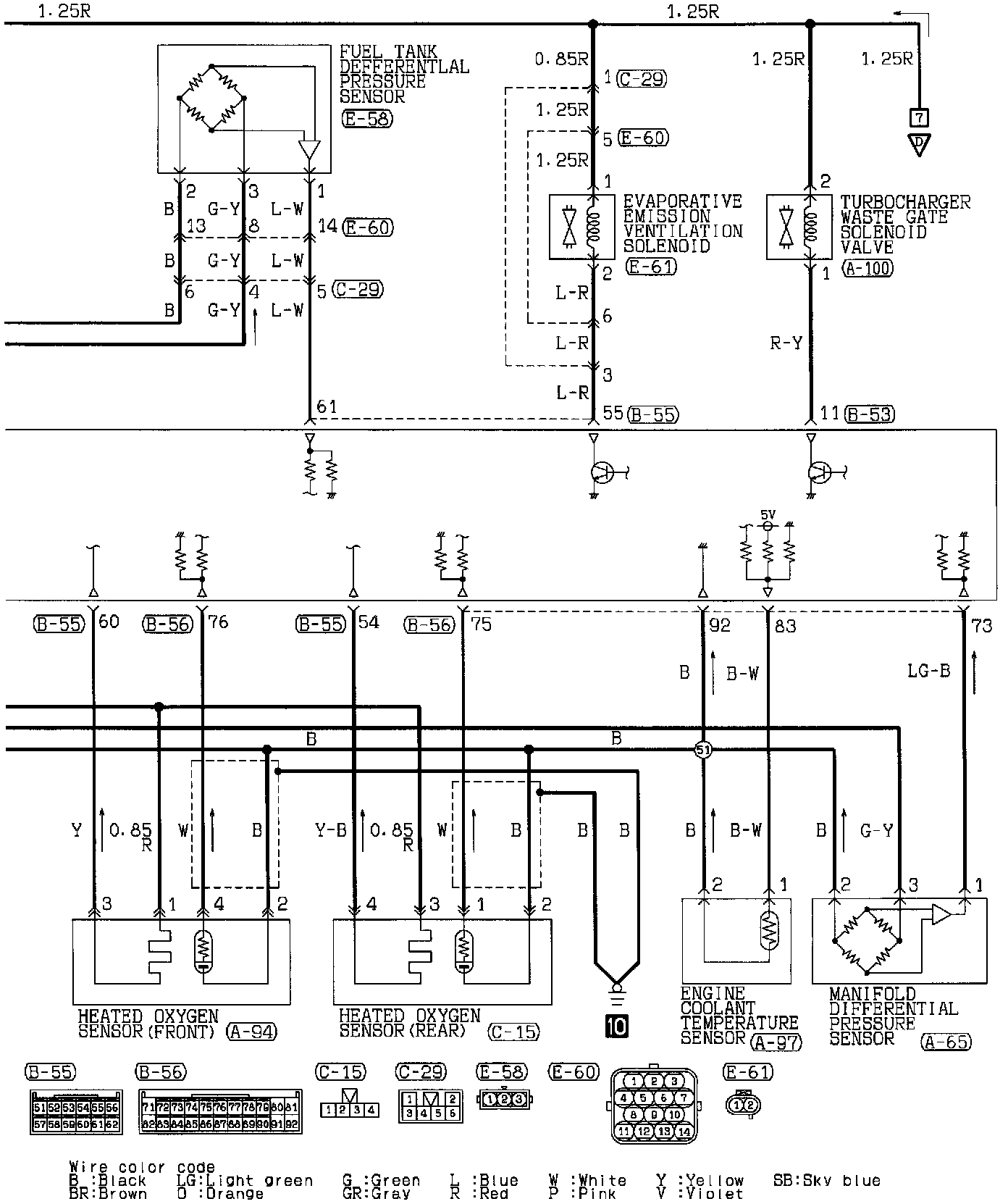

MFI System (Part 6 Of 8):

Engine Control Module
Engine Coolant Temperature Sensor
Heated Oxygen Sensor (Front and Rear)
Manifold Differential Pressure Sensor
Evaporative Emission Ventilation Solenoid
Fuel Tank Differential Pressure Sensor
Turbocharger Waste Gate Solenoid Valve

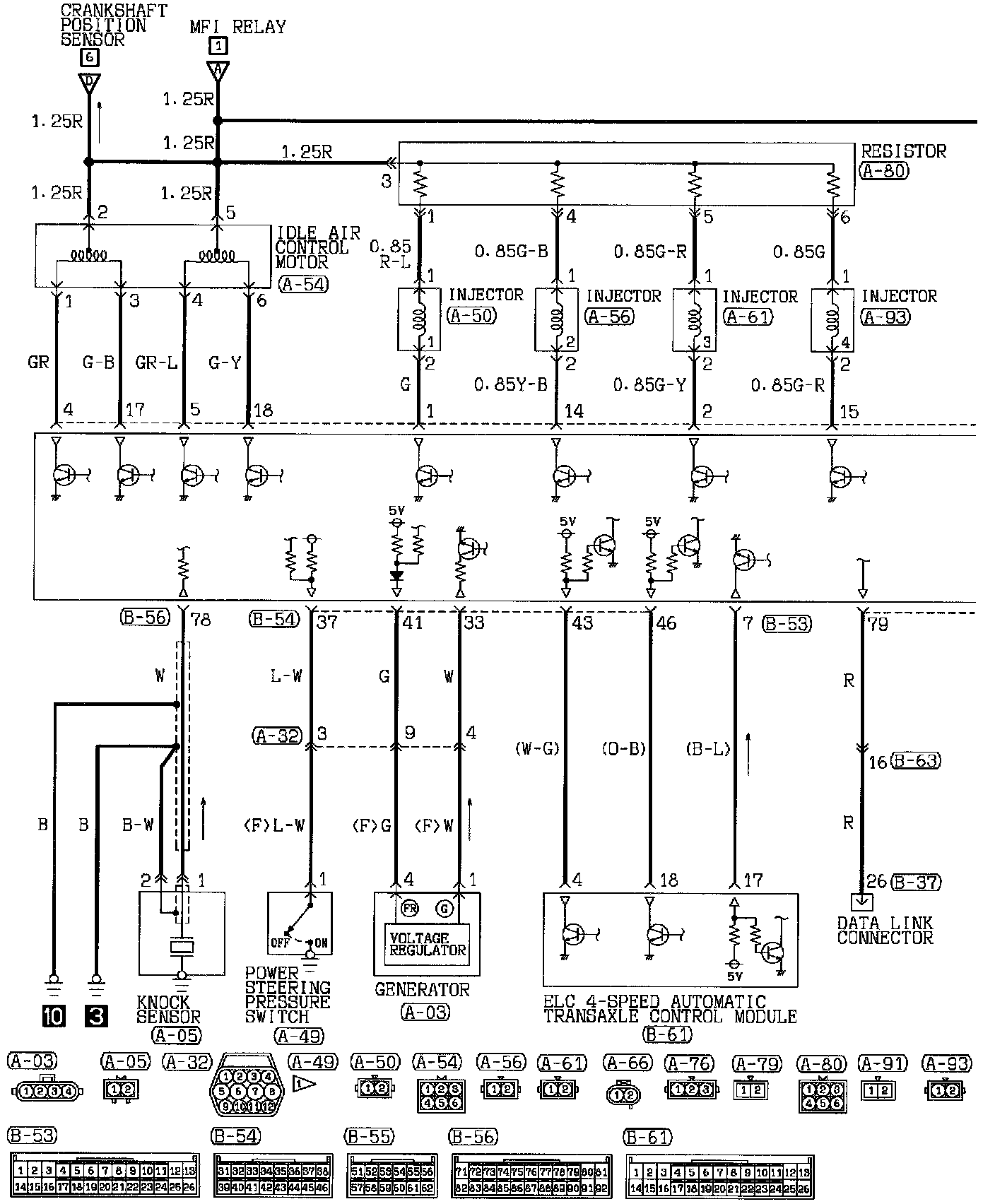

MFI System (Part 7 Of 8):

ELC 4-Speed Automatic Transaxle Control Module
Engine Control Module
Fuel Injectors
Generator
- Voltage Regulator
Idle Air Control Motor
Knock Sensor
Power Steering Pressure Switch
Resistor

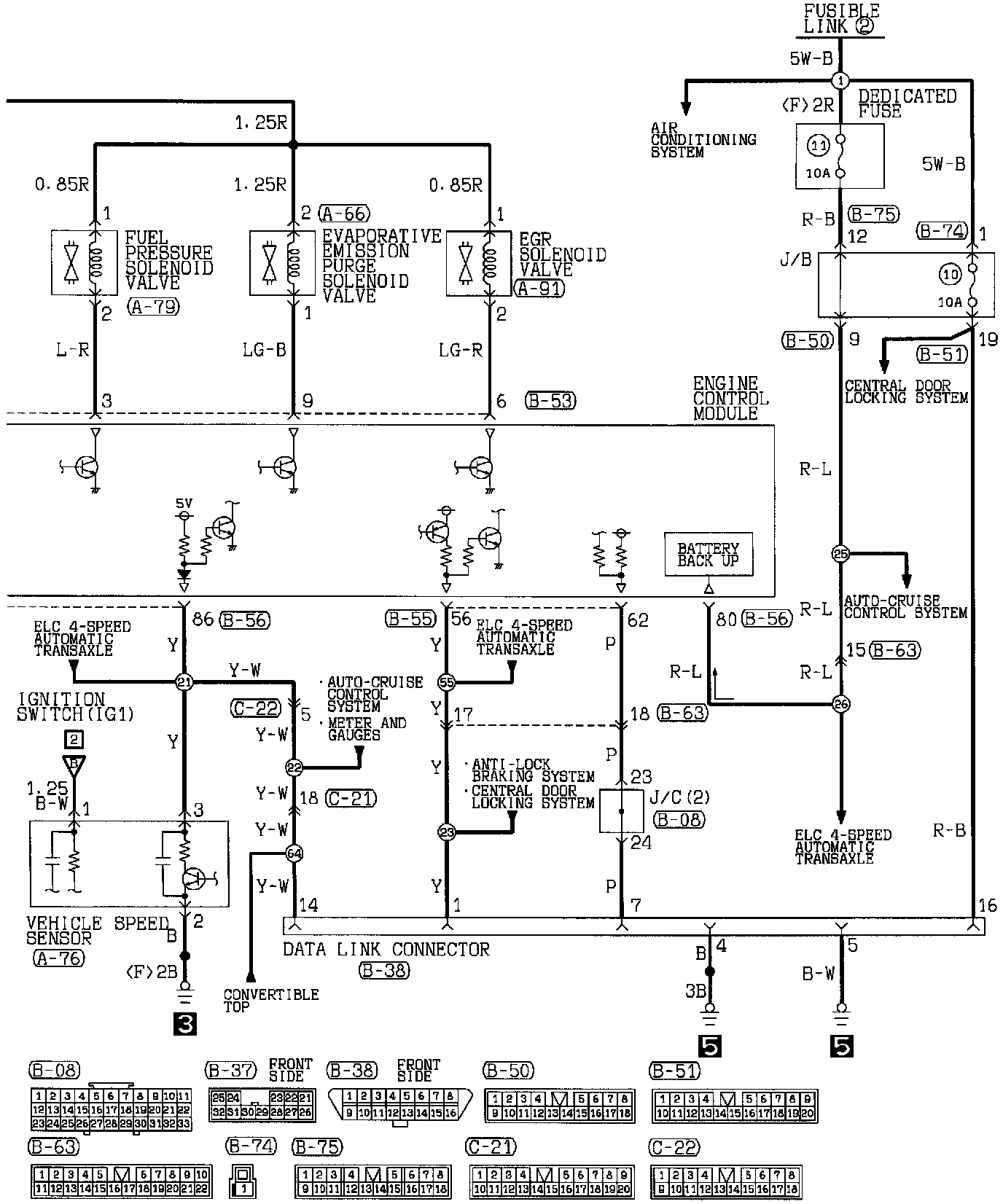

MFI System (Part 8 Of 8):

Data Link Connector
Dedicated Fuse
EGR Solenoid Valve
Engine Control Module
- Battery Back Up
Evaporative Emission Purge Solenoid Valve
Fuel Pressure Solenoid Valve
J/B
J/C (2)
Vehicle Speed Sensor
